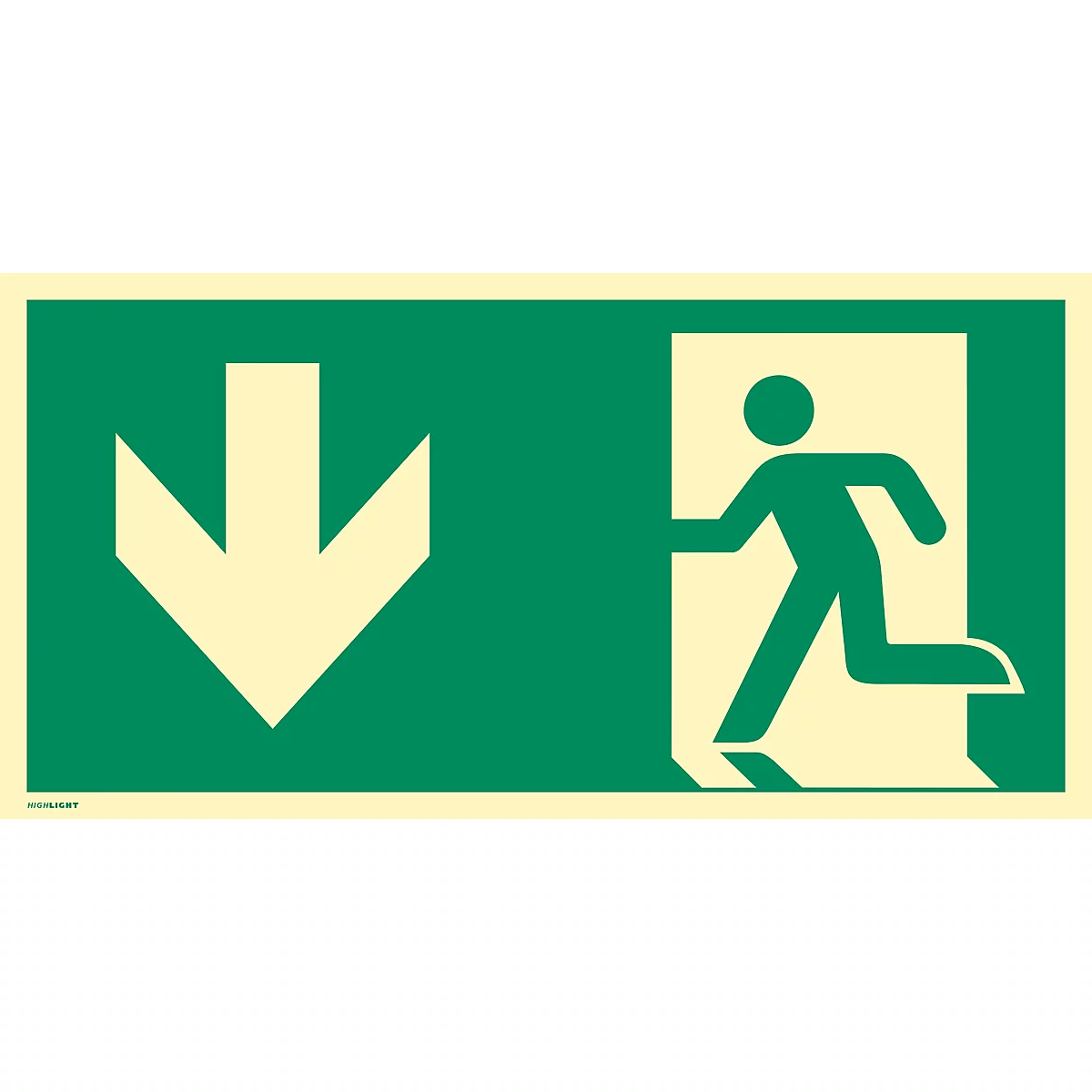

moedel escape route sign 'Emergency exit left arrow down', according to ISO 7010 E001, self-adhesive film, photoluminescent, W 297 x H 148 mm

The 'Emergency exit left arrow down' escape route sign ensures clear and reliable marking of escape routes. The combination of directional arrow and emergency exit symbol in accordance with ISO 7010 makes it easier to find your way quickly, especially in multi-storey buildings or when changing floors. The photoluminescent film ensures that the escape sign remains clearly visible even in the dark or in the event of a power failure.

Thanks to the self-adhesive backing, the sign can be easily attached to walls or doors. The high-quality finish without a light edge between the symbols complies with the current standards for escape and rescue route signs.

Important details:

• Combination sign without light edge
• Symbols: 'Down arrow' and 'Emergency exit left' (E001)
• Safety message from the recipient's point of view:
  • Go downwards (indicate floor change)
  • Alternative use: Straight ahead / doorway
• Material: Self-adhesive film
• Format: W 297 x H 148 mm
• Luminance: 160 mcd/m²
• Complies with luminance class C according to DIN 67510 / ISO 17398
• Standards:
  • DIN EN ISO 7010 (E001) → Standard for emergency exit signage
  • DIN ISO 3864 → Safety colors & signs
  • DIN ISO 16069 → Escape route marking
  • ASR A1.3 (2013) → Technical rules for workplaces

Places of use:

• Escape and rescue routes in multi-storey buildings
• Stairwells & emergency exits in industrial halls, offices, shopping centers
• Buildings with several floors or complex escape route structures
