Product Safety Information

Workbench TYPE 8152-1, W 750 x D 700 x H 840 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not exceed the maximum surface load of 1,250 kg.;Do not overload the drawer, observe load capacity 100 kg.;Close the doors properly to avoid the risk of crushing and injury.;Protect the product from moisture to prevent material damage.;Use the central locking system to prevent unauthorised access.;Avoid the risk of falling over and crushing when moving the product.;The installation and safety instructions must be read and followed before use.;Avoid incorrect use, which can lead to instability.;Ensure that the furniture is placed on a stable, level surface and use anti-slip studs when used on smooth floors.;Coatings can fade in direct sunlight.;Suitable for indoor use; do not expose to the weather.;Always wear suitable protective equipment to ensure safe use of the workbench.;Make sure that the work surface is clean and free of objects that could cause it to fall.;The integrated anti-slip studs ensure a stable stand. Check these regularly.;Ensure that the worktop is properly installed to ensure stability.;Use safe and suitable tools when installing the product to avoid injury.;Keep the product clean to minimise the risk of slipping, especially from oily or dirty surfaces.

Article numbers

155076 155077 155078 155079 155080

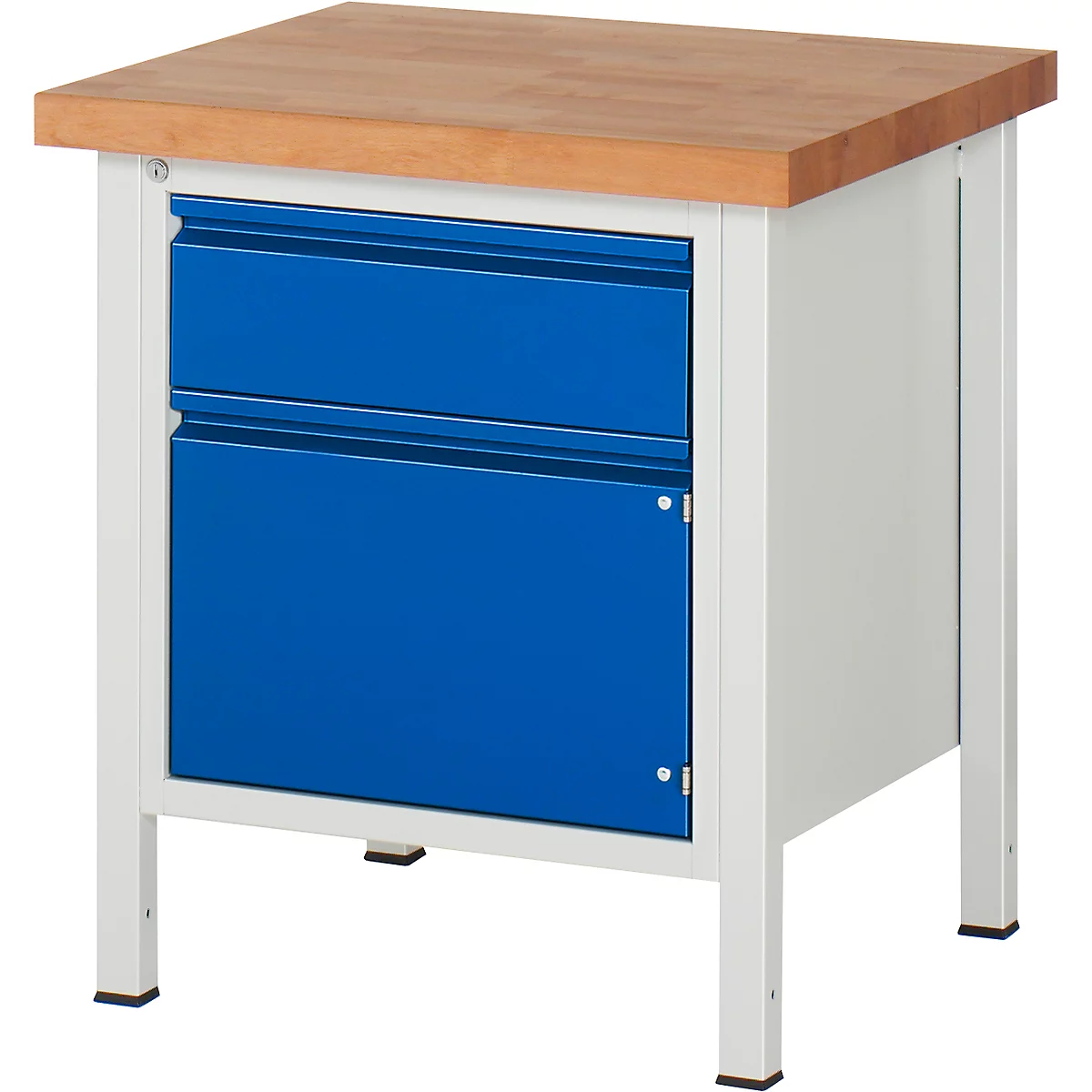

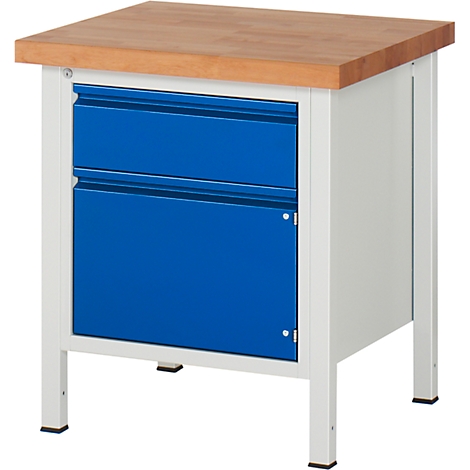

Workbench TYPE 8152-1, W 750 x D 700 x H 840 mm

Item number: 155076

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

1 drawer, 180 mm, 1 door, 360 mm

Worktop: solid beech, 40 mm, surface sanded and oiled
Frame: welded construction (depth 650 mm) with frame feet made of profiled steel tubing (45 x 45 x 2 mm) with end element incl. anti-slip nap
Support frame (4-sided) under the worktop
Handle strips completely integrated
Drawers: Load capacity 100 kg, pull-out approx. 90 %, inside W 490 x D 560 mm
Doors: opening width 180°, self-closing spring hinges
Central locking: lock with 2 keys
Paintwork: environmentally friendly powder coating in light grey (RAL 7035) and gentian blue (RAL 5010)
surface load: max. 1.250 kg
Delivery: completely assembled

Advantages for you

Timeless, natural look and optimal suitability for gentle processing of workpieces due to the processing of high-quality beech wood.

Space-saving and compact: With a width of 750 mm optimally suitable for smaller workshops

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Beech wood
Board width [mm] 750
Body colour light grey RAL 7035
Body surface powder-coated
Central locking yes
Color gentian blue RAL 5010/light grey RAL 7035
Color of the facade gentian blue RAL 5010
Delivery Mounted
Depth of the substructure (mm) 650
Depth [mm] 700
Dimensions W x D x H [mm] 750 x 700 x 840
Door surface Powder coated
Door type -
Drawer depth inside (mm) 560
External height of the drawer (mm) 180
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height of the cabinet section (mm) 360
Height [mm] 840
height-adjustable frame(s) No
Inside height of drawer (mm) 165
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Steel, powder coated
Material body Steel
Material doors Steel
Material drawers Steel
Material frame Steel
Mobile No
Number of cabinet doors (pices) 1
Number of compartments [pcs.] 1
Number of compartments [pcs.] 1 closed
Number of door(s) 1
Number of drawer(s) 1
Number of keys [pcs.] 2
Number of locks 1
Number of shelves [pcs.] 1
Pull-out 90% partial extension
Pull-out stop no
Removable shelves no
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Shelf depth (mm) 580
Shelf load capacity [kg] 50
Shelf width (mm) 525
Structure No
Substructure width (mm) 670
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Weight [kg] 80
Width [mm] 750
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled

Download

ProductSafety_10130625.pdf

Schäfer Shop Quality and Service

only Fr. 1’122.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Board width [mm]: 750 mm

750 mm 1000 mm 1250 mm 1500 mm 2000 mm

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Workbench TYPE 8152-1

Overview of the possible item variants. For more information, click on the respective variant.

Board width [mm]

Item			Price
Workbench TYPE 8152-1, W 750 x D 700 x H 840 mm Item number: 155076			Fr. 1’122.00 Amount + - Added times

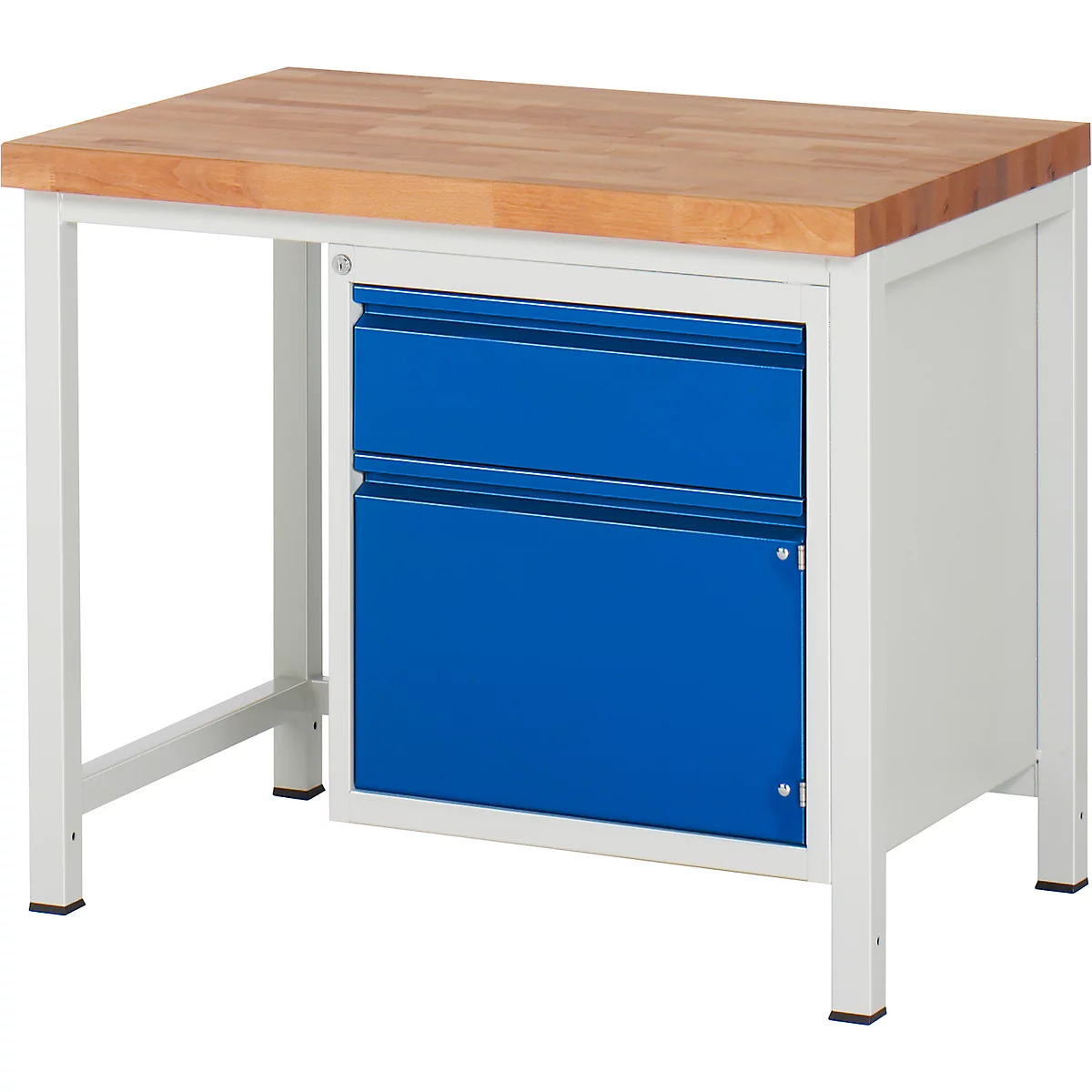

Workbench TYPE 8152-1, W 1000 x D 700 x H 840 mm Item number: 155077			Fr. 1’174.00 Amount + - Added times

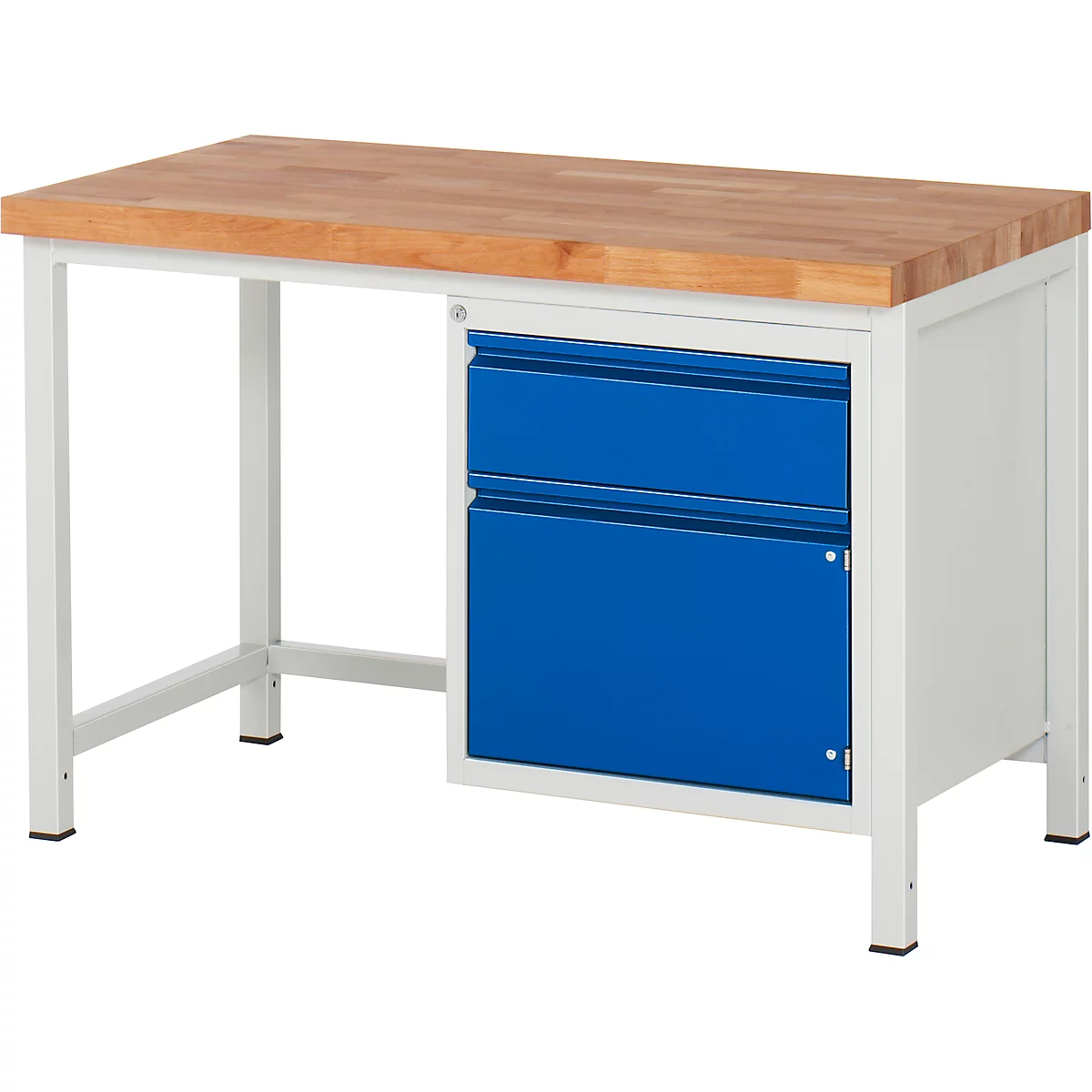

Workbench TYPE 8152-1, W 1250 x D 700 x H 840 mm Item number: 155078			Fr. 1’226.00 Amount + - Added times

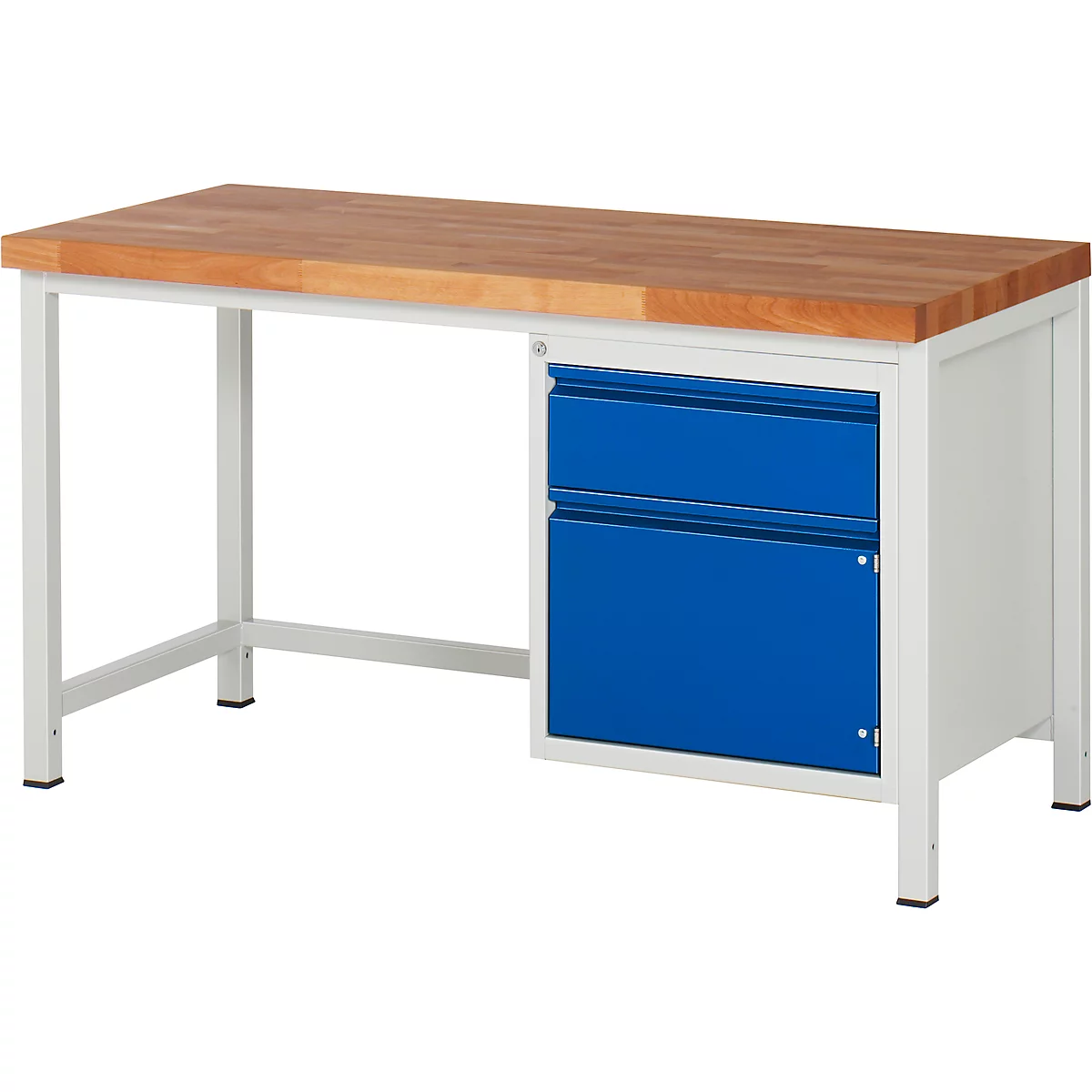

Workbench TYPE 8152-1, W 1500 x D 700 x H 840 mm Item number: 155079			Fr. 1’278.00 Amount + - Added times

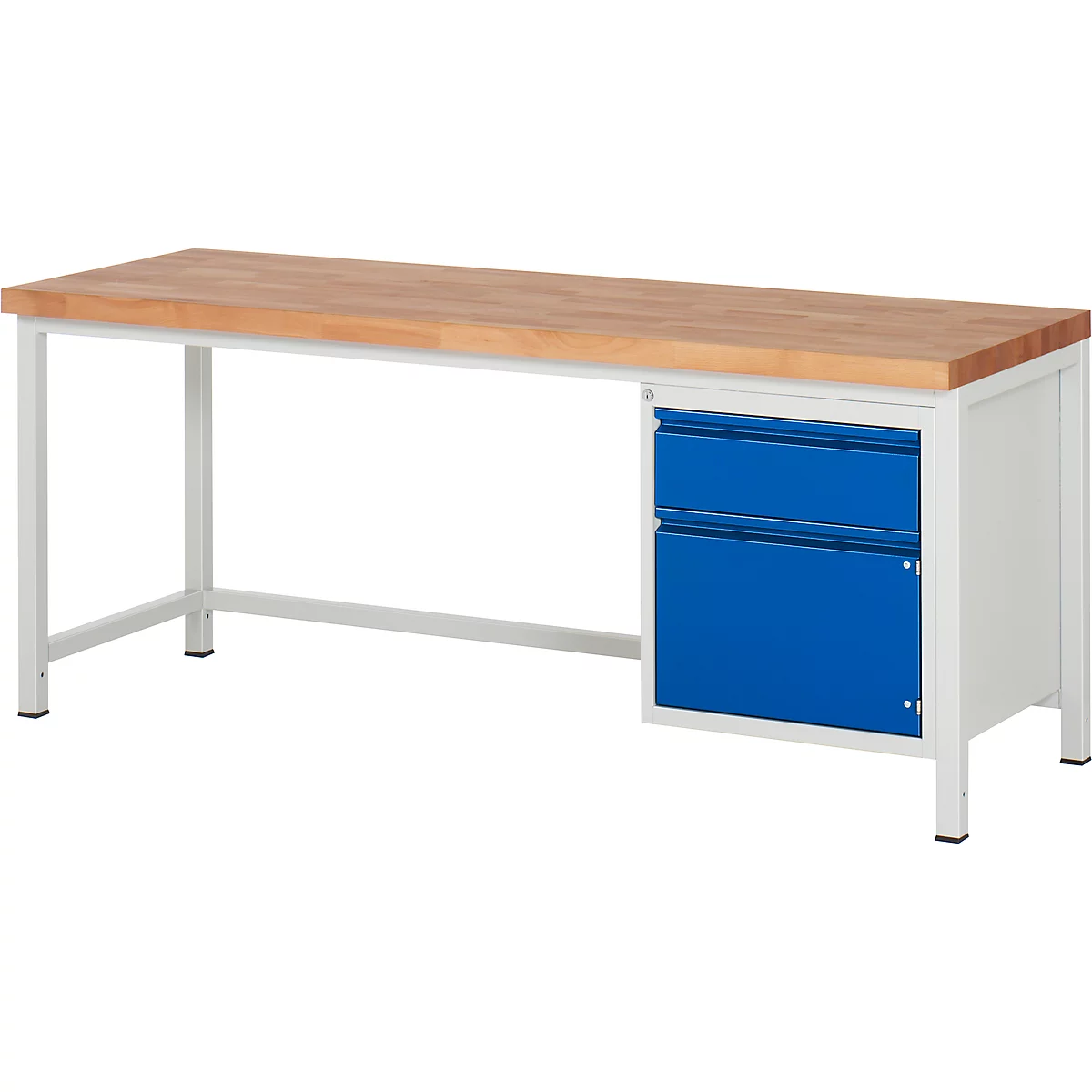

Workbench TYPE 8152-1, W 2000 x D 700 x H 840 mm Item number: 155080			Fr. 1’382.00 Amount + - Added times
No results

Accessories

Item			Price
System top modules, for workbench width 750 mm Item number: 155093			only Fr. 942.00 from Fr. 942.00 per Pcs. Go to product
Height adjustment set for work tables series 900 and 8000, working height 840 - 1040 mm Item number: 155098			only Fr. 147.00 from Fr. 147.00 per set Go to product
Set of dividers 1-4, drawer height 120-150 mm Item number: 155099			only Fr. 63.80 from Fr. 63.80 per Pcs. Go to product
Set of dividers Item number: 155103			only Fr. 89.60 from Fr. 89.60 per Pcs. Go to product
Anti-slip mat, W 490 x D 560 x H 2 mm Item number: 155104			only Fr. 26.70 from Fr. 26.70 per Pcs. Go to product
