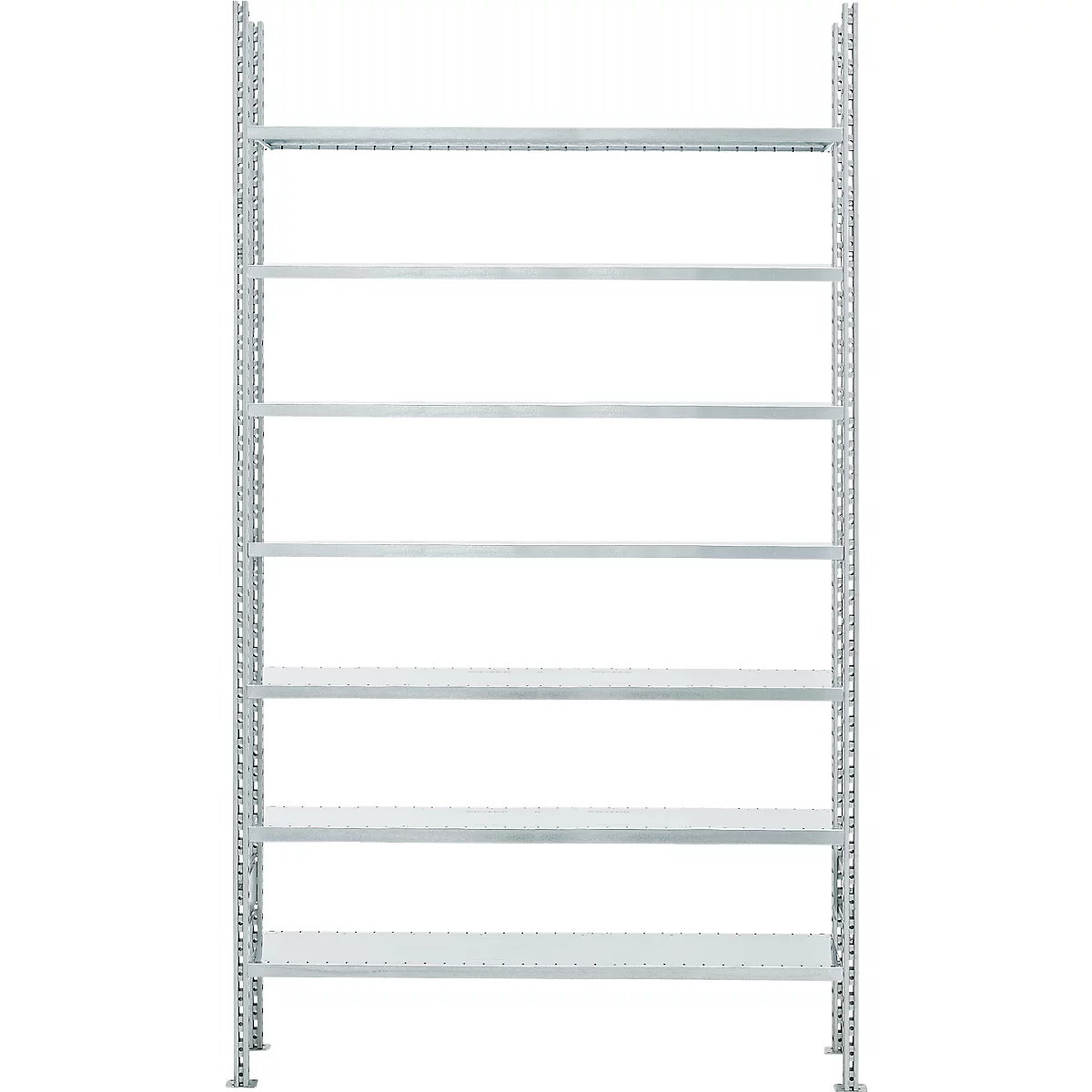

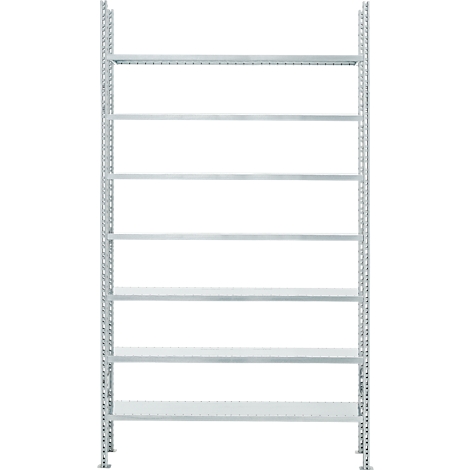

SSI Schaefer archive shelving, basic bay, 7 shelves, W 750 x D 300 mm, galvanised

2500 mm high
Ideal for archiving standard files, but also for storing other goods, as the shelves are adjustable in 25.5 mm increments. With 3 widths (750, 995 and 1285 mm) the available space can be used optimally.

• Quick, screwless assembly
• can be extended as required
• available in 3 floor widths
• single or double sided assembly
• upright frame and shelves galvanised in light grey (RAL 7035)
• upright frame with metal base plate for floor fixing
• For shelving units with a shelf depth of 300 mm, a cross bracing must be used for longitudinal stiffening at least every third shelf unit.
• 1 cross bracing is included in the scope of delivery for basic shelves (depth 300 mm)
• 600 mm deep shelves with longitudinal bracing and centre stop so that files do not slip through
• total width: basic shelves = shelf width + 60 mm
• max. load capacity per shelf: with shelf width 750 mm = 60 kg, with shelf width 995 mm = 100 kg, with shelf width 1285 mm = 150 kg
• max. load capacity per shelf bay: 2200 kg

Safety advice:

Shelves with a height/depth ratio ≥ 5 : 1 must be secured against tipping (wall or floor anchoring).
