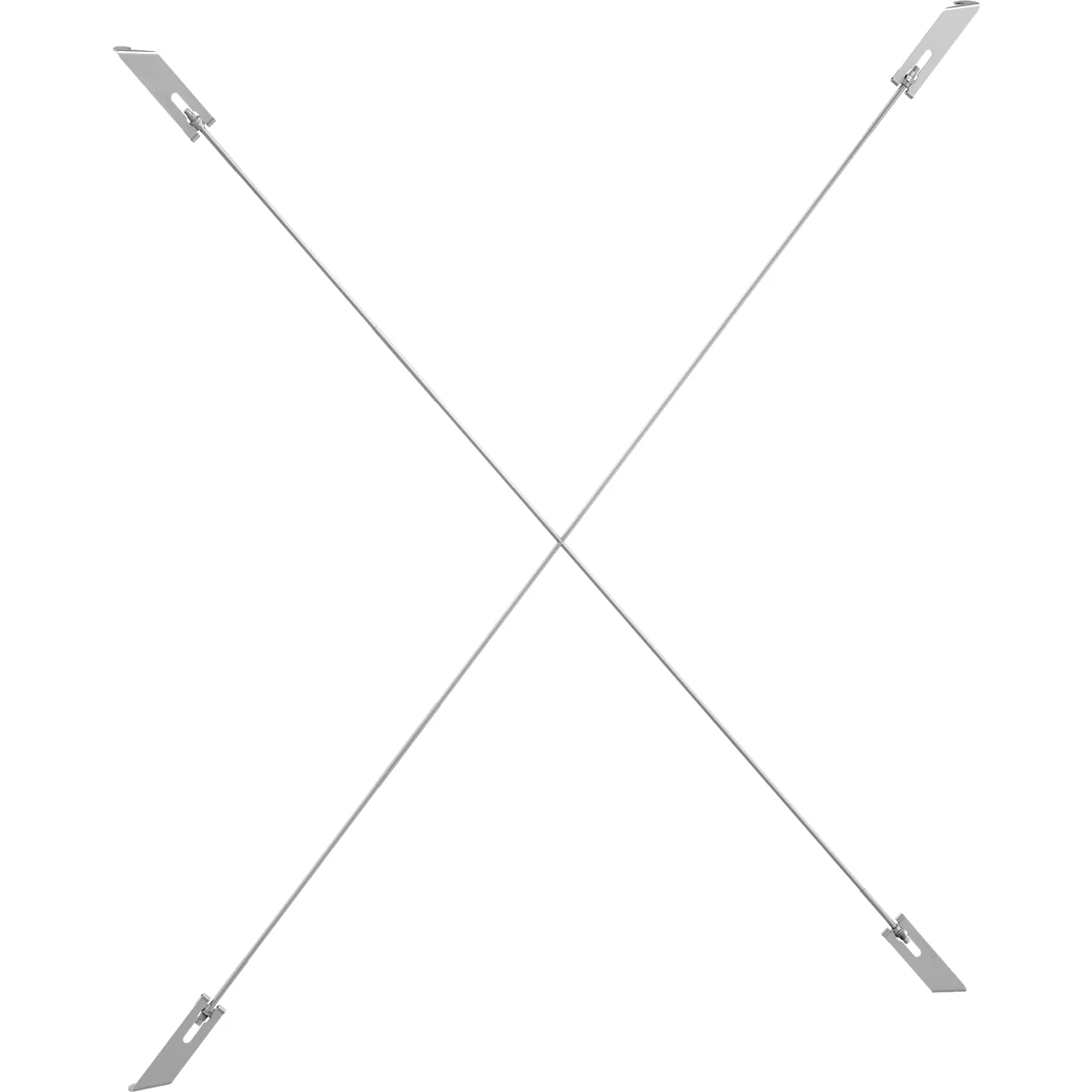

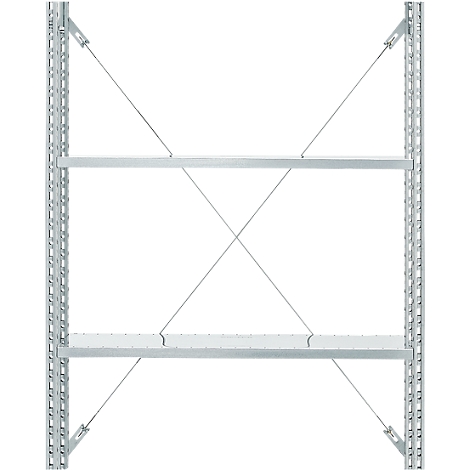

Cross bracing for shelving system R 3000, for bay width 994 mm, height 901 mm

Optimize the stability of your R3000 boltless racking with the SSI Schäfer cross brace - for maximum safety and reliable reinforcement of your storage structure.

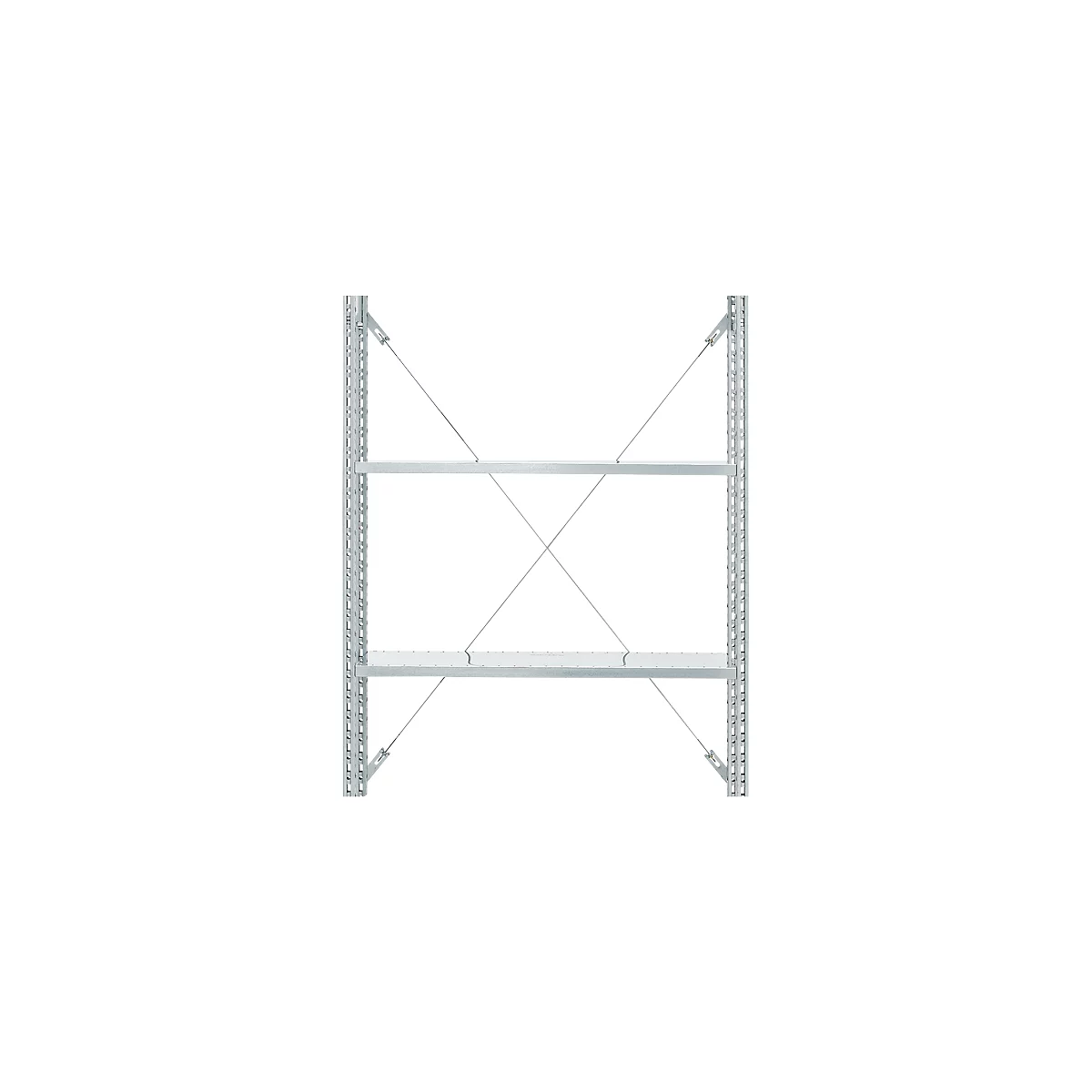

The cross brace provides the necessary stability and longitudinal reinforcement for the base rack and every third add-on rack. When purchasing a basic shelving unit, a cross brace is already included in the scope of delivery.

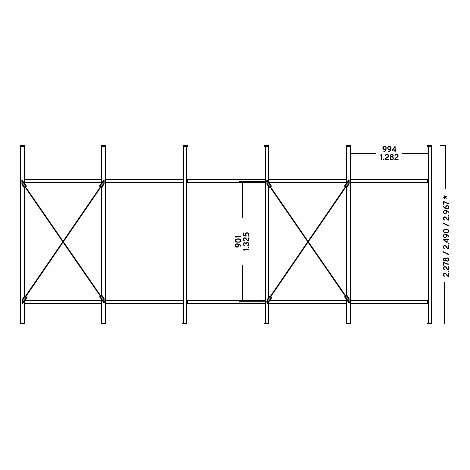

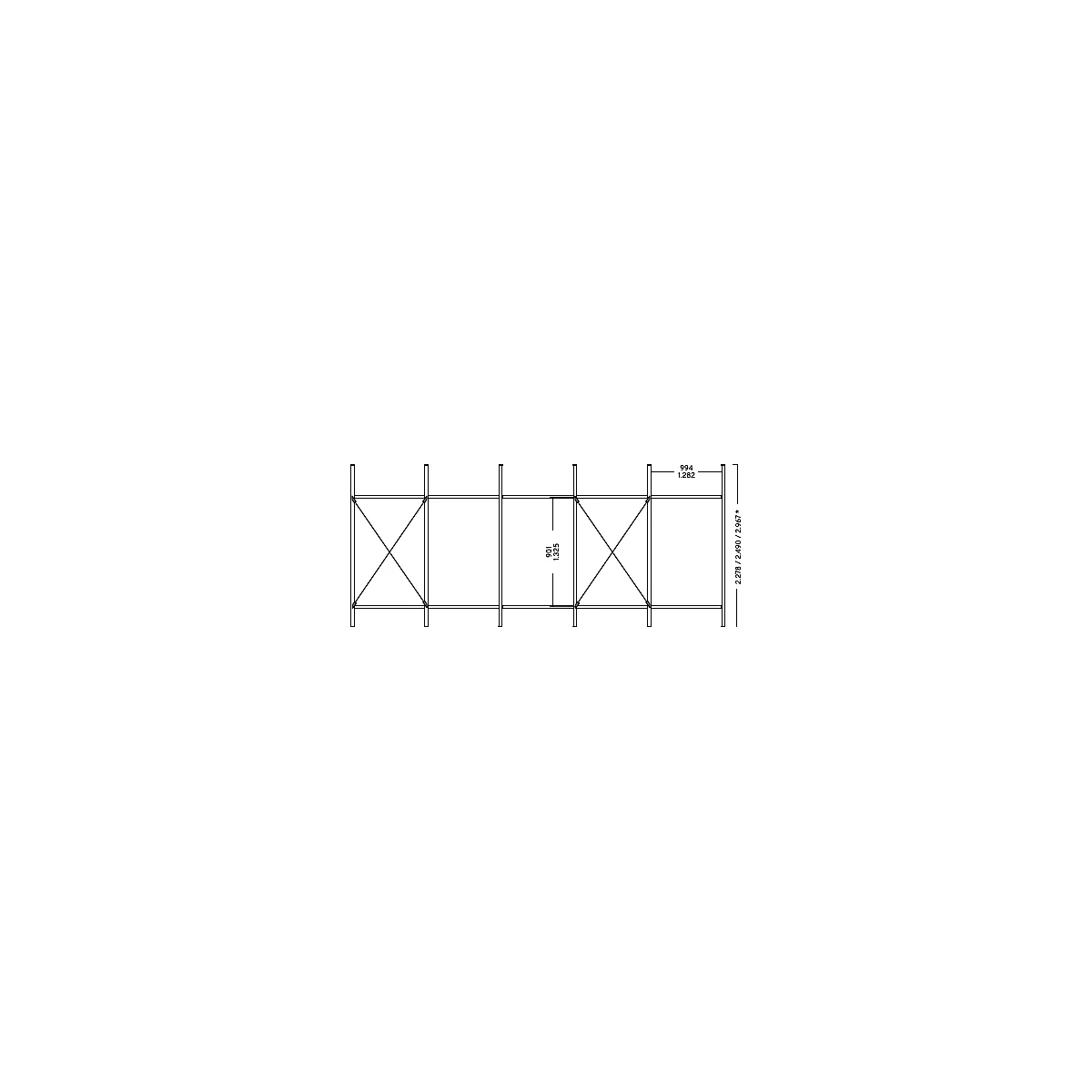

If you extend the basic bay with additional add-on bays, you will need additional cross bracing for stabilization in every third add-on bay. See the sketch attached as an image file.

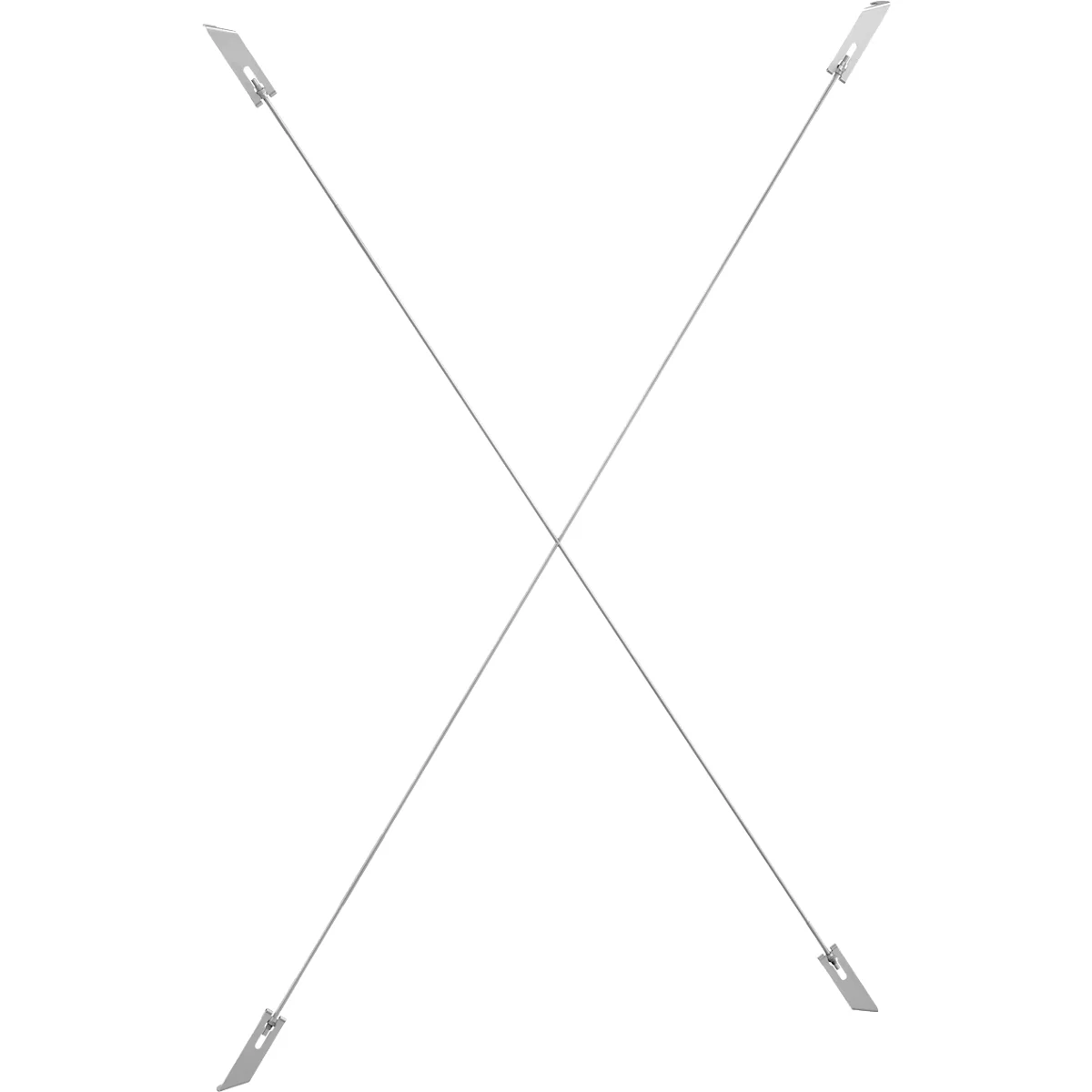

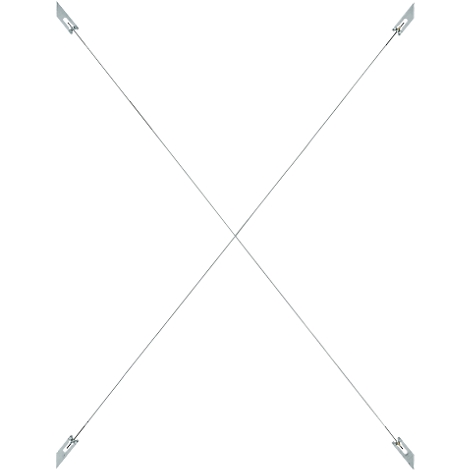

You can choose between variants for bay widths of 994 mm or 1282 mm to suit your individual requirements.

Simple assembly and maximum stability make this cross bracing the ideal accessory for the R3000 boltless shelving system.

Bay width Cross bracing height (height)

994 mm 901 mm

994 mm 1.325 mm

1.282 mm 901 mm

1,282 mm 1,325 mm

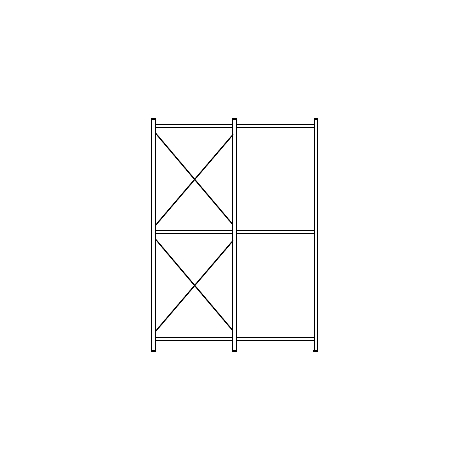

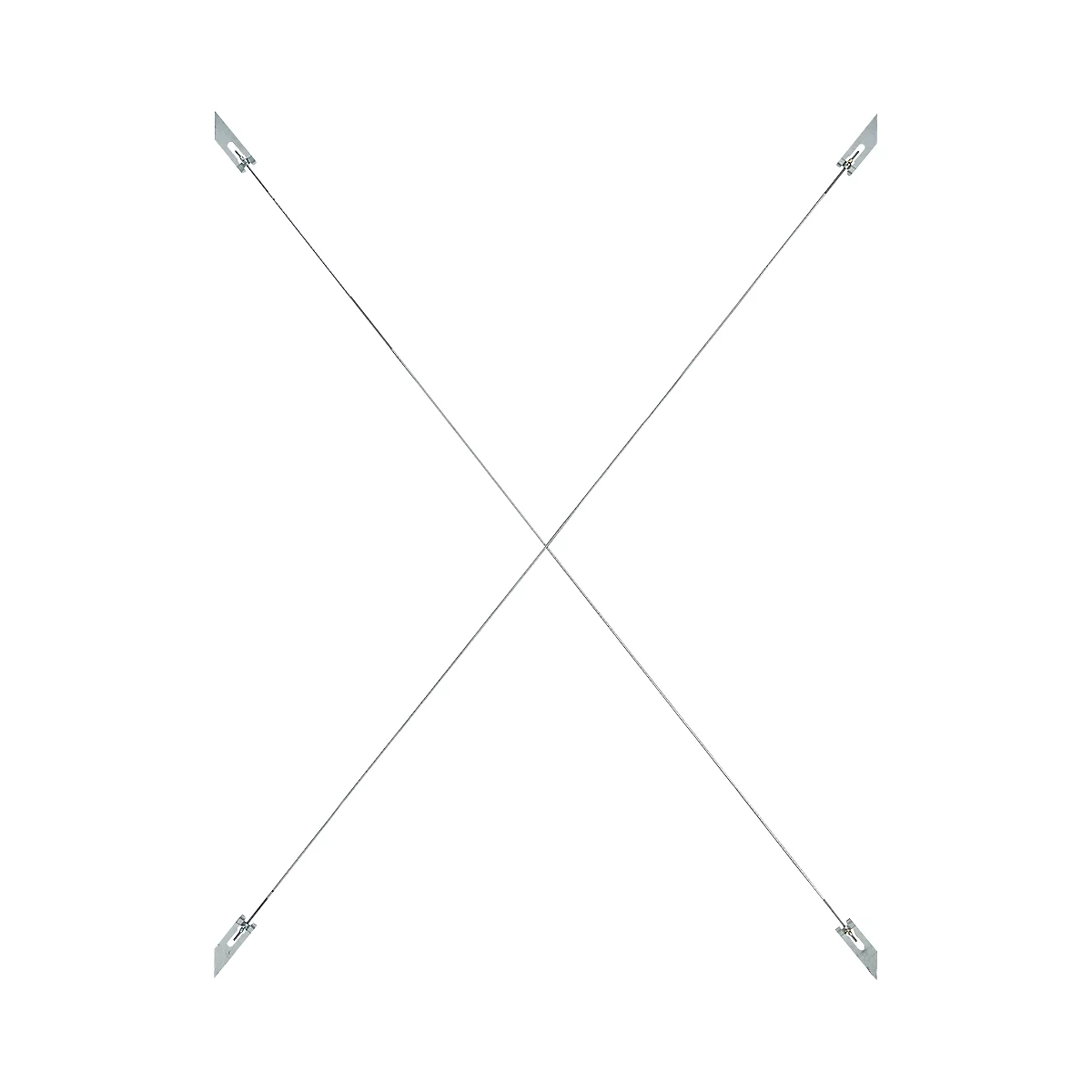

The cross braces are available in heights of 901 mm or 1,325 mm. See attached sketches and assembly instructions.

Shelf bay loads up to 1,500 kg:

• Frame heights up to 2,490 mm: 1 cross brace with a height of 1,325 mm.
• Frame heights over 2,490 mm: 2 cross braces with a height of 1,325 mm on top of each other.

Shelf bay loads of more than 1,501 kg up to 3,500 kg:

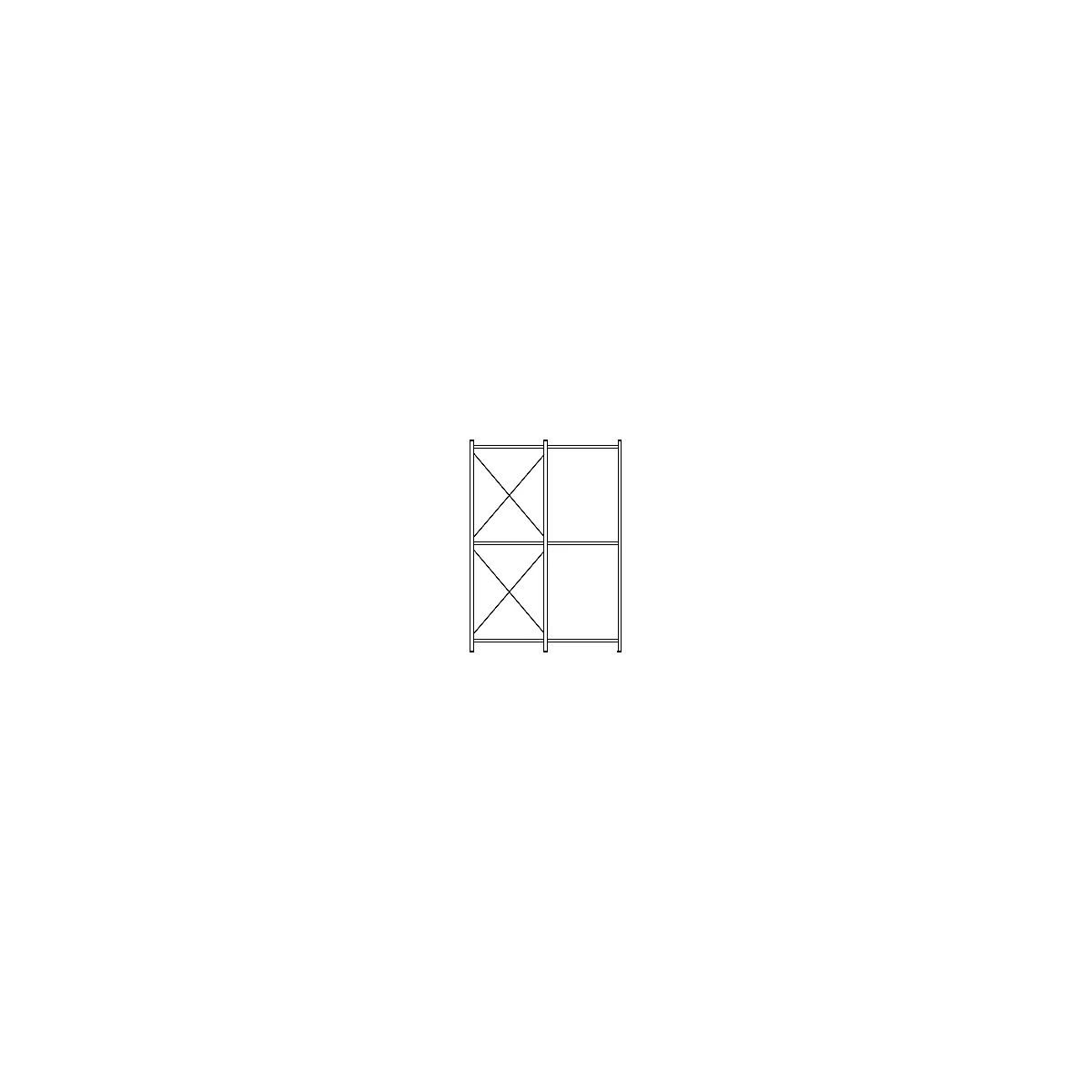

• Frame heights up to 2,490 mm: 2 cross braces with a height of 901 mm.
• Frame heights over 2,490 mm: 2 cross braces with a height of 1,325 mm
