Product Safety Information

IBC butterfly valve, with stable coarse thread, tank connection diameter 70 - 75 mm

General information

EU authorized representative E-mail address

shop@barrel-trading.com

EU authorized representative Name

Barrel Trading GmbH & Co. KG

EU authorized representative Place

Gaildorf

EU authorized representative Postal code

74405

EU authorized representative Street & house number

Waagäckerstr. 14

EU Plenipotentiary Country

Deutschland

Product safety instructions

Before installation, ensure that the tap is properly installed to prevent breakage or leakage.;Be aware of the risk of cuts and crushing when handling the tap.;Observe recycling instructions to avoid environmental damage.;Avoid using the tap in extreme temperatures or with aggressive chemicals.;Read the installation instructions carefully to ensure safe and correct installation.;Keep the tap away from children and unauthorised persons to prevent improper use.;Check the seals and connections regularly for possible leaks or signs of wear.;Only have them installed and maintained by trained personnel.;Before installation, ensure that the inner container can be released and lifted.;Avoid use without the appropriate connecting nut.;Check that the IBC is standing securely during installation.;Always fit the screw cap tightly to prevent loss of liquid.

Article numbers

153600 153601 153602

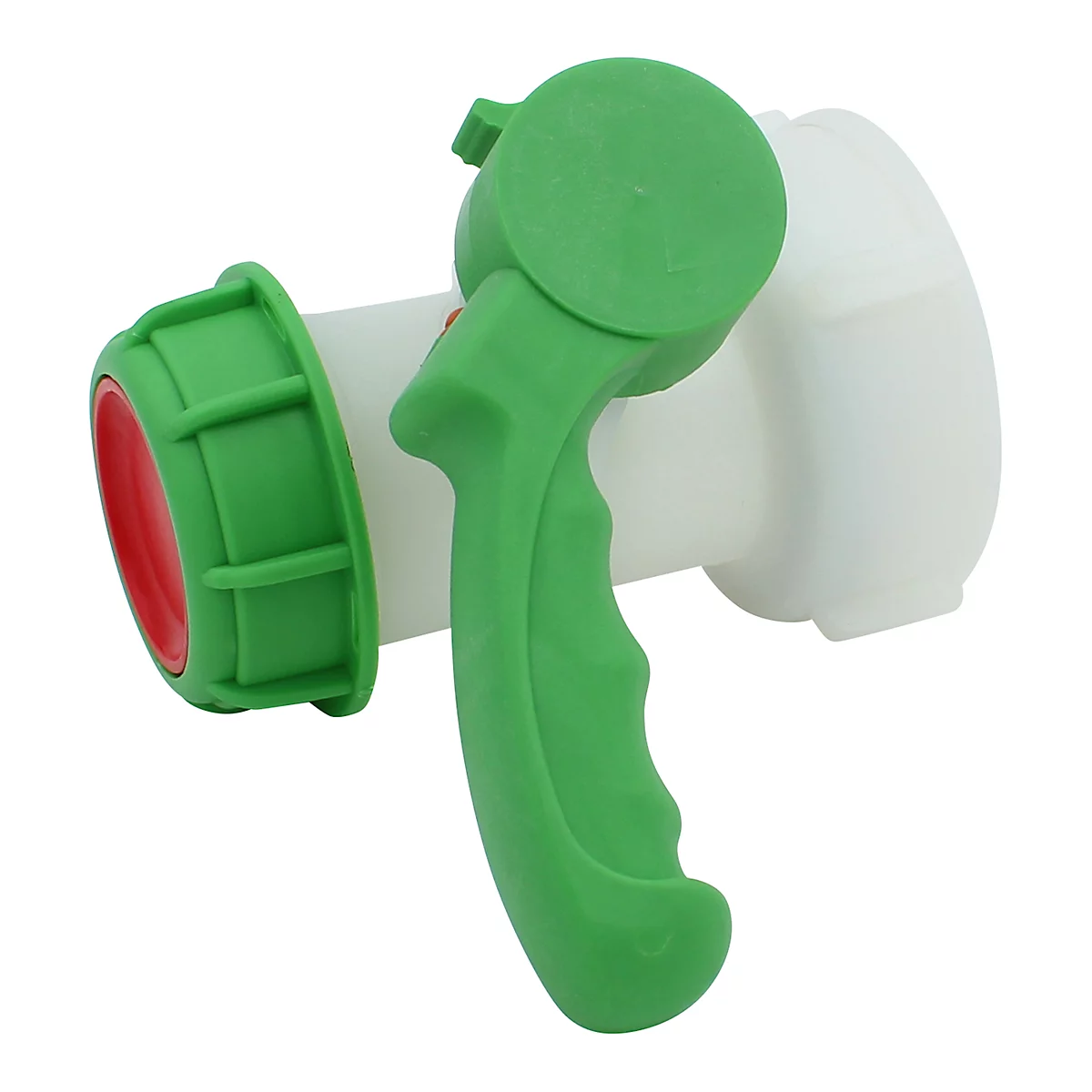

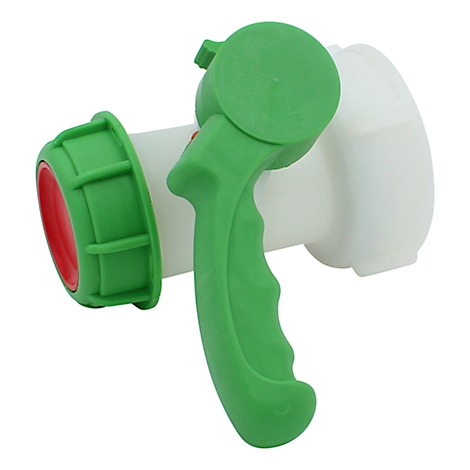

IBC butterfly valve, with stable coarse thread, tank connection diameter 70 - 75 mm

Item number: 153601

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The replacement cock for IBC is equipped with a coarse thread (external thread) on the inner container. The connecting nut of the cock, for connection to the IBC, is not rotatable.

The tap must be turned as a whole for assembly. Depending on the design of the IBC, the inner container must be loosened and slightly lifted for assembly. The connection dimension 62mm corresponds to the thread S60x6 (DN50/2″). Other available connection dimensions are 75mm (S75x6) and 100mm (S100x8) Depending on the manufacturer of the IBC, you may need a special connection dimension.

Important Details:

Rugged plastic with solidly machined coarse thread for connection to tank.
Screw cap included
Tank connection diameter 62 mm: Connection thread: S60x6 IT, outlet: S60x6 ET, nominal size: 2 inch / DN 50
Tank connection diameter 75 mm: Connection thread: S75x6 IT, outlet: S60x6 ET, nominal size: 2 inch / DN 50
Tank connection diameter 100 mm: Connection thread: S100x8 IT, outlet: S100x8 ET, nominal size: 3 inch / DN 80

Show moreShow less

Technical data

General features
Connection S75x6 (DN50) IG - Coarse
Departure S60x6 (DN50) AG - Coarse
Diameter [mm] 70 - 77

Download

ProductSafety_10137581.pdf

Schäfer Shop Quality and Service

only Fr. 53.55

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Diameter [mm]: 70 - 77 mm

55 - 62 mm 70 - 77 mm 90 - 100 mm

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - IBC butterfly valve, with stable coarse thread, vers. Versions

Overview of the possible item variants. For more information, click on the respective variant.

Diameter [mm]

Item			Price

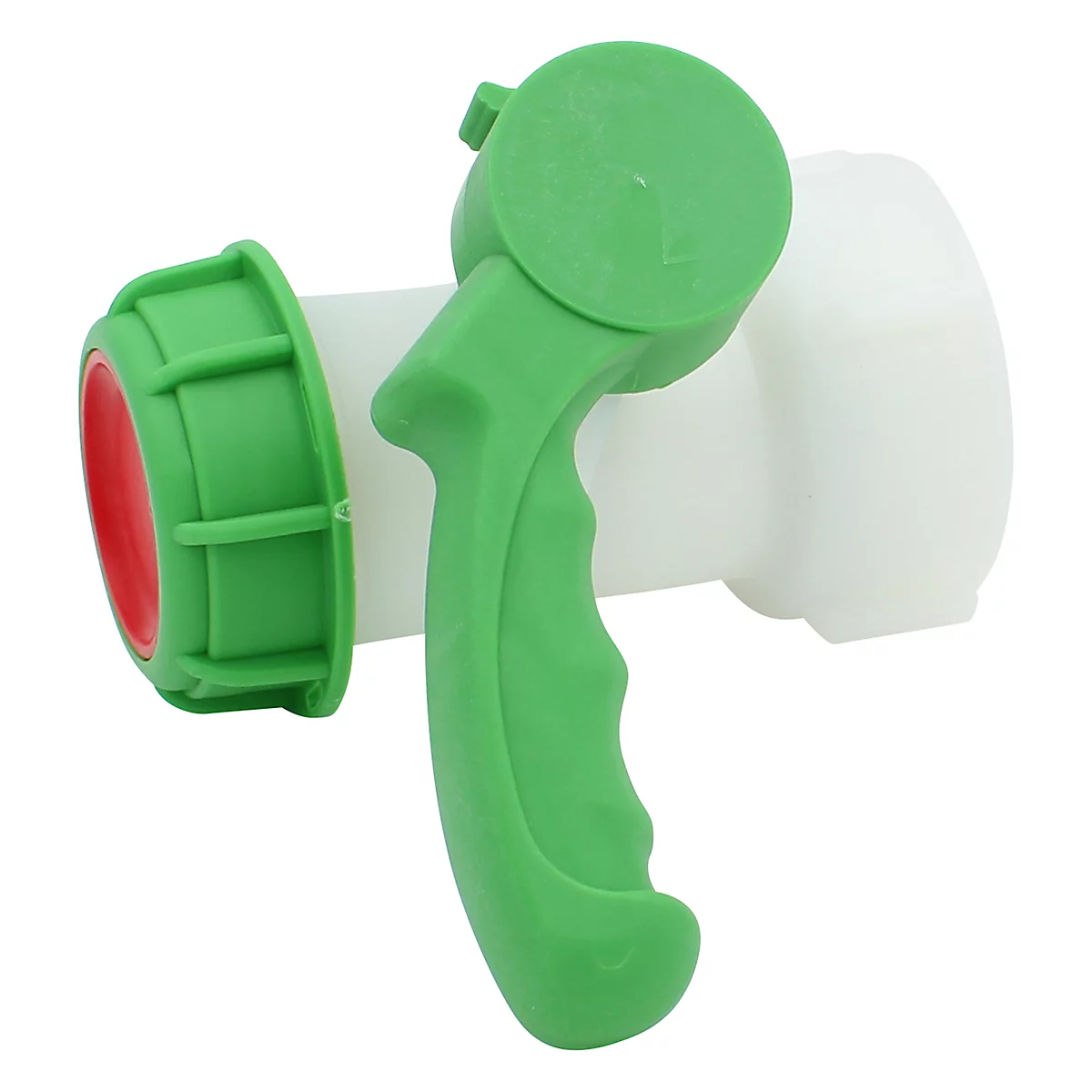

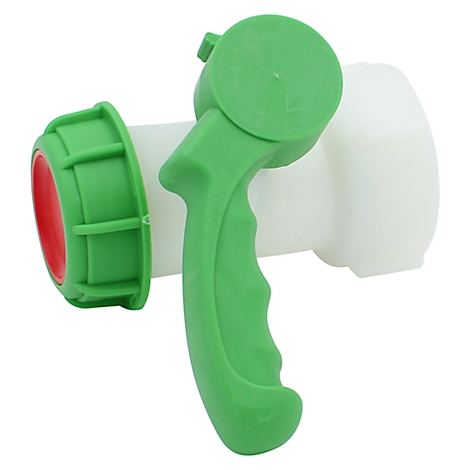

IBC butterfly valve, with stable coarse thread, tank connection diameter 55 - 62 mm Item number: 153600			Fr. 63.00 Amount + - Added times
IBC butterfly valve, with stable coarse thread, tank connection diameter 70 - 75 mm Item number: 153601			Fr. 53.55 Amount + - Added times

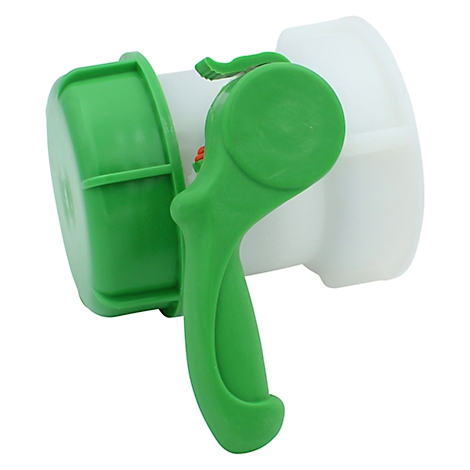

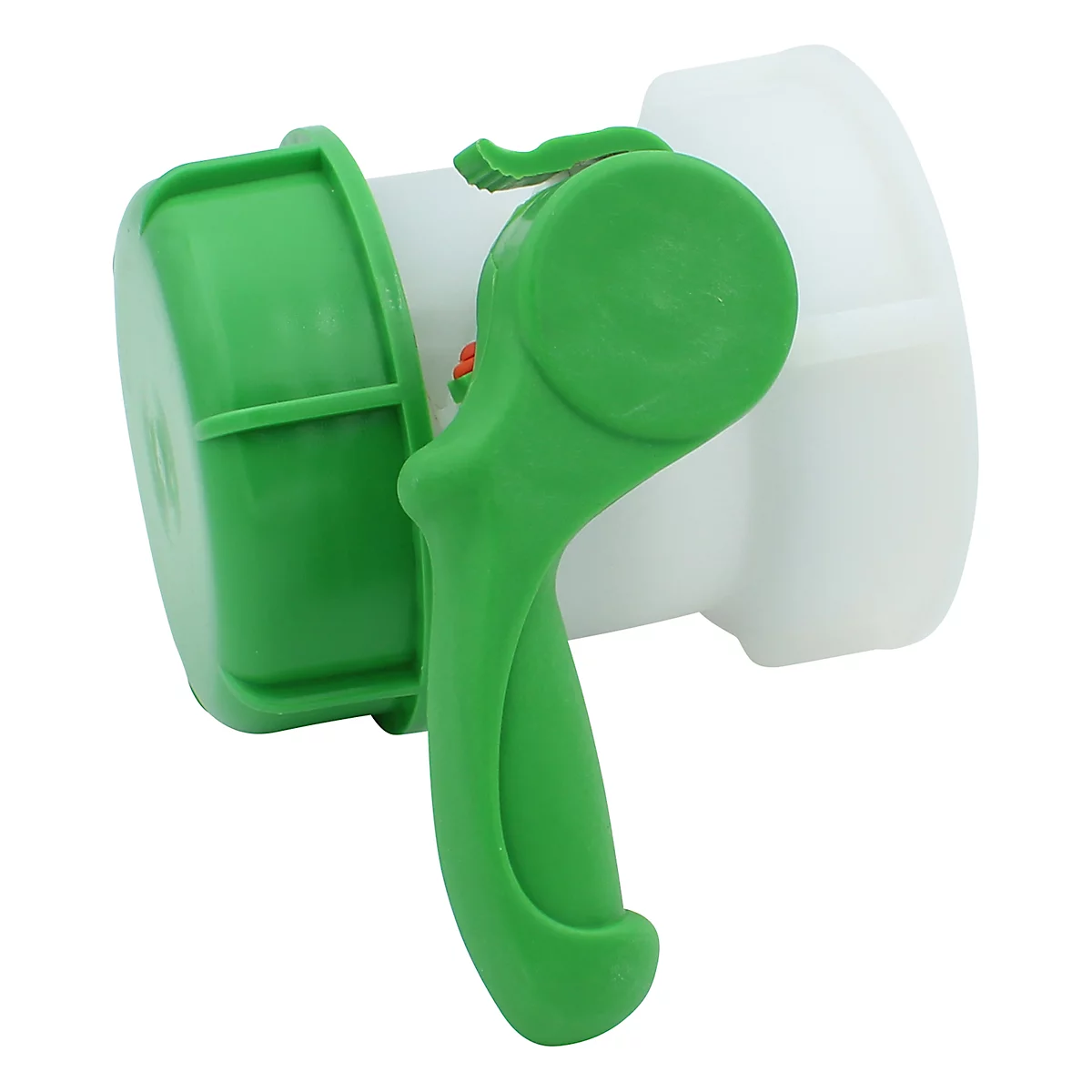

IBC butterfly valve, with stable coarse thread, tank connection diameter 90 - 100 mm Item number: 153602			Fr. 53.75 Amount + - Added times
