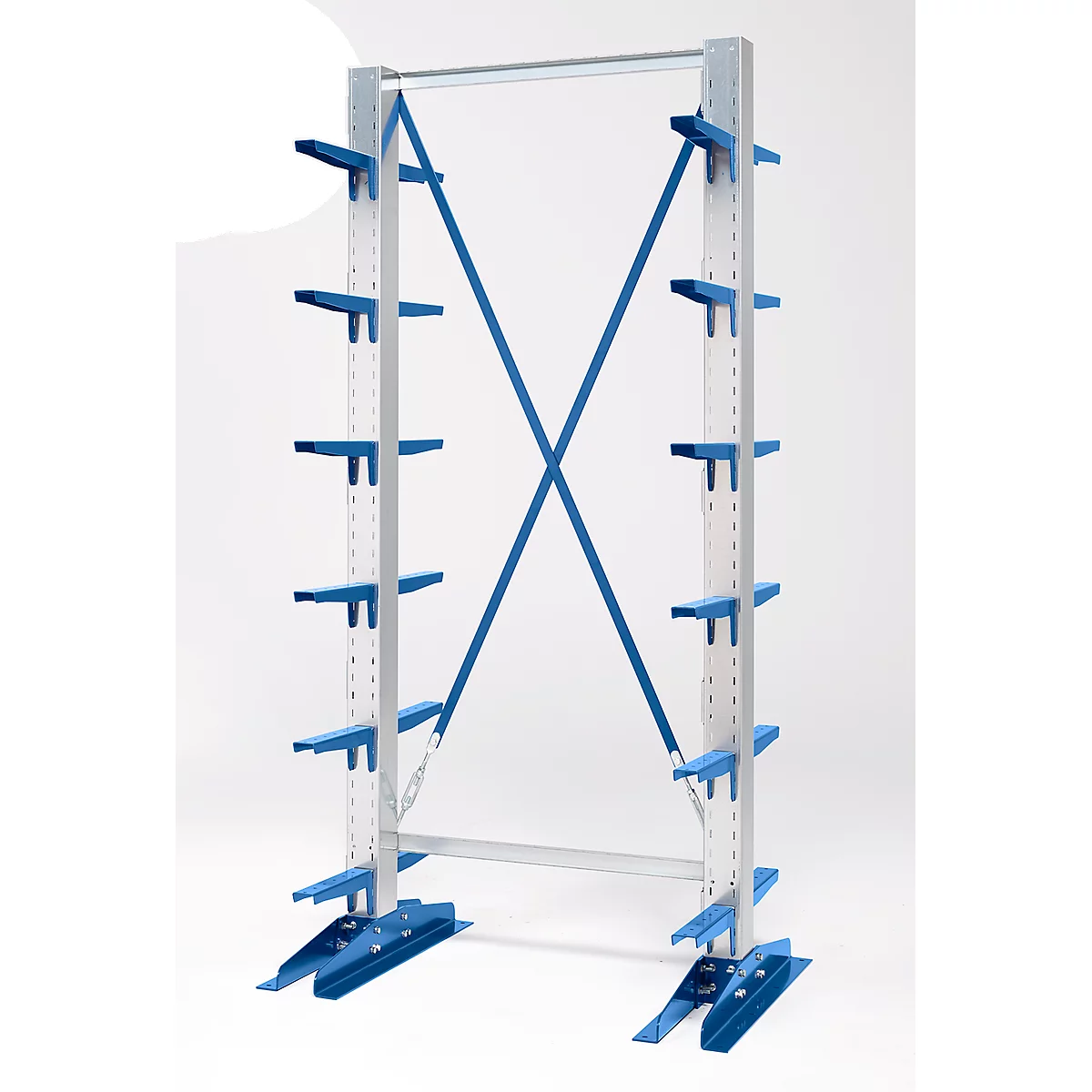

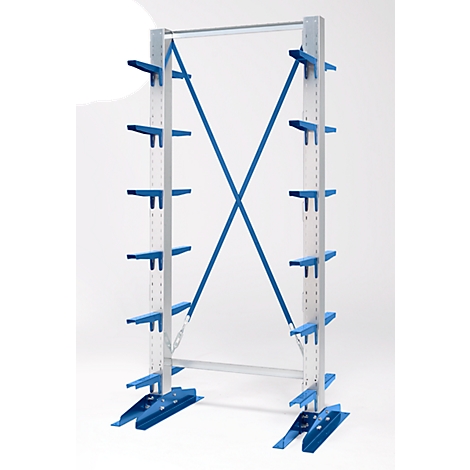

SSI Schäfer KRM Cantilever Racking, base module, double-sided, steel, 2000 x 1000 x 400, up to 2300 kg

The SSI Schaefer KRM double-sided cantilever rack is designed for a load capacity of up to 2300 kg per side. This makes it ideal for storing long and bulky items such as pipes and profiles.

If you frequently or permanently want to store long pipes, profiles and other bulky materials neatly and in a space-saving manner, the SSI Schaefer KRM cantilever racking is a sensible investment. The double-sided use of the rack, which is made of galvanized steel, is particularly practical. The assembly of the rack with few components works perfectly. The cantilever arms themselves are quick and easy to hang. You also adjust them easily according to the desired height. The upright has 50:50 perforations for easy height adjustment of the storage levels and stands sturdily on gentian blue feet in RAL colour 5010.

When evenly distributed, the shelving offers a load capacity of up to 2300 kg per side, depending on the shelf height. The shelves are available in heights of 2000 mm, 2500 mm or 3000 mm. The length is always 1000 mm. The cantilever arm length is also the usable depth of the shelf on both sides and this is available in the version with 400 mm and a load of 350 kg per arm as well as a length of 500 mm and a load of 300 kg. Floor anchors and cross bracing are integrated in the scope of delivery. For easy assembly, only a few components are available.

Further details:

• Double-sided cantilever rack for storing long and bulky items such as pipes and profiles.
• Load capacity: up to 2300 kg per side (with shelf height 2000 mm and even height division)
• Cantilever arms for hanging and easy adjustment without tools
• Easy assembly with few components
• Height adjustment in 50 mm increments thanks to system perforation 50 : 50 in the upright
• Solid base plate and feet made of angle profiles in gentian blue
• Included in delivery: 1 cross bracing, 1 ground anchor
• Material made of galvanized steel
• Colour upright/cantilever: Galvanised, gentian blue (RAL 5010)
• Shelf width: 1000 mm
• Usable depth: depending on cantilever length 400 mm or 500 mm
• Shelf depth with 400 mm cantilever arm length: 1040 mm
• Shelf depth with 500 mm cantilever arm length: 1240 mm
• Shelf height: optionally 2000 mm, 2500 mm or 3000 mm
