Product Safety Information

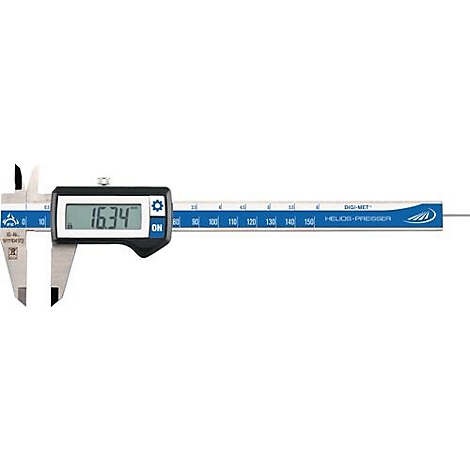

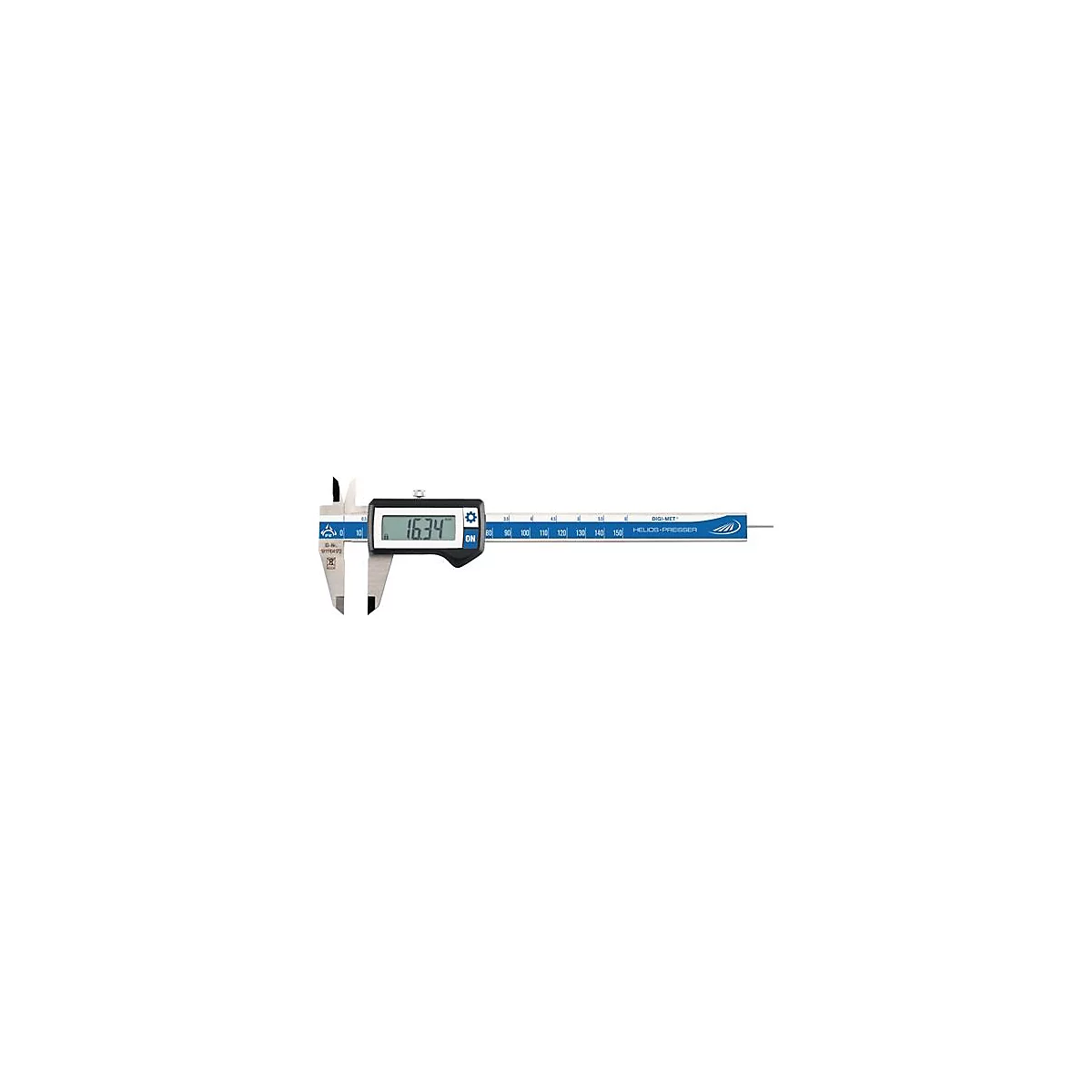

Caliper DIN 862 DIGI-MET IP67 150mm dig.eck.H.PREISSER

General information

EU authorized representative E-mail address

vertrieb@helios-preisser.de

EU authorized representative Name

Mahr GmbH HELIOS-PREISSER

EU authorized representative Place

Gammertingen

EU authorized representative Postal code

72501

EU authorized representative Street & house number

Ölbergstr. 19

EU Plenipotentiary Country

Deutschland

Product safety instructions

Protect against moisture and aggressive chemicals, despite IP67 certification of insensitivity to dust and temporary immersion in water.;Ensure that the caliper is correctly calibrated and the locking screw is correctly adjusted to ensure accurate readings.;Observe the safety information and instructions for use.;In the event of faults or malfunctions, contact the manufacturer immediately.;Product is tested in accordance with DIN 862 and fulfils the necessary safety requirements.;Before use, ensure that the product is not damaged.;Despite high chemical resistance, take care to avoid contact with corrosive substances.;Only use the product in accordance with the specified functions and properties and not in permanent exposure to water or dust, even if it is IP67-certified.;Keep the product out of the reach of children to prevent misuse or accidental injury.;Designed for industrial applications and should be used by trained personnel.;Do not use the safety functions as a substitute for proper safety procedures.

Article numbers

723941 723942 723944 723945

Caliper DIN 862 DIGI-MET IP67 150mm dig.eck.H.PREISSER

Item number: 723945

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

digital - IP67 - measuring system insensitive to dust and temporary immersion in water - housing with high chemical resistance - with locking screw and cross points - LCD display 11 mm

Functions: On/Off switch - QuickStart electronics - QuickLock function for one-time zero setting and key lock against unintentional key actuation - Zero setting at any point - PRESET function (measured value presetting)

Other technical characteristics:
- subject to inspection: yes

Show moreShow less

Technical data

General features
Accuracy [mm] 0,03
Cord length [mm] 40
Depth gauge angular
Measuring range [mm] 150
Protection class [IP] IP67
Reading type digital
Readout 0.01 mm / 0.0005 inch
Standard DIN 862

Schäfer Shop Quality and Service

only Fr. 275.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Measuring range [mm]: 150

200 300 150

show all variants

Add to basket

Delivery time: within 1 week

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Caliper DIN 862 DIGI-MET IP67 150mm dig.eck.H.PREISSER

Overview of the possible item variants. For more information, click on the respective variant.

Depth gauge

Measuring range [mm]

Item			Price
Caliper DIN 862 DIGI-MET IP67 200mm dig.eck.H.PREISSER Item number: 723942			Fr. 391.00 Amount + - Added times
Caliper DIN 862 DIGI-MET IP67 300mm dig.H.PREISSER Item number: 723944			Fr. 495.00 Amount + - Added times
Caliper DIN 862 DIGI-MET IP67 150mm dig.eck.H.PREISSER Item number: 723945			Fr. 275.00 Amount + - Added times
