Product Safety Information

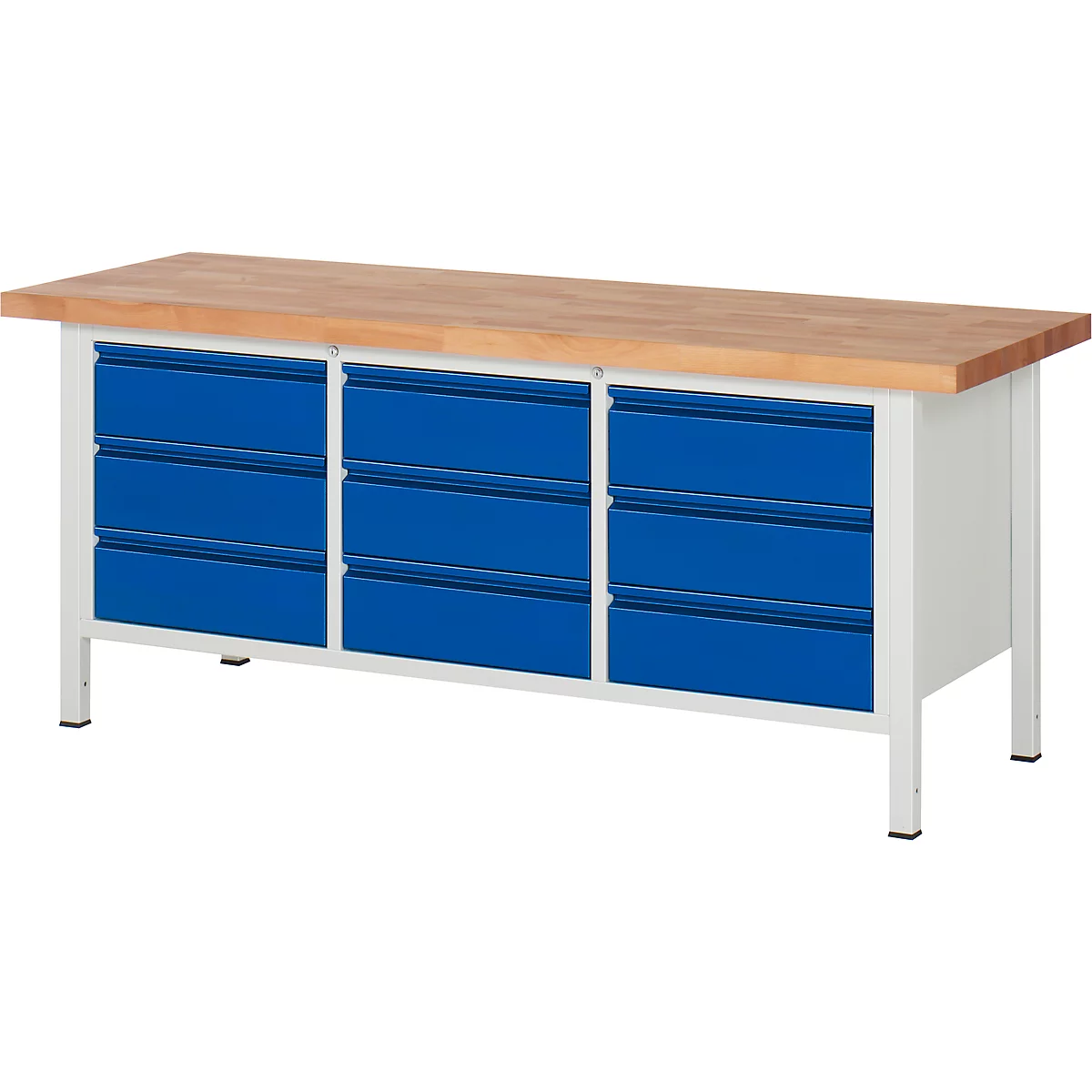

Workbench TYPE 8574-2, W 2000 x D 700 x H 840 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Ensure that the workbench is placed on a level floor to prevent it from tipping over.;Observe the maximum weight of 1,250 kg on the work surface to avoid damage or injury.;The drawers had a load capacity of 100 kg. Do not overload the drawers.;Keep the drawers and doors closed during use to prevent accidents.;Only use the workbench in accordance with the intended instructions for use. Misuse can lead to danger.;The powder coating can be an irritant; avoid direct contact over long periods and use suitable protective clothing.;The workbench is not designed for outdoor use. Only use it indoors.

Article numbers

155092

Workbench TYPE 8574-2, W 2000 x D 700 x H 840 mm

Item number: 155092

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

9 drawers 9 x 180 mm

Worktop: solid beech, 40 mm, surface sanded and oiled
Frame: welded construction (depth 650 mm) with frame feet made of Profi l steel tubing (45 x 45 x 2 mm) with end element incl. anti-slip nap
Support frame (4-sided) under the worktop
Handle strips completely integrated
Drawers: Load capacity 100 kg, pull-out approx. 90 %, inside W 490 x D 560 mm
Doors: opening width 180°, self-closing spring hinges
Central locking: lock with 2 keys
Paintwork: environmentally friendly powder coating in light grey (RAL 7035) and gentian blue (RAL 5010)
surface load: max. 1.250 kg
Delivery: completely assembled

Advantages for you

Natural, timeless look and optimal suitability for gentle processing of workpieces due to the processing of high-quality beech wood.

With 2000 mm width, the workbench offers sufficient working and storage space for your work equipment

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Beech wood
Board width [mm] 2000
Body colour Light grey
Body surface powder-coated
Central locking yes
Color Light grey/gentian blue RAL 5010
Color of the facade gentian blue RAL 5010
Delivery Mounted
Depth of the substructure (mm) 650
Depth [mm] 700
Drawer depth inside (mm) 560
External height of the drawer (mm) 180
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height [mm] 840
Inside height of drawer (mm) 165
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Sheet steel, powder coated
Material body Sheet steel
Material drawers Sheet steel
Material frame Steel
Mobile No
Number of compartments [pcs.] 3
Number of drawer(s) 9
Number of keys [pcs.] 2
Number of locks 2
Pull-out 90% partial extension
Pull-out stop no
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Structure No
Substructure width (mm) 1800
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Weight [kg] 205
Width [mm] 2000
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled

Download

ProductSafety_10130653.pdf

Schäfer Shop Quality and Service

only Fr. 2’793.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment
