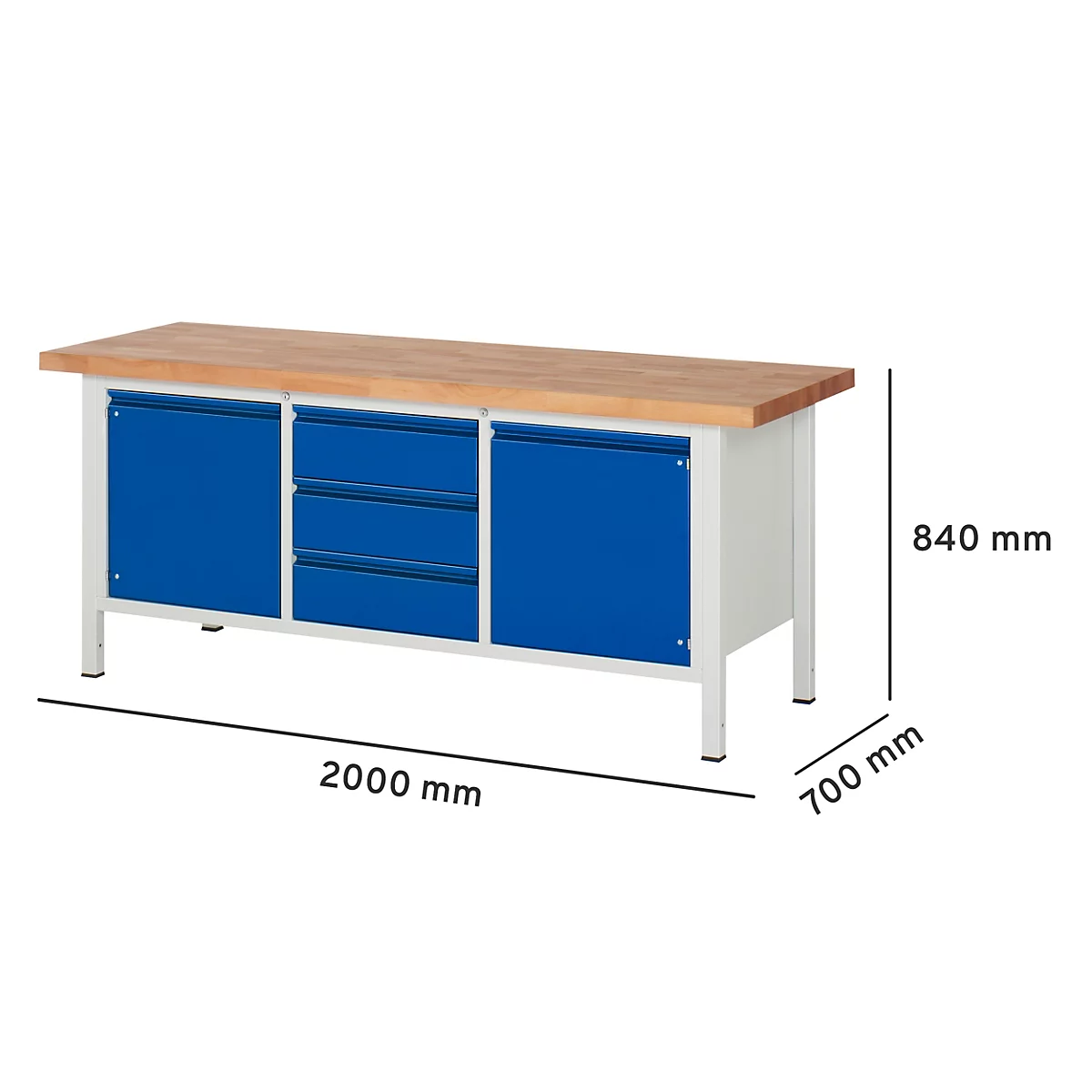

Workbench TYPE 8569-2, W 2000 x D 700 x H 840 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Avoid overloading the drawers to prevent damage and injury.;Ensure that the doors and drawers are properly closed to avoid crushing.;Do not use the drawer as a staircase element or for other purposes that are not intended.;Keep the work surface free of loose objects to avoid accidents.;Regularly check the functionality of the central locking system to prevent unauthorised access.

Article numbers

155091

Workbench TYPE 8569-2, W 2000 x D 700 x H 840 mm

Item number: 155091

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

3 drawers 3 x 180 mm, 2 doors 540 mm, behind each 1 shelf (adjustable)

Worktop: solid beech 40 mm, surface sanded and oiled
Frame: welded construction (depth 650 mm) with frame feet made of Profi l steel tubing (45 x 45 x 2 mm) with end element incl. anti-slip nub
Support frame (4-sided) under the worktop
Handle strips completely integrated
Drawers: Load capacity 100 kg, pull-out approx. 90 %, inside W 490 x D 560 mm
Doors: opening width 180°, self-closing spring hinges
Central locking: lock with 2 keys
Paintwork: environmentally friendly powder coating in light grey (RAL 7035) and gentian blue (RAL 5010)
surface load: max. 1.250 kg
Delivery: completely assembled

Advantages for you

Made of beech wood and therefore natural, timeless and durable, the workbench allows careful handling of workpieces

With a width of 2000 mm offers enough surface for everyday work

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Beech wood
Board width [mm] 2000
Body colour light grey RAL 7035
Body surface powder-coated
Central locking yes
Color gentian blue RAL 5010/light grey RAL 7035
Color of the facade gentian blue RAL 5010
Delivery Mounted
Depth of the substructure (mm) 650
Depth [mm] 700
Door surface Powder coated
Door type -
Drawer depth inside (mm) 560
External height of the drawer (mm) 180
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height of the cabinet section (mm) 540
Height [mm] 840
height-adjustable frame(s) Yes
Inside height of drawer (mm) 165
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Steel, powder coated
Material body Steel
Material doors Steel
Material drawers Steel
Material frame Steel
Mobile No
Number of cabinet doors (pices) 2
Number of compartments [pcs.] 3
Number of compartments [pcs.] 4 closed
Number of door(s) 2
Number of drawer(s) 3
Number of keys [pcs.] 2
Number of locks 2
Number of shelves [pcs.] 2
Pull-out 90% partial extension
Pull-out stop no
Removable shelves yes
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Shelf depth (mm) 580
Shelf load capacity [kg] 50
Shelf width (mm) 525
Structure No
Substructure width (mm) 1800
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Weight [kg] 150
Width [mm] 2000
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled
