Product Safety Information

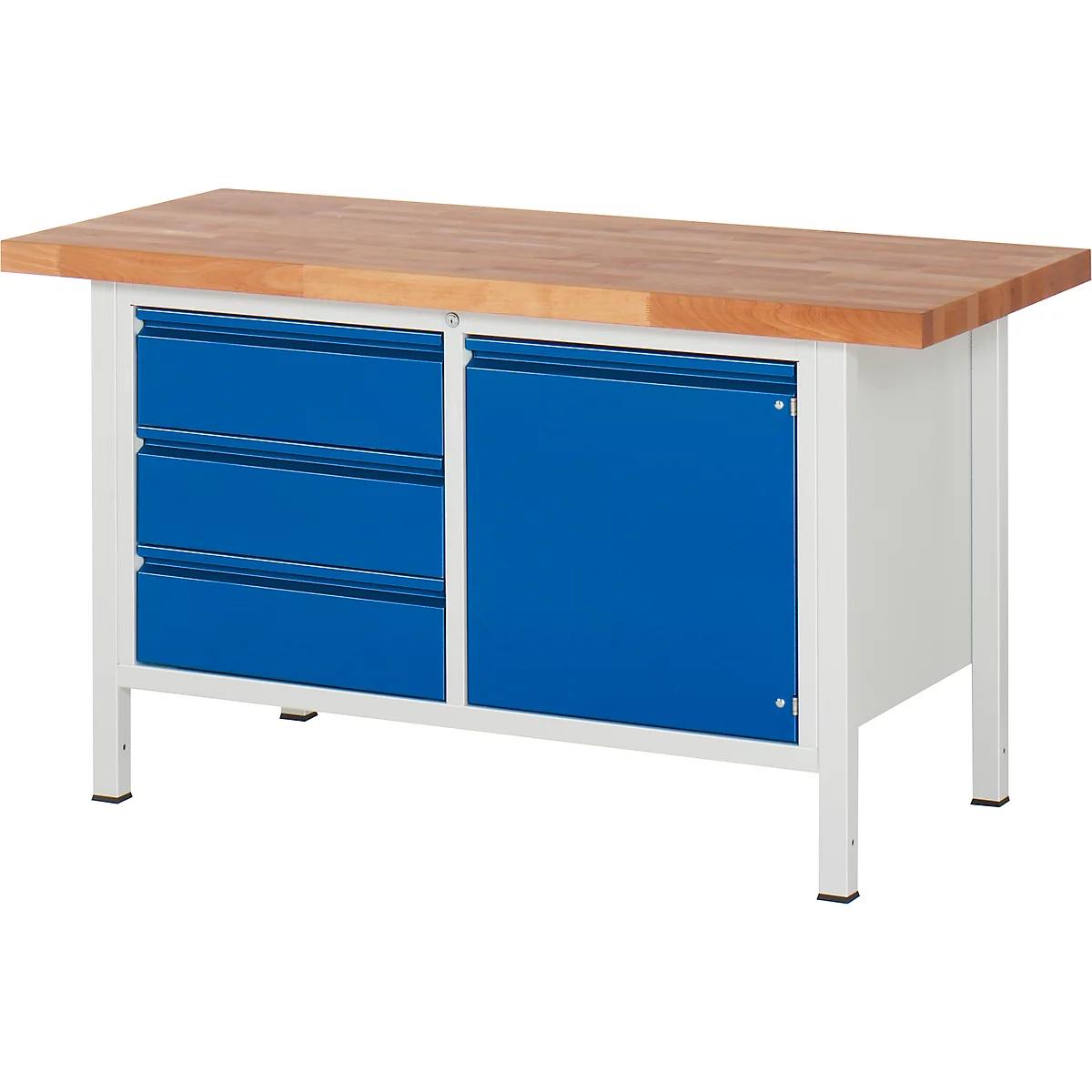

Workbench TYPE 8468-2, W 1500 x D 700 x H 840 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Avoid overloading the drawers, as they have a maximum load capacity of 100 kg.;The hob nozzles or drawers can become trapped if used incorrectly, take care when opening the drawers.;The surface treatment is environmentally friendly, but make sure it is cleaned properly to avoid chemical residues.;Careful handling when opening and closing the door with self-retracting spring hinges to avoid crushing.

Article numbers

155090

Workbench TYPE 8468-2, W 1500 x D 700 x H 840 mm

Item number: 155090

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

3 drawers 3 x 180 mm, 1 door 540 mm, behind it 1 shelf (adjustable)

Worktop: solid beech, 40 mm, surface sanded and oiled
Frame: welded construction (depth 650 mm) with frame feet made of Profi l steel tubing (45 x45 x 2 mm) with end element incl. anti-slip nub
Support frame (4-sided) under the worktop
Handle strips completely integrated
Drawers: Load capacity 100 kg, pull-out approx. 90 %, inside W 490 x D 560 mm
Doors: opening width 180°, self-closing spring hinges
Central locking: lock with 2 keys
Paintwork: environmentally friendly powder coating in light grey (RAL 7035) and gentian blue (RAL 5010)
surface load: max. 1.250 kg
Delivery: completely assembled

Advantages for you

The workbench made of beech wood allows the gentle machining of workpieces

Saves a lot of space in small workrooms with a width of 1500 mm

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Beech wood
Board width [mm] 1500
Body colour Light grey
Body surface powder-coated
Central locking yes
Color Light grey/gentian blue RAL 5010
Color of the facade gentian blue RAL 5010
Delivery Mounted
Depth of the substructure (mm) 650
Depth [mm] 700
Door surface Powder coated
Door type -
Drawer depth inside (mm) 560
External height of the drawer (mm) 180
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height of the cabinet section (mm) 540
Height [mm] 840
height-adjustable frame(s) Yes
Inside height of drawer (mm) 165
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Sheet steel, powder coated
Material body Sheet steel
Material doors Sheet steel
Material drawers Sheet steel
Material frame Steel
Mobile No
Number of cabinet doors (pices) 1
Number of compartments [pcs.] 2
Number of compartments [pcs.] 2 closed
Number of door(s) 1
Number of drawer(s) 3
Number of keys [pcs.] 2
Number of locks 1
Number of shelves [pcs.] 1
Pull-out 90% partial extension
Pull-out stop no
Removable shelves yes
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Shelf depth (mm) 580
Shelf load capacity [kg] 50
Shelf width (mm) 525
Structure No
Substructure width (mm) 1235
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Weight [kg] 178
Width [mm] 1500
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled
