Product Safety Information

Steel collecting pan with grid, 1800 x 800 mm, orange RAL 2000

General information

Product safety instructions

Avoid contact with liquids hazardous to water of GHS categories 1-4.;Place the drip tray on a stable and level surface to prevent it from tipping over.;Use only for intended drums (max. 3 x 200 litres) and small containers.;Regularly check the load-bearing capacity of the grating (1000 kg/m²) and the drip tray for damage.;Wear protective equipment such as gloves and safety goggles when handling hazardous substances and when emptying.;Do not exceed the maximum load of the drip tray (3 drums or 202 litres).;Take care with sharp edges or surfaces of the products.;Not suitable for food storage.;Protect from direct sunlight and extreme weather conditions.;Risk of flammability if the liquids are stored improperly.;Observe safety data sheets and manufacturer's instructions.;Increased risk of falls: Observe safety instructions when lifting heavy loads.;Regularly check the galvanised grating for corrosion and wear.;Sump tray only suitable for flammable liquids of GHS categories 1-3 and liquids hazardous to water of GHS categories 1-4.

Article numbers

133035 133036 133037 133038 134872 134873

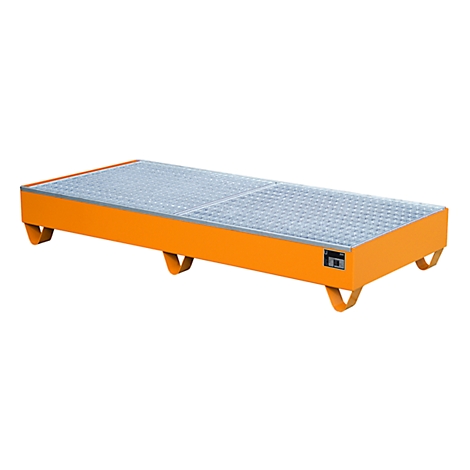

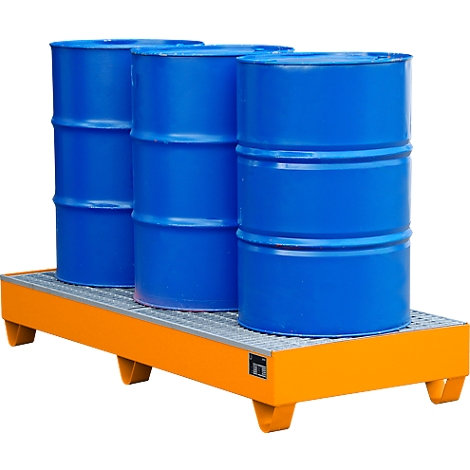

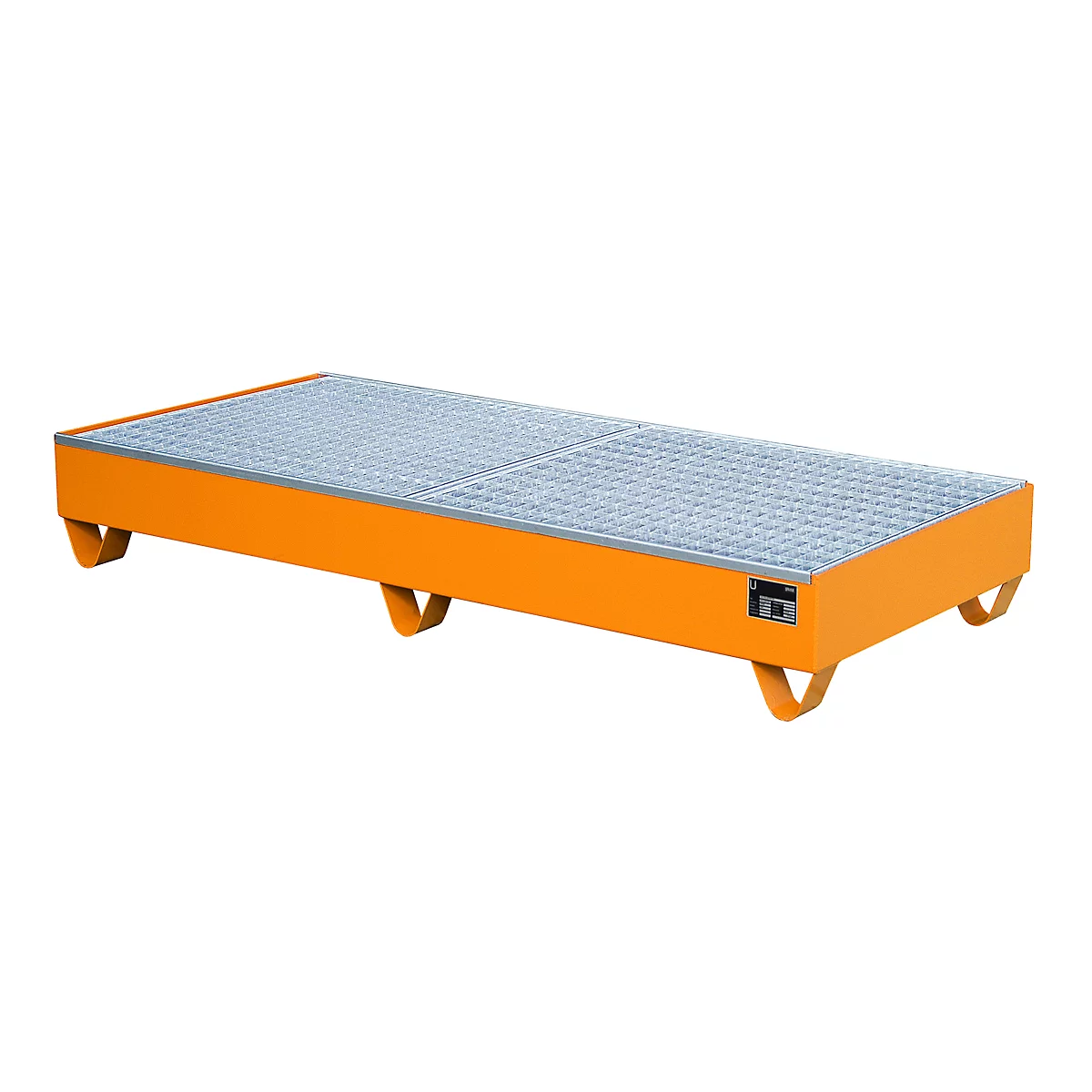

Steel collecting pan with grid, 1800 x 800 mm, orange RAL 2000

Item number: 133035

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Storage of max. 3 drums (200 litres), can also be combined with 60 l drums and small containers. With declaration of conformity (ÜHP), in accordance with StawaR, for flammable liquids of GHS categories 1-3 and liquids hazardous to water of GHS categories 1-4.

Construction made of 3 mm sheet steel
100 mm underclearance
Dimensions: L 1800 x W 800 x H 275 mm
Collecting volume: 202 l
Design: with galvanised grating (load capacity 1000 kg/m²)
Weight: 86 kg painted / 90 kg galvanised

Show moreShow less

Technical data

General features
Accessible from below Yes
Capacity 202 litres
Capacity barrels 3x 200 l
Collecting volume [l] 202
Container type Barrels
Depth [mm] 800
Grid Yes
Grid material Steel
Grid surface galvanised
Hazardous substance type Flammable liquids GHS 1-3; Substances hazardous to water GHS 1-4
Height [mm] 275
Length [mm] 1800
Load capacity (kg/m²) 1000
Load capacity [kg] 1000
Material Steel
Mobile Forklift compatible
Number of containers [pcs.] 3
Permeable wall thickness (mm) 3
Stackable No
Standard declaration of conformity (ÜHP) according to StawaR
Substructure Feet
Surface varnished
Undercarriage height (mm) 100
Weight [kg] 75
Width [mm] 1800
Colors
Color yellow-orange RAL 2000

Download

ProductSafety_10116166.pdf

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 760.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Steel sump tray with grating, 1800 x 800 mm

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price
Steel collecting pan with grid, 1800 x 800 mm, orange RAL 2000 Item number: 133035			Fr. 760.00 Amount + - Added times

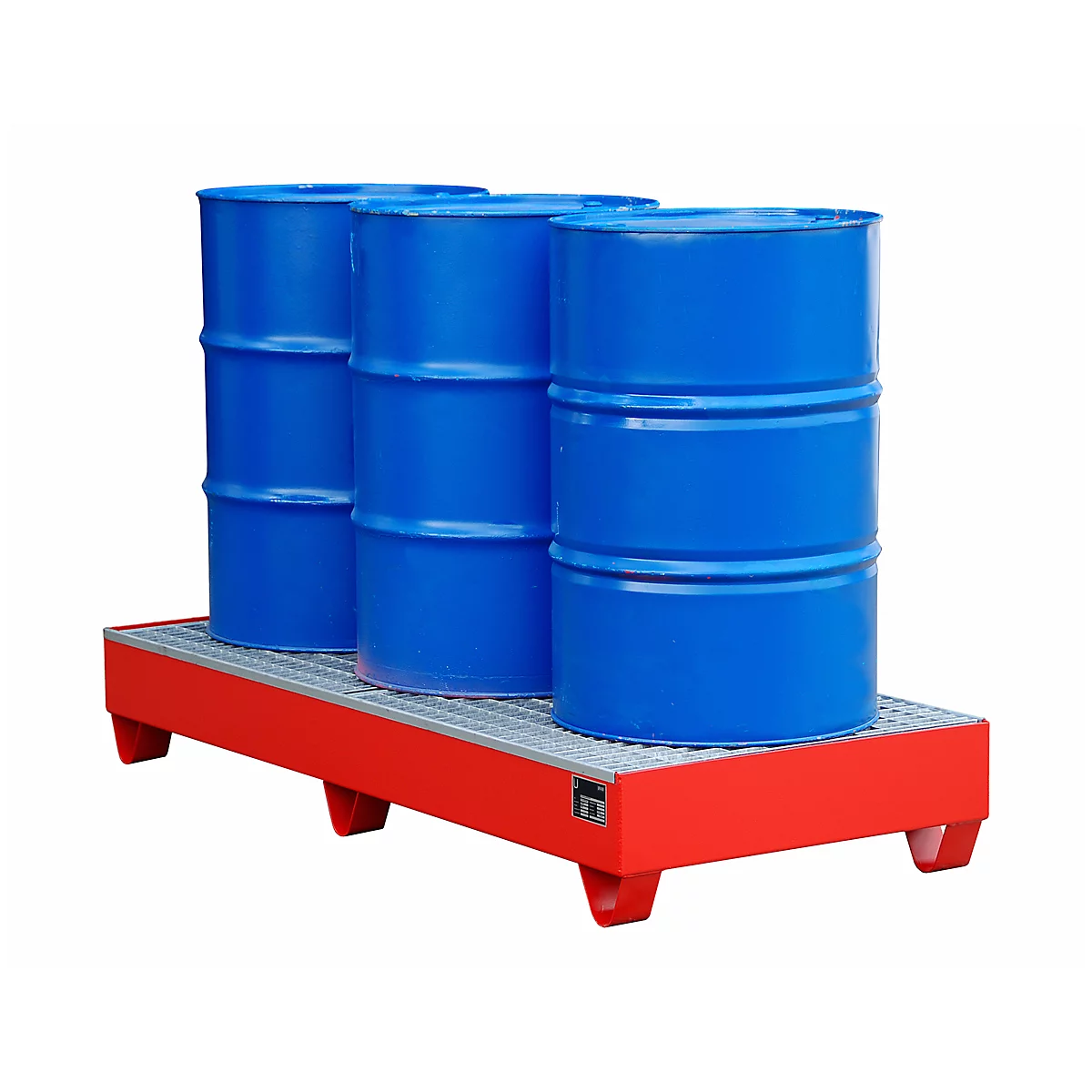

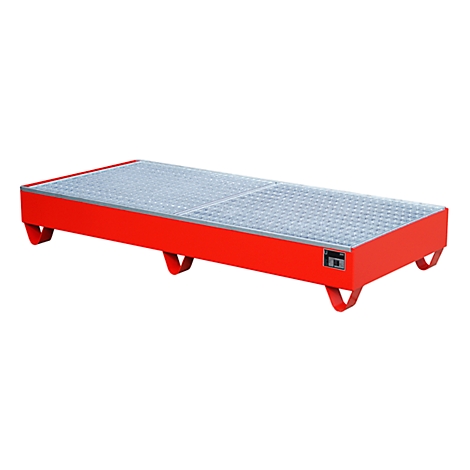

Steel collecting pan with grating, 1800 x 800 mm, red RAL 3000 Item number: 133036			Fr. 760.00 Amount + - Added times
Steel collecting pan with grating, 1800 x 800 mm, blue RAL 5012 Item number: 133037			Fr. 760.00 Amount + - Added times

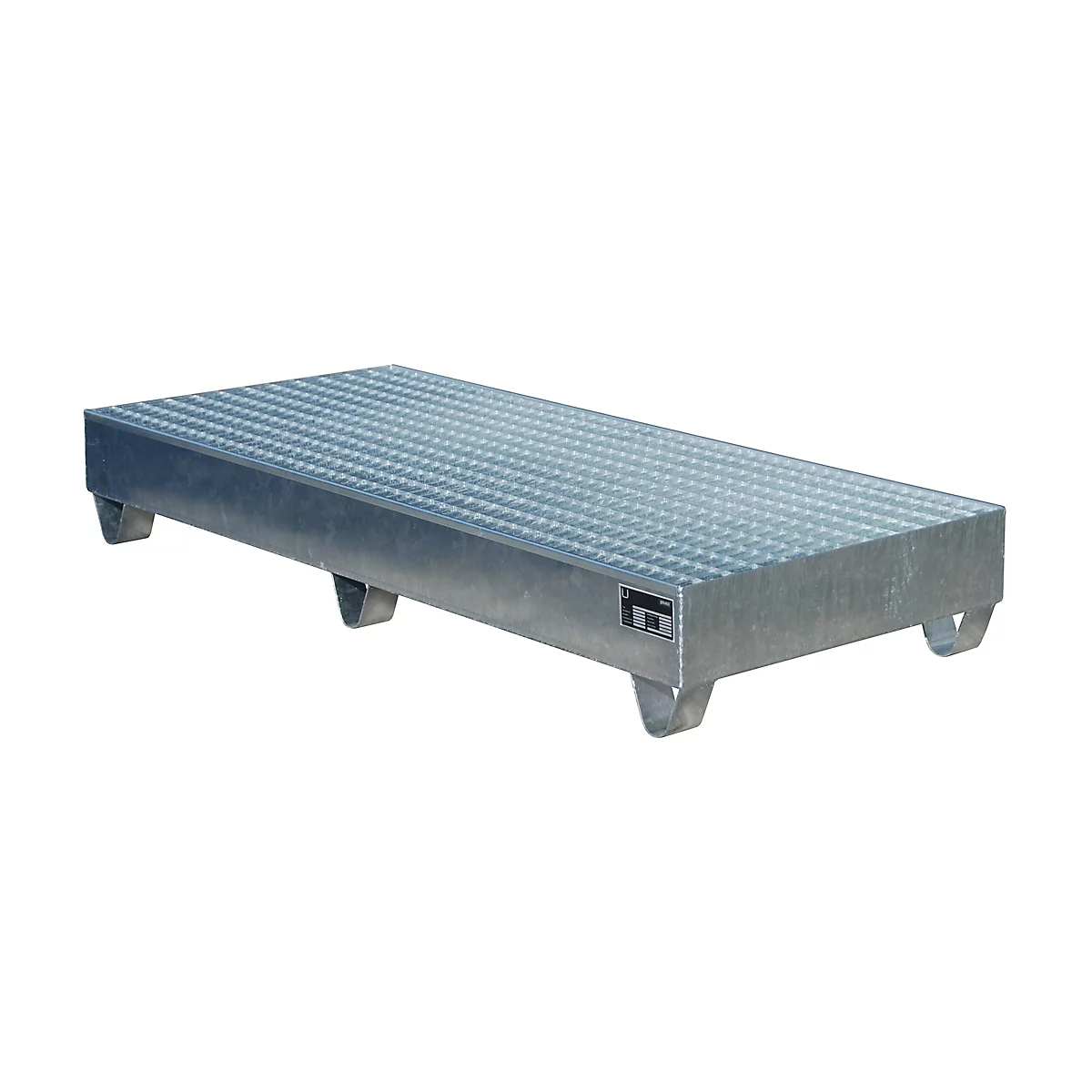

Steel collecting bucket with grid, 1800 x 800 mm, galvanized Item number: 133038			Fr. 853.00 Amount + - Added times

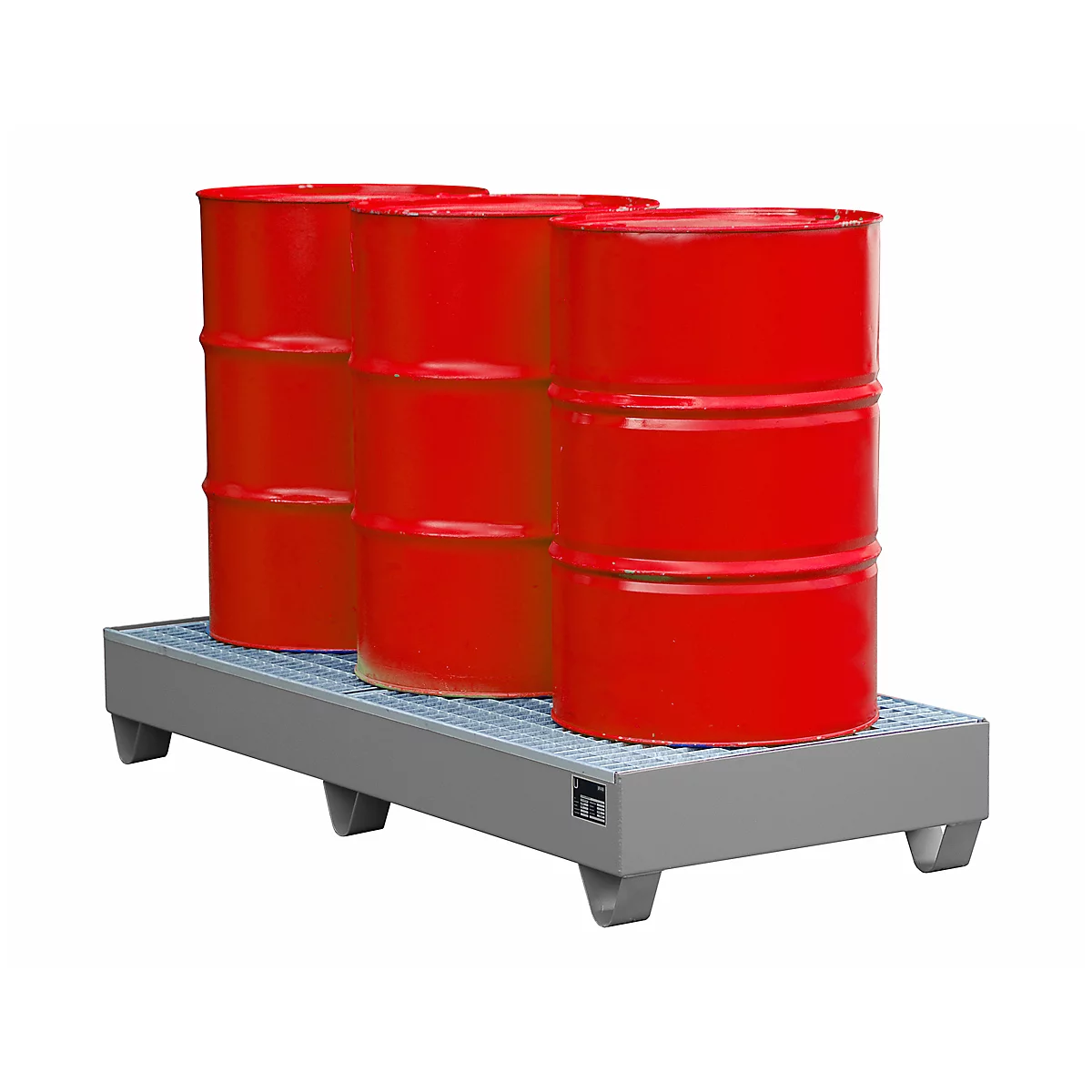

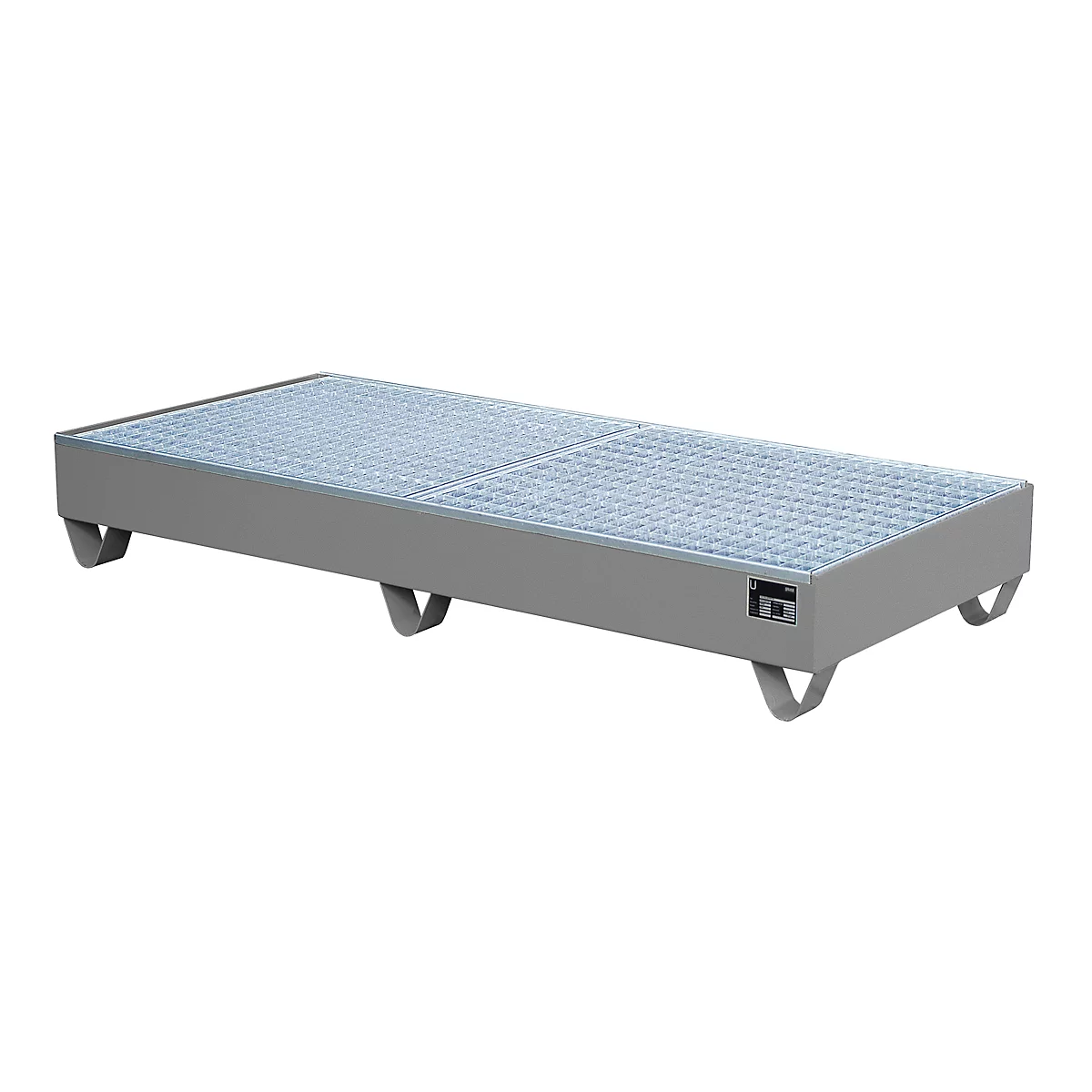

Steel collecting pan with grid, 1800 x 800 mm, grey RAL 7005 Item number: 134872			Fr. 760.00 Amount + - Added times
Steel collecting pan with grid, 1800 x 800 mm, green RAL 6011 Item number: 134873			Fr. 760.00 Amount + - Added times
No results

Accessories

Item			Price
Barrel support for 1 x 60 l barrel Item number: 132819			only Fr. 233.00 from Fr. 233.00 per Pcs. - + Added times
Barrel support for 2 x 60 l barrels Item number: 132820			only Fr. 270.00 from Fr. 270.00 per Pcs. - + Added times
Barrel support for 3 x 60 l barrels Item number: 132821			only Fr. 293.00 from Fr. 293.00 per Pcs. - + Added times
Container rack for collecting trays, 2 storage levels for containers, L 600 x W 698 x H 900 mm Item number: 132823			only Fr. 257.00 from Fr. 257.00 per Pcs. - + Added times
Container rack for collecting trays, 1 x 60 l drum/container, L 600 x W 698 x H 900 mm Item number: 132824			only Fr. 267.00 from Fr. 267.00 per Pcs. - + Added times
Gebinderegal for drip pans, 2 x 60 l drum, L 600 x W 698 x H 900 mm Item number: 132825			only Fr. 267.00 from Fr. 267.00 per Pcs. - + Added times
