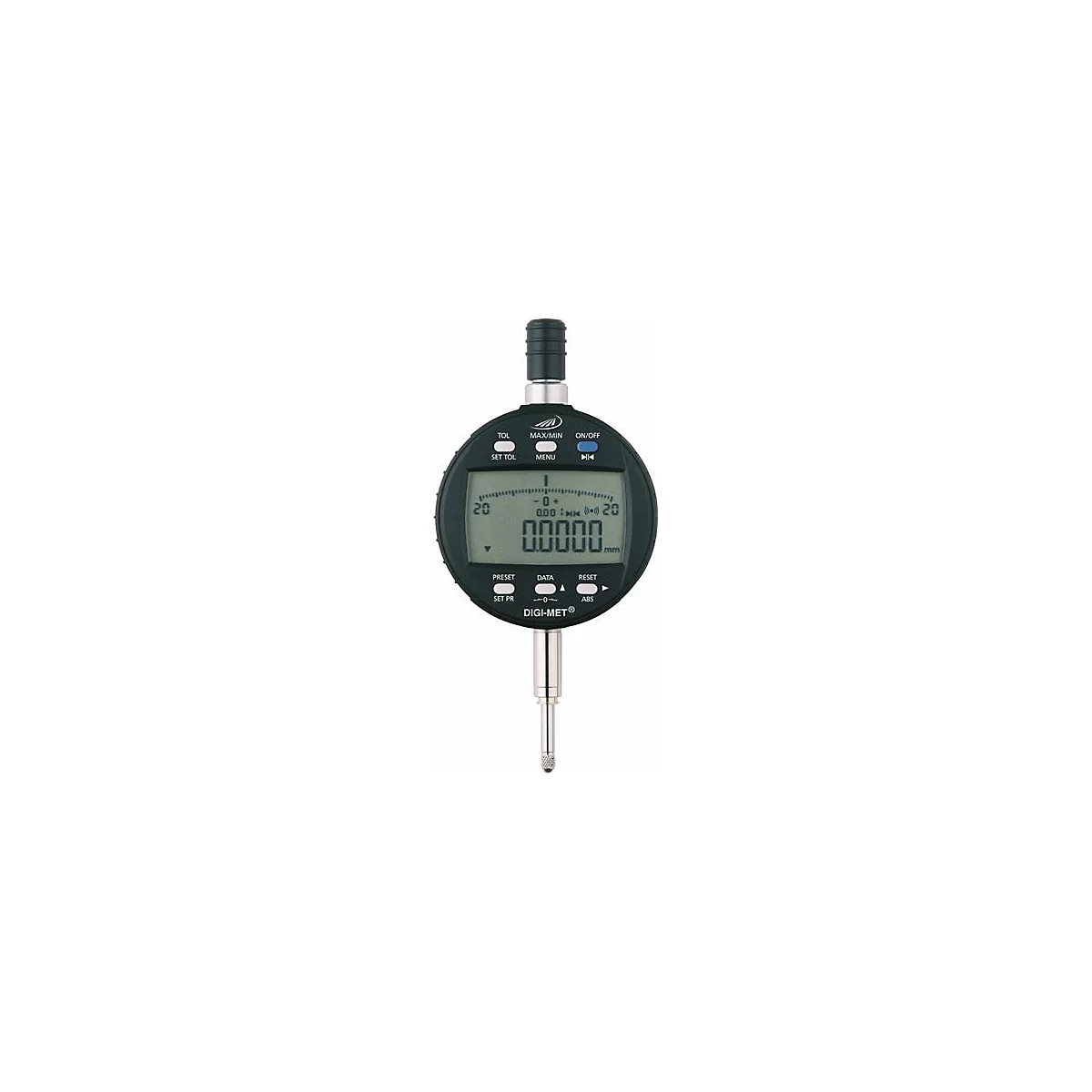

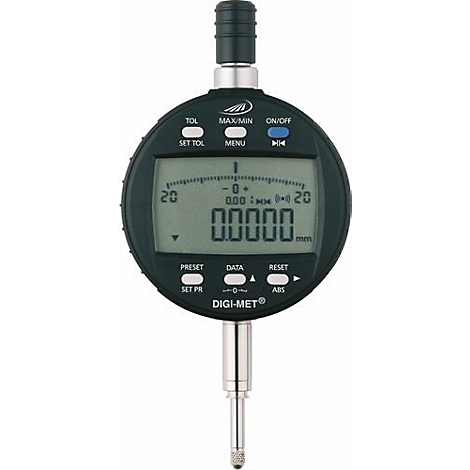

DIGI-MET Dial Gauge IP42 12.5 mm, Reading: 0.0005 mm, Digital, H. PREISSER

digital - IP42 - with integrated interface for radio transmission - with combined digit and scale display - LCD display 11 mm digit height - rotatable reading field 280° - lift-off cap at measuring pin end - clamping shaft and measuring pin made of stainless, hardened steel - clamping shaft (Ø 8 mm h6) - replaceable probe tip M2.5 - outer Ø 60 mm

Functions: ON/OFF - QuickStart electronics - QuickLock function - Keypad lock - Zero setting at any point - mm/inch - ABS (zeroing the display without losing reference to PRESET) - Counting direction reversal - PRESET (dimension presetting) - TOL (tolerance input) - MAX/MIN memory for reversal point search - TIR (MAX-MIN) for concentricity and flatness check - Factor adjustable - With variable data output USB, RS 232C, Digimatic

Other technical features:
- Reading mm: 0.0005mm-
Measuring range mm: 12.5mm-
Outer Ø: 60mm-
Subject to inspection: yes
