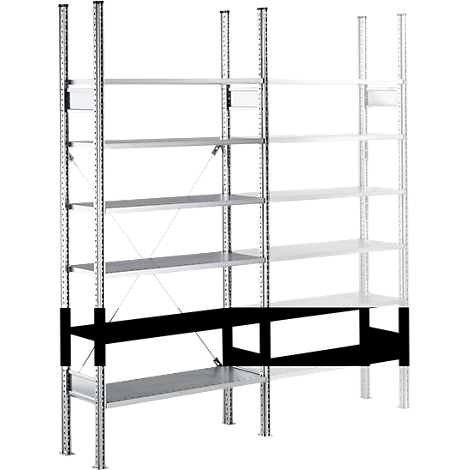

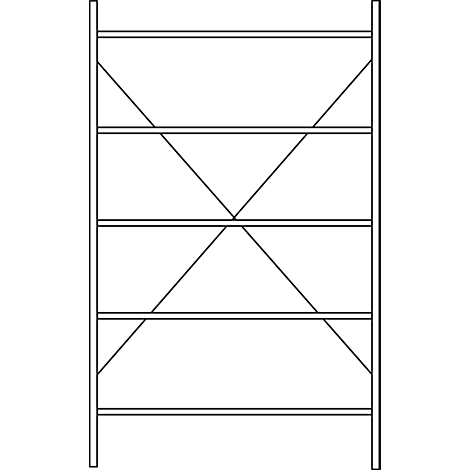

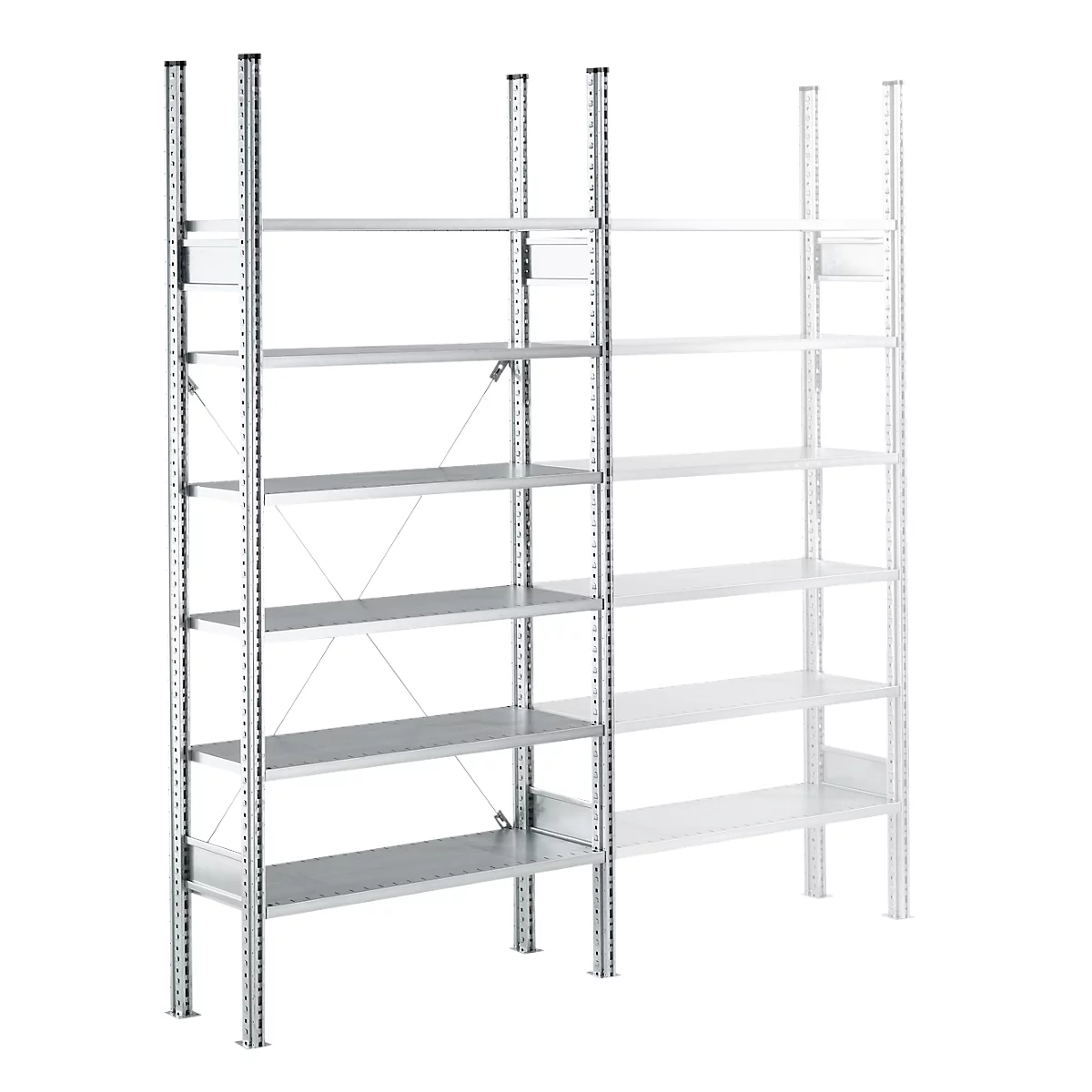

SSI Schäfer R3000 Modular Racking and Shelving, 5 galvanised shelves, depth 500 mm, load per shelf 250 kg, W 1345/1315 x H 1960 mm

Important product details:

• Shelving construction with base and add-on bays for ground-level construction
• Flexible storage: light and heavy, small-volume to bulky goods
• 5, 6 or 7 storage levels, selectable load capacity
• Clever plug-in system: can be extended at a later date
• Cost-effective, stable design for demanding applications
• Extensive selection of accessories for individual customization
• Euro dimension modularity and GS test mark

Plug-in system:

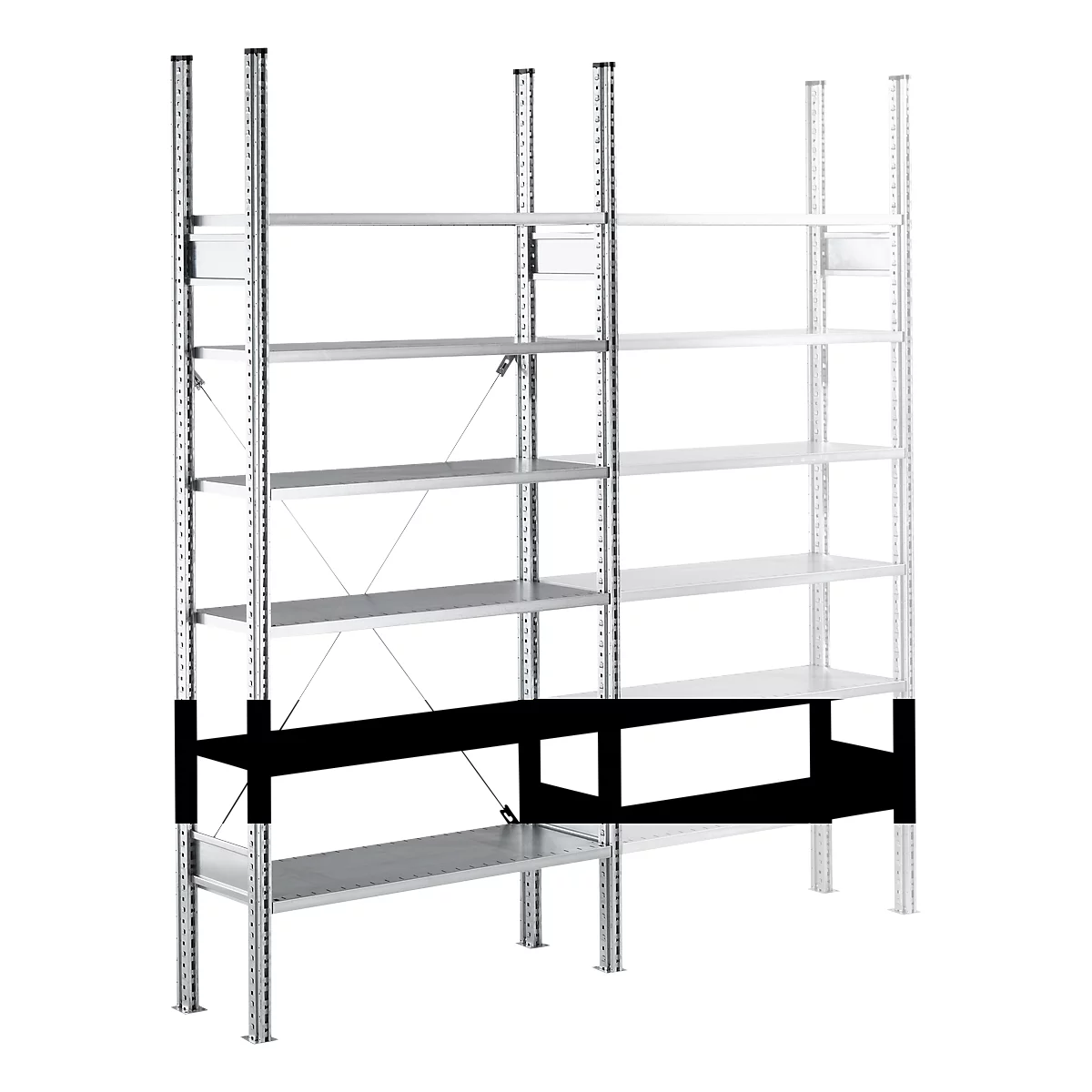

• Each basic bay can be extended with add-on bays of the same depth
• Screwless assembly of shelf frames and system components
• Tapered grooves on end faces for backlash-free attachment of support pockets and cross bracing
• Cams on wide sides for attaching shelves

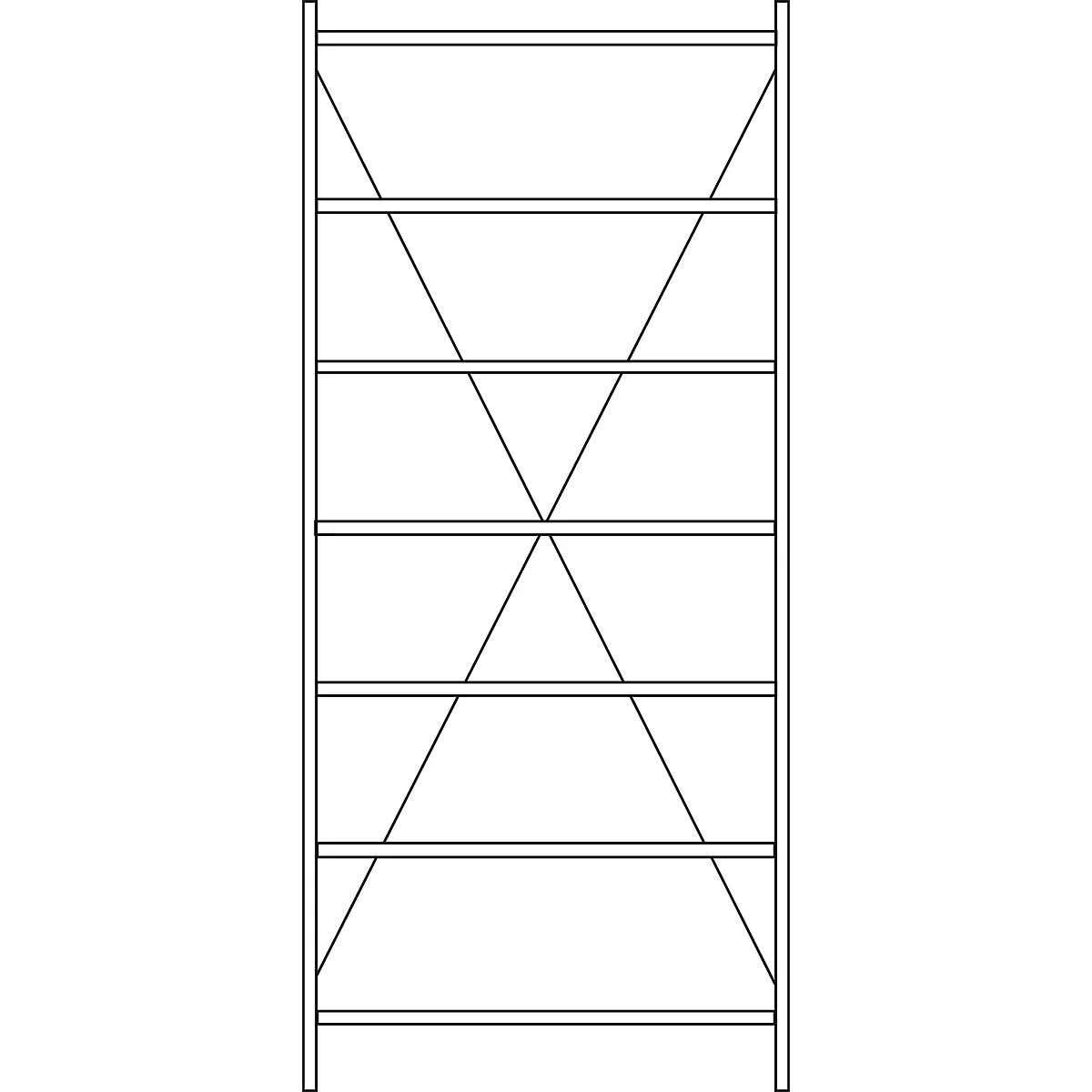

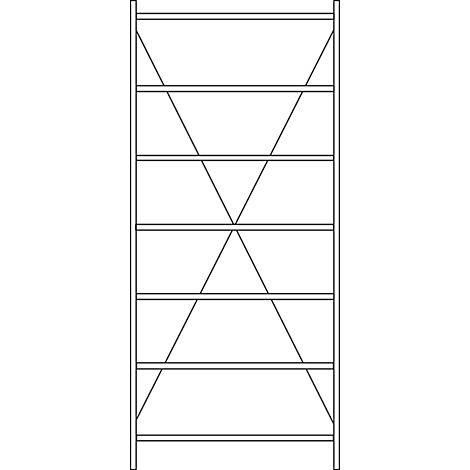

• Maximum bay load with cross bracing up to 1500 kg (base bay)
• Precise height adjustment of the levels in 53 mm increments
• Incl. shims for floor leveling, end caps, floor fastening, cross bracing (basic shelving only), shelf type plate (basic shelving only)
• Material: galvanized sheet steel
• Shelf design: 5, 6 or 7 shelves, galvanized
• Shelf load: 150 - 250 kg
• Bay load: 750 - 1250 kg
• Shelf width: 1345 mm basic shelf
• Shelf depth: 300 - 600 or 800 mm
• Shelf height: 2278 mm, 2490 mm or 2967 mm

The R3000 shelving system from SSI Schäfer scores points with its high level of flexibility. The six shelves supplied can be adjusted in a grid of 53 mm according to the user's requirements.

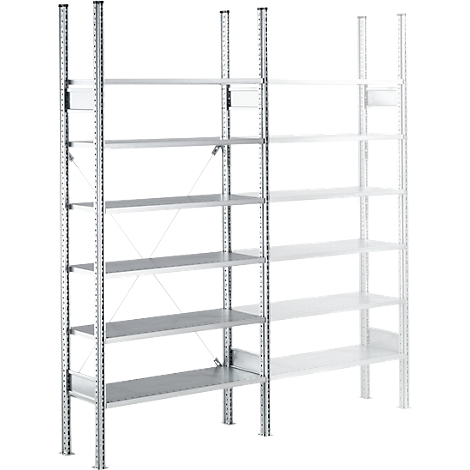

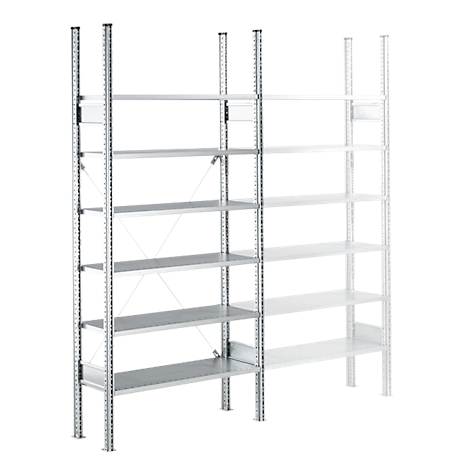

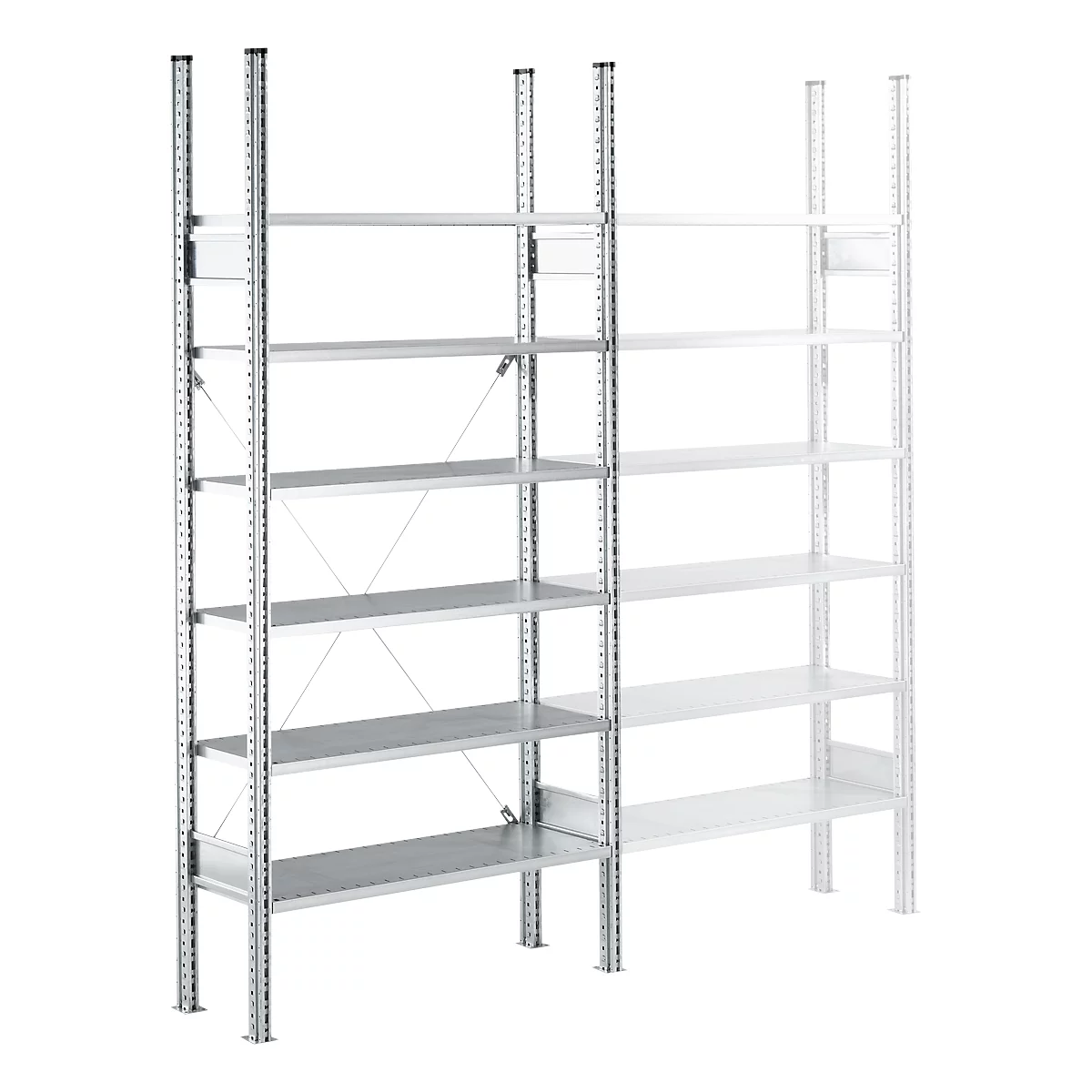

The shelving system impresses with its economical price-performance ratio, simple screwless assembly and flexible expandability. The R3000 shelving system is designed as a 2490 mm or 2967 mm high and 1345 mm wide add-on shelving unit.

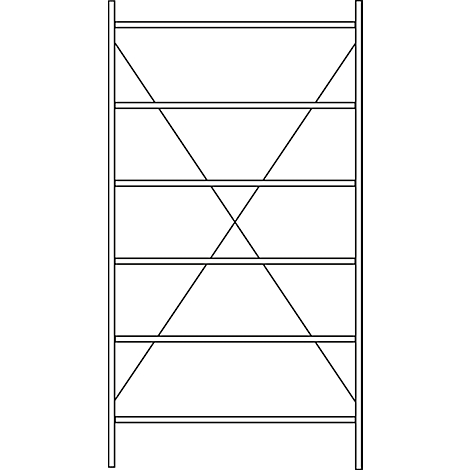

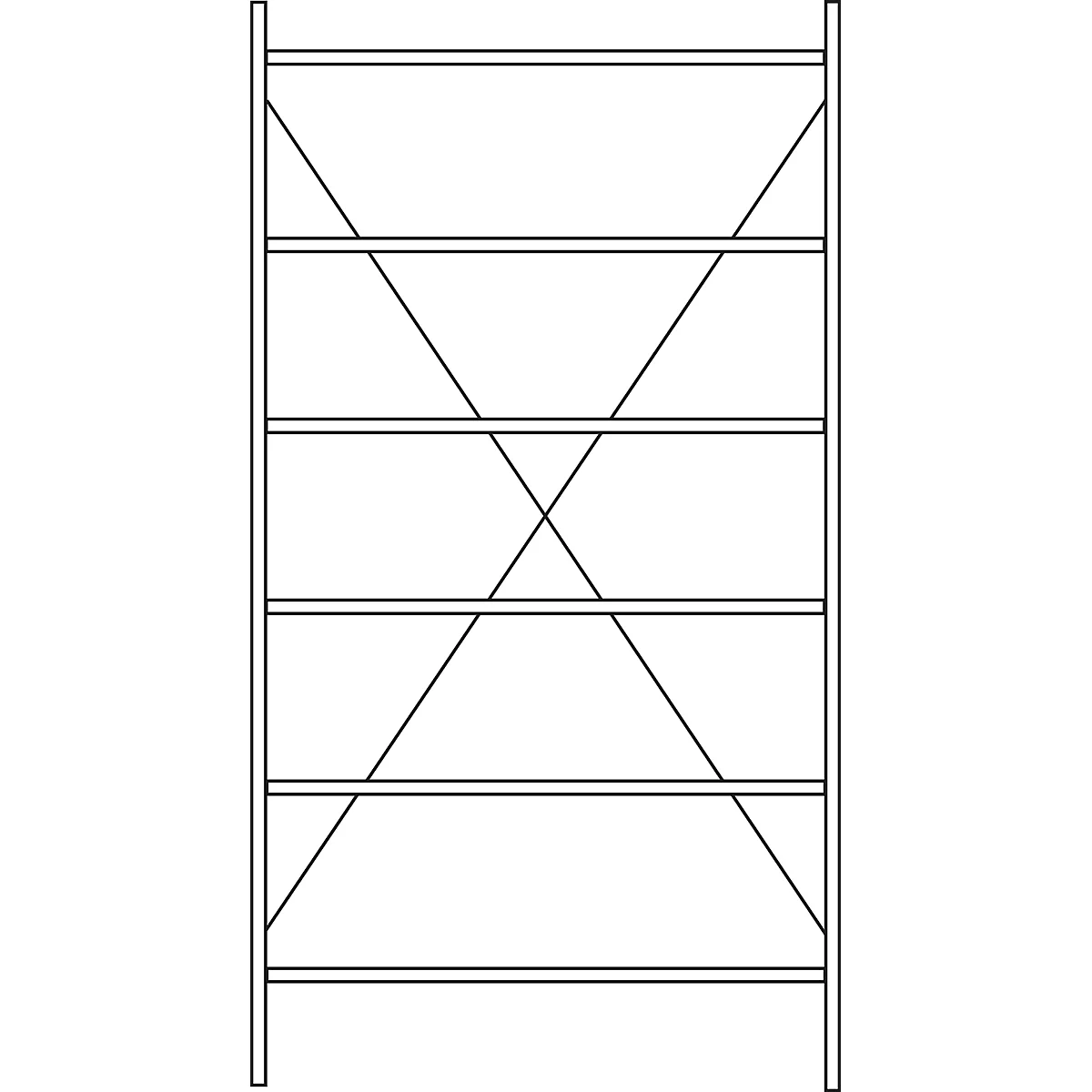

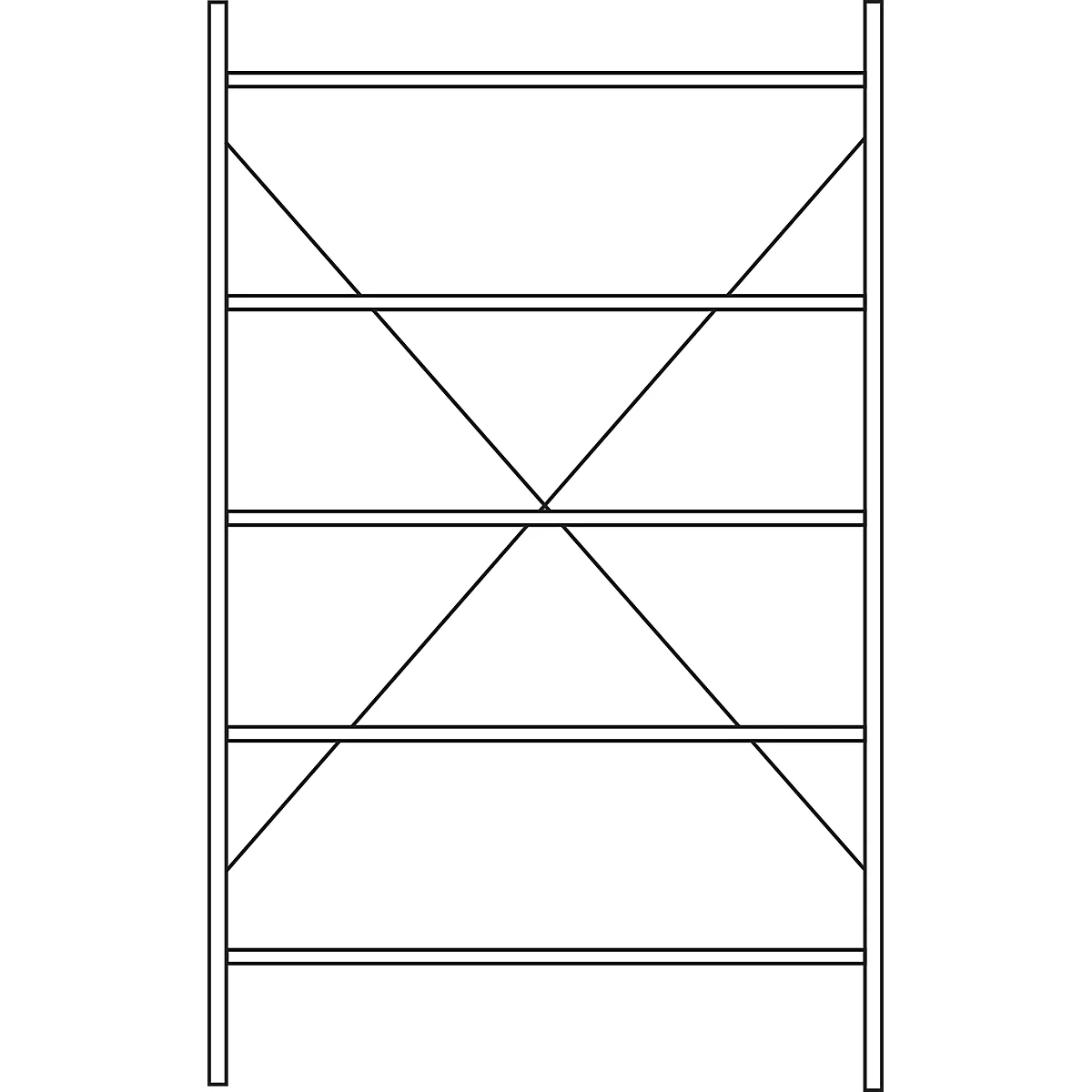

Stabilization with the supplied cross bracing enables a bay load of up to 1500 kg with 6 shelves, each with a load capacity of 150 kg or 250 kg. Apart from the cross bracing and a shelf type plate, the add-on shelf is equipped in exactly the same way as the basic shelf, including the assembly set for screwless connection of all elements.

Suitable accessories such as shims for floor leveling and a floor fastening are included with both versions. The R3000 shelving system from SSI Schaefer thus combines flexibility and time-saving assembly to create a future-proof logistics solution with high availability and expandability. In addition to the high-quality workmanship made of sheet steel, the flexibility in the choice of floor dimensions also contributes to this. There is a choice of depths between 300 and 600 mm - or an extra-deep version at 800 mm. You can also choose between a load capacity of 150 or 250 kg per shelf. Further equipment can be ordered separately from the accessories range.
