Product Safety Information

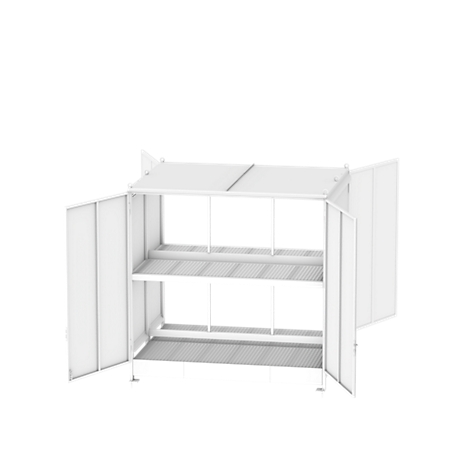

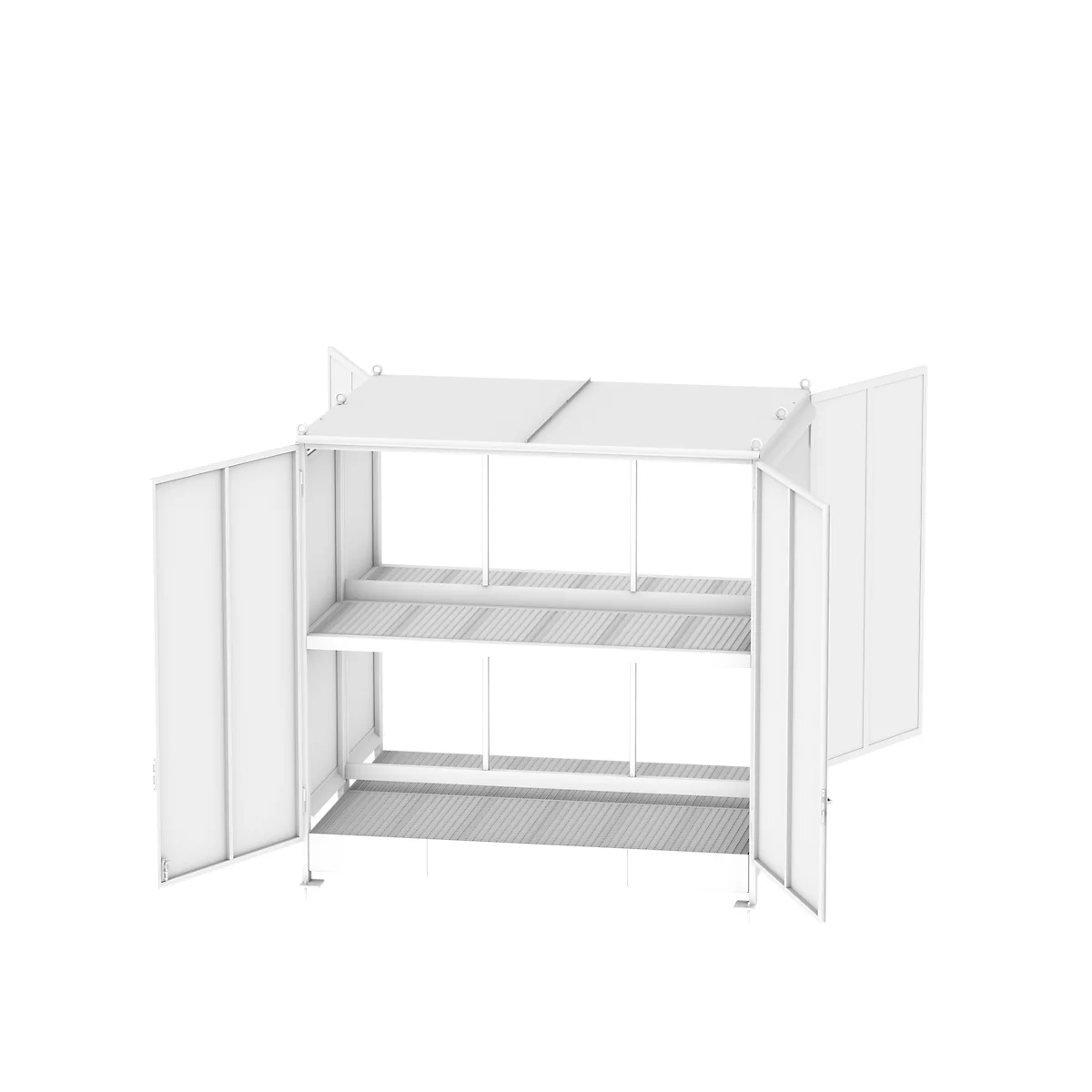

Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, orange

General information

Product safety instructions

Only use with materials that are compatible with the shelving container.;Check the drip tray regularly for damage and empty it to prevent overflows and environmental damage.;For outdoor use, ensure that the material is weatherproof and properly earthed, especially for flammable liquids of GHS 1-3.;Installation and transport may only be carried out by authorised specialist companies or trained personnel in compliance with the safety regulations.;Only move shelf containers with suitable equipment such as pallet trucks or forklift trucks and observe the operating instructions.;When storing flammable liquids, earthing/potential equalisation is required to minimise the risk of ignition.;Regular inspection and logging of the container for corrosion and damage, especially sharp edges.;In the event of a leak, safely collect any escaping liquid and take safety measures.;Ensure that there is proper ventilation to prevent the accumulation of hazardous vapours.;Position the shelving container on a stable and level surface to prevent it from tipping over.;Ensure ventilation to avoid the risk of suffocation.;Provide safety data sheets for stored substances and train employees in safe handling.;In the event of safety problems, notify the relevant authorities immediately.

Article numbers

461051 461052 461053 461054 461055 461056 461099 461100 461101 461102 461103 461104

Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, orange

Name: Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, orange
Brand: Bauer
SKU: 7581838
Price: 23450.0 CHF
Availability: InStock

Item number: 461051

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

With the CEN 36-2b from Bauer in yellow-orange RAL 2000, you get a shelf container with 2 storage levels in which you can safely store up to 16 Euro pallets. Water-polluting substances of GHS 1-4 can be stored safely and in accordance with regulations. Proper handling of hazardous substances begins with the right material. The shelf container with painted surface is made of highly resistant, durable sheet steel and is easy to clean. Due to the material's susceptibility to corrosion, regular inspection and logging is mandatory. Any escaping liquids are collected cleanly by means of the accompanying 960 litre collecting tray made of sheet steel. Whether outdoors or indoors: the safe handling of your hazardous substances is guaranteed. The product is equipped with natural ventilation and a lockable double wing gate. In order to optimise your internal logistics, it can be accessed with a forklift truck as well as a pallet truck.

Note: On request, the shelf container can also be ordered with equipotential bonding/grounding, so that you can also use it outdoors for the storage of flammable liquids of GHS 1-3. Please do not hesitate to contact us. Delivery is carriage forward, disassembled to an unloading point accessible by truck trailer, without unloading and transport.

The shelf container is equipped with:

Steel frame construction
Collecting tray
gratings
Crane lugs

Accessories only available on request:

Earthing/potential equalisation
Electric roller shutter
Lighting (also in EX version)
Extinguishing systems according to specified requirements
PE tray inserts
Collecting trays in stainless steel design

Advantages for you

This product is suitable for the storage of water-polluting substances GHS 1-4 and flammable liquids GHS 1-3 (optional)

Show moreShow less

Technical data

General features
Accessible from below Yes
Capacity Euro pallets 16
Certificates Declaration of conformity (ÜHP) according to StawaR
Clear compartment width [mm] 3600
Clear shelf height [mm] 1250
Collecting volume [l] 960
Container type Euro pallets
Craneable Yes
Delivery Mounted
Depth of the free tag (mm) 1295
Depth [mm] 2900
Door type 2 hinged doors
Floor version Collecting tray with grating
Hazardous substance type Substances hazardous to water GHS 1-4; flammable liquids GHS 1-3 (optional)
Height [mm] 3145
Insulation No
Location outside - inside
Lockable Yes
Material container Sheet steel
Number of shelf levels [pcs.] 2x2
Operability double-sided
Permeable wall thickness (mm) 5
Preparation for floor mounting yes
Shelf load capacity [kg] 2650
Slide-through protection Yes
Standard declaration of conformity (ÜHP) according to StawaR
Surface varnished
Tray material Sheet steel
Undercarriage height (mm) 100
Ventilation of course
Weight [kg] 2450
Width [mm] 3905
Colors
Color yellow-orange RAL 2000

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 23’450.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000 clay

yellow-orange RAL 2000 clay fire red RAL 3000 clay light blue RAL 5012 clay reseda green RAL 6011 clay mouse grey RAL 7005 clay grey white RAL 9002 clay

Number of shelf levels [pcs.]: 2x2 Stk.

2x2 Stk. 3x2 Stk.

show all variants

Add to basket

Delivery time: approx. 21 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Shelf container BAUER CEN 36-2b/36-3b, steel, double wing door, various models. Versions

Overview of the possible item variants. For more information, click on the respective variant.

Color

Number of shelf levels [pcs.]

Item			Price
Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, orange Item number: 461051			Fr. 23’450.00 Amount + - Added times
Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, red Item number: 461052			Fr. 23’450.00 Amount + - Added times
Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, blue Item number: 461053			Fr. 23’450.00 Amount + - Added times
Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, green Item number: 461054			Fr. 23’450.00 Amount + - Added times
Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, gray Item number: 461055			Fr. 23’450.00 Amount + - Added times
Shelf container BAUER CEN 36-2b, steel, double wing door, W 3905 x D 2900 x H 3145 mm, white Item number: 461056			Fr. 23’450.00 Amount + - Added times

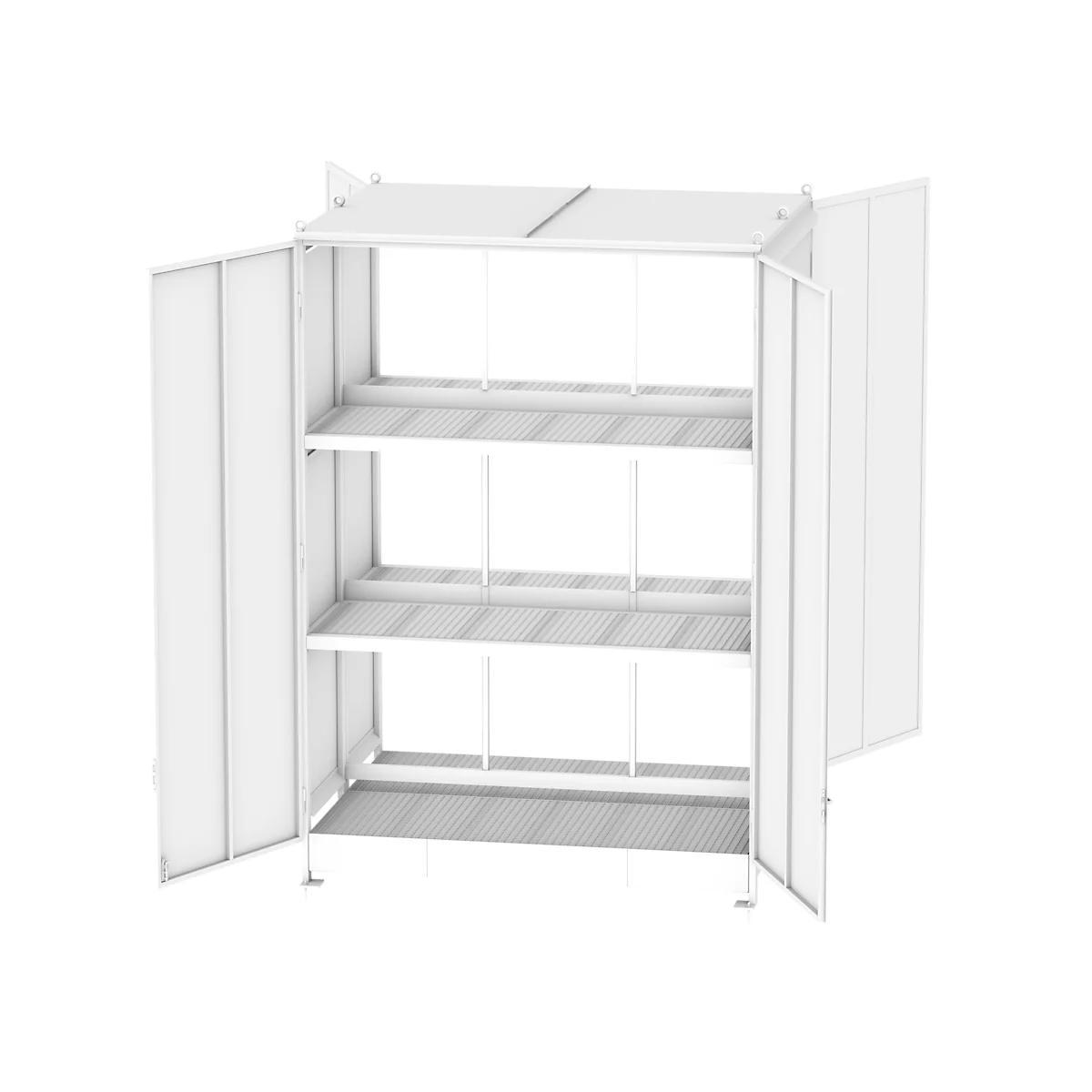

Shelf container BAUER CEN 36-3b, steel, double wing door, W 3910 x D 2900 x H 4540 mm, orange Item number: 461099			Fr. 42’065.00 Amount + - Added times
Rack container BAUER CEN 36-3b, steel, double wing door, W 3910 x D 2900 x H 4540 mm, red Item number: 461100			Fr. 42’065.00 Amount + - Added times
Shelf container BAUER CEN 36-3b, steel, double wing door, W 3910 x D 2900 x H 4540 mm, blue Item number: 461101			Fr. 42’065.00 Amount + - Added times
Shelf container BAUER CEN 36-3b, steel, double wing door, W 3910 x D 2900 x H 4540 mm, green Item number: 461102			Fr. 42’065.00 Amount + - Added times
Shelf container BAUER CEN 36-3b, steel, double wing door, W 3910 x D 2900 x H 4540 mm, gray Item number: 461103			Fr. 42’065.00 Amount + - Added times
Shelf container BAUER CEN 36-3b, steel, double wing door, W 3910 x D 2900 x H 4540 mm, white Item number: 461104			Fr. 42’065.00 Amount + - Added times
