Product Safety Information

Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, orange

General information

Product safety instructions

Regular inspection and logging required due to the material's sensitivity to corrosion.;When storing flammable liquids of GHS 1-3, the use of earthing/potential equalisation is required.;Only trained and authorised personnel may carry out final assembly and handling of hazardous substances.;Ensure suitable safety equipment and ventilation, especially when used outdoors.;During storage, safe use and suitable partitioning of access to protect against unauthorised access must be ensured.;Regular safety checks of the storage equipment and check the condition of the drip tray for leaks and functionality.;Use a drip tray to properly collect any leaking liquids.;Ensure that earthing and potential equalisation are used for outdoor storage.;Only use in accordance with the instructions for use for the intended applications and read the safety instructions carefully.;Prevent unauthorised persons from accessing hazardous substances.

Article numbers

461033 461034 461035 461036 461037 461038 461087 461088 461089 461090 461091 461092

Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, orange

Name: Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, orange
Brand: Bauer
SKU: 7499953
Price: 19227.0 CHF
Availability: InStock

Item number: 461033

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

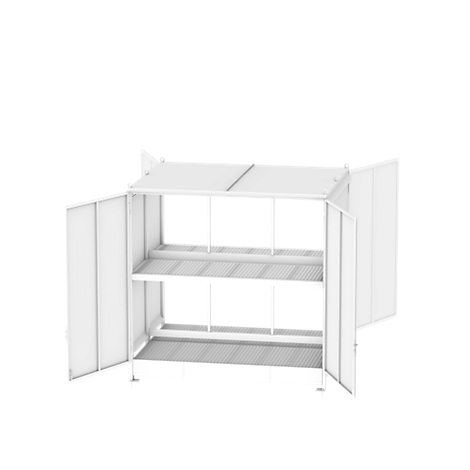

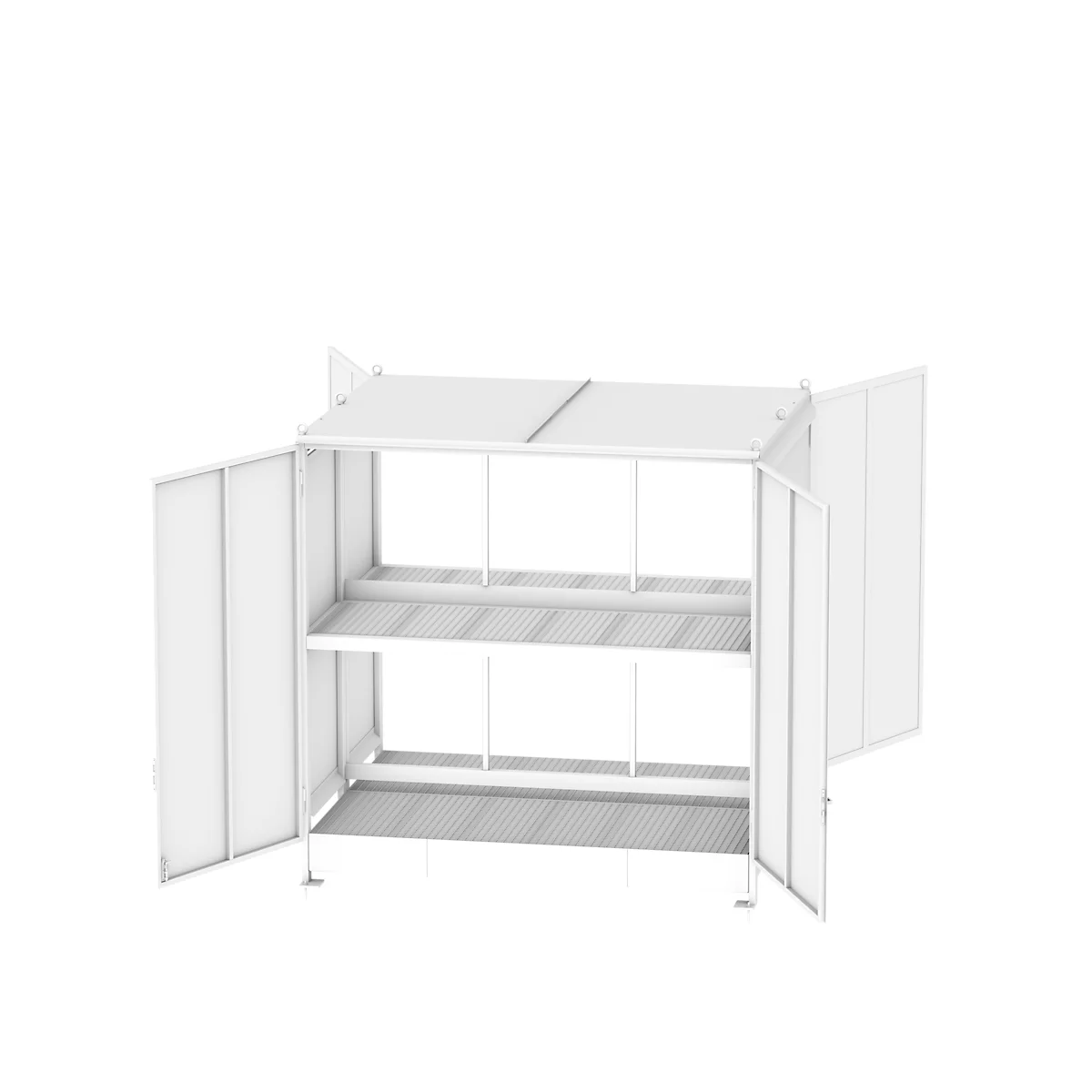

The shelf container CEN 29-2b in yellow orange RAL 2000 from Bauer has 2 levels and is suitable for storing up to 12 Euro pallets or 8 chemical pallets. The storage of water-polluting substances of GHS 1-4 in accordance with regulations is ensured. Safe handling of hazardous substances starts with the right material. The shelf container with painted surface is made of durable and robust sheet steel and is easy to clean. Due to the material's susceptibility to corrosion, there is a regular inspection and reporting requirement. Any escaping liquids are safely collected by means of the associated 640 litre collecting tray made of sheet steel. This product is suitable for indoor and outdoor use. Natural ventilation as well as a lockable double wing gate are part of the equipment. It is accessible by forklift or pallet truck.

Note: On request, the shelf container can also be ordered with equipotential bonding/grounding, so that you can also use it outdoors for storing flammable liquids of GHS 1-3. Please do not hesitate to contact us. Delivery is carriage forward, disassembled to an unloading point accessible by truck trailer, without unloading and transport.

Plus points of the shelf container at a glance:

Steel frame construction
Collecting tray
Gratings
Crane lugs

The following accessories are only available on request:

Earthing/potential equalisation
Electric roller shutter
Lighting (also in EX version)
Extinguishing systems according to specified requirements
PE tray inserts
Collecting trays in stainless steel design

Advantages for you

The storage of flammable liquids GHS 1-3 (optional) and substances hazardous to water GHS 1-4 in accordance with regulations is ensured

Show moreShow less

Technical data

General features
Accessible from below Yes
Capacity chemical pallets 8
Capacity Euro pallets 12
Certificates Declaration of conformity (ÜHP) according to StawaR
Clear compartment width [mm] 2970
Clear shelf height [mm] 1250
Collecting volume [l] 640
Container type Euro pallets;Chemical pallets
Craneable Yes
Delivery Mounted
Depth of the free tag (mm) 1295
Depth [mm] 2900
Door type 2 hinged doors
Floor version Collecting tray with grating
Hazardous substance type Substances hazardous to water GHS 1-4; flammable liquids GHS 1-3 (optional)
Height [mm] 2980
Insulation No
Location outside - inside
Lockable Yes
Material container Sheet steel
Number of shelf levels [pcs.] 2x2
Operability double-sided
Permeable wall thickness (mm) 5
Preparation for floor mounting yes
Shelf load capacity [kg] 2050
Slide-through protection Yes
Standard declaration of conformity (ÜHP) according to StawaR
Surface varnished
Tray material Sheet steel
Undercarriage height (mm) 100
Ventilation of course
Weight [kg] 2050
Width [mm] 3280
Colors
Color yellow-orange RAL 2000

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 19’227.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000 clay

yellow-orange RAL 2000 clay fire red RAL 3000 clay light blue RAL 5012 clay reseda green RAL 6011 clay mouse grey RAL 7005 clay grey white RAL 9002 clay

Number of shelf levels [pcs.]: 2x2 Stk.

2x2 Stk. 3x2 Stk.

show all variants

Add to basket

Delivery time: approx. 21 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Shelf container BAUER CEN 29-2b/29-3b, steel, double wing door, various models. Versions

Overview of the possible item variants. For more information, click on the respective variant.

Color

Number of shelf levels [pcs.]

Item			Price
Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, orange Item number: 461033			Fr. 19’227.00 Amount + - Added times
Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, red Item number: 461034			Fr. 19’227.00 Amount + - Added times
Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, blue Item number: 461035			Fr. 19’227.00 Amount + - Added times
Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, green Item number: 461036			Fr. 19’227.00 Amount + - Added times
Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, gray Item number: 461037			Fr. 19’227.00 Amount + - Added times
Shelf container BAUER CEN 29-2b, steel, double wing door, W 3280 x D 2900 x H 2980 mm, white Item number: 461038			Fr. 19’227.00 Amount + - Added times

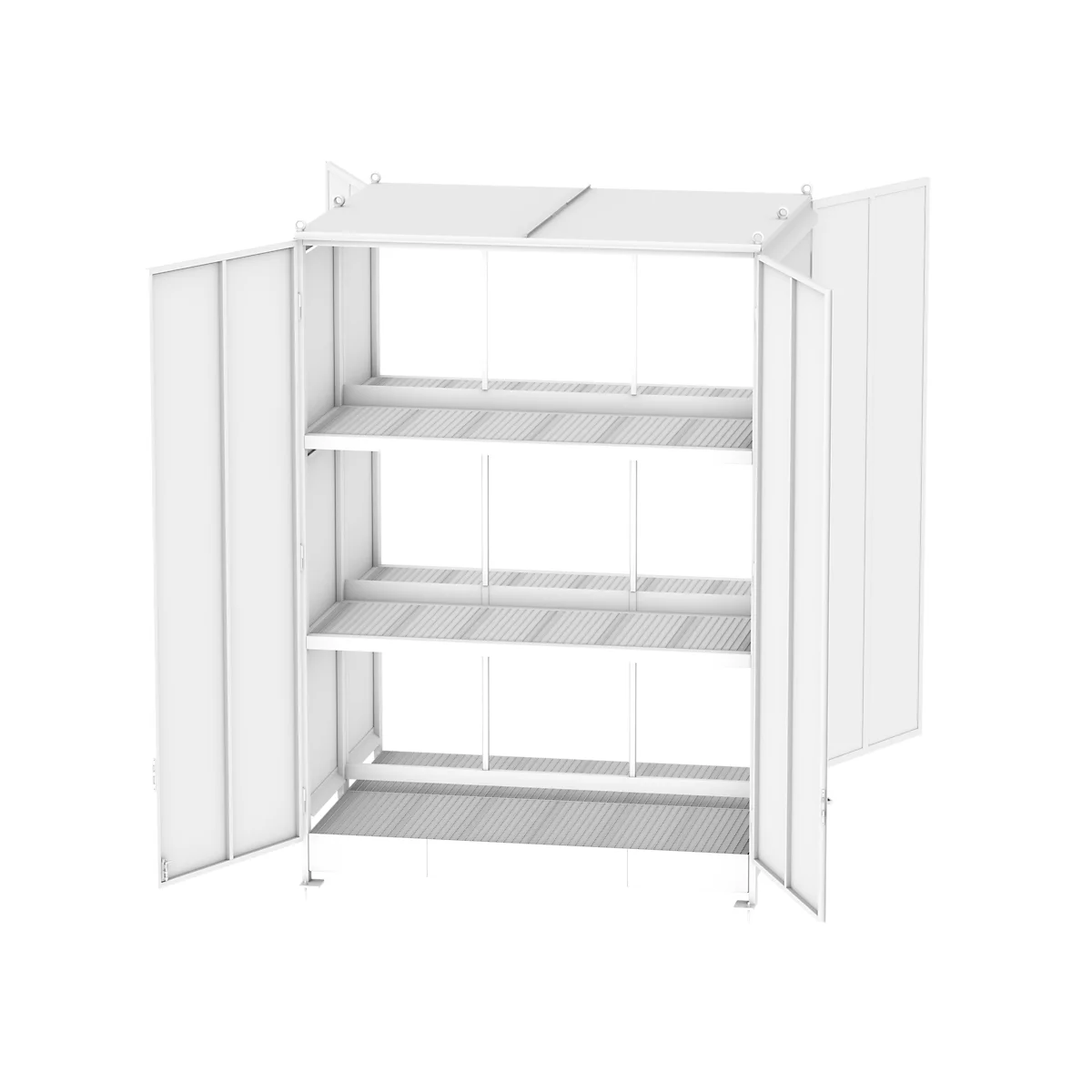

Shelf container BAUER CEN 29-3b, steel, double wing door, W 3275 x D 2900 x H 4415 mm, orange Item number: 461087			Fr. 36’602.00 Amount + - Added times
