Product Safety Information

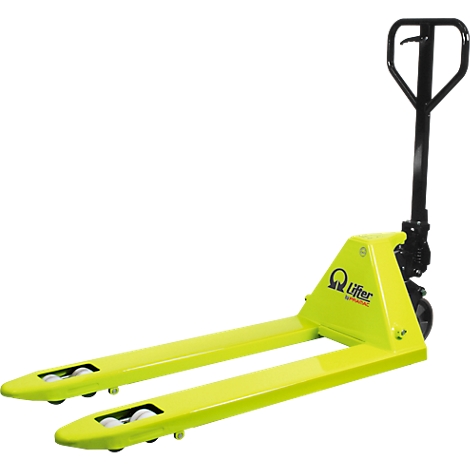

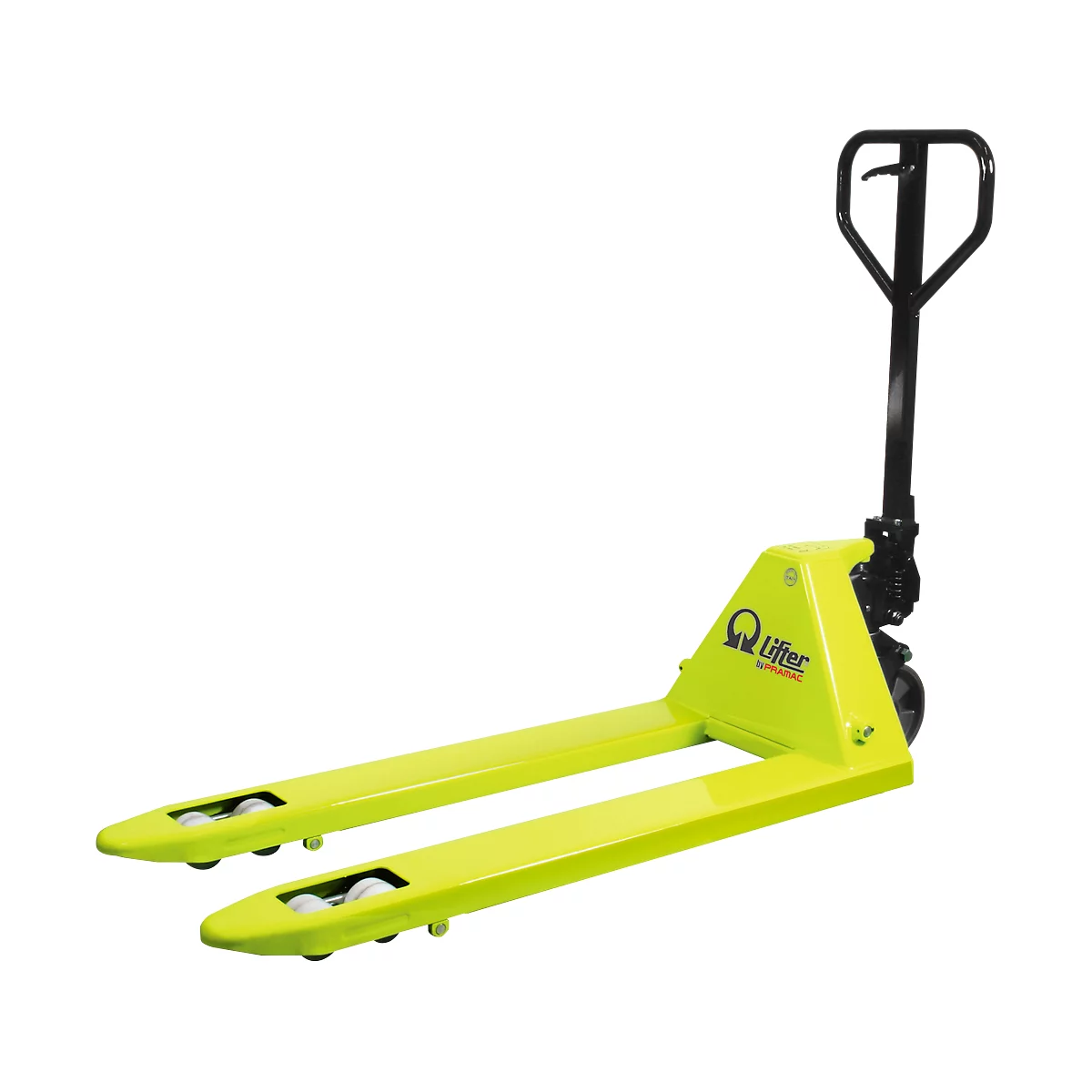

PRAMAC pallet truck, 2.5 t, VG/PU, tandem, 800 mm

General information

EU authorized representative E-mail address

info.de@pramac.com

EU authorized representative Name

PRAMAC GmbH

EU authorized representative Place

Fellbach

EU authorized representative Postal code

70736

EU authorized representative Street & house number

Merowinger Str. 7-9

EU Plenipotentiary Country

Deutschland

Product safety instructions

Take appropriate safety precautions to avoid injury when lifting or moving loads.;Ensure that the swivel castors and load rollers are free from contamination to ensure safe use.;Do not load the pallet truck beyond the recommended load capacity of 2500 kg. Operate only by qualified personnel.;Follow the instructions for correct use and maintenance of the pallet truck.;There is a risk of falling or crushing if used incorrectly.;Only use on stable, level surfaces to prevent tipping.;Choking hazard: Keep small parts and tools away from children.;Ensure that the hydraulic unit is serviced regularly to prevent leaks and malfunctions.;Observe the minimum distance from other persons during operation.;Read the safety instructions carefully before first use.;Regularly check the condition of the pallet truck, especially the castors and the hydraulic unit.;Operate with both hands and in an upright position.;Pay attention to other people in the vicinity during operation.;Wear suitable protective clothing, including safety shoes.;If there are any abnormalities such as noises or leaks, stop operation immediately.;Keep the pallet truck away from sources of ignition and heat.

Article numbers

76104 76110 76116

PRAMAC pallet truck, 2.5 t, VG/PU, tandem, 800 mm

Name: PRAMAC pallet truck, 2.5 t, VG/PU, tandem, 800 mm
Brand: Pramac
SKU: 7507264
Price: 529.0 CHF
Availability: InStock

Item number: 76110

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Pallet truck for heavy industrial use with a high load capacity of up to 2500 kg. 3 years warranty on the hydraulic unit. Robot welded, powder coated. Retractable and retractable rollers as well as a low dead weight ensure easy handling.

Load capacity: 2500 kg (2000 kg)
Fork length: 800/1150/2000 mm
Total length: 1200/1550/2400 mm
Lifting height: 85 - 200 mm
Carrying width: 525 mm
Fork width: 150 mm
Swivel castors: ø 200 x W 50 mm
Tandem castor
Solid rubber swivel castors
Load rollers made of polyurethane

Fork length 2000 mm has a load capacity of 2000 kg

Advantages for you

Easy operation thanks to lift drive

Thanks to a lifting range of 85 - 200 mm, the pallet truck can transport loads over uneven floors

Show moreShow less

Technical data

General features
Carrying width [mm] 525
Color of the pull-up bar black
Colour fork yellow
Delivery Mounted
Design of fork wheels Polyurethane
Diameter of the load rollers (mm) 82
Diameter swivel castors [mm] 200
External fork spacing [mm] 525
Fork length [mm] 800
Fork width [mm] 150
Lift drive manually
Load capacity [kg] 2500
Load capacity [kg] 2000
Material Swivel castors Solid rubber
Minimum height 30
Steering angle [°] 2 x 102,5
Steering wheel design Tandem
Steering wheels material Polyurethane (PU)
Stroke range [mm] 85 - 200
Swivel castor version Tandem
Total height [mm] 1185
Total length (mm) 1200
Total width [mm] 525
Turning radius [mm] 1017
Tyres Tandem
Weight [kg] 57
Colors
Color green

Schäfer Shop Quality and Service

only Fr. 529.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Fork length [mm]: 800 mm

1150 mm 800 mm 2000 mm

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Our recommendations for you

Variants

Overview of variants - PRAMAC pallet truck, for loads up to 2.5 tons, VG/PU, tandem

Overview of the possible item variants. For more information, click on the respective variant.

Fork length [mm]

Item			Price

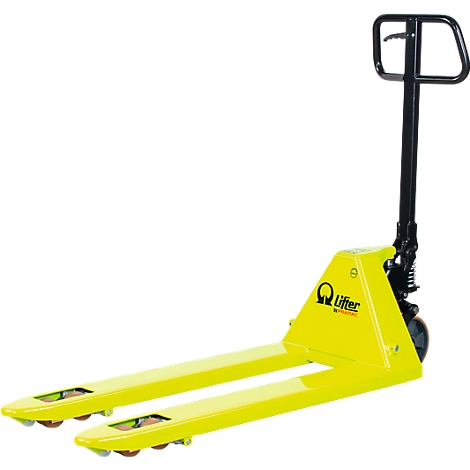

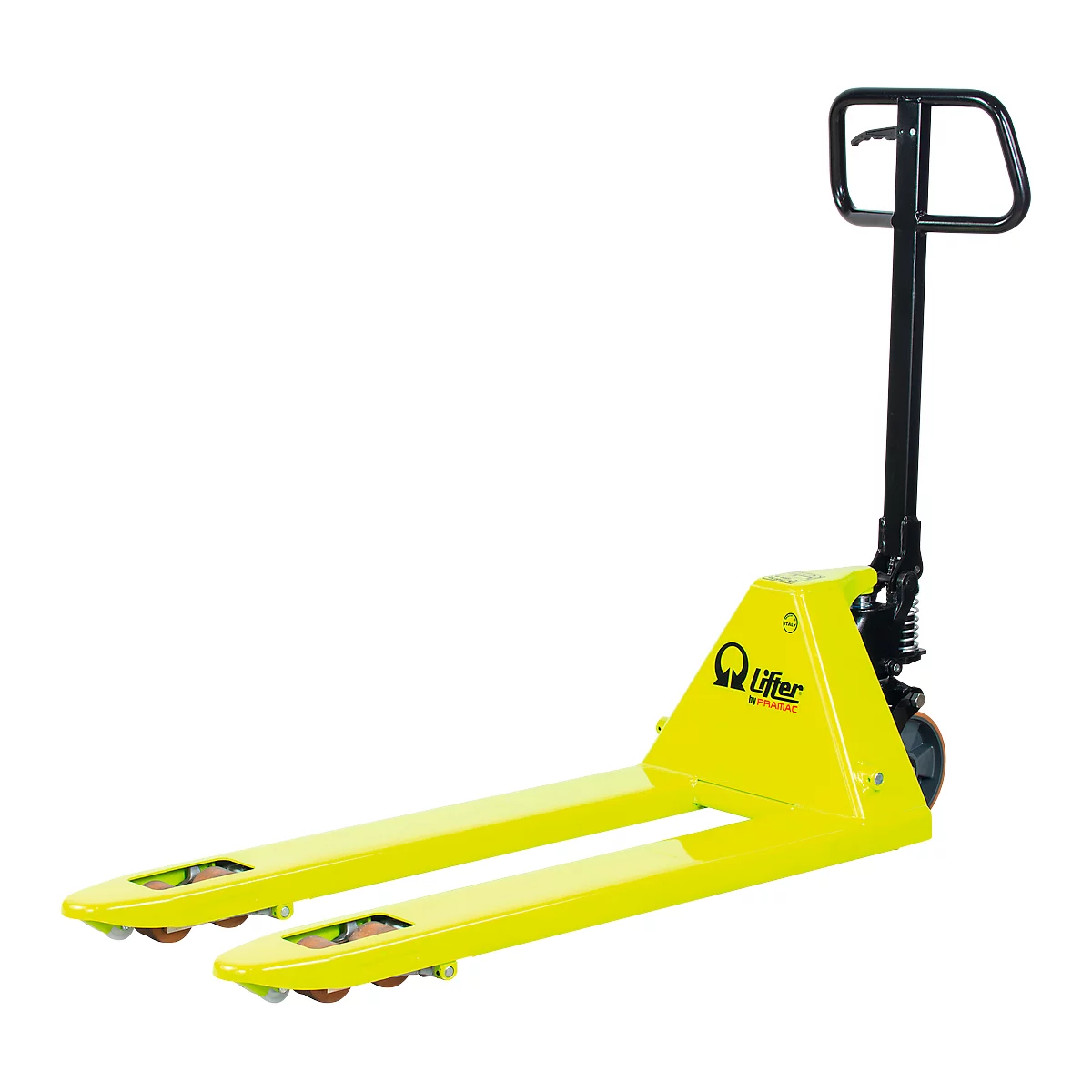

PRAMAC Pallet truck, 2,5 t, VG/PU, tandem, 1150 mm Item number: 76104			Fr. 799.00 Amount + - Added times
PRAMAC pallet truck, 2.5 t, VG/PU, tandem, 800 mm Item number: 76110			Fr. 529.00 Amount + - Added times
PRAMAC pallet truck, 2.0 t, VG/PU, tandem, 2000 mm Item number: 76116			Fr. 1’149.00 Amount + - Added times
