Product Safety Information

PRAMAC pallet truck, 2,5 t, VG/PU, single, 1150 mm

General information

EU authorized representative E-mail address

info.de@pramac.com

EU authorized representative Name

PRAMAC GmbH

EU authorized representative Place

Fellbach

EU authorized representative Postal code

70736

EU authorized representative Street & house number

Merowinger Str. 7-9

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not exceed the maximum load capacity of 2500 kg to avoid overloading and tipping over.;Avoid lifting loads that are not securely placed on the fork.;Wear suitable personal protective equipment (PPE), including sturdy footwear, to prevent injuries, especially crushing injuries.;Carry out regular maintenance and inspection of the hydraulic unit and rollers to prevent malfunctions.;Ensure that the work area is free of obstacles to avoid accidents.;The pallet truck is not intended for use by children and should be kept out of their reach.;Ensure that the pallet truck is used on a stable and level surface.;Complete training for the proper use and handling of the pallet truck.;Ensure that the product is correctly installed before use.

Article numbers

76103 76109 76115

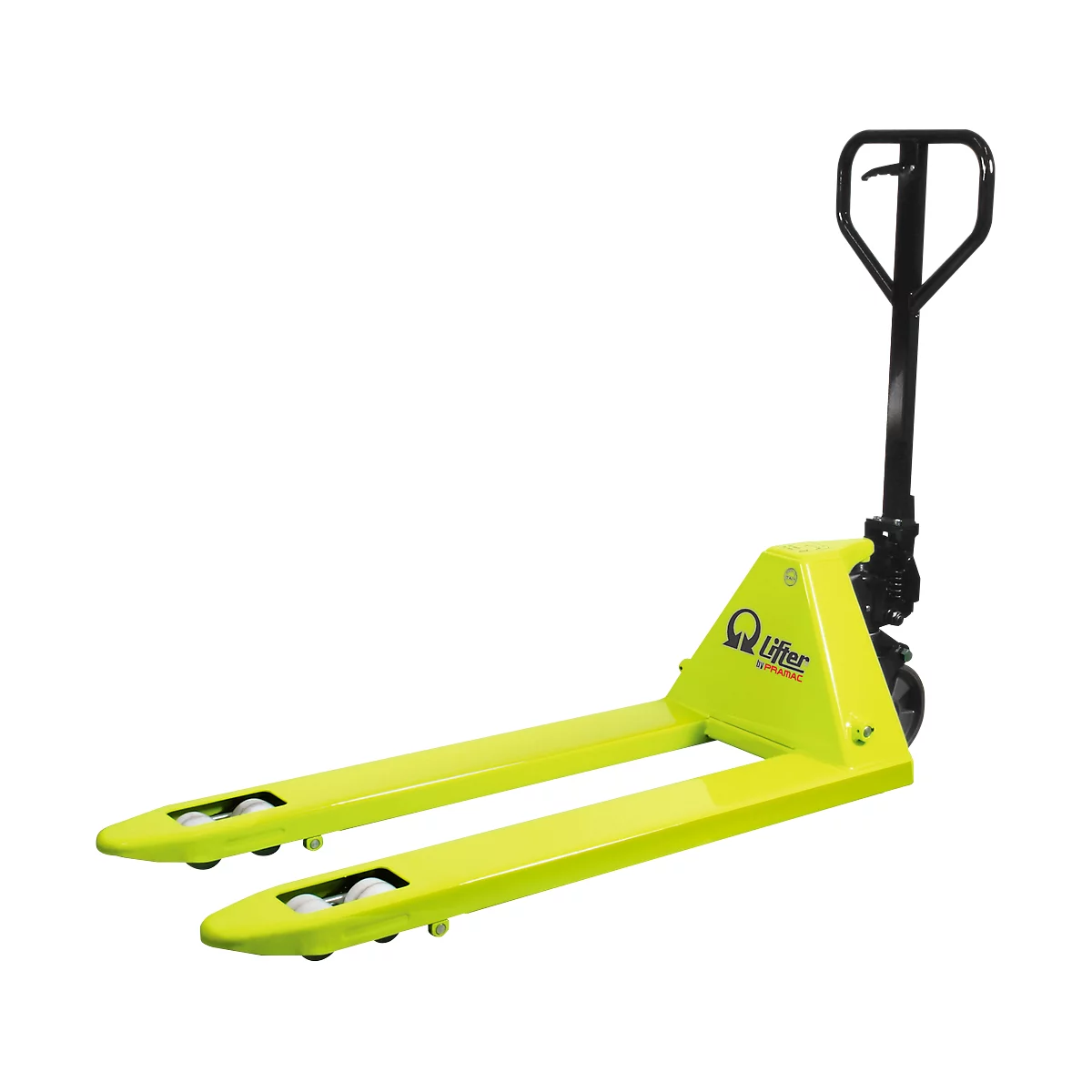

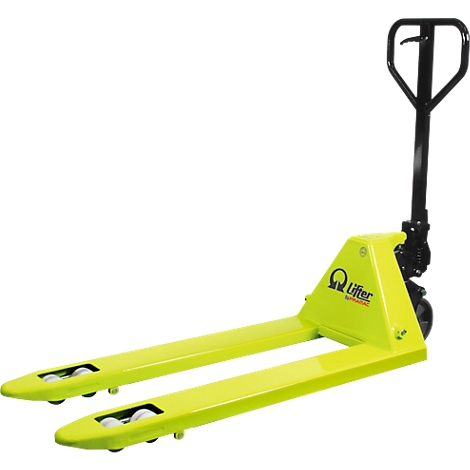

PRAMAC pallet truck, 2,5 t, VG/PU, single, 1150 mm

Name: PRAMAC pallet truck, 2,5 t, VG/PU, single, 1150 mm
Brand: Pramac
SKU: 7557352
Price: 469.0 CHF
Availability: InStock

Item number: 76103

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Pallet truck for heavy industrial use with a high load capacity of up to 2500 kg. 3 years warranty on the hydraulic unit. Robot welded, powder coated. Retractable and retractable rollers as well as a low dead weight ensure easy handling.

Load capacity: 2500 kg (2000 kg)
Fork length: 800/1150/2000 mm
Total length: 1200/1550/2400 mm
Lifting height: 85 - 200 mm
Carrying width: 525 mm
Fork width: 150 mm
Swivel castors: ø 200 x W 50 mm
Single castor
Solid rubber swivel castors
Load rollers made of polyurethane

Fork length 2000 mm has a load capacity of 2000 kg

Advantages for you

With manual lift drive for effort-saving and efficient handling

Thanks to a lifting range of 85 - 200 mm, the pallet truck can transport loads over uneven floors

Show moreShow less

Technical data

General features
Carrying width [mm] 525
Color of the pull-up bar black
Colour fork yellow
Delivery Mounted
Design of fork wheels Polyurethane
Diameter of the load rollers (mm) 82
Diameter swivel castors [mm] 200
External fork spacing [mm] 525
Fork length [mm] 1150
Fork width [mm] 150
Lift drive manually
Load capacity [kg] 2500
Load capacity [kg] 2000
Material Swivel castors Solid rubber
Minimum height 30
Steering angle [°] 2 x 102,5
Steering wheel design Simply
Steering wheels material Polyurethane (PU)
Stroke range [mm] 85 - 200
Swivel castor version Tandem
Total height [mm] 1185
Total length (mm) 1550
Total width [mm] 525
Turning radius [mm] 1367
Weight [kg] 64
Colors
Color green

Schäfer Shop Quality and Service

only Fr. 469.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Fork length [mm]: 1150 mm

1150 mm 800 mm 2000 mm

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Our recommendations for you

Variants

Overview of variants - PRAMAC pallet truck, for loads up to 2.5 tons, VG/PU, single

Overview of the possible item variants. For more information, click on the respective variant.

Fork length [mm]

Item			Price
PRAMAC pallet truck, 2,5 t, VG/PU, single, 1150 mm Item number: 76103			Fr. 469.00 Amount + - Added times
PRAMAC pallet truck, 2.5 t, VG/PU, single, 800 mm Item number: 76109			Fr. 529.00 Amount + - Added times
PRAMAC pallet truck, 2.0 t, VG/PU, single, 2000 mm Item number: 76115			Fr. 1’149.00 Amount + - Added times
