Product Safety Information

PRAMAC pallet truck, 2.5 t, VG/NY, single, 800 mm

General information

EU authorized representative E-mail address

info.de@pramac.com

EU authorized representative Name

PRAMAC GmbH

EU authorized representative Place

Fellbach

EU authorized representative Postal code

70736

EU authorized representative Street & house number

Merowinger Str. 7-9

EU Plenipotentiary Country

Deutschland

Product safety instructions

Before use, ensure that the maximum load capacity of 2000 kg is not exceeded.;Only use the product on a firm, level surface to prevent it from tipping over.;Product not suitable for use on inclines or uneven terrain.;Avoid overloading the pallet truck to prevent damage.;There is a risk of injury if the appliance is used incorrectly. Read the operating instructions carefully.;Ensure that all users are familiar with the operation of the pallet truck before use and keep hands and feet away from the fork and moving parts.;Ensure that the product is regularly checked for functionality and safety and that the condition of the castors and load rollers is checked to prevent accidents.;Observe the maintenance and care instructions for the pallet truck to extend its service life.;Appropriate training is required to operate the pallet truck.

Article numbers

76101 76107 76113

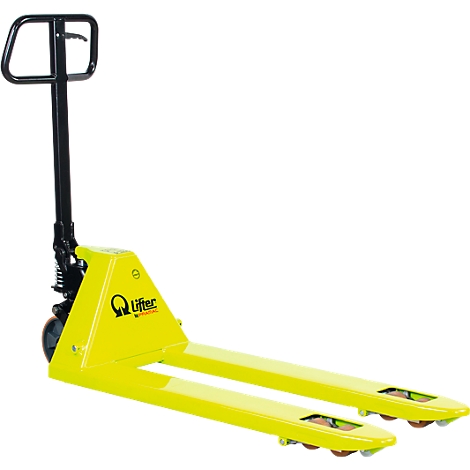

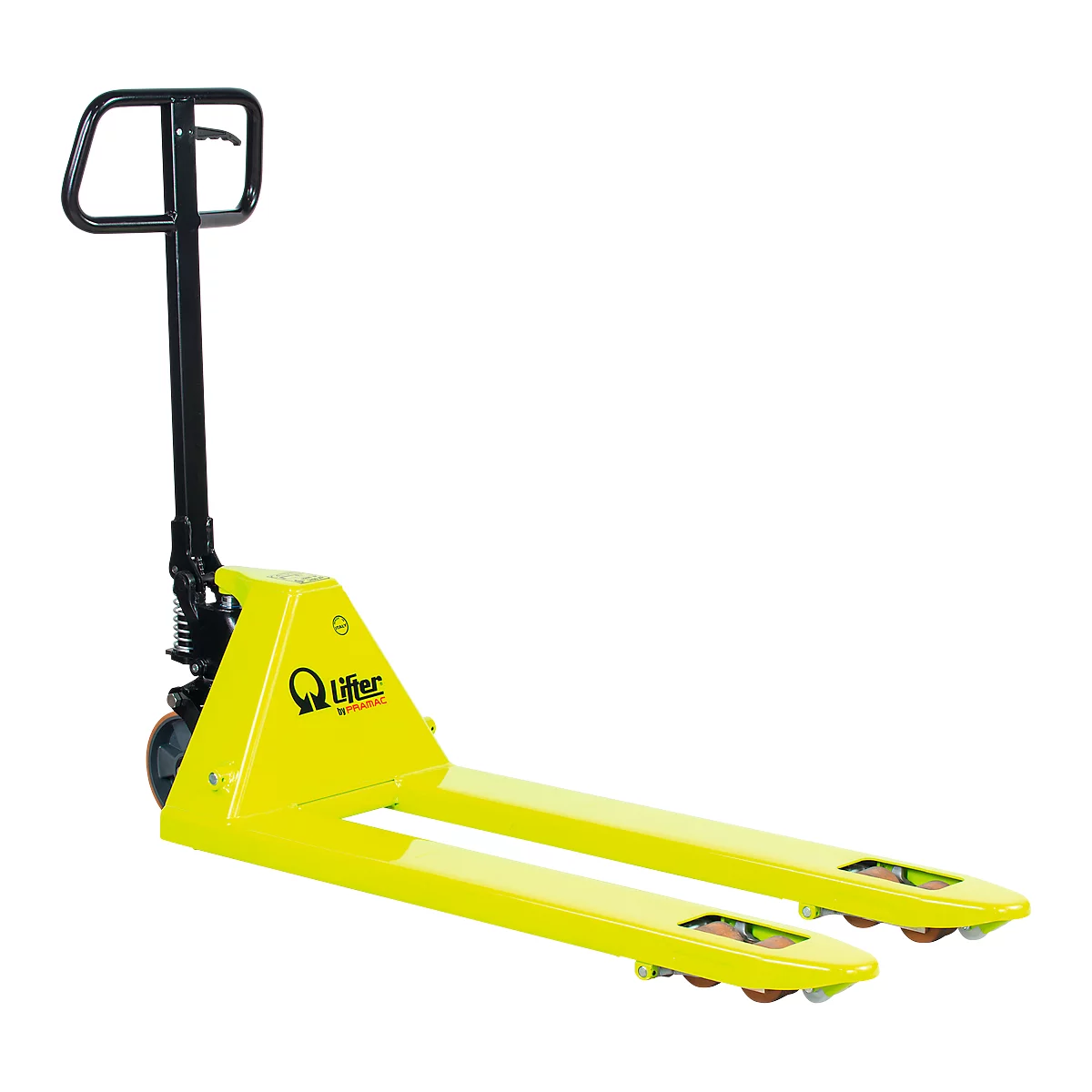

PRAMAC pallet truck, 2.5 t, VG/NY, single, 800 mm

Name: PRAMAC pallet truck, 2.5 t, VG/NY, single, 800 mm
Brand: Pramac
SKU: 7592734
Price: 529.0 CHF
Availability: InStock

Item number: 76107

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Pallet truck for heavy industrial use with a high load capacity of up to 2500 kg. 3 years warranty on the hydraulic unit. Robot welded, powder coated. Retractable and retractable rollers as well as a low dead weight ensure easy handling.

Load capacity: 2500 kg (2000 kg)
Fork length: 800/1150/2000 mm
Total length: 1200/1550/2400 mm
Lifting height: 85 - 200 mm
Carrying width: 525 mm
Fork width: 150 mm
Swivel castors: ø 200 x W 50 mm
Single castor
Solid rubber swivel castors
Load rollers made of nylon

Fork length 2000 mm has a load capacity of 2000 kg

Advantages for you

Manual lift drive enables easy handling

Problem-free load transport even over uneven floors with 85 - 200 mm lifting range

Show moreShow less

Technical data

General features
Carrying width [mm] 525
Color of the pull-up bar black
Colour fork yellow
Delivery Mounted
Design of fork wheels Nylon
Diameter of the load rollers (mm) 82
Diameter swivel castors [mm] 200
External fork spacing [mm] 525
Fork length [mm] 800
Fork width [mm] 150
Lift drive manually
Load capacity [kg] 2500
Load capacity [kg] 2000
Material Swivel castors Solid rubber
Minimum height 30
Steering angle [°] 2 x 102,5
Steering wheel design Simply
Steering wheels material Nylon
Stroke range [mm] 85 - 200
Swivel castor version Tandem
Total height [mm] 1185
Total length (mm) 1200
Total width [mm] 525
Turning radius [mm] 1017
Warranty [years] 3
Weight [kg] 55
Colors
Color green

Schäfer Shop Quality and Service

only Fr. 529.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Fork length [mm]: 800 mm

1150 mm 800 mm 2000 mm

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Similar Products

Schäfer Shop Pure pallet truck, manual lift drive, load capacity up to 2000 kg, swivel & fork rollers, L 1550 x W 540 x H 1230 mm, red

only Fr. 429.00 from Fr. 429.00
per Pcs.

Our recommendations for you

Variants

Overview of variants - PRAMAC pallet truck, for loads up to 2.5 tons, VG/NY, single

Overview of the possible item variants. For more information, click on the respective variant.

Fork length [mm]

Item			Price
PRAMAC pallet truck, 2,5 t, VG/NY, single, 1150 mm Item number: 76101			Fr. 749.00 Amount + - Added times
PRAMAC pallet truck, 2.5 t, VG/NY, single, 800 mm Item number: 76107			Fr. 529.00 Amount + - Added times
PRAMAC pallet truck, 2.0 t, VG/NY, single, 2000 mm Item number: 76113			Fr. 1’149.00 Amount + - Added times
