Grid back wall set, H 2500 and W 850 mm, width 1900 mm, incl. accessories

This lattice rear panel set is suitable for a shelf frame with a height of 2500 mm, 3600 mm, 4700 mm or 5800 mm and a frame depth of either 850 or 1100 mm. The clear field width of the lattice rear wall set is available with 1900 or 2700 mm.
As the rear sides of free-standing racks have to be secured against load units falling down, you need this lattice rear panel set to secure them. The lattice rear wall set is suitable for shelf frames with a height of 2500 mm, 3600 mm, 4700 mm or 5800 mm, which you select individually. You can also choose between 1900 mm or 2700 mm for the clear field width of the lattice back panel set. Of course, we also offer the mesh rear wall set in two different depths of 850 mm or 1100 mm. This individually adaptable system has the advantage that you can order the grille rear wall set entirely according to your needs. The mesh back panel set has a mesh size of 100 x 50 mm. The mesh mats are fastened with 2 C-profiles and brackets or compensating rods. We deliver the lattice rear wall set including accessories.
Further details:

• Mesh back panel set for shelf frames with a height of 2500 mm, 3600 mm, 4700 mm or 5800 mm.
• Note: Rear sides of free-standing shelving units must be secured to prevent load units from falling down. Please observe the applicable safety regulations.
• The mesh size is 100 x 50 mm.

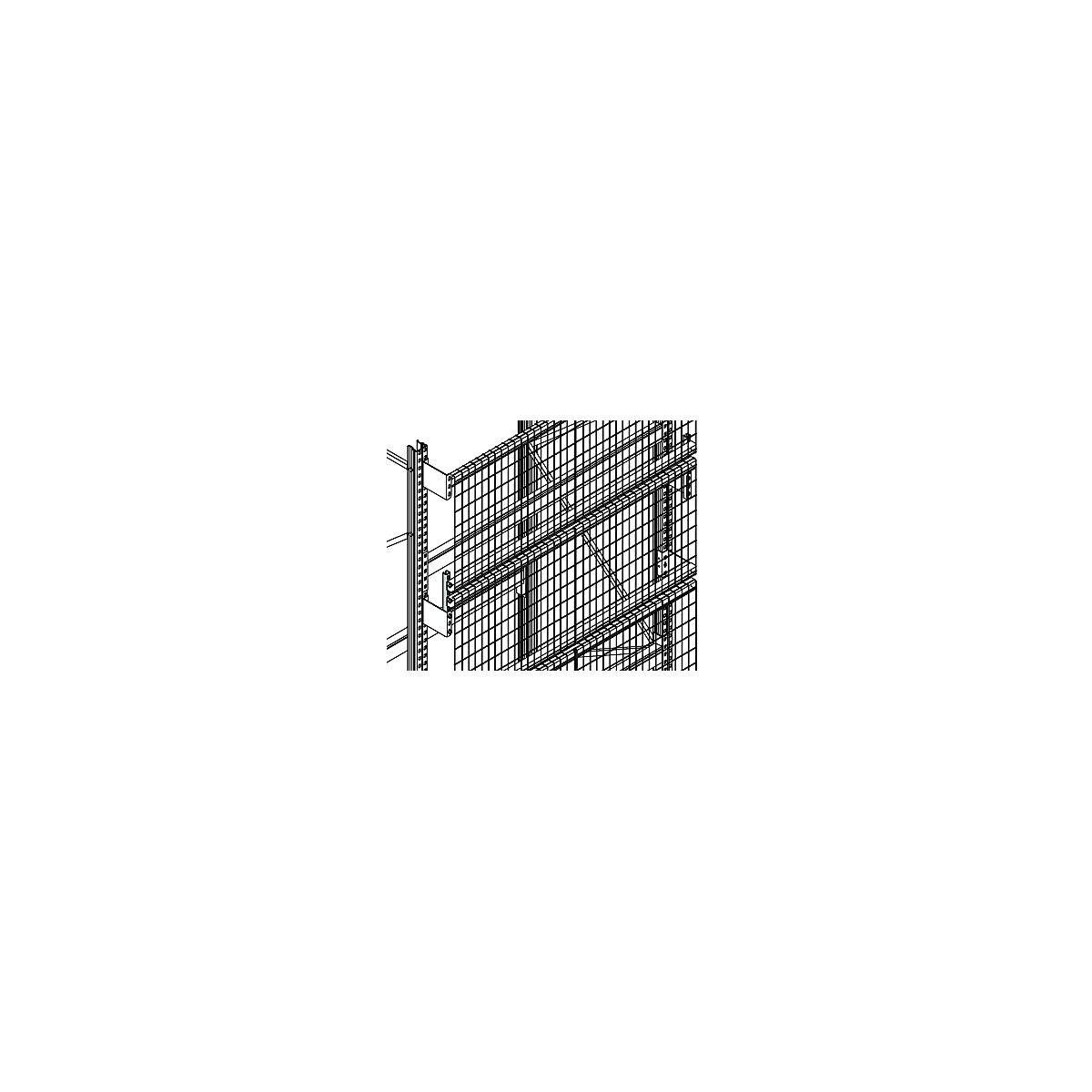

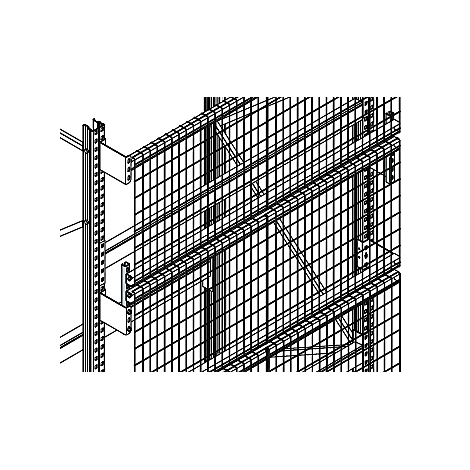

• The lattice mats are fastened with 2 C-profiles and brackets/balancing rods.
• There is sufficient space between the rear wall of the mesh and the frame for an additional push-through guard.
• Clear field width: optionally 1900 mm or 2700 mm
• For frame depth: optionally 850 mm or 1100 mm
• Accessories included
