Product Safety Information

Malleable iron screw clamp TGK Clamp W.400mm A.120mm Wooden handle 35x11mm BESSEY

General information

EU authorized representative E-mail address

info@bessey.de

EU authorized representative Name

BESSEY Tool GmbH & Co. KG

EU authorized representative Place

Bietigheim-Bissingen

EU authorized representative Postal code

74321

EU authorized representative Street & house number

Mühlwiesenstraße 40

EU Plenipotentiary Country

Deutschland

Product safety instructions

Wear personal protective equipment (gloves, safety goggles), especially when using under high clamping force, to avoid injury.;Avoid improper handling or overloading, especially above the maximum clamping force of 7000 N. Improper use can lead to material or structural failure.;Do not use the product if it is damaged or malfunctioning. Notify the manufacturer.;Store and use out of the reach of children. Not suitable for children under 12 years of age.;Only use the clamp for its intended purpose. Only work with materials that do not exceed the maximum clamping force.;Use plastic protective caps to prevent injuries from sharp edges. Ensure that the clamp is properly tensioned and that the workpieces are stable to prevent slipping.;Ensure that all parts are intact and functional before use. Use the clamp on a stable surface.;Keep fingers and clothing away from the clamp while it is being tensioned.;Read the installation and safety instructions before use.

Article numbers

720077 720078 720079 720080 720081 720082 720084 720085 720086 720087 720088 720089 720091 720092 720093 720094 720101 720103

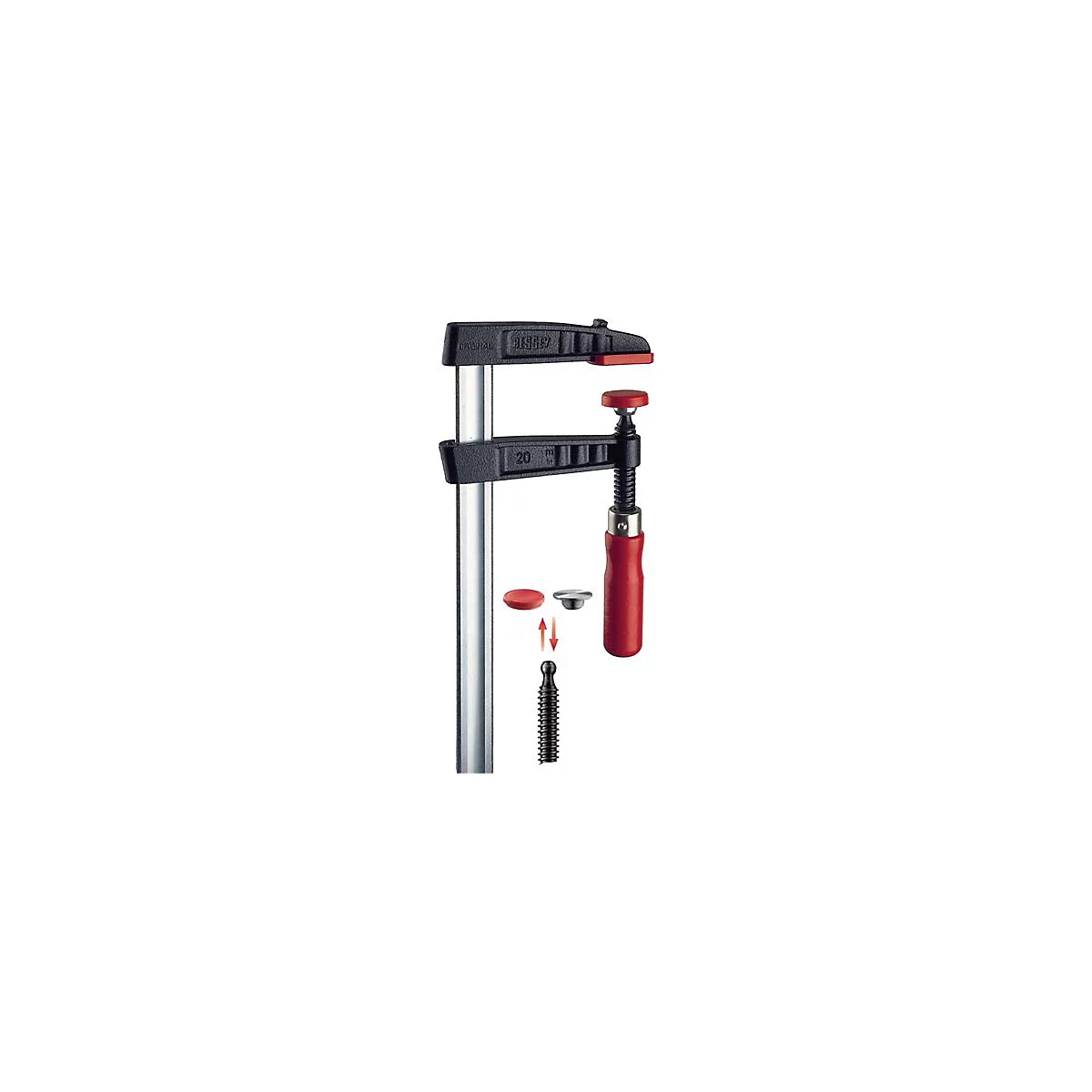

Malleable iron screw clamp TGK Clamp W.400mm A.120mm Wooden handle 35x11mm BESSEY

Name: Malleable iron screw clamp TGK Clamp W.400mm A.120mm Wooden handle 35x11mm BESSEY
Brand: Bessey
SKU: 8187142
Price: 71.9 CHF
Availability: InStock

Item number: 720077

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

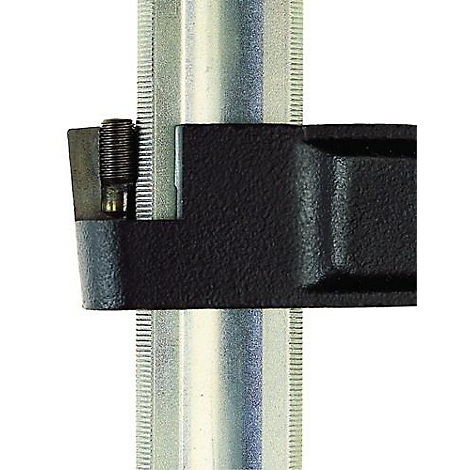

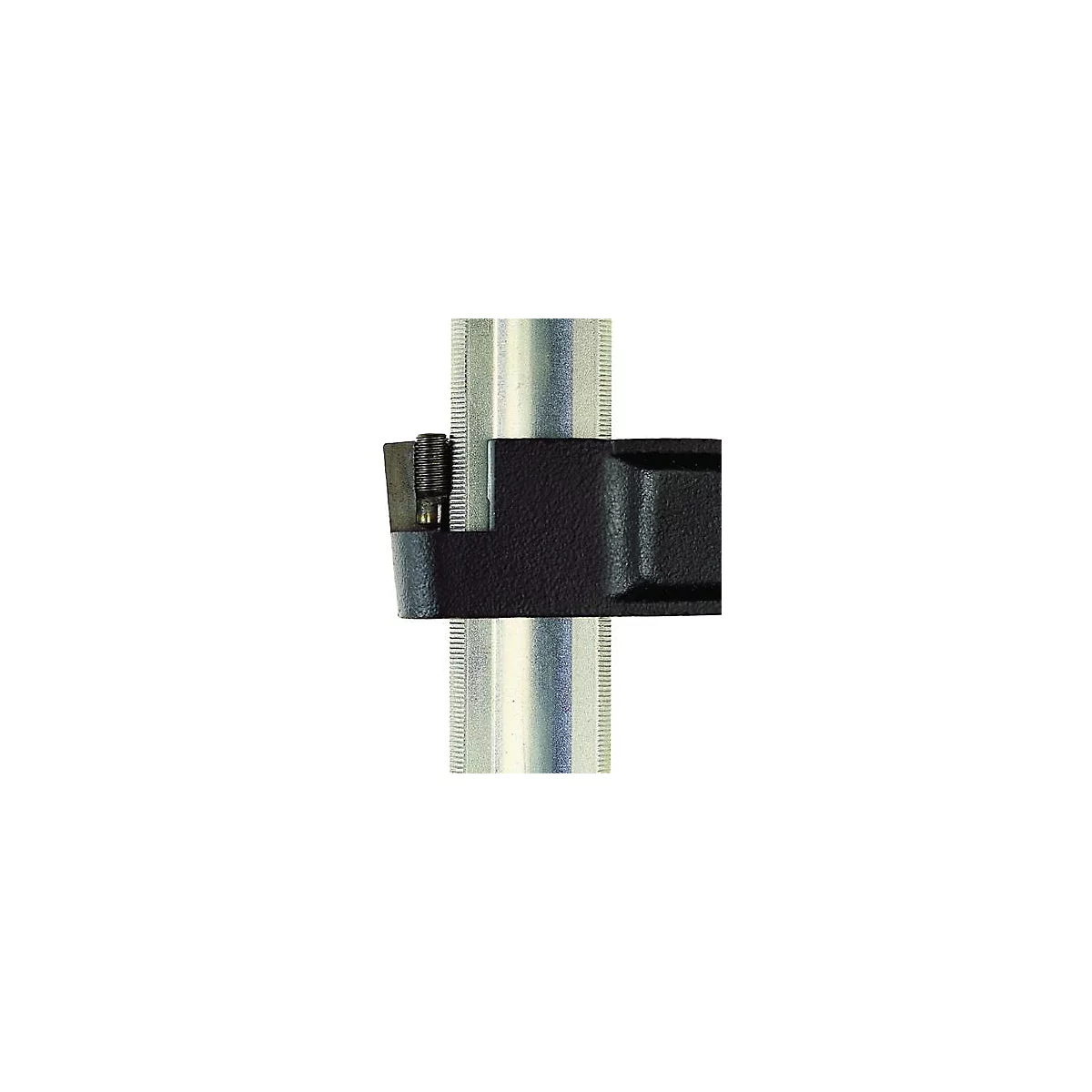

Fixed and sliding clamp made of high-quality cast iron - powder-coated - hollow profile rails 6-fold ribbed - bright galvanized - spindle burnished - clamping force up to 7000 N - plastic protective caps (all screw clamps with rail cross-section 35 x 11 mm without plastic protective caps) - from size 160 x 80 mm with anti-slip protection + tool-free exchangeable pressure plates

Other technical features:
- Weight: 2,52kg

Show moreShow less

Technical data

General features
Clamping force [N] up to 7000
Depth (mm) 120
Handle -
Rail cross section [mm] 35 x 11
Span [mm] 400
Version Hollow profile rail

Schäfer Shop Quality and Service

only Fr. 71.90

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth (mm): 120 mm

120 mm 175 mm

Rail cross section [mm]: 35 x 11

35 x 11 32 x 10

Span [mm]: 400 mm

400 mm 600 mm 1250 mm 1500 mm 2000 mm 800 mm 1000 mm

show all variants

Add to basket

Delivery time: within 1 week

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Malleable iron screw clamp TG Clamp W.1000mm A.175mm Wooden handle 32x10mm BESSEY

Overview of the possible item variants. For more information, click on the respective variant.

Depth (mm)

Rail cross section [mm]

Span [mm]

Item			Price
Malleable iron screw clamp TGK Clamp W.400mm A.120mm Wooden handle 35x11mm BESSEY Item number: 720077			Fr. 71.90 Amount + - Added times
Malleable iron screw clamp TGK Clamp W.600mm A.120mm Wooden handle 35x11mm BESSEY Item number: 720087			Fr. 83.30 Amount + - Added times
Malleable iron screw clamp TGK Clamp W.600mm A.175mm Wooden handle 32x10mm BESSEY Item number: 720088			Fr. 91.65 Amount + - Added times
Malleable iron screw clamp TGK Clamp W.1250mm A.120mm Wooden handle 35x11mm Item number: 720092			Fr. 109.00 Amount + - Added times
Malleable iron screw clamp TGK Clamp W.1500mm A.120mm wooden handle 35x11mm Item number: 720093			Fr. 129.00 Amount + - Added times
Malleable iron screw clamp TGK Clamp W.2000mm A.120mm wooden handle 35x11mm Item number: 720094			Fr. 149.00 Amount + - Added times
Malleable iron screw clamp TG Clamp W.800mm A.175mm Wooden handle 32x10mm BESSEY Item number: 720101			Fr. 104.00 Amount + - Added times
Malleable iron screw clamp TG Clamp W.1000mm A.175mm Wooden handle 32x10mm BESSEY Item number: 720103			Fr. 116.00 Amount + - Added times
