Product Safety Information

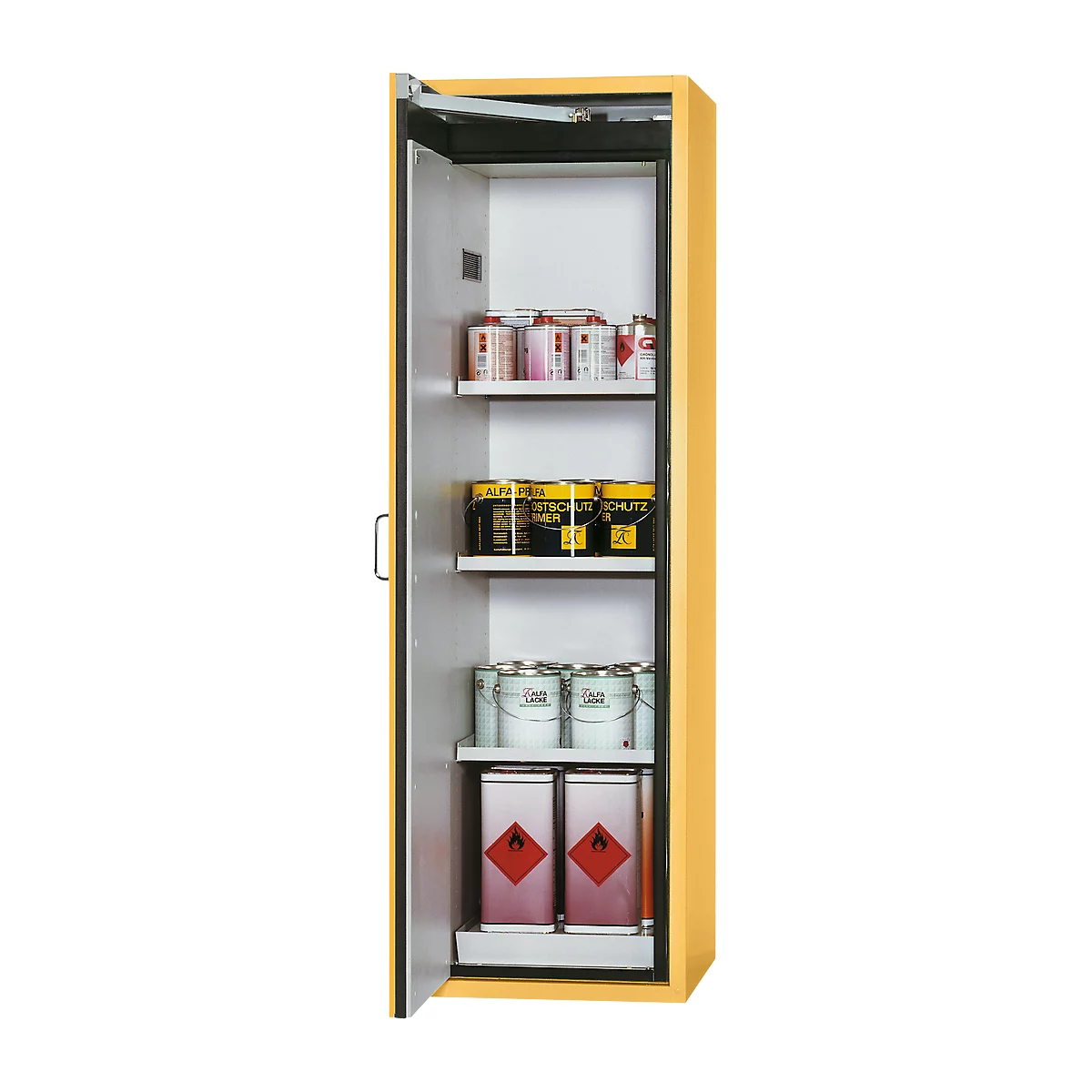

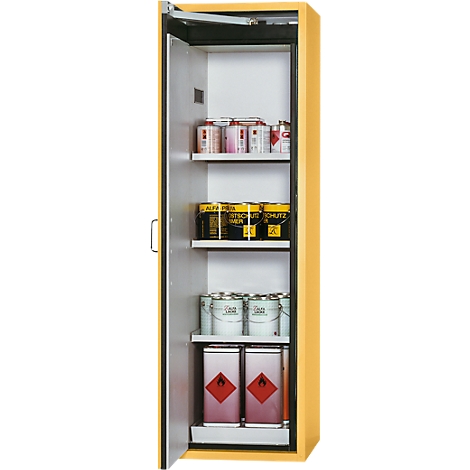

Safety cabinet type 90 asecos S-CLASSIC-90, hinged door with door locking system, W 596 x D 616 x H 1968 mm, safety yellow RAL 1004

General information

EU authorized representative E-mail address

info@asecos.com

EU authorized representative Name

asecos GmbH

EU authorized representative Place

Gründau

EU authorized representative Postal code

63584

EU authorized representative Street & house number

Weiherfeldsiedlung 16-18

EU Plenipotentiary Country

Deutschland

Product safety instructions

Safety measures when using the cabinet due to the fire resistance of 90 minutes.;Use of suitable safety clothing when handling hazardous substances.;Check the cabinet for damage before use.;Safe handling and stowage of hazardous substances.;Securing the door in the event of fire with the door hold-open system. In the event of a fire, the door hold-open system ensures an automatic closing mechanism.;Regular training for employees on the safe handling of hazardous substances.;Read the operating instructions carefully before first use.;Use the product only in accordance with the intended applications.;Wear suitable personal protective equipment when working with hazardous substances.;Ensure the storage of flammable liquids in accordance with TRGS 510.;Take the weight of the cabinet into account and use suitable lifting gear.;Check the drip tray regularly for damage or fill level.;Follow the local regulations for hazardous substances during disposal.

Article numbers

22094 22095

Safety cabinet type 90 asecos S-CLASSIC-90, hinged door with door locking system, W 596 x D 616 x H 1968 mm, safety yellow RAL 1004

Name: Safety cabinet type 90 asecos S-CLASSIC-90, hinged door with door locking system, W 596 x D 616 x H 1968 mm, safety yellow RAL 1004
Brand: Asecos
SKU: 7559797
Price: 3328.0 CHF
Availability: InStock

Item number: 22095

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Fire-resistant hazardous substance cabinets for the storage of hazardous substances in workrooms in accordance with TRGS 510. Type-tested in accordance with DIN EN 14470-1, DIN EN 14727, GS-tested. Highest fire resistance class type 90 (fire resistance 90 minutes). Marking in accordance with DIN EN 14470-1.

Unrestricted storage of flammable liquids of all hazard classes in work areas
German quality product made from plastic-coated sheet steel
Inner surfaces made of highly chemically resistant material panels
Door locking system for easy storage and retrieval (self-closing in the event of fire)
Smooth door operation
Convenient working on the cabinet thanks to large operating width when doors are open
Doors locked with profile cylinder (locking system compatible)
Adjustment devices to compensate for uneven floors
Trough-shaped storage levels, load capacity 75 kg (distributed load)
Flexible height adjustment (32 mm grid dimension)
Tested drip tray in accordance with StawaR
Exhaust air connection (NW 75) in the roof area
Including 3 tray shelves, floor drip tray (in accordance with StawaR), perforated plate insert and door locking system.
Floor drip tray volume: 22 l
External dimensions W x D x H: 596 x 616 x 1968 mm
Internal dimensions: W x D x H: 450 x 524 x 1742 mm
Weight: approx. 260 kg

Delivery free to place of use
Freight elevator and sufficient room widths provided. The access and transport routes must be sufficiently dimensioned and the access road must be suitable for trucks. Stair transportation costs on request.

Advantages for you

Saves space in small rooms with compact dimensions of 596 x 1968 mm

With a depth of 616 mm, this hazardous materials cabinet is designed for space-saving storage

In case of emergency, the operation of the hazardous materials cabinet is maintained thanks to fire-resistant F90 design

Show moreShow less

Technical data

General features
Accessible from below No
Body colour golden yellow RAL 1004
Capacity of pull-out drawer (kg) 75
Collecting volume [l] 22
Delivery Mounted
Depth [mm] 616
Door type Gullwing door
Equipment Perforated sheet insert, door stop system, drip tray, 3 shelves
Fire resistance Type F90
Fire resistance class F90 fire resistant
GS-approved Yes
Hazardous material class Flammable liquids
Hazardous substance type Flammable liquids GHS 1-3
Height [mm] 1968
Insulation No
Location Indoor
Lock Cylinder lock
Lockable Yes
Lockable Yes
Material sheet steel
Model S90.196.060.WDAS
Number of door(s) 1
Number of shelves [pcs.] 3
Scope of delivery Hazardous goods cabinet, perforated sheet insert, door locking system, drip tray and 3 shelves
Shelf load capacity [kg] 75
Standard DIN EN 14470-1;DIN EN 14727;DIN IN 16121/IN 16122
Surface laminated
Technical rule for hazardous substances TRGS 510
Ventilation aeration and ventilation system for connection to a system
Weight [kg] 260
Width [mm] 596
Colors
Color golden yellow RAL 1004

Download

DB022094C.pdf
DB022094B.pdf
DB022094A.pdf

Schäfer Shop Quality and Service

Special features of this product

Danger - H314 Causes severe skin burns and eye damage.

Danger - H410 Very toxic to aquatic life with long lasting effects.

Danger - H300 Danger to life if swallowed. H310 Danger to life in case of skin contact. H330 Danger to life by inhalation.

only Fr. 3’328.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: golden yellow RAL 1004 clay

show all variants

Add to basket

Delivery time: approx. 16 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Safety cabinet type 90, W 596 x D 616 x H 1968 mm

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price

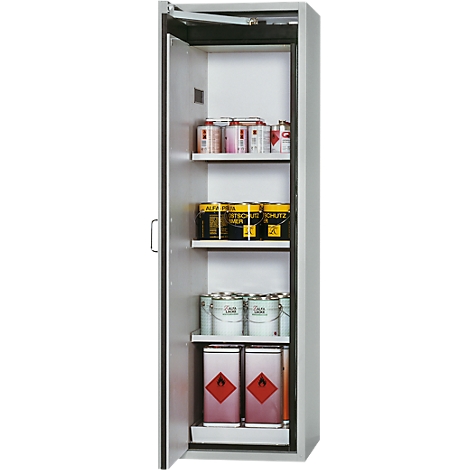

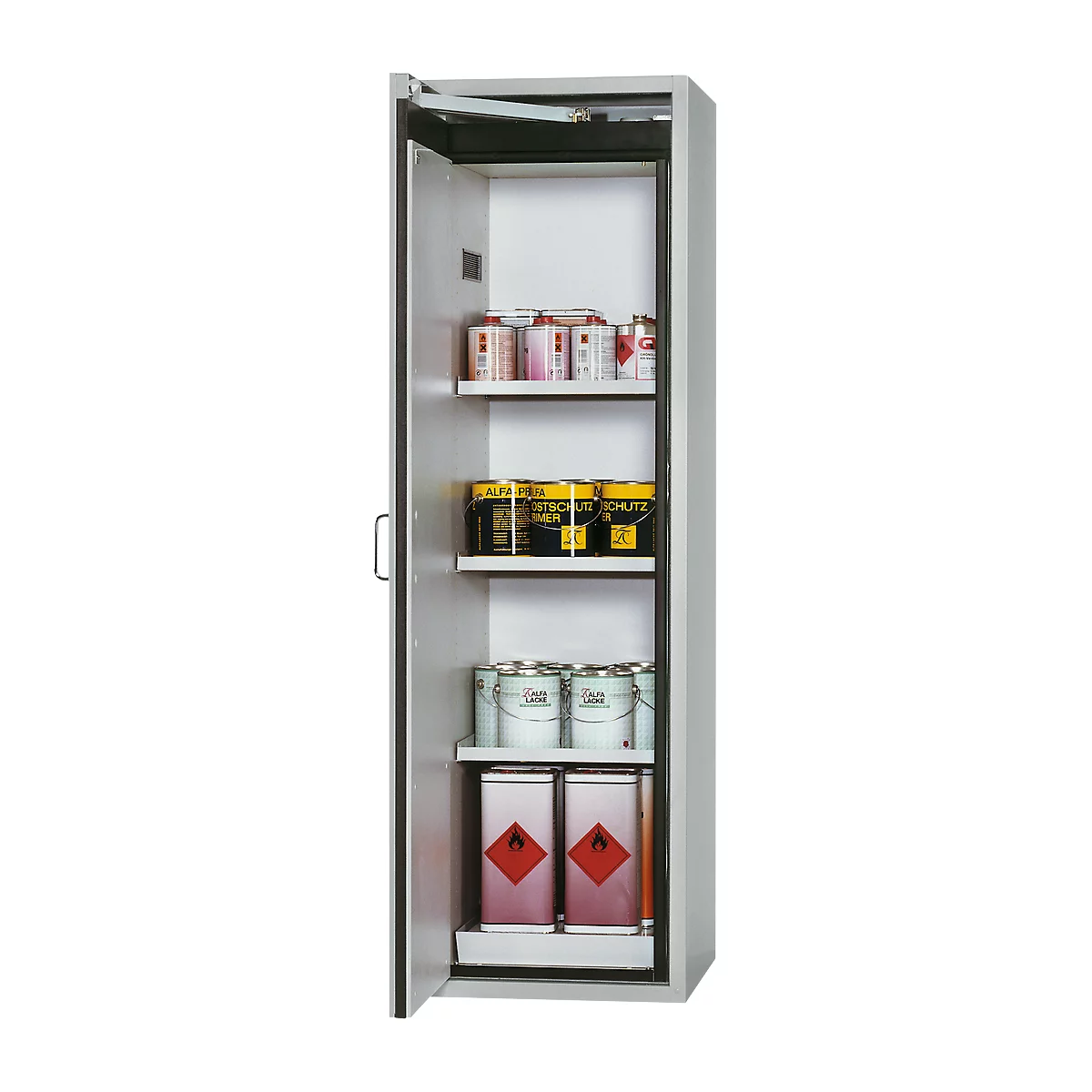

Safety cabinet type 90 asecos S-CLASSIC-90, hinged door with door locking system, W 596 x D 616 x H 1968 mm, light grey RAL 7035 Item number: 22094			Fr. 3’328.00 Amount + - Added times
