Product Safety Information

Barrel turner for 200 l barrel, with 4 wheels

General information

EU authorized representative E-mail address

info@rollcart.de

EU authorized representative Name

Gabriel Transportsysteme GmbH

EU authorized representative Place

Eslohe

EU authorized representative Postal code

59889

EU authorized representative Street & house number

Frielinghausen 26

EU Plenipotentiary Country

Deutschland

Product safety instructions

Make sure that the 200 litre drum is securely and correctly positioned on the drum support.;Only use the drum tipper with a drum that has the recommended diameter (ø approx. 580 mm).;Ensure that the castor brakes are engaged before tilting to prevent unintentional movement.;Do not exceed the maximum permissible load of 200 kg to prevent damage to the appliance.;Wear suitable personal protective equipment, e.g. gloves, to avoid injury.;Keep hands and other parts of the body away from the edges and the tilting mechanism when tilting the drum.;To ensure safe use, make sure that the drum tipper is only used with a 200 litre drum.;Improper handling can lead to injuries, especially if the drum tips over.;Avoid standing near the drum pot when the drum is tilted to prevent injuries.;Keep the working area free of obstacles to ensure safe tipping of the drum.

Article numbers

96002 96003

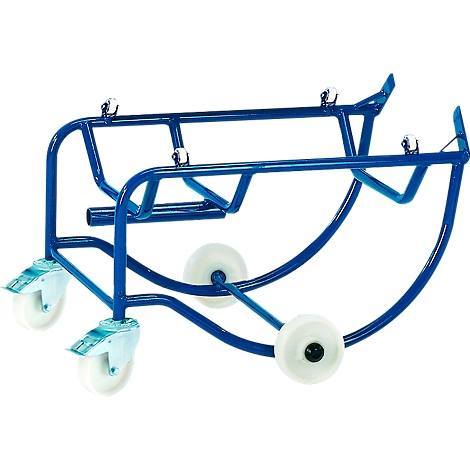

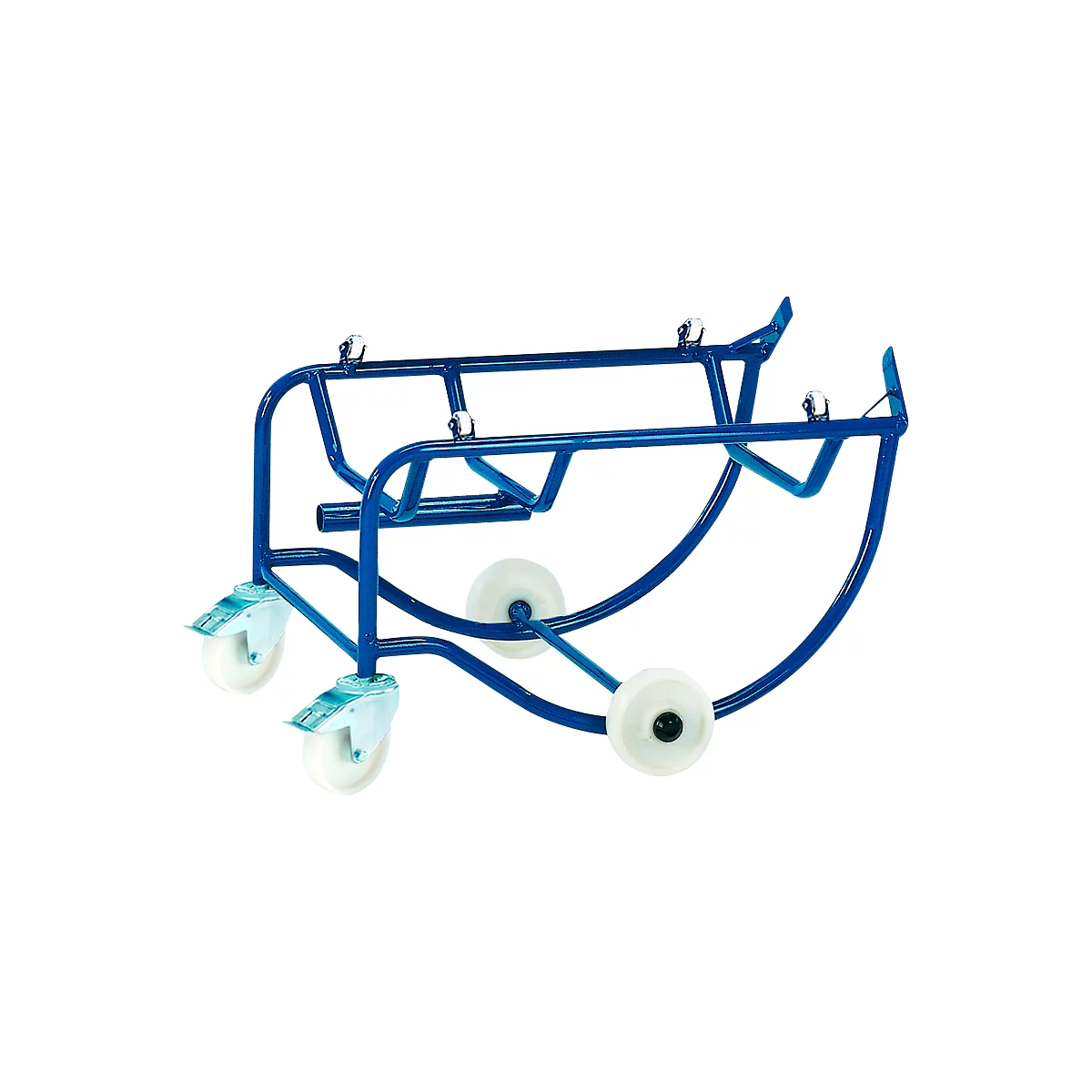

Barrel turner for 200 l barrel, with 4 wheels

Item number: 96002

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

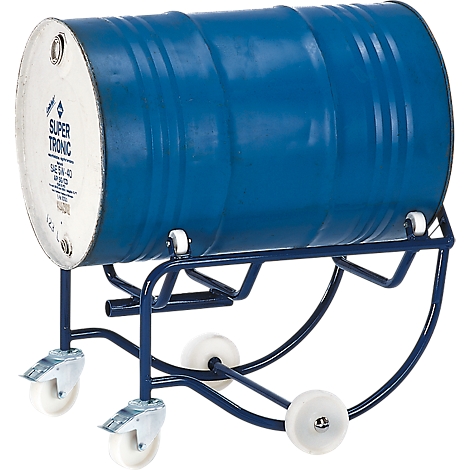

Effective and back-friendly work is guaranteed with this practical drum tipper.
The steel construction with 2 swivel castors and 2 axle castors each simplifies the ergometric tipping of containers. Even a 200-litre drum can be tipped by just one person without any problems. Additional safety is provided by the brakes attached to the swivel castors. Depending on use, the tipper is available with or without an oil drip tray (10 litres).

Tipper: H 575 x L 810 x W 720 mm
For 200 litre drums
Drum support: for drums ø approx. 580 mm
Swivel castors ø: 100 mm
Axle wheels ø: 125 mm

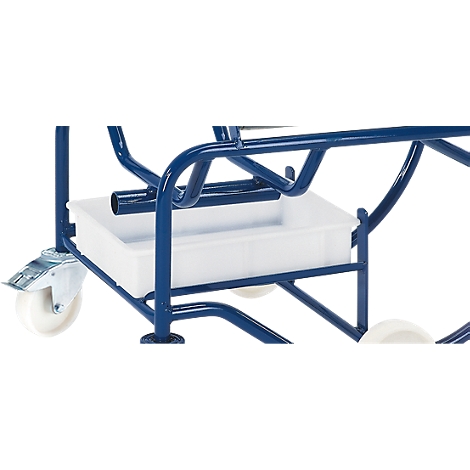

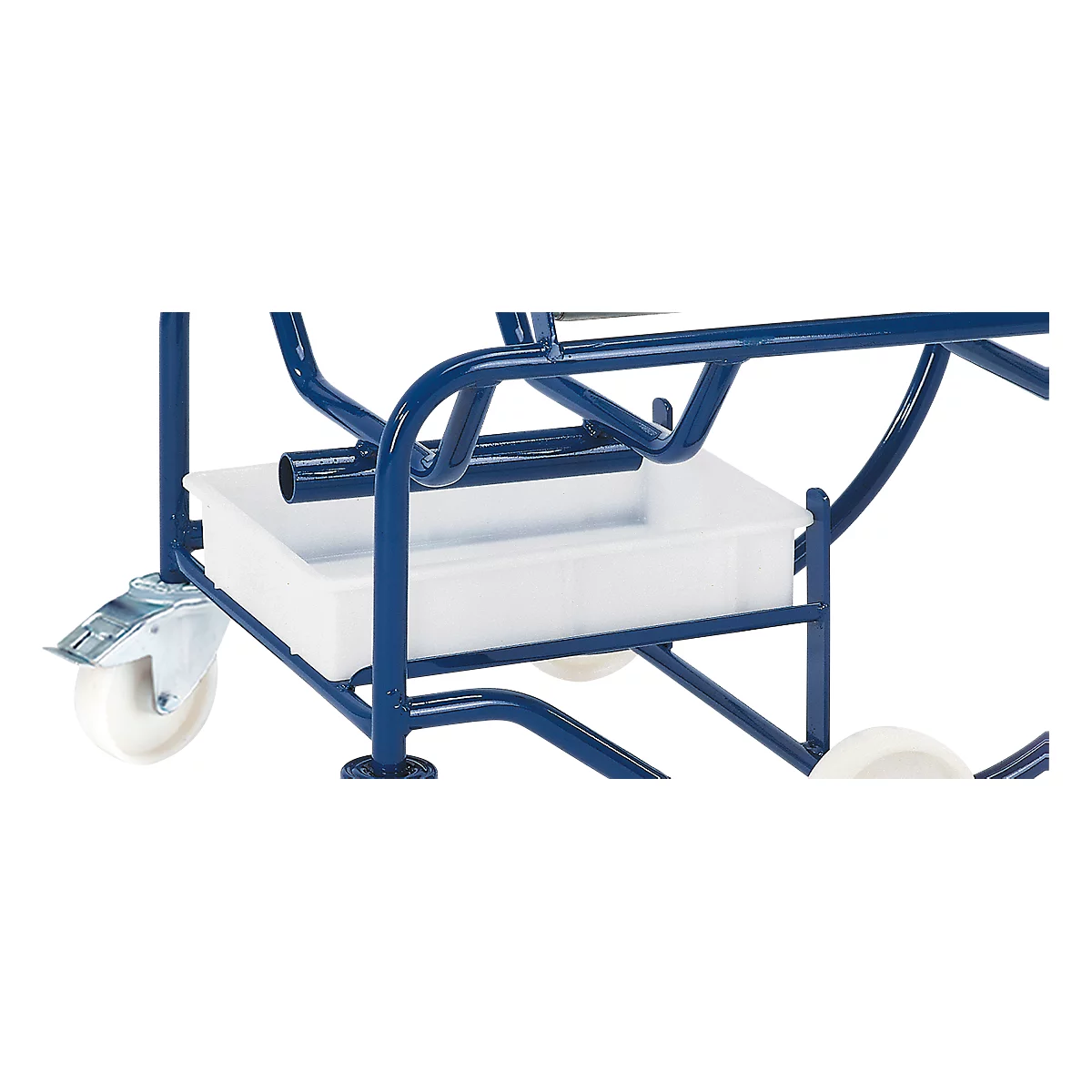

Available with or without oil drip tray (10 litres)
4 plastic castors
Steel construction with 2 swivel castors and 2 axle wheels made of polyamide with roller bearings. Swivel castors with brakes. Powder coated in blue (RAL 5010) as standard.

Easy and safe one-man operation:

pick up standing drum
Rotate drum for storage, pouring, transferring
Tilt drum via roll-off skids

Show moreShow less

Technical data

General features
Color gentian blue RAL 5010
For container size of (mm) 580
Height [mm] 575
Length [mm] 810
Load capacity [kg] 250
Material Steel pipe
Surface powder-coated
Type without oil drip tray
Type swivel castor and fixed castor
Version Swivel castors with wheel lock
Weight [kg] 13
Wheel diameter (mm) 100
Wheel/roller finish Polyamide
Width [mm] 720

Download

ProductSafety_10119755.pdf

Schäfer Shop Quality and Service

only Fr. 399.00

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Type: without oil drip tray

without oil drip tray with oil drip tray, 10 litres

show all variants

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Drum tipper for 200 litre drum

Overview of the possible item variants. For more information, click on the respective variant.

Type

Item			Price
Barrel turner for 200 l barrel, with 4 wheels Item number: 96002			Fr. 399.00 Amount + - Added times

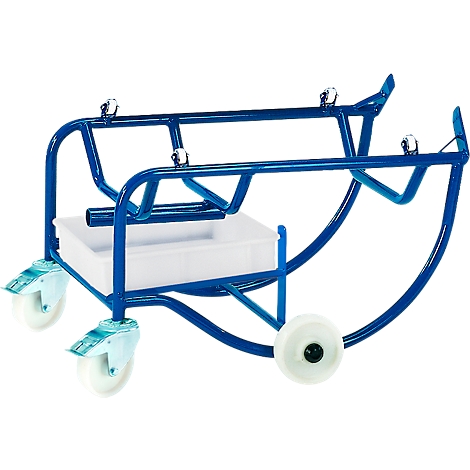

Barrel tipper for 200 l barrels, with 4 wheels, 10 l bucket Item number: 96003			Fr. 451.00 Amount + - Added times
