Product Safety Information

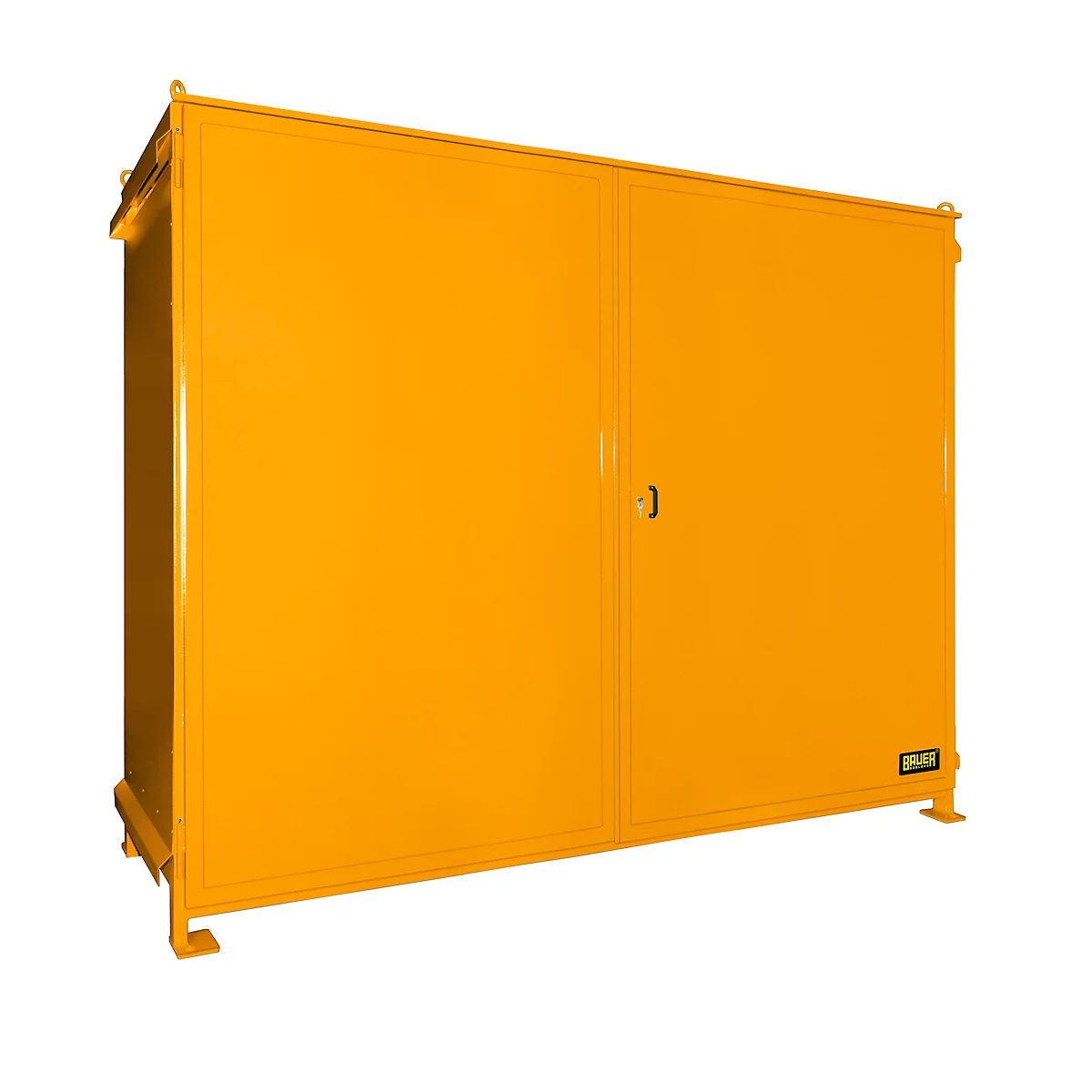

Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, orange

General information

Product safety instructions

Regular inspection and maintenance of the racking container, in particular for corrosion and leaks in the 480 litre drip tray, are necessary.;Personal protective equipment must be worn when handling hazardous substances. Only trained personnel may operate the container.;The storage of flammable liquids (GHS 1-3) requires special safety precautions such as earthing or potential equalisation, especially in outdoor areas.;Ensure that the shelving container is stable to prevent it from tipping over and is protected from external influences.;Shelf containers must be installed by an authorised specialist company. All legal regulations and guidelines must be observed.;Natural ventilation is required for the safe use of hazardous substances indoors and outdoors.;Labelling and clear instructions for the safe use and disposal of stored hazardous substances must be provided.;The drip tray must be checked regularly for leaks in order to minimise the risk of environmental damage.;Necessary training for personnel in the handling of hazardous substances must be carried out regularly.;Specific handling instructions must be followed for the safe use of pallet trucks and forklift trucks.

Article numbers

460943 460944 460945 460946 460947 460948 460997 460998 460999 461000 461001 461002

Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, orange

Name: Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, orange
Brand: Bauer
SKU: 7674919
Price: 13354.0 CHF
Availability: InStock

Item number: 460943

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The CEN 36-2 shelf container from Bauer in yellow-orange RAL 2000 has 2 storage levels and offers storage space for 8 Euro pallets. When handling harmful hazardous materials and dangerous substances, the quality of the material is invaluable. Robust and resistant sheet steel ensures easy cleaning and ensures a long service life of the shelf container with painted surface. Any leaking liquids are collected in accordance with regulations by means of an associated 480 litre collecting tray made of sheet steel. Water-polluting substances of GHS 1-4 can be stored safely and in accordance with regulations. This product is suitable for indoor and outdoor use. The equipment includes natural ventilation and a lockable double wing gate. For ease of handling, it is accessible by pallet truck or forklift.

Note: On request, the shelf container can also be ordered with equipotential bonding/grounding, so that you can also use it outdoors for storing flammable liquids of GHS 1-3. Please do not hesitate to contact us. Delivery is carriage forward, disassembled to an unloading point accessible by truck trailer, without unloading and transport.

The equipment of the shelf container includes:

Steel frame construction
Collecting tray
Gratings
Crane lugs

These accessories are only available on request:

Earthing/potential equalisation
Electric roller shutter
Lighting (also in EX version)
Extinguishing systems according to specified requirements
PE tray inserts
Collecting trays in stainless steel design

Advantages for you

Water-polluting substances GHS 1-4 and flammable liquids GHS 1-3 (optional) can be stored in accordance with regulations

Show moreShow less

Technical data

General features
Accessible from below Yes
Capacity Euro pallets 8
Certificates Declaration of conformity (ÜHP) according to StawaR
Clear compartment width [mm] 3600
Clear shelf height [mm] 1250
Collecting volume [l] 480
Container type Euro pallets
Craneable Yes
Delivery Mounted
Depth of the free tag (mm) 1270
Depth [mm] 1480
Door type 2 hinged doors
Floor version Collecting tray with grating
Hazardous substance type Substances hazardous to water GHS 1-4; flammable liquids GHS 1-3 (optional)
Height [mm] 3145
Insulation No
Location outside - inside
Lockable Yes
Material container Sheet steel
Number of shelf levels [pcs.] 2
Operability unilateral
Permeable wall thickness (mm) 5
Preparation for floor mounting yes
Shelf load capacity [kg] 1500
Standard declaration of conformity (ÜHP) according to StawaR
Surface varnished
Tray material Sheet steel
Undercarriage height (mm) 100
Ventilation of course
Weight [kg] 1550
Width [mm] 3915
Colors
Color yellow-orange RAL 2000

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 13’354.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000 clay

yellow-orange RAL 2000 clay fire red RAL 3000 clay light blue RAL 5012 clay reseda green RAL 6011 clay mouse grey RAL 7005 clay grey white RAL 9002 clay

Width [mm]: 3915 mm

3915 mm 4195 mm

show all variants

Add to basket

Delivery time: approx. 21 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Display container BAUER CEN 36-2/36-3, steel, double winged door, various models

Overview of the possible item variants. For more information, click on the respective variant.

Color

Width [mm]

Item			Price
Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, orange Item number: 460943			Fr. 13’354.00 Amount + - Added times

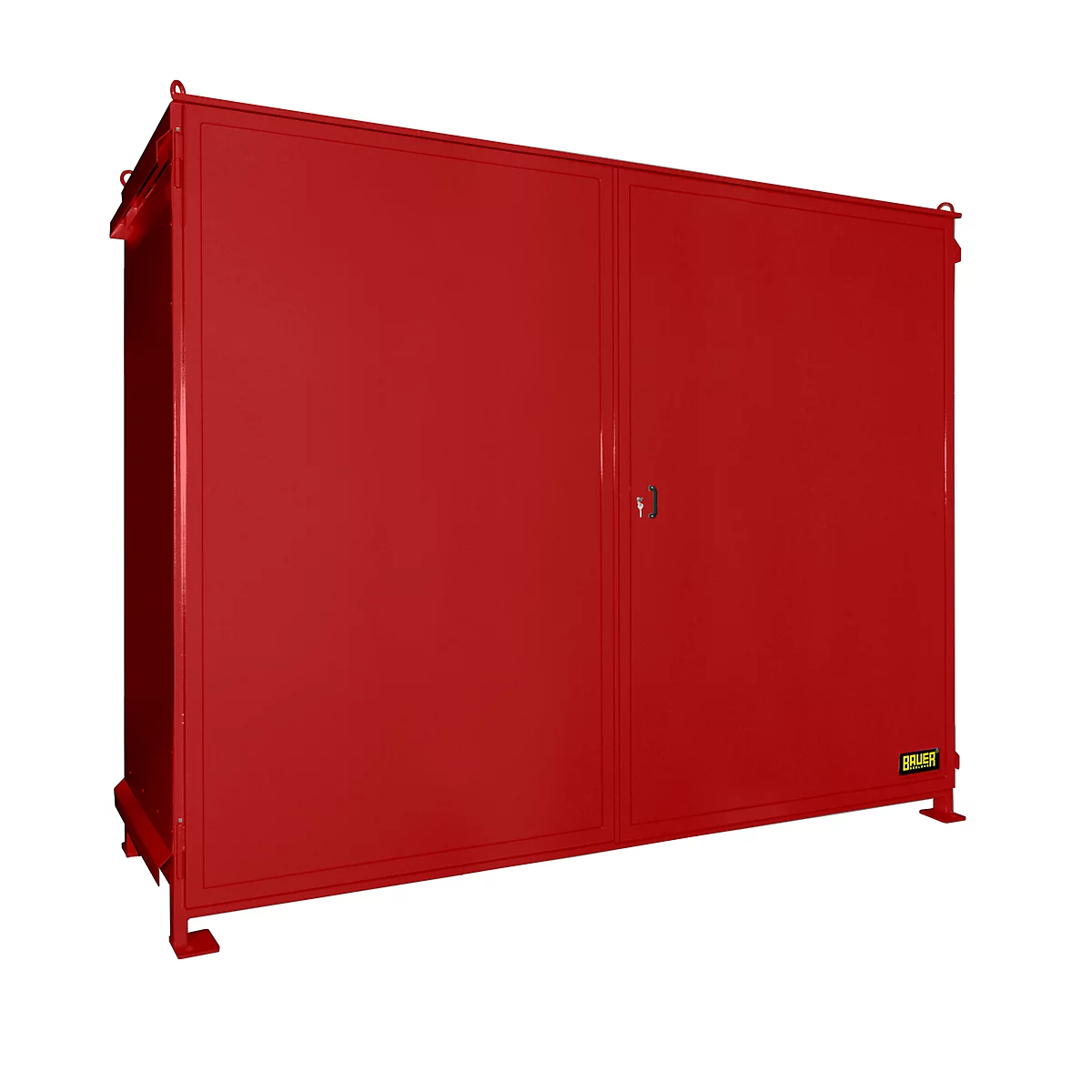

Rack container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, red Item number: 460944			Fr. 13’354.00 Amount + - Added times

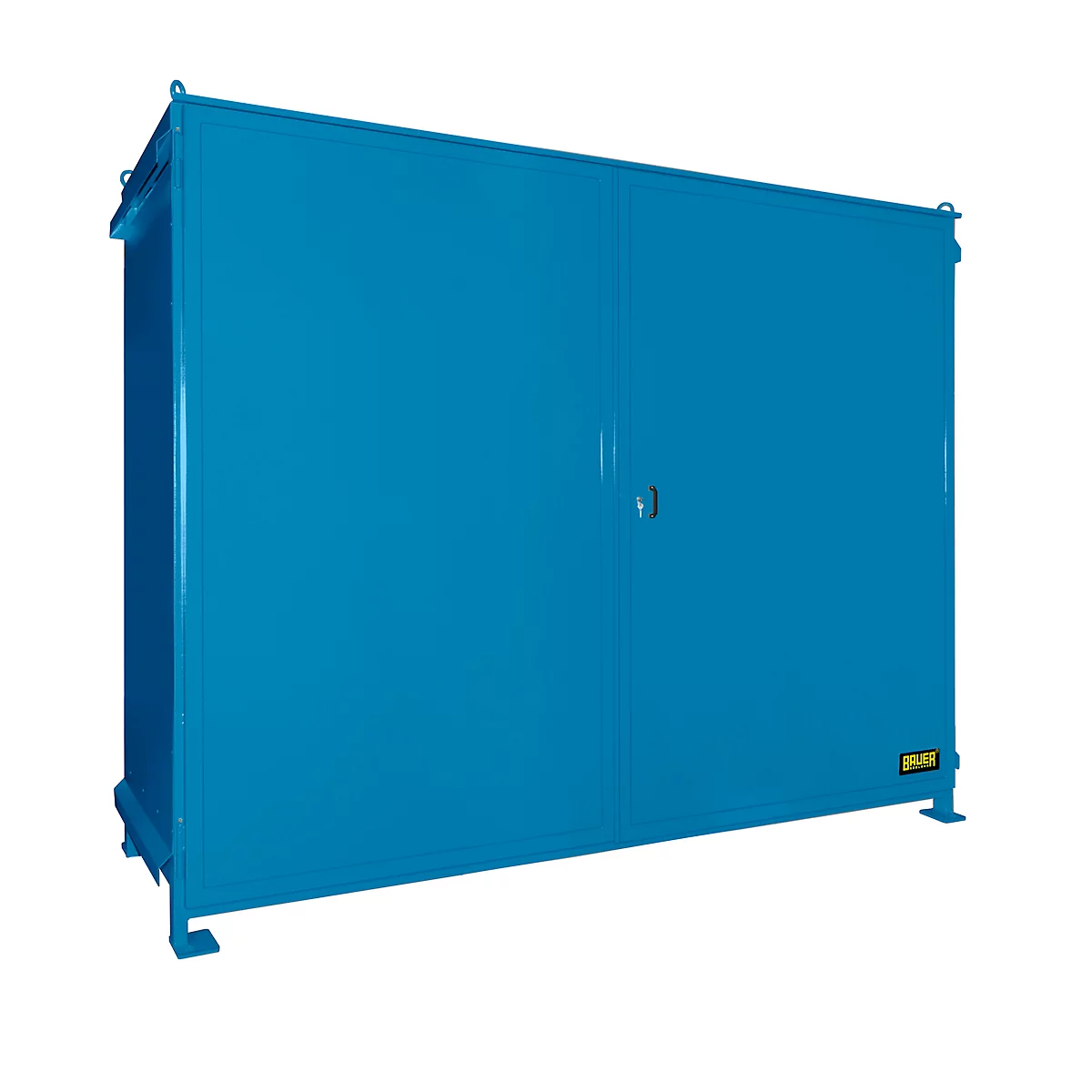

Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, blue Item number: 460945			Fr. 13’354.00 Amount + - Added times

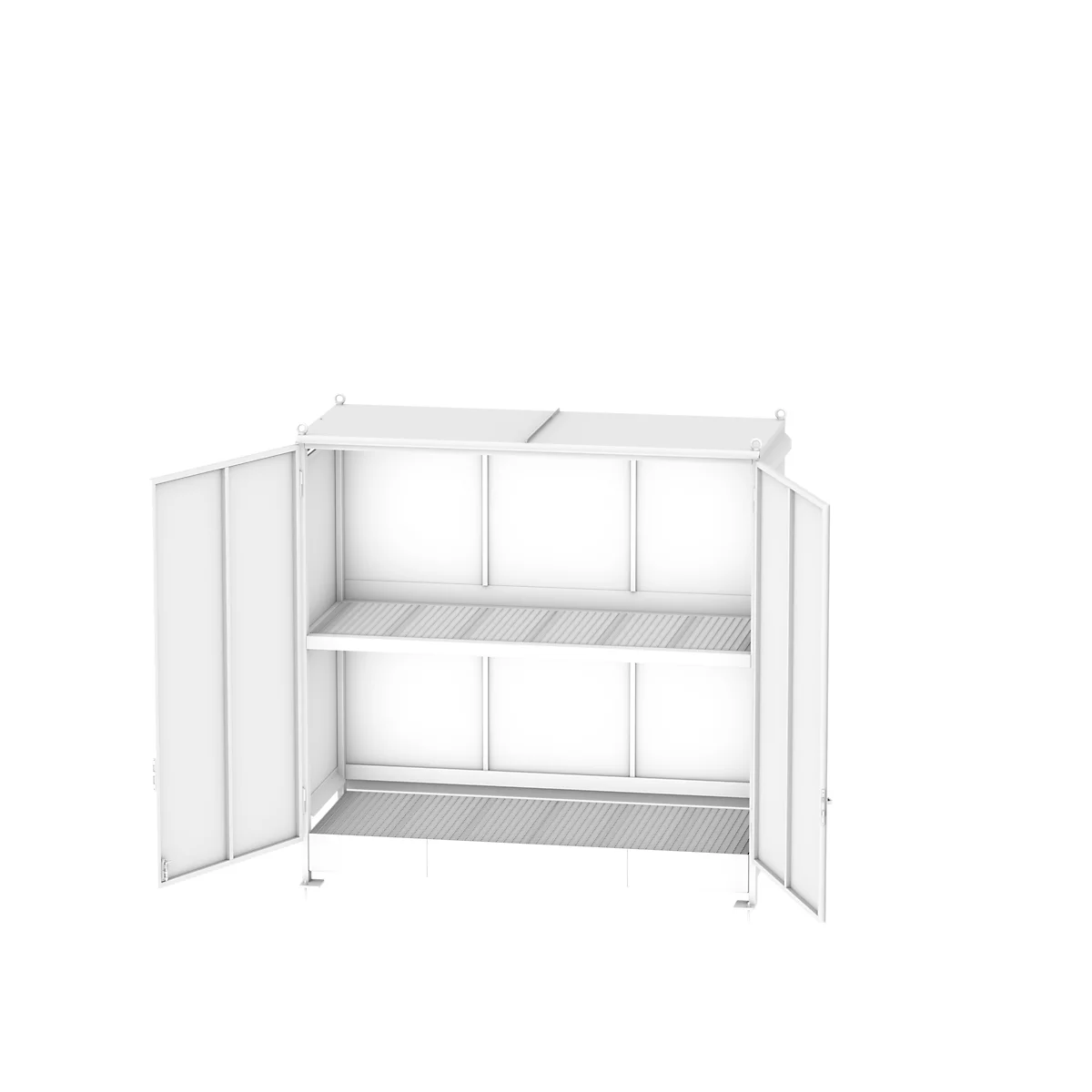

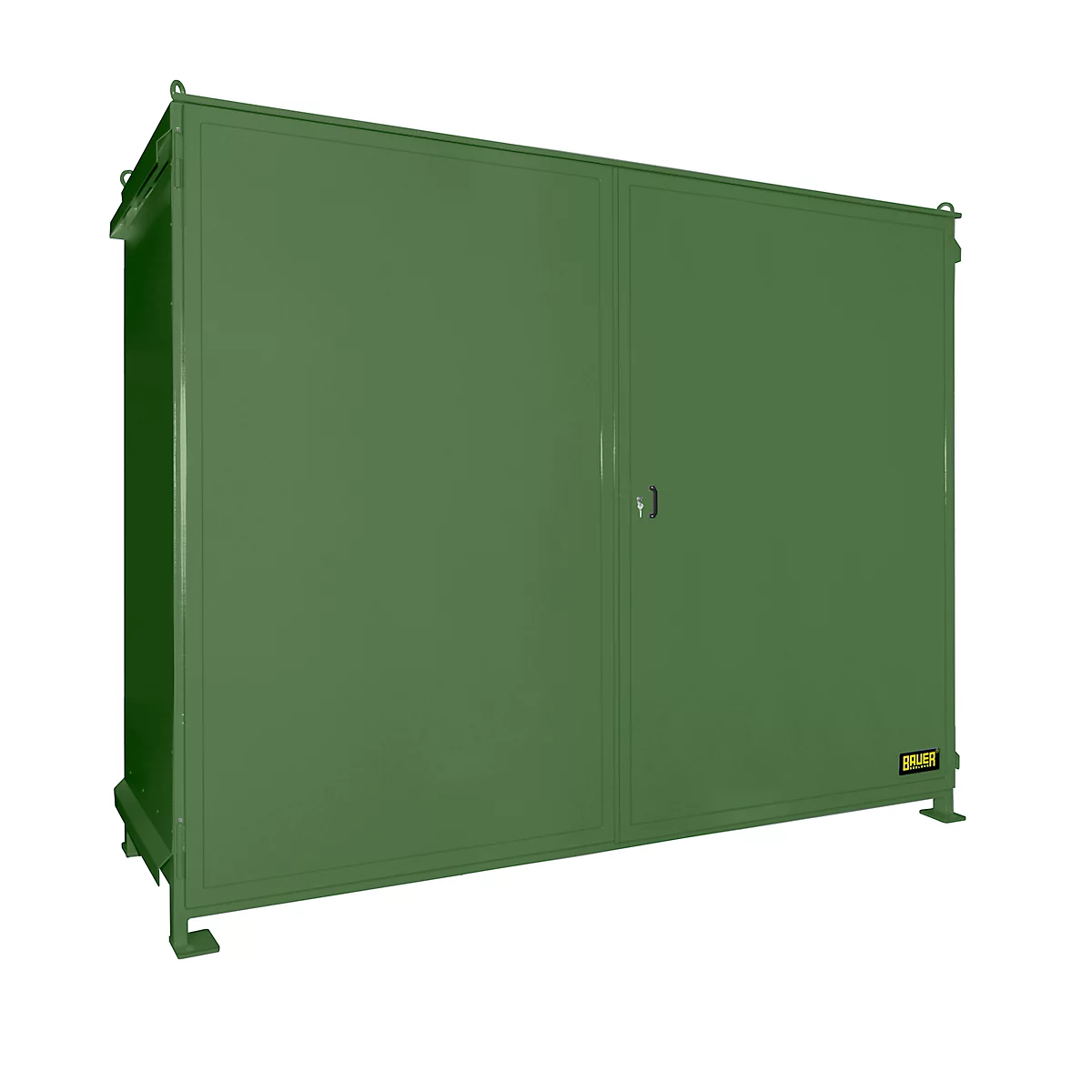

Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, green Item number: 460946			Fr. 13’354.00 Amount + - Added times
Shelf container BAUER CEN 36-2, steel, double wing door, W 3915 x D 1480 x H 3145 mm, gray Item number: 460947			Fr. 13’354.00 Amount + - Added times

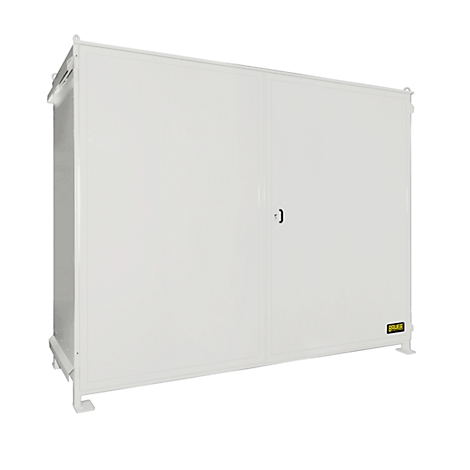

BAUER CEN 36-2 shelving container, steel, double door, W 3915 x D 1480 x H 3145 mm, white Item number: 460948			Fr. 13’354.00 Amount + - Added times

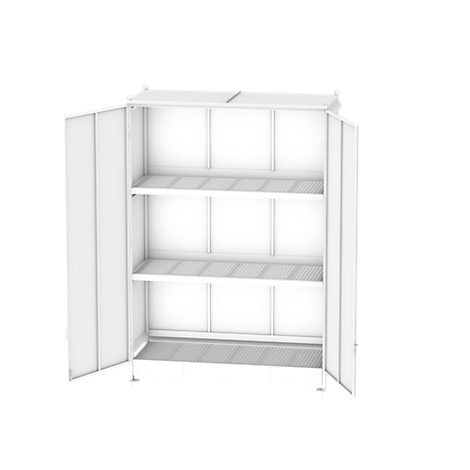

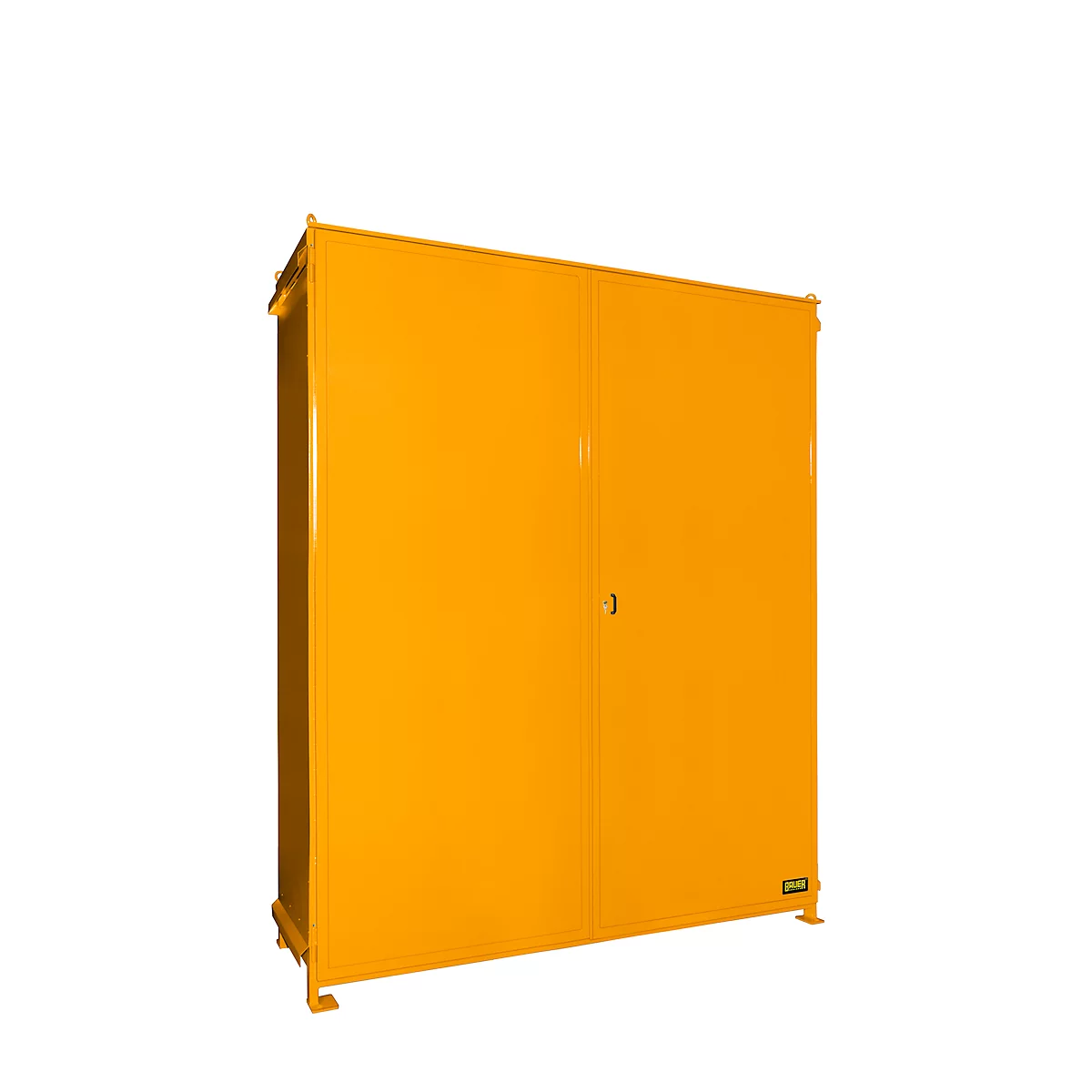

Shelf container BAUER CEN 36-3, steel, double wing door, W 4195 x D 1585 x H 4535 mm, orange Item number: 460997			Fr. 26’017.00 Amount + - Added times

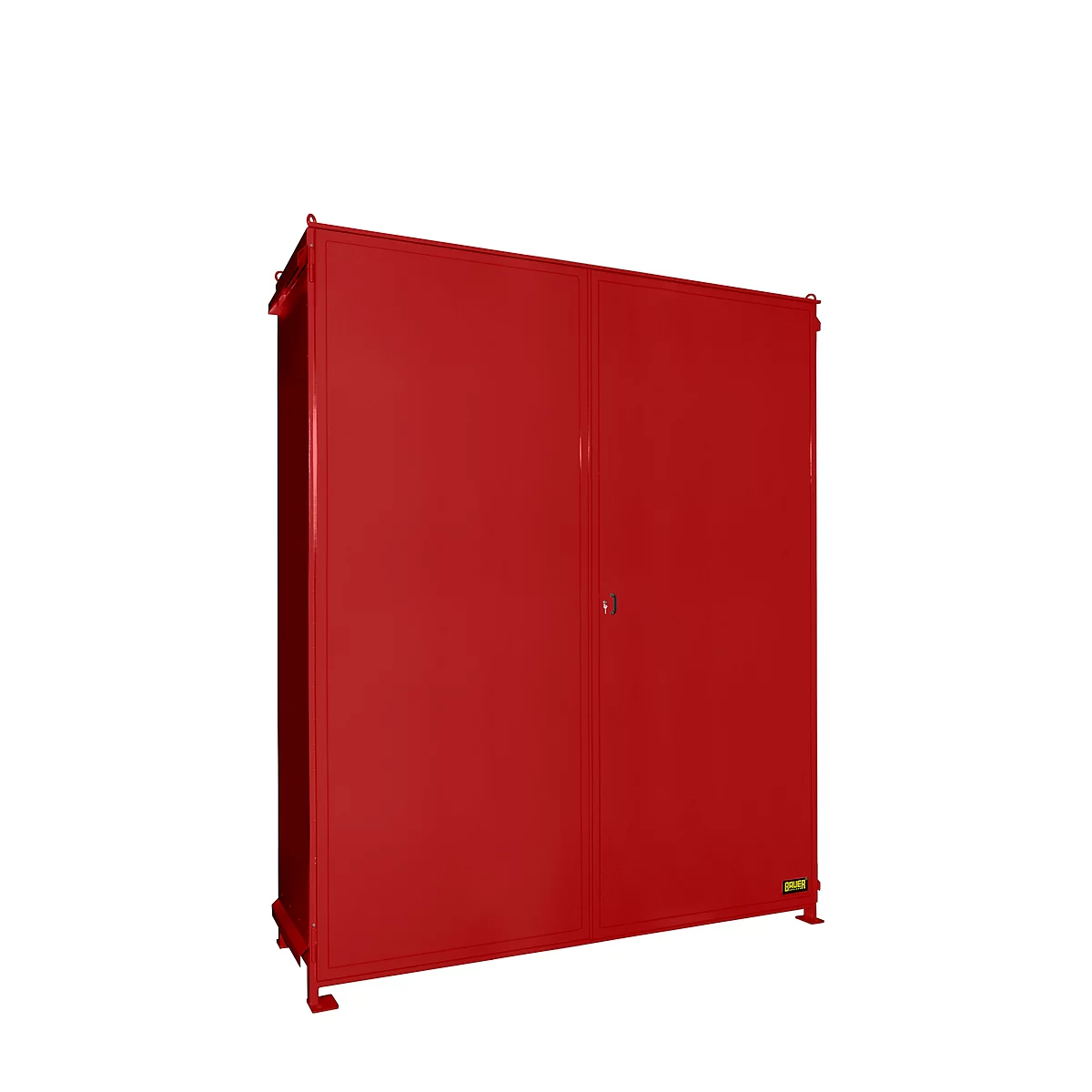

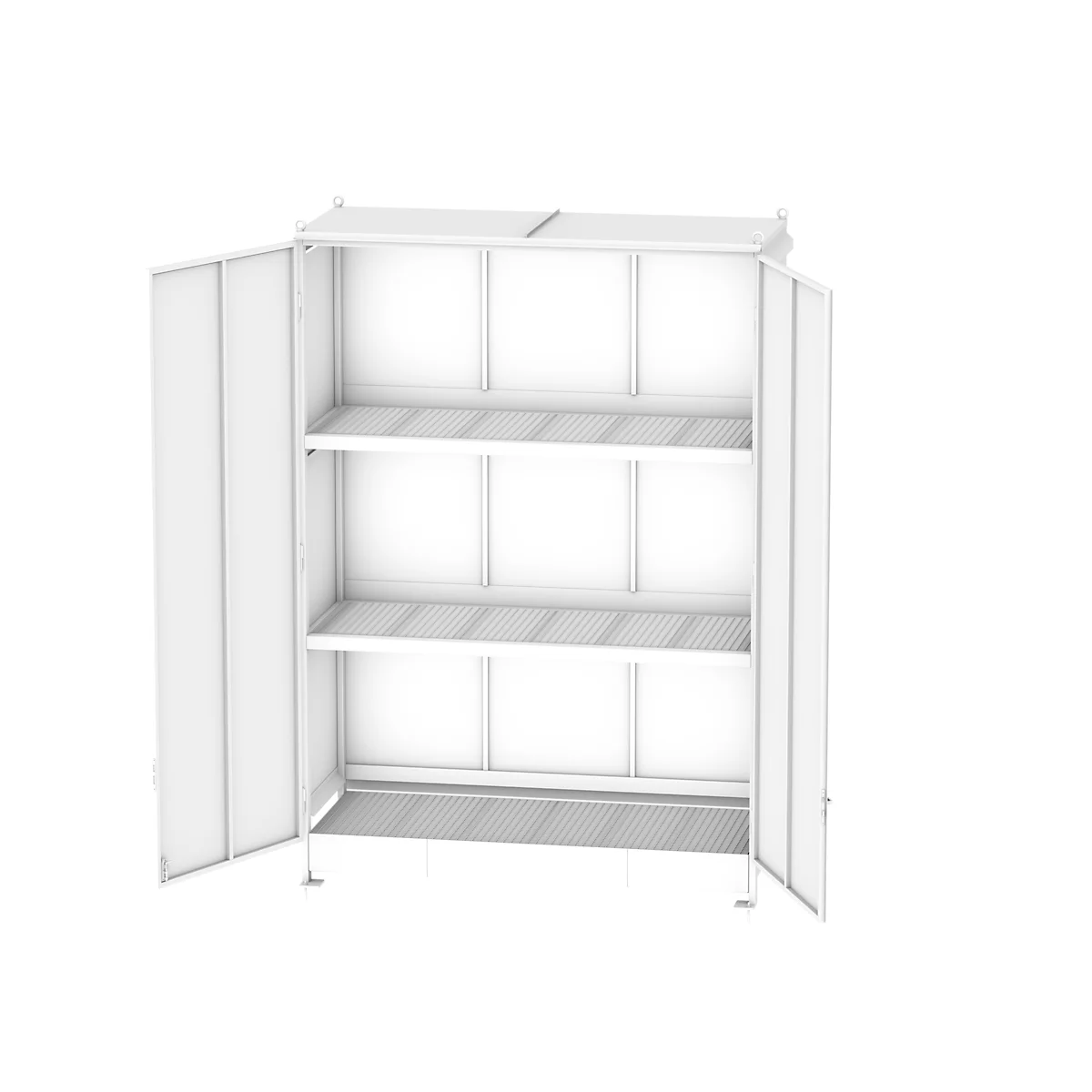

Shelf container BAUER CEN 36-3, steel, double wing door, W 4195 x D 1585 x H 4535 mm, red Item number: 460998			Fr. 26’017.00 Amount + - Added times

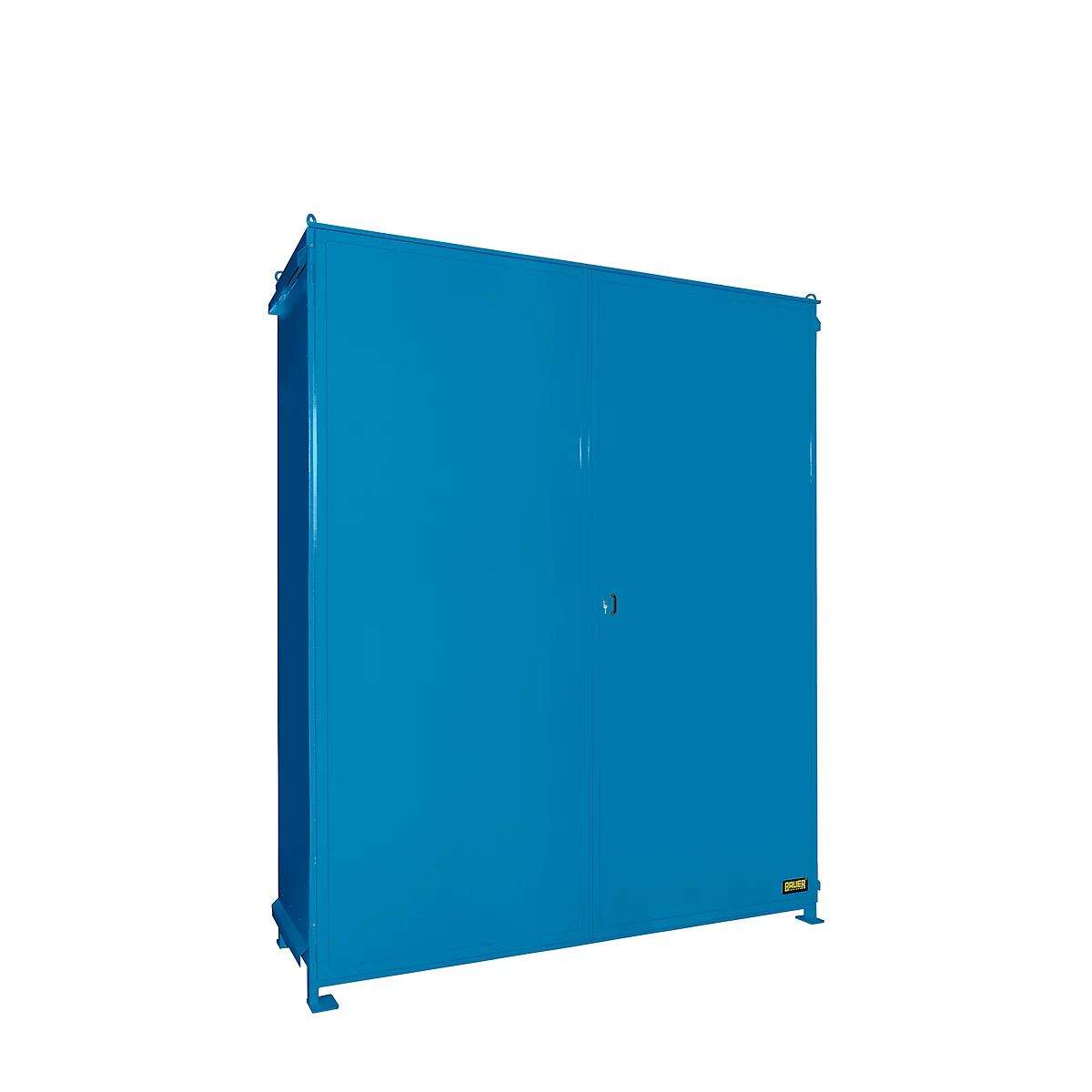

Shelf container BAUER CEN 36-3, steel, double wing door, W 4195 x D 1585 x H 4535 mm, blue Item number: 460999			Fr. 26’017.00 Amount + - Added times

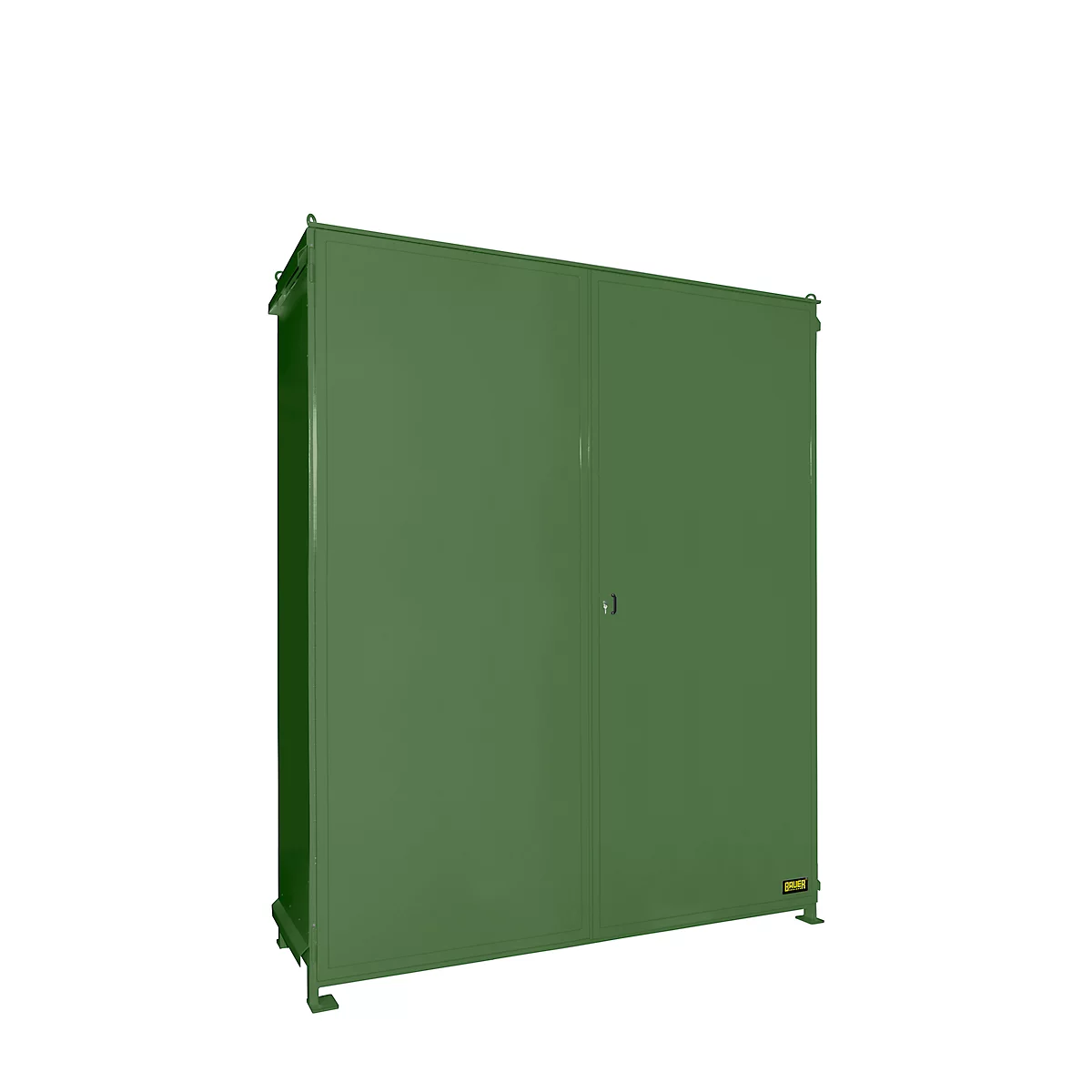

Shelf container BAUER CEN 36-3, steel, double wing door, W 4195 x D 1585 x H 4535 mm, green Item number: 461000			Fr. 26’017.00 Amount + - Added times

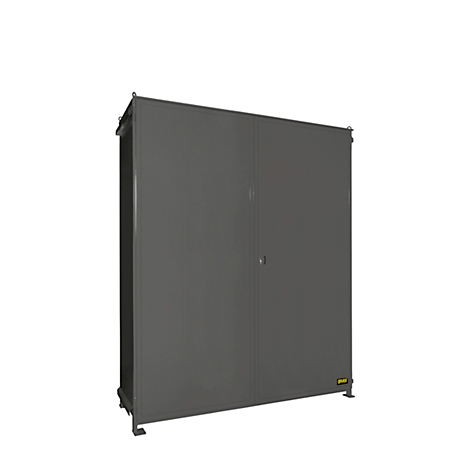

Shelf container BAUER CEN 36-3, steel, double wing door, W 4195 x D 1585 x H 4535 mm, gray Item number: 461001			Fr. 26’017.00 Amount + - Added times

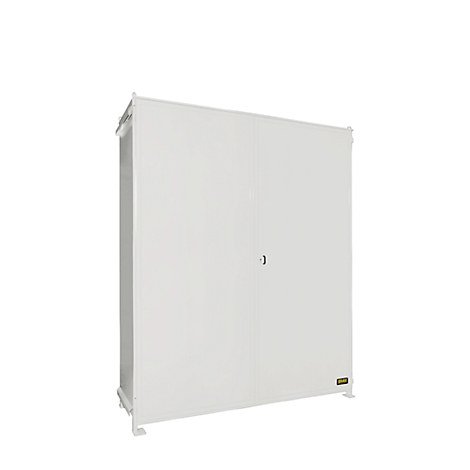

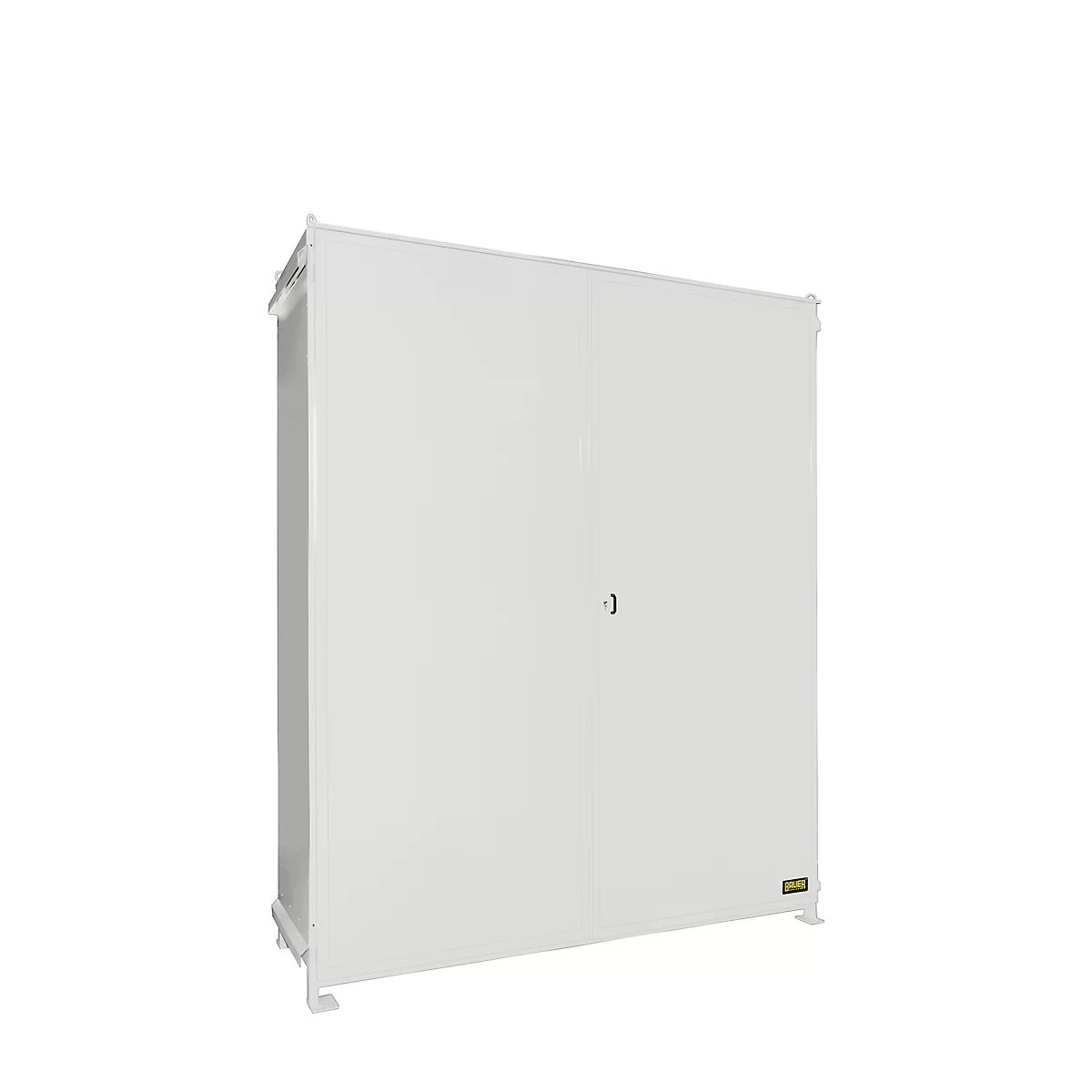

BAUER CEN 36-3 shelf container, steel, double door, W 4195 x D 1585 x H 4535 mm, white Item number: 461002			Fr. 26’017.00 Amount + - Added times
