Product Safety Information

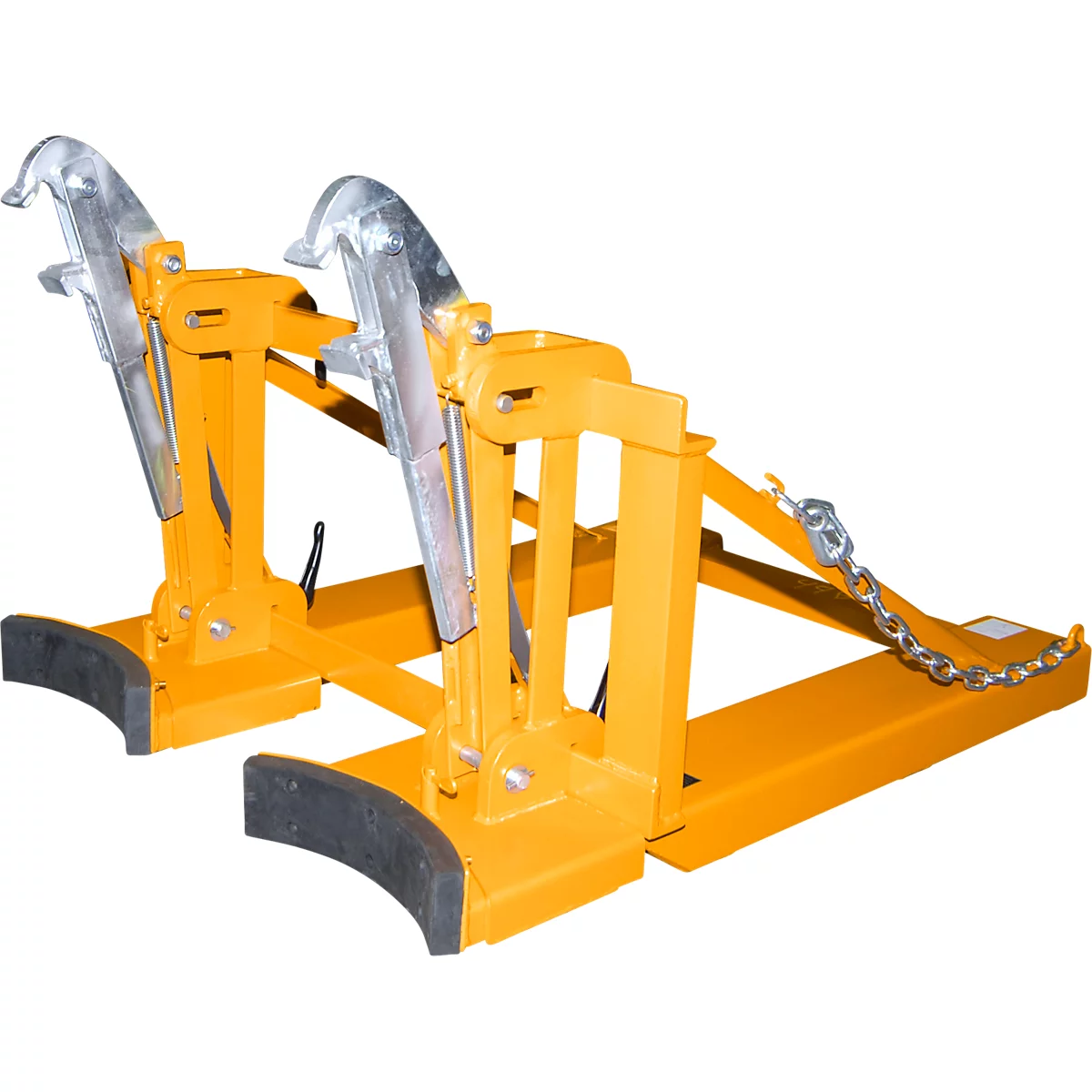

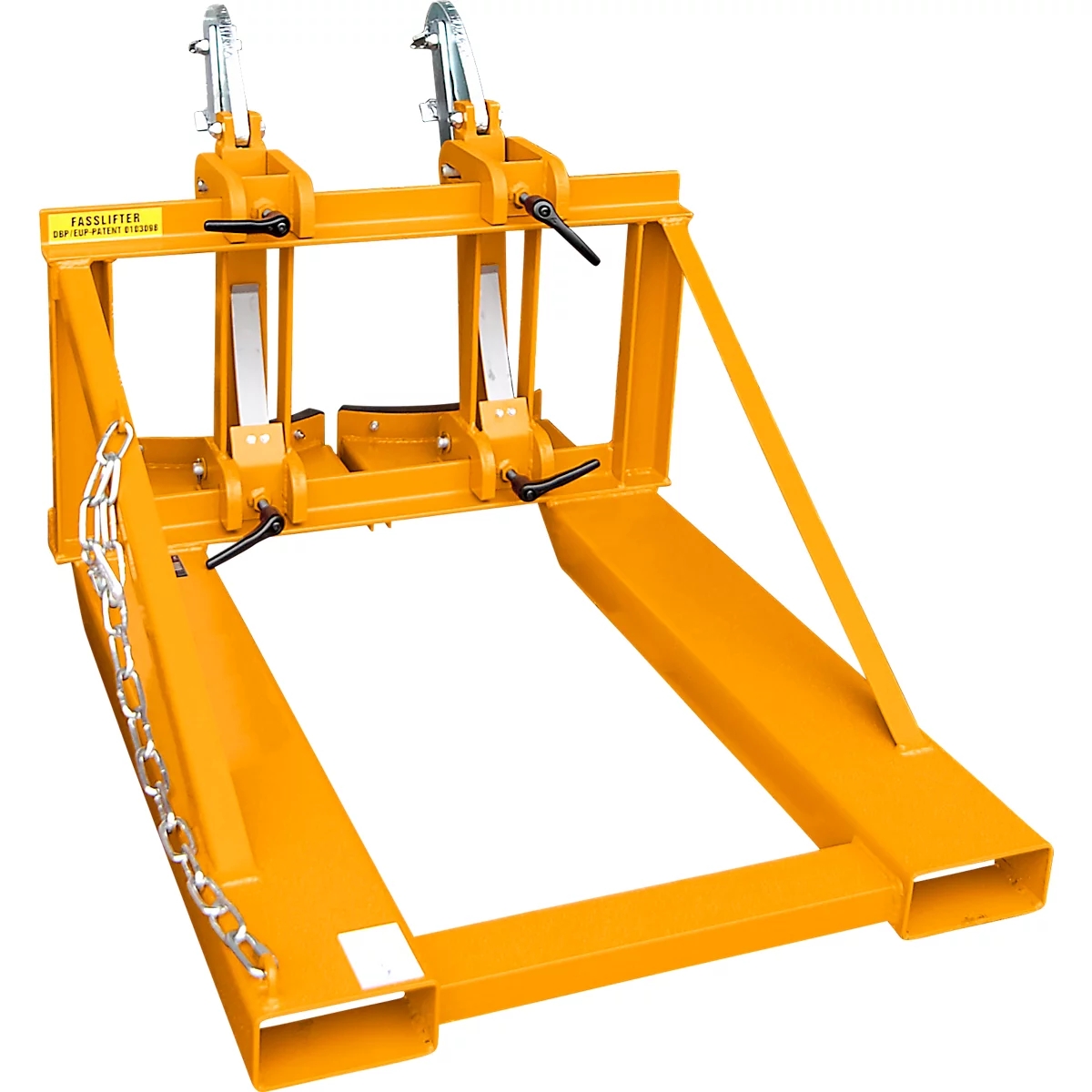

Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, yellow-orange

General information

Product safety instructions

Do not exceed the maximum load of 1600 kg.;Use a safety device to prevent unintentional slipping and check it regularly.;Take care when using near edges.;Keep the product out of the reach of children.;Read the operating instructions carefully before use and observe the safety instructions.;Ensure that the drum stop is set correctly.;Protect the product from unauthorised access.;Ensure sufficient space and safety when handling filled drums.;Ensure product safety and efficiency through regular maintenance and inspections.;When using forklifts, ensure that the appliance is properly secured.;Avoid overloading and improper transport to prevent accidents.;Do not use on unstable surfaces or sloping surfaces.;Only suitable for transporting filled plastic and conical lidded drums.;Regularly check the robust construction for damage.;There is a risk of suffocation from heavy drums if handled incorrectly.;Adjust the drum stop safely and according to the instructions.;Only use for the intended drum sizes (110 to 220 litres).;Take particular care when transporting drums to avoid tipping.

Article numbers

660036 660037 660038 660039 660040 660241

Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, yellow-orange

Name: Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, yellow-orange
Brand: Bauer
SKU: 8397997
Price: 3686.0 CHF
Availability: InStock

Item number: 660036

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Drum lifter RS-II/D 91, painted, orange

Show moreShow less

Technical data

General features
Admission by Driveway pockets
Application Transport of filled plastic lidded drums and conical lidded drums from 110 to 220 liters capacity
Barrel pick up by Grabber galvanized as standard
Barrel type Conical lidded drums
Color yellow-orange RAL 2000
Depth [mm] 940
Fork pocket spacing [mm] 534
Height [mm] 810
Internal dimensions fork pocket W x H [mm] 170 x 75
Load capacity [kg] 1600
Material Steel
Mobile No
Number of barrels 2
Stackable No
Surface varnished
Weight [kg] 136
Width [mm] 1285

Download

ProductSafety_10173357.pdf

Schäfer Shop Quality and Service

only Fr. 3’686.00

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000

show all variants

Add to basket

Delivery time: approx. 8 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, choice of colors

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price
Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, yellow-orange Item number: 660036			Fr. 3’686.00 Amount + - Added times

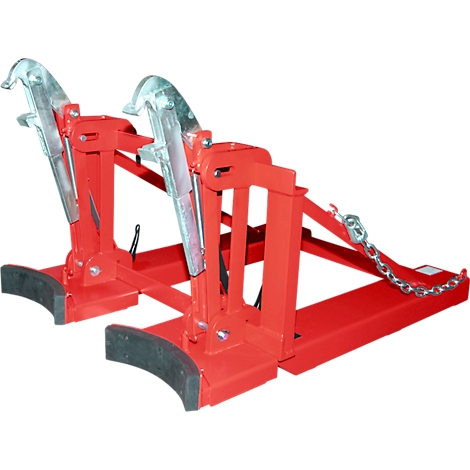

Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, fire red Item number: 660037			Fr. 3’686.00 Amount + - Added times

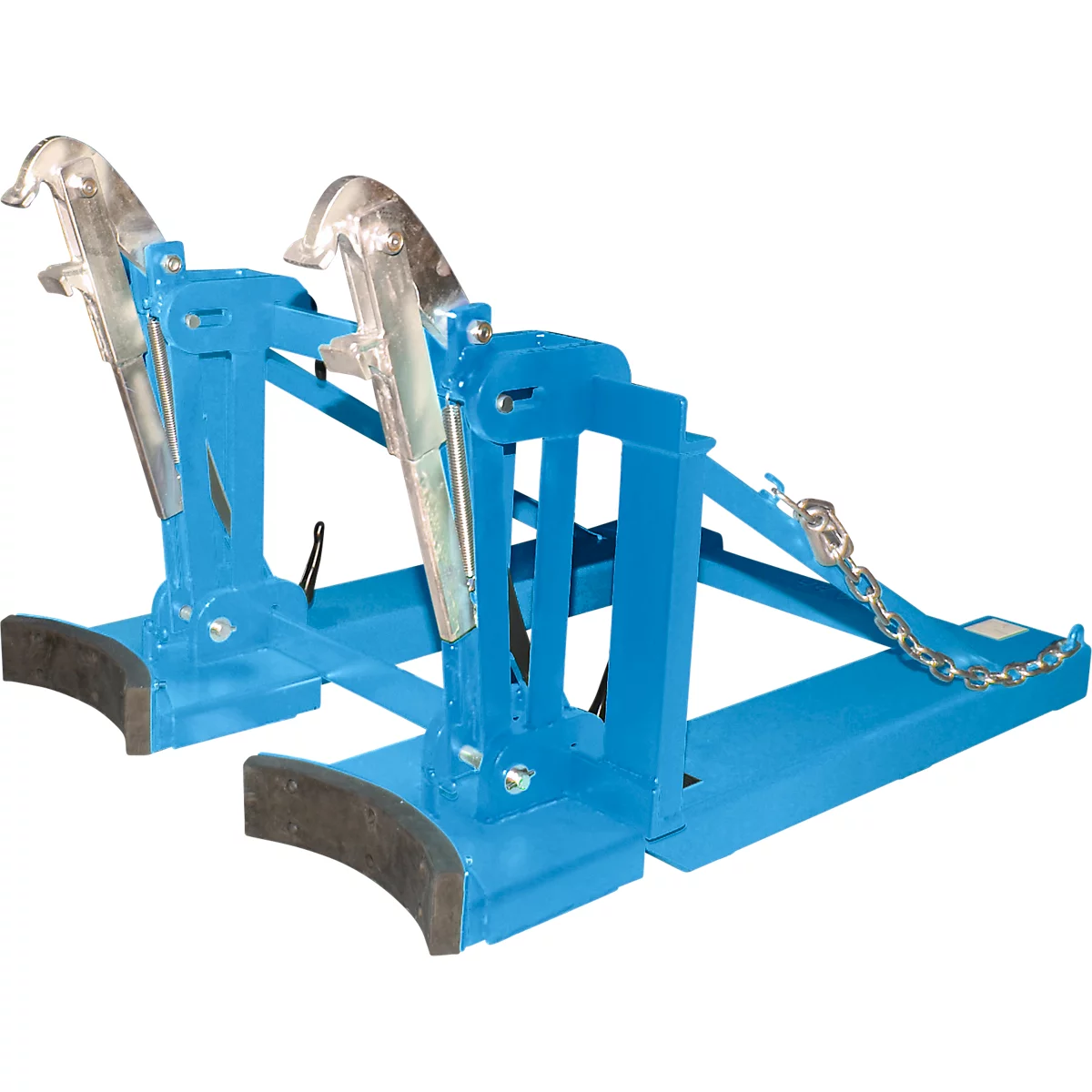

Bauer drum lifter RS-II/D 91, for forklift truck, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, light blue Item number: 660038			Fr. 3’686.00 Amount + - Added times

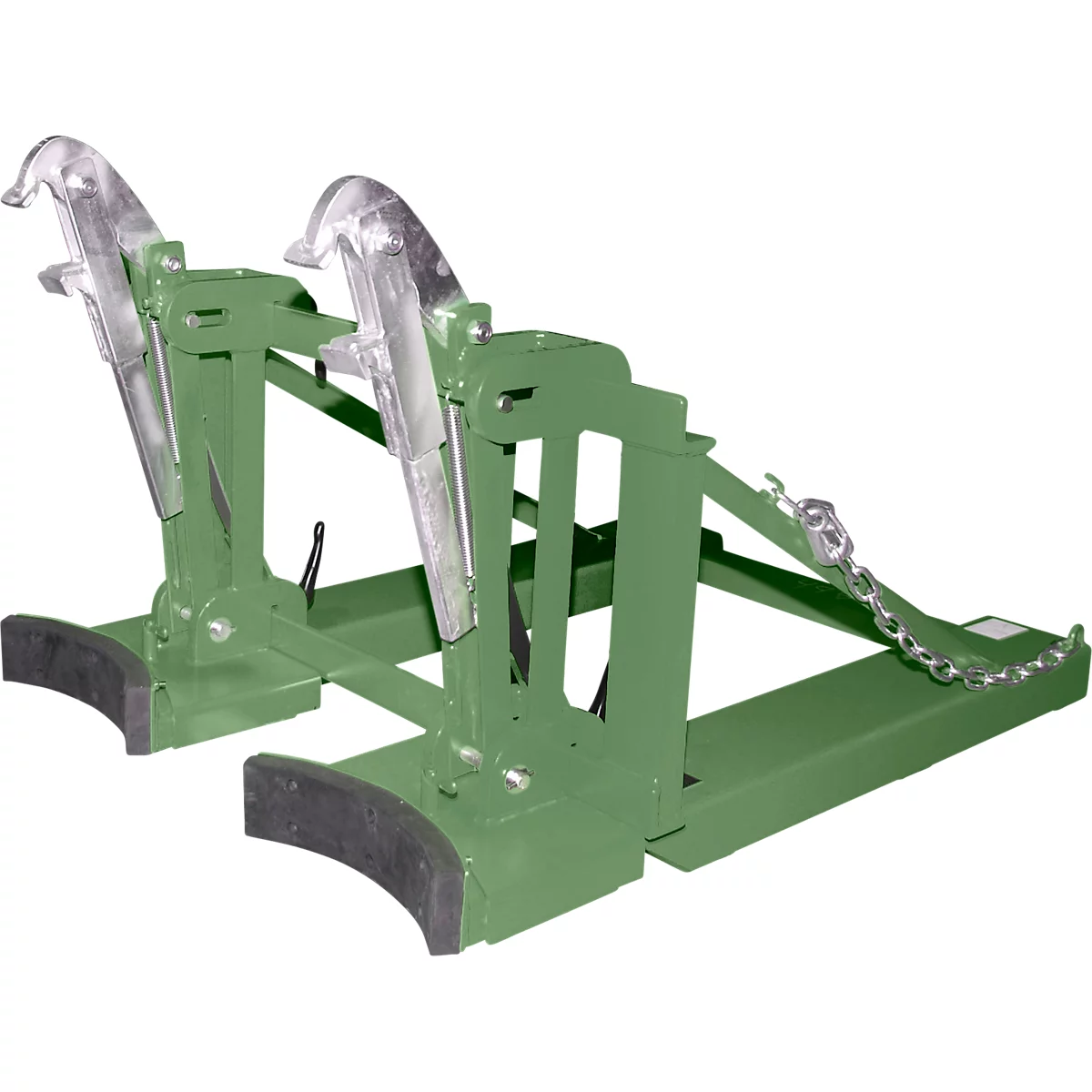

Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, reseda green Item number: 660039			Fr. 3’686.00 Amount + - Added times

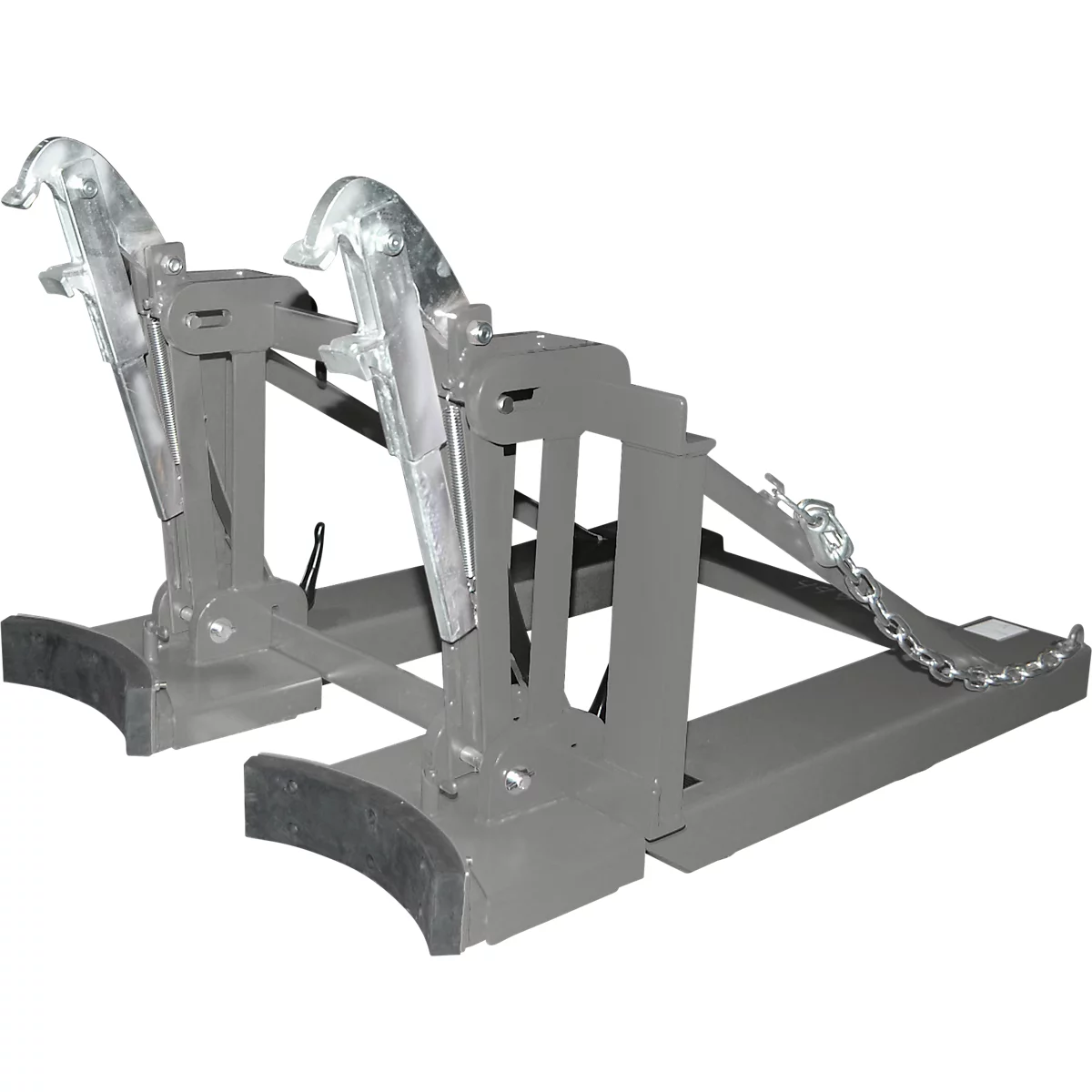

Bauer drum lifter RS-II/D 91, for forklift, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, mouse grey Item number: 660040			Fr. 3’686.00 Amount + - Added times

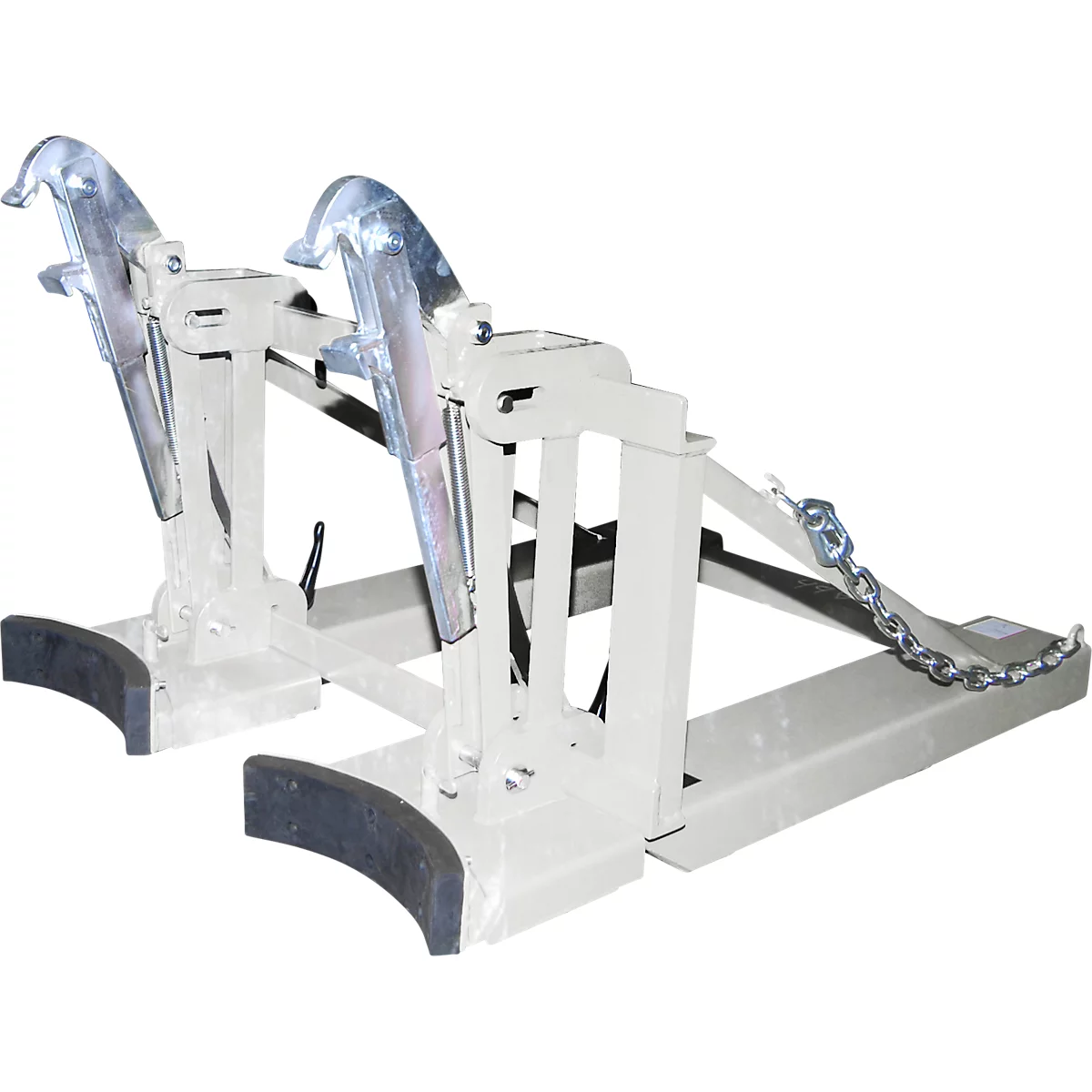

Bauer drum lifter RS-II/D 91, for forklift truck, 2 x 110 to 200 l lidded drums, L 1285 x W 940 x H 810 mm, up to 1600 kg, steel, hot-dip galvanized Item number: 660241			Fr. 4’199.00 Amount + - Added times
