Product Safety Information

Articulated stand R.260mm hydraulic HÖRGER & GÄßLER

General information

EU authorized representative E-mail address

info@hoerger-gaessler.de

EU authorized representative Name

Hörger & Gäßler OHG, Präzisionstechnik

EU authorized representative Place

Sontheim a.d. Brenz

EU authorized representative Postal code

89567

EU authorized representative Street & house number

Weinstr. 35

EU Plenipotentiary Country

Deutschland

Product safety instructions

Read the product instructions carefully to ensure correct use and maintenance.;Switch off the appliance when it is not in use to prevent unwanted operation.;Avoid contact with water to minimise electrical risks as the product may contain electrical components.;Before use, ensure that the hydraulic cylinder is not overloaded to prevent damage.;In the event of damage or leaks in the hydraulic system, take the product out of operation immediately and contact the manufacturer.;When using hydraulic components, make sure that there are no leaks.;The clamping force should always be adjusted to the respective application in order to avoid over-tightening or damaging the workpiece. The infinitely variable adjustment of the clamping force can lead to unstable applications if the setting is incorrect.;Ensure that the magnetic base is used in a stable and clean manner to prevent it from slipping or tipping over. Please note that the strong magnetic base adheres to metallic surfaces.;The product should only be used on stable and level surfaces to prevent it from tipping over.;Observe the operating conditions and maximum loads in accordance with the technical specifications.

Article numbers

724138 724143 724144

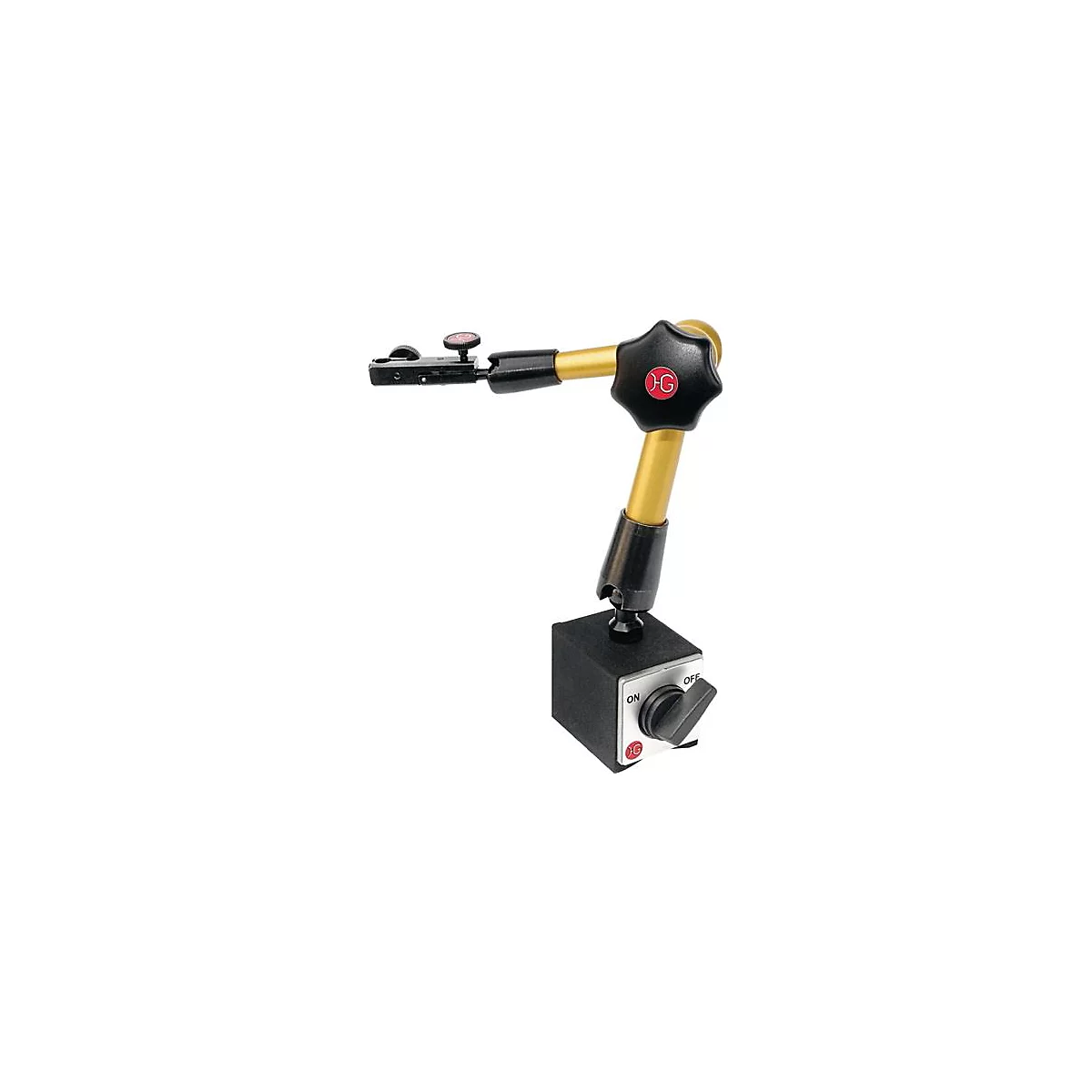

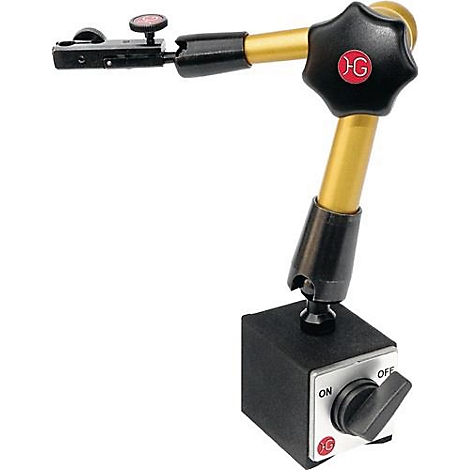

Articulated stand R.260mm hydraulic HÖRGER & GÄßLER

Name: Articulated stand R.260mm hydraulic HÖRGER &amp; GÄßLER
Brand: Hörger & gäßler
SKU: 8192659
Price: 243.0 CHF
Availability: InStock

Item number: 724143

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

hydraulic - central clamping via clamping knob - clamping force infinitely variable - fine adjustment with high stability - with measuring probe holder Ø 8 mm H7 and dovetail clamping - strong magnetic foot with prismatic sole - switchable

Other technical features:
- Design: hydraulic-
magnetic base height: 55mm-
magnetic base depth: 50mm- magnetic
base width: 60mm

Show moreShow less

Technical data

General features
Action radius [mm] 260
Adhesive force [N] 800

Schäfer Shop Quality and Service

only Fr. 243.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Action radius [mm]: 260

300 260 400

Adhesive force [N]: 800

800 980

show all variants

Add to basket

Delivery time: within 1 week

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Articulated stand R.400mm hydraulic HÖRGER & GÄßLER

Overview of the possible item variants. For more information, click on the respective variant.

Action radius [mm]

Adhesive force [N]

Item			Price

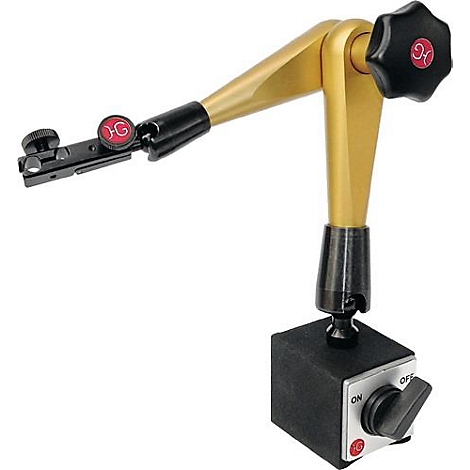

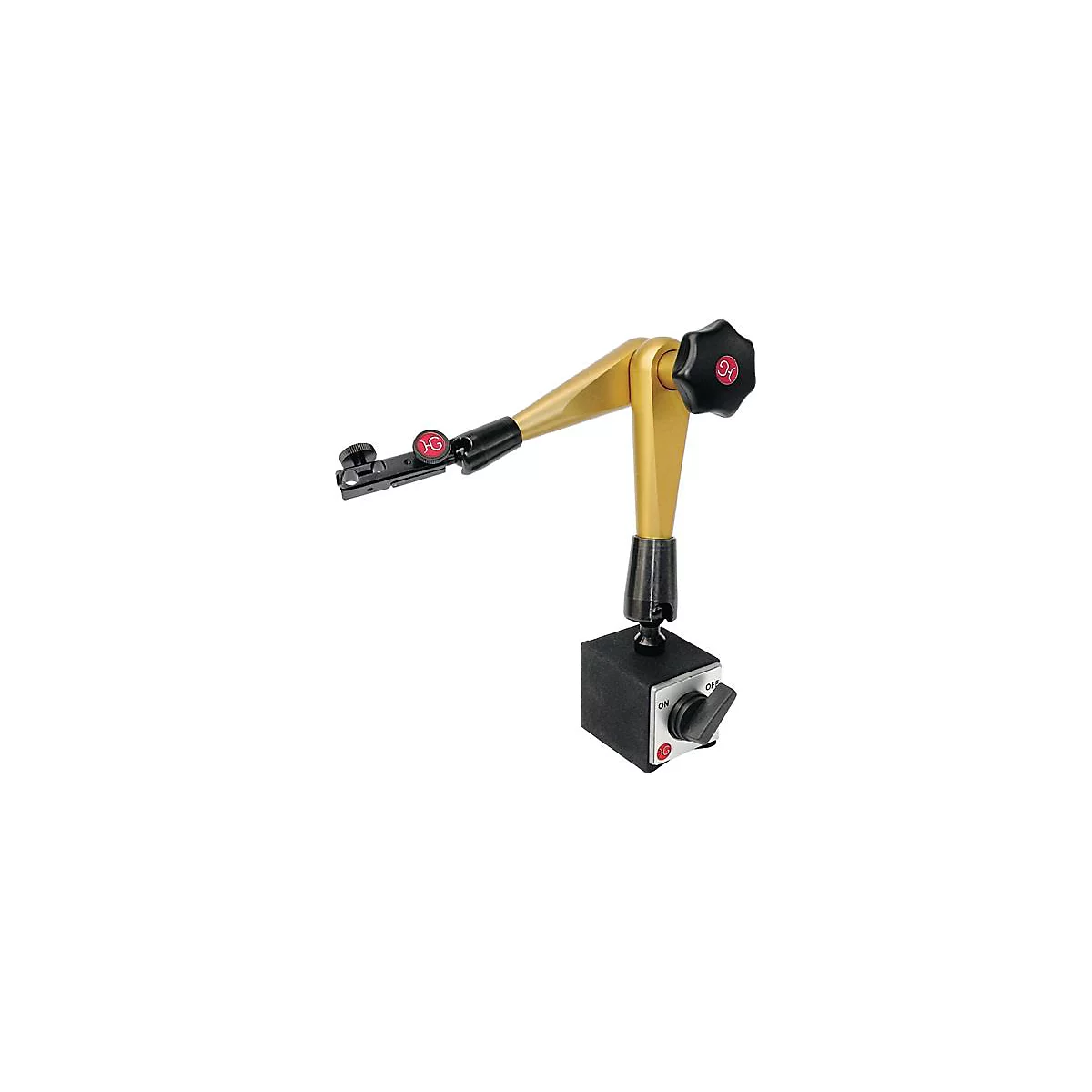

Articulated stand R.300mm hydraulic HÖRGER & GÄßLER Item number: 724138			Fr. 325.00 Amount + - Added times
Articulated stand R.260mm hydraulic HÖRGER & GÄßLER Item number: 724143			Fr. 243.00 Amount + - Added times

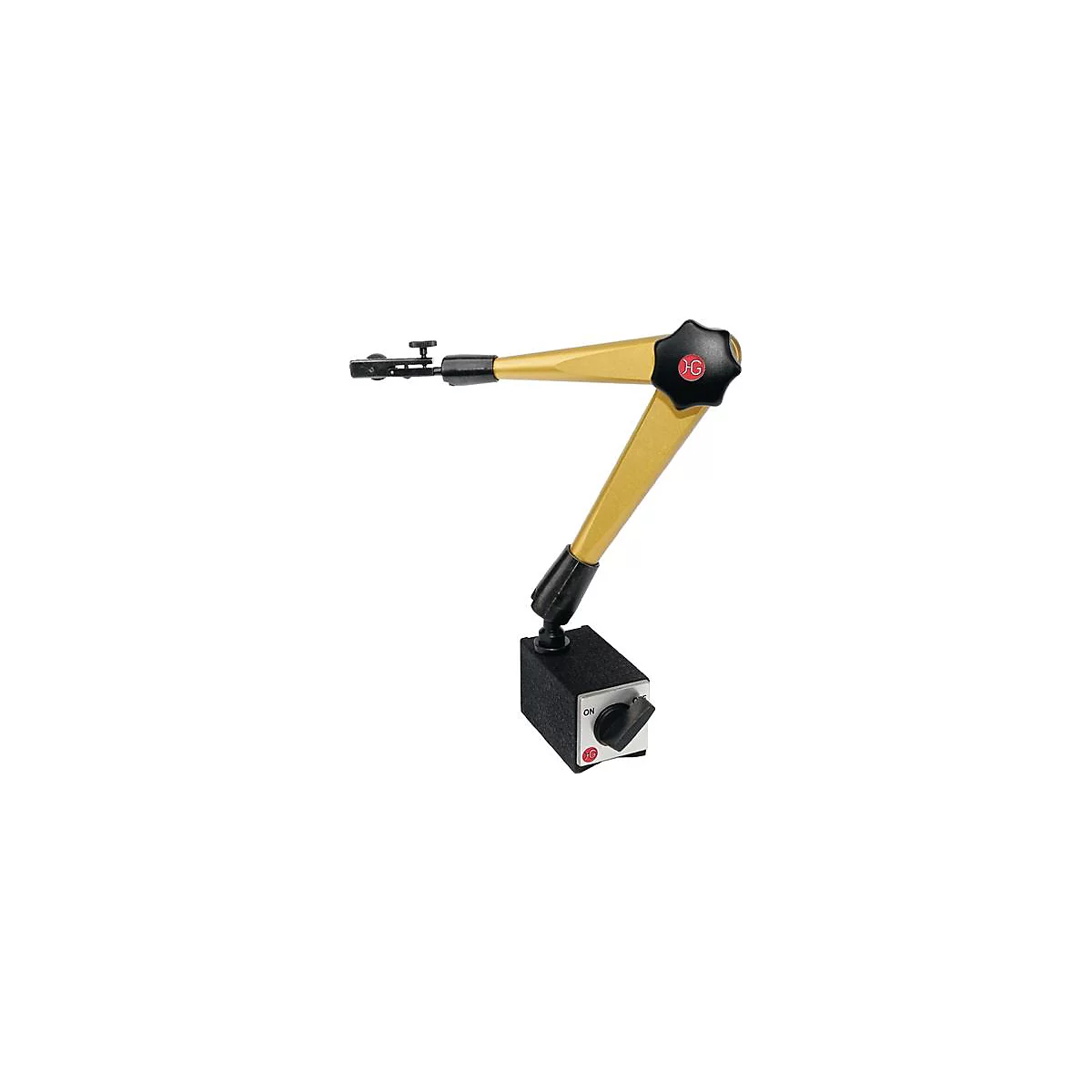

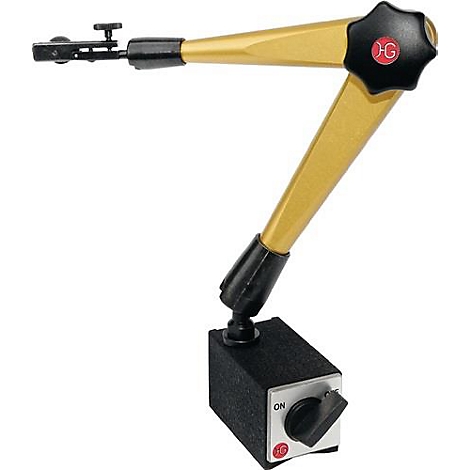

Articulated stand R.400mm hydraulic HÖRGER & GÄßLER Item number: 724144			Fr. 433.00 Amount + - Added times
