Product Safety Information

Workbench series 8470, height adjustable, mobile, 4 drawers and storage compartment, W 1250 x D 700 x H 880 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Avoid overloading the workbench; the maximum load capacity must not be exceeded: 450 kg with the chassis extended, 1250 kg with the chassis retracted.;Only load drawers with a maximum of 100 kg to prevent them from being pulled out and falling.;Ensure that children are kept away from the workbench to avoid injury.;Regularly check the functionality of the drawers and locking mechanisms.;Ensure that the castors are fitted correctly to ensure manoeuvrability and stability.;Observe the use of security and locking mechanisms to prevent unauthorised access.;In the event of improper use or overloading, there is a risk that the workbench will spring back, unintentionally retract, tip over or collapse.

Article numbers

156836 156837

Workbench series 8470, height adjustable, mobile, 4 drawers and storage compartment, W 1250 x D 700 x H 880 mm

Item number: 156836

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

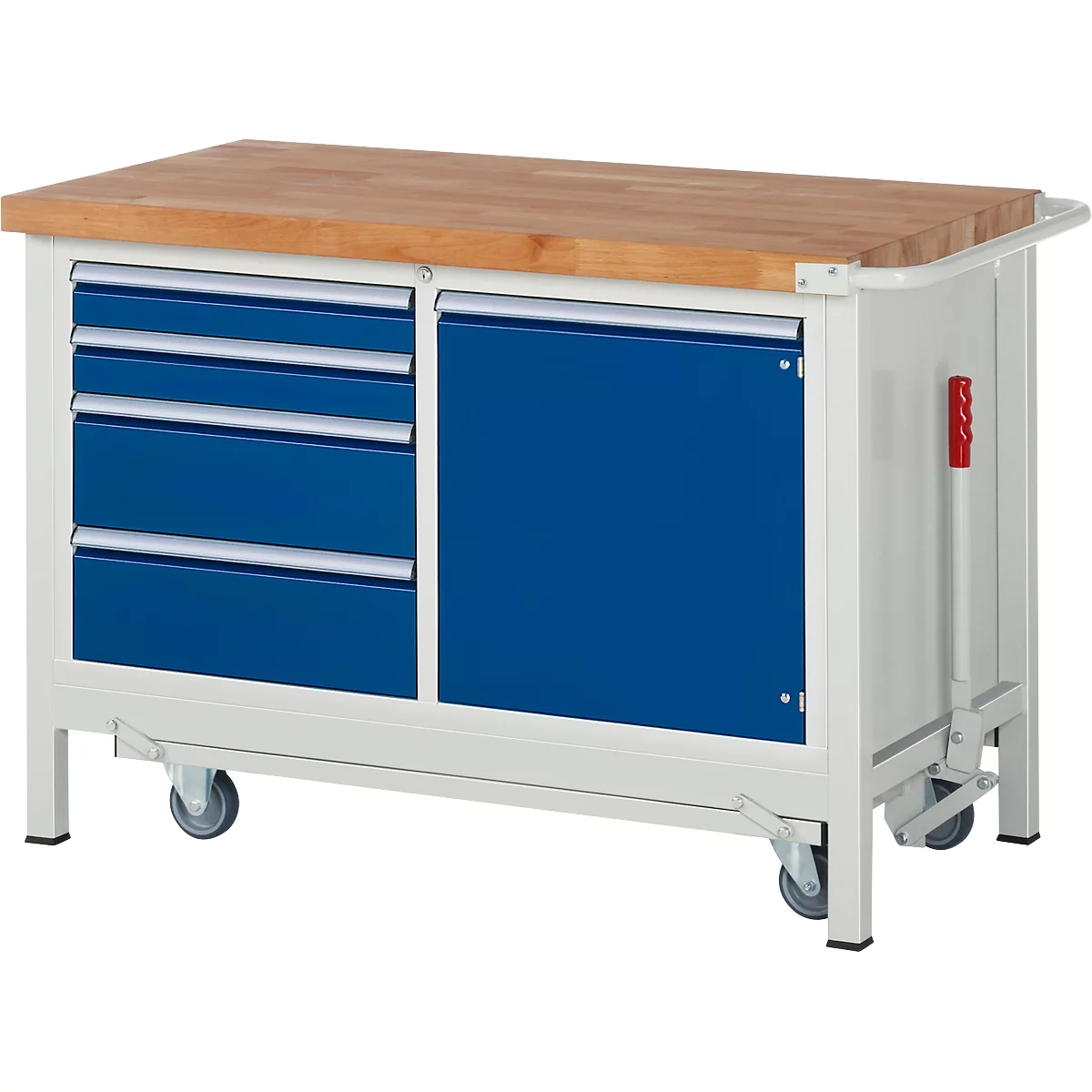

The workbench series 8470 in this model is both mobile and lowerable. The model of the workbench series 8470 offers four drawers and a shelf with lockable door.
The workbench model 8470 offers in this model a mobile and lowerable workbench. In addition, there are four drawers and a shelf with a lockable door. The chassis of the workbench is equipped with two fixed and swivel castors. This chassis can be folded in and out via the eccentric lever on the right. In addition to the solid beech worktop with a thickness of around 40 mm, the workbench series 8470 in this version offers two drawers with a height of 90 mm and two drawers with a height of 180 mm. Matching bow handles are supplied loose and can be fitted if required. The ErgoScript handle strips with labelling strips also help you to find materials quickly. Even more storage space is provided by the adjustable shelf, which can be closed with a 540 mm long door. When the chassis is extended, the max. load capacity is 450 kg, otherwise max. 1250 kg. This model of the 8470 series workbench is available in widths of 1250 mm or 1500 mm and is supplied fully assembled.
Further details:

Worktop: solid beech
Surface sanded and oiled
Worktop thickness: 40 mm
Welded construction (depth 650 mm) with frame feet made of Profi I steel tube (45 x 45 x 2 mm)
Chassis with 2 fixed and 2 swivel castors, which can be folded in and out via an eccentric lever (right) (eccentric lever vertical in both positions)
4 drawers: 2 x 90 mm and 2 x 180 mm
With handle/push bar (supplied loose)
Drawer load capacity: 100 kg
Drawers: 90 percent extension
ErgoScript handle strips with labelling strips
Door: 1 x 540 mm, behind it 1 adjustable shelf, opening width 180 degrees, self-closing spring hinges
Central locking: lock with 2 keys
Max. surface load: 1250 kg
surface load with extended chassis: max. 450 kg
Material: beech wood
Environmentally friendly powder coating in light grey RAL 7035 and gentian blue RAL 5010
Supplied fully assembled
Depth: 700 mm
Width: optionally 1250 mm or 1500 mm
Height: 880 mm

Advantages for you

Heavy objects and machinery can be placed on the sturdy multiplex beech top without hesitation

Saves storage space in small work areas with a width of 1250 mm

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Multiplex board beech
Board width [mm] 1250
Body colour light grey RAL 7035
Body surface powder-coated
Caster width (mm) 32
Central locking yes
Color of the facade gentian blue RAL 5010
Color of the wheels gray
Delivery Mounted
Depth of the substructure (mm) 650
Diameter of fixed-wheel castors (mm) 100
Diameter swivel castors [mm] 100
Door surface Powder coated
Door type -
Drawer depth inside (mm) 560
External height of the drawer (mm) 2 x 90, 2 x 180
Fixed-wheel version lowerable
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height of the cabinet section (mm) 540
Height [mm] 880
height-adjustable frame(s) Yes
Inside height of drawer (mm) 2 x 75, 2 x 165
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Steel, powder coated
Material body Steel
Material doors Steel
Material drawers Steel
Material frame Steel
Mobile Yes
Number of cabinet doors (pices) 1
Number of compartments [pcs.] 2
Number of compartments [pcs.] 2 closed
Number of door(s) 1
Number of drawer(s) 4
Number of fixed castors 2
Number of keys [pcs.] 2
Number of locks 1
Number of shelves [pcs.] 1
Number of swivel casters (pices) 2
Pull-out 90% partial extension
Pull-out stop no
Removable shelves yes
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Shelf depth (mm) 580
Shelf load capacity [kg] 50
Shelf width (mm) 525
Structure No
Substructure height [mm] 880
Substructure width (mm) 1235
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Version Swivel castors lowerable
Weight [kg] 179
Wheel/roller material thermoplastic rubber
Width of fixed castors (mm) 32
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled
Colors
Color gentian blue RAL 5010/light grey RAL 7035
Dimensions
Dimensions W x D x H [mm] 1250 x 700 x 880
Width [mm] 1250
