Product Safety Information

Workbench series 8162, W 2500 x D 700 x H 840 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Risk of injury due to the heavy weight of the workbench (max. surface load 1250 kg).;Risk of crushing when pulling out the drawers. Drawers can be pulled out up to 90% - avoid overloading and unintentional tipping over.;The product is not suitable for children.;Take care when lifting or transporting the heavy workbench.;Do not exceed the maximum surface load of 1250 kg.;Only use the workbench on the surface intended for it and on a firm, level surface. Ensure that the workbench is stable to prevent it from tipping over.;The surfaces of the workbench may be slippery. Make sure that the floor is dry and clean.;The product may be unstable if not installed correctly - follow the safety instructions in the manual. Ensure safe installation and use in accordance with the instructions.;Do not use drawers above their maximum load capacity of 100 kg.;Check the drawers regularly for damage to avoid injury.;Protect the worktop from excessive moisture to avoid deformation. Take care to avoid injury due to sharp edges.;Regularly check the structure and drawers for damage or wear.

Article numbers

156924 156925 156926 156927

Workbench series 8162, W 2500 x D 700 x H 840 mm

Item number: 156924

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The workbench series 8162 offers eight drawers and a crossbar. The workbench series 8162 is optionally available with a depth of 700 or 900 mm.
The workbench series 8162 is available in a width of 2500 mm or 3000 mm and a depth of 700 mm or 900 mm. The 40 mm worktop, whose surface has already been sanded and oiled, is divided by a cross strut. Each side of the worktop offers four drawers, two of which are 120 mm high and two 150 mm high. Each of the eight drawers offers a load capacity of 100 kg and can be pulled out by 90 percent. The 4-sided support frame underneath the worktop serves as a further storage surface. The 8162 series workbench supports a surface load of 1250 kg and is supplied fully assembled.
Further details:

Worktop: solid beech
Surface sanded and oiled
Worktop thickness: 40 mm
Welded construction (depth 650 mm) with frame feet made of Profi I steel tube (45 x 45 x 2 mm)
Frame feet with end element and anti-slip studs
Support frame (4-sided) under the worktop
8 drawers: 4 x 120 mm, 4 x 150 mm
Drawer load capacity: 100 kg each
Drawers: 90 percent extension
With cross brace
ErgoScript handle strips with labelling strips
Surface load: max. 1250 kg
Material: beech wood
Environmentally friendly powder coating in light grey RAL 7035 and gentian blue RAL 5010
Supplied fully assembled
Depth: 700 or 900 mm
Width: 2500 or 3000 mm
Height: 840 mm

Advantages for you

Equipped with hard-wearing multiplex board made of beech

At this 2500 mm wide workbench it is possible to work comfortably even with larger workpieces

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 6-foot
Base surface powder-coated
Board material Multiplex board beech
Board width [mm] 2500
Body colour light grey RAL 7035
Body surface powder-coated
Central locking both compartments
Color light grey RAL 7035; gentian blue RAL 5010
Color of the facade light grey RAL 7035; gentian blue RAL 5010
Delivery Mounted
Depth of the substructure (mm) 650
Dimensions W x D x H [mm] 2500 x 700 x 840
Drawer depth inside (mm) 560
External height of the drawer (mm) 4 x 120, 4 x 150
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height [mm] 840
Inside height of drawer (mm) 4 x 105, 4 x 135
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Steel, powder coated
Material body Steel
Material drawers Steel
Material frame Steel
Mobile No
Number of compartments [pcs.] 2
Number of drawer(s) 8
Number of keys [pcs.] 2
Number of locks 2
Pull-out 90% partial extension
Pull-out stop no
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Structure No
Substructure height [mm] 840
Substructure width (mm) 2445
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Weight [kg] 248
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled

Download

ProductSafety_10143525.pdf

Schäfer Shop Quality and Service

only Fr. 3’638.00

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Board width [mm]: 2500 mm

2500 mm 3000 mm

Worktop depth [mm]: 700 mm

700 mm 900 mm

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Workbench Series 8162, 8 drawers, with cross brace, depth 700 or 900 mm

Overview of the possible item variants. For more information, click on the respective variant.

Board width [mm]

Worktop depth [mm]

Item			Price

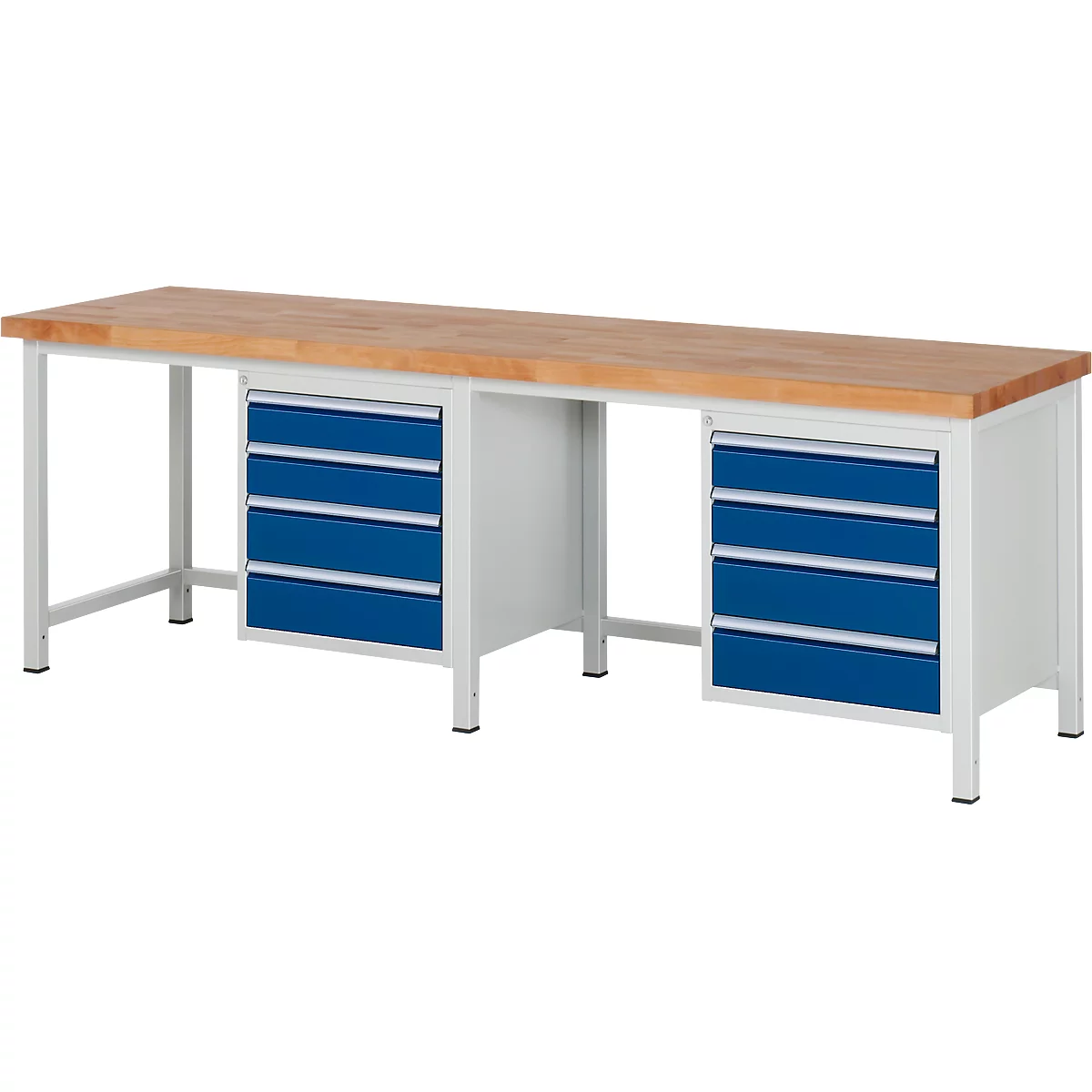

Workbench series 8162, W 2500 x D 700 x H 840 mm Item number: 156924			Fr. 3’638.00 Amount + - Added times

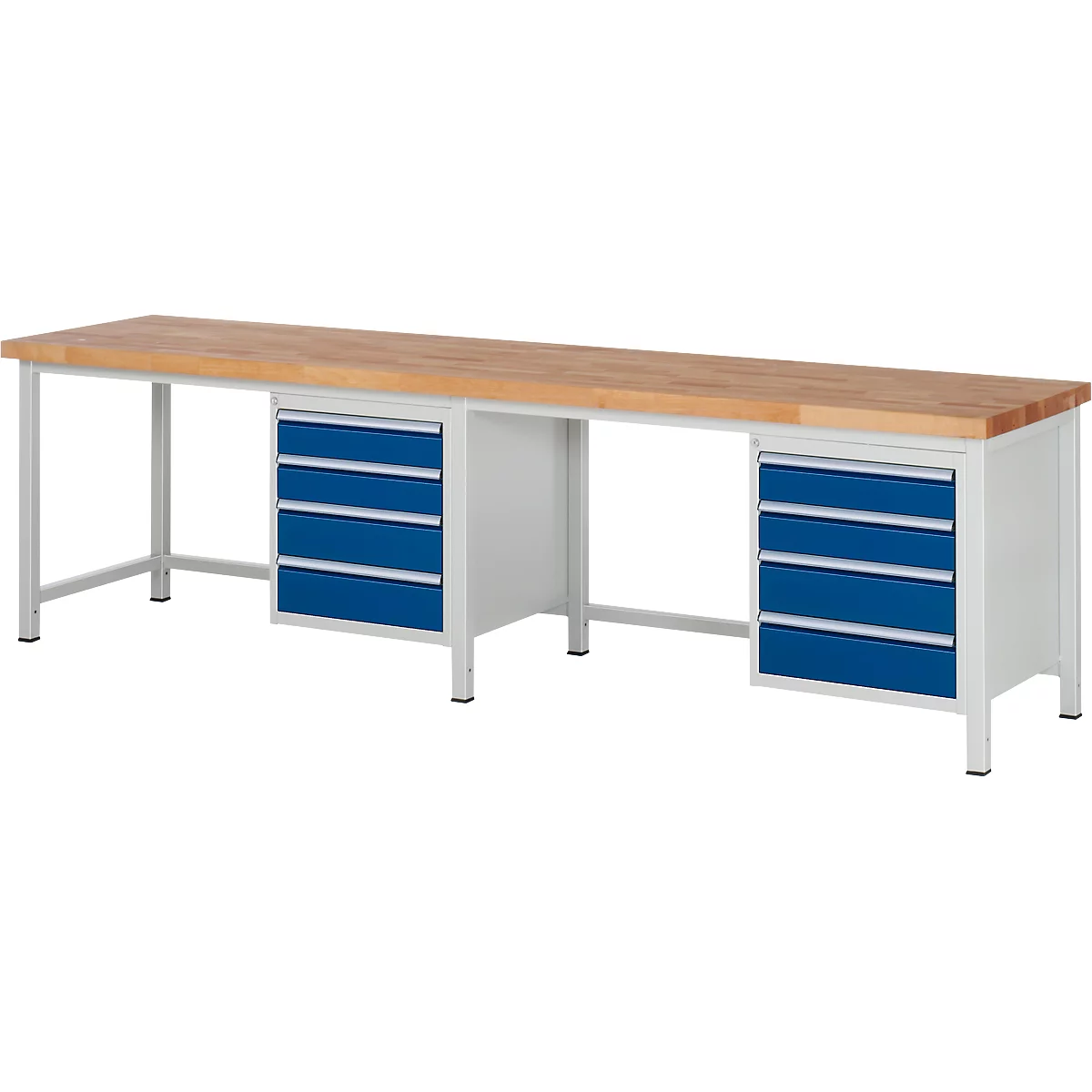

Workbench series 8162, W 3000 x D 700 x H 840 mm Item number: 156925			Fr. 3’784.00 Amount + - Added times

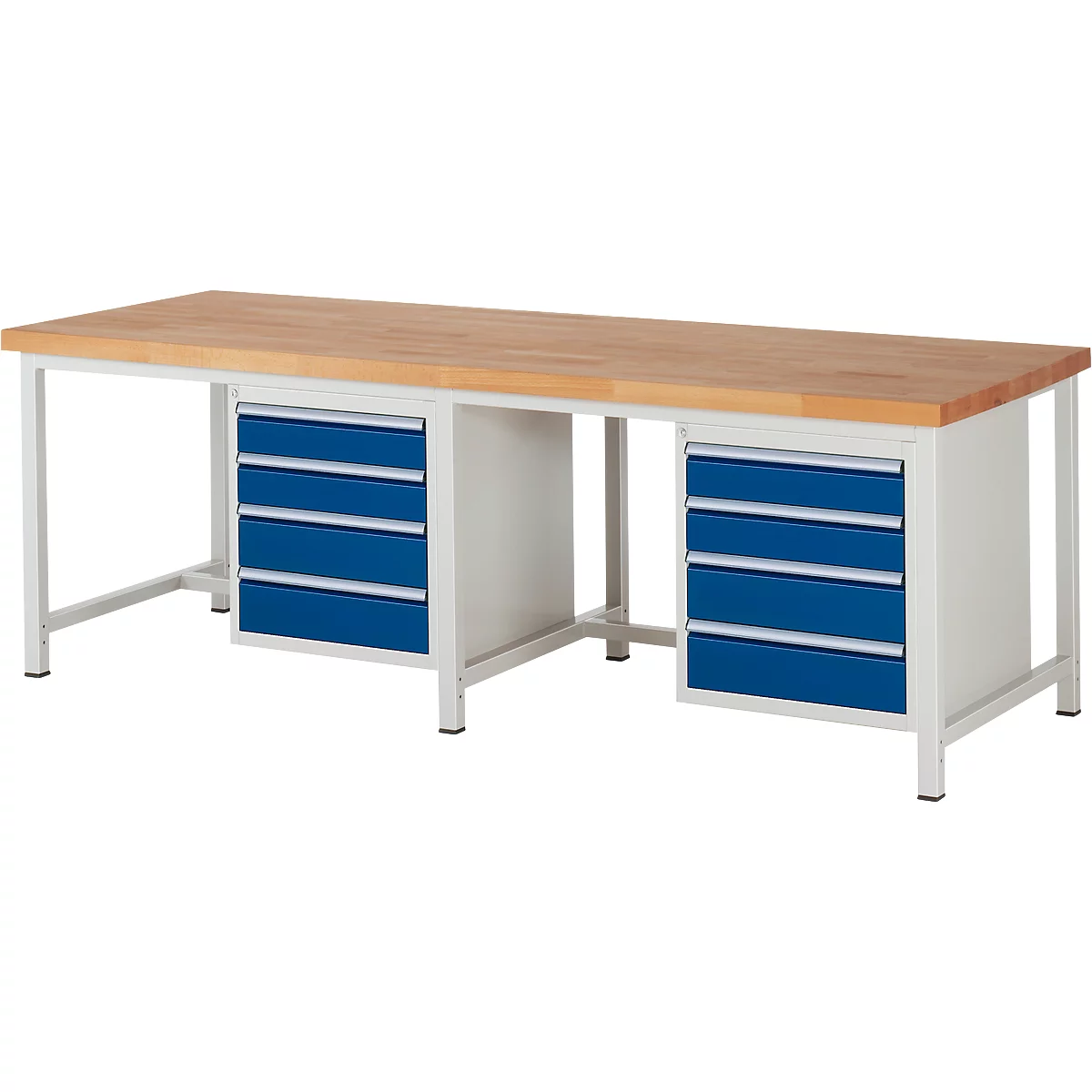

Workbench series 8162, W 2500 x D 900 x H 840 mm Item number: 156926			Fr. 4’144.00 Amount + - Added times

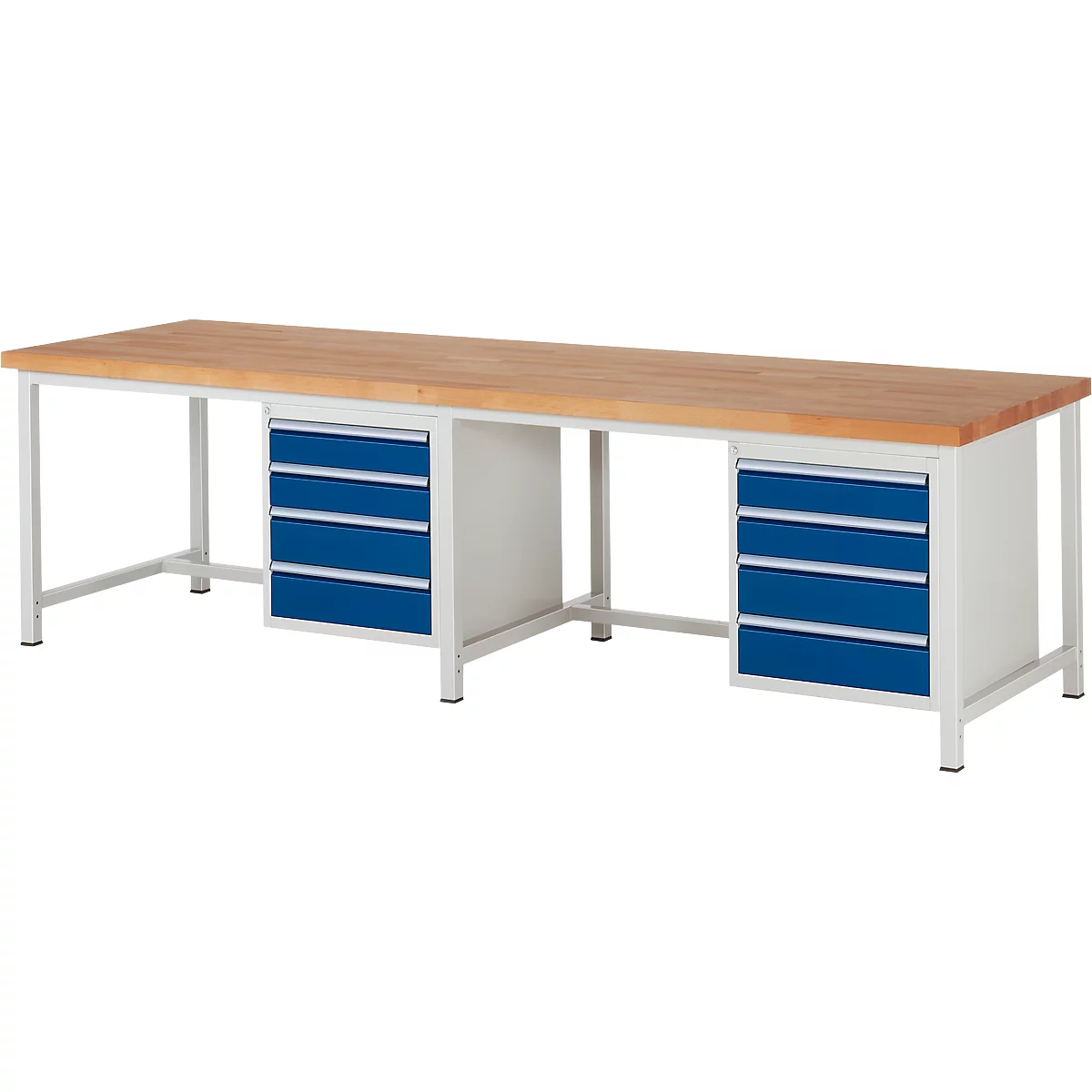

Workbench series 8162, W 3000 x D 900 x H 840 mm Item number: 156927			Fr. 4’336.00 Amount + - Added times
