Product Safety Information

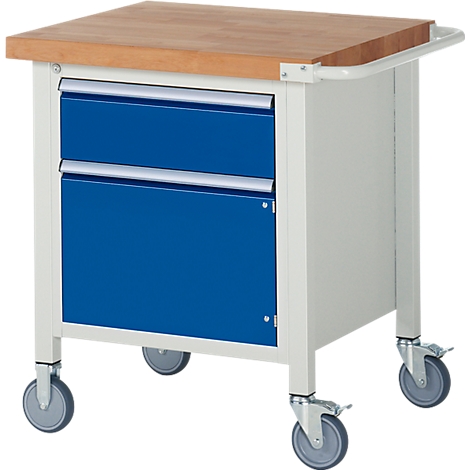

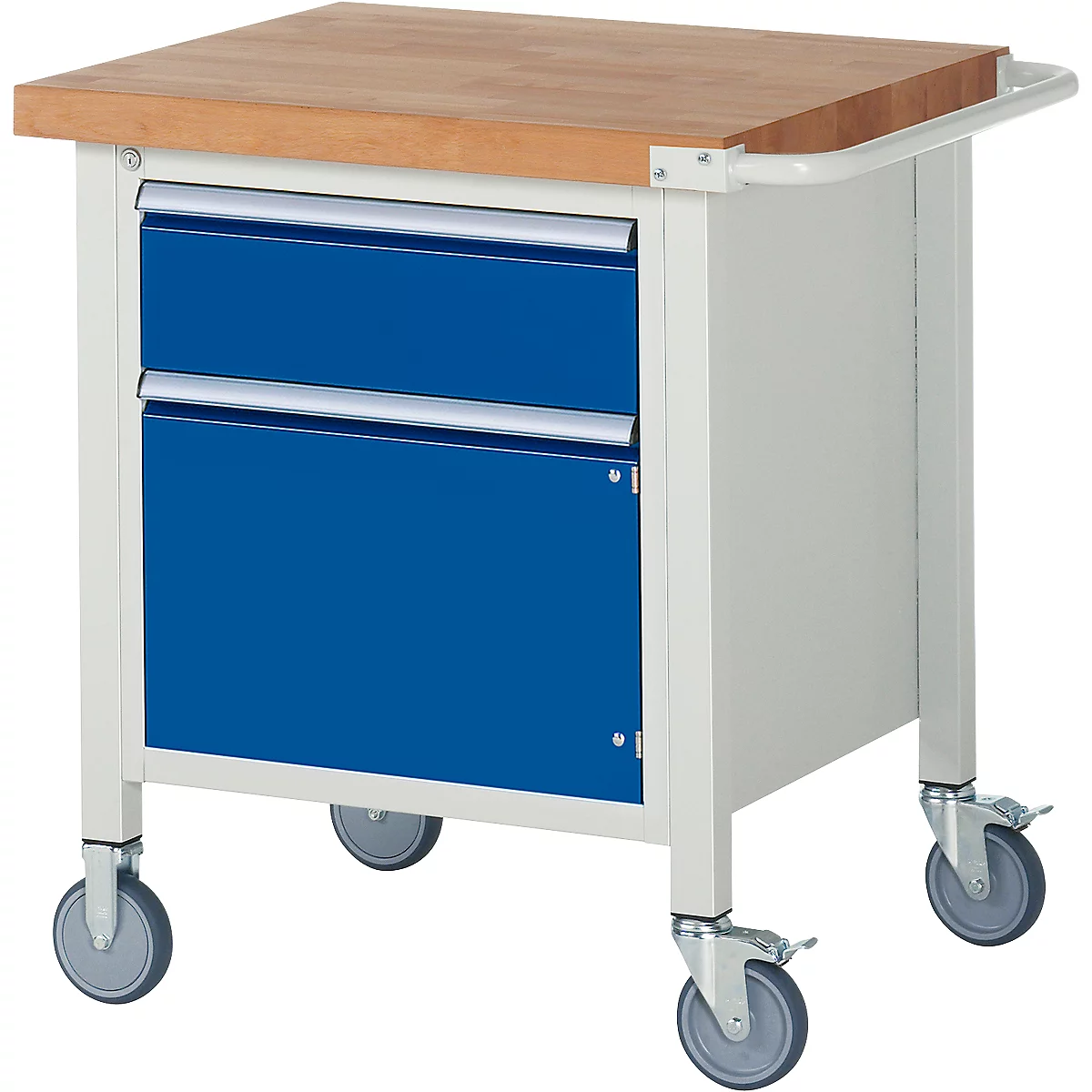

Workbench series 8152, mobile, with drawer, W 750 x D 700 x H 880 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Make sure that the workbench is stable and on a level surface to prevent it from tipping over.;Avoid children using the workbench and keep children away from the workbench.;Avoid placing the workbench in damp environments to prevent damage to the wooden surface and mould growth.;Do not use the drawers as a climbing aid and ensure that they are securely closed to avoid injury.;Check and use the castor brakes regularly to prevent the mobile workbench from rolling away unintentionally.;Risk of suffocation due to improper handling of small parts, especially the handle.;Risk of crushing injuries when closing drawers or doors.;Keep operating instructions and safety information close to the workbench.

Article numbers

156787 156788 156789 156790 156791

Workbench series 8152, mobile, with drawer, W 750 x D 700 x H 880 mm

Item number: 156787

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The workbench series 8152 is mobile in this version and has a drawer. The workbench series 8152 can be ordered in widths from 750 to 2000 mm.
Equipped with two fixed and two swivel castors, the workbench series 8152 is mobile in this version. Locking devices prevent the workbench from rolling away unintentionally. In addition, the 8152 series offers a 180 mm high drawer with a loose bracket and a door that can be locked with a central locking system. A sheet steel shelf with a depth of 650 mm and a shelf height of 620 mm is also available. Labelling the stored materials is also very easy thanks to attached labelling strips. The workbench series 8152 has a worktop made of solid beech with a thickness of 40 mm. The surface of the worktop is sanded and oiled. The surface load of the workbench series 8152 is max. 450 kg. Delivered fully assembled, the workbench is 700 mm deep and 880 mm high. It can be ordered in optional widths of 750, 1000, 1250, 1500 or 2000 mm.
Further details:

Mobile
Worktop: solid beech
Surface sanded and oiled
Worktop thickness: 40 mm
Welded construction (depth 650mm) with frame feet made of Profi I steel tube (45 x 45 x 2 mm)
2 fixed and 2 swivel castors with brakes
Castor ø: 125 mm, overall height 150 mm
With drawer: 1 x 180 mm
With handle/push bar (supplied loose)
1 door: 1 x 360 mm, opening width 180 degrees, self-closing spring hinges
Central locking: lock with 2 keys
ErgoScript handle strips with labelling strips
Sheet steel shelf, depth 650 mm, shelf height 620 mm (except width 750 mm)
Max. surface load: 450 kg
Material: beech wood
Environmentally friendly powder coating in light grey RAL 7035 and gentian blue RAL 5010
Supplied fully assembled
Depth: 700 mm
Width: optionally 750, 1000, 1250, 1500 or 2000 mm
Height: 880 mm

Advantages for you

Equipped with hard-wearing multiplex board made of beech

Saves a lot of space in small work areas with a width of 750 mm

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Multiplex board beech
Board width [mm] 750
Body colour light grey RAL 7035
Body surface powder-coated
Caster width (mm) 32
Central locking yes
Color of the facade gentian blue RAL 5010
Color of the wheels gray
Delivery Mounted
Depth of the substructure (mm) 650
Depth [mm] 700
Diameter of fixed-wheel castors (mm) 125
Diameter swivel castors [mm] 125
Door surface Powder coated
Door type -
Drawer depth inside (mm) 560
External height of the drawer (mm) 180
Fixed-wheel version Plain bearing
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Handle Handle
Height adjustment No
Height of the cabinet section (mm) 360
Height [mm] 880
height-adjustable frame(s) No
Inside height of drawer (mm) 165
Inside width of drawer (mm) 490
Load capacity [kg] 1250
Lockable Yes
Locking system Cylinder lock
Material Steel, powder coated
Material body Steel
Material doors Steel
Material drawers Steel
Material frame Steel
Mobile Yes
Number of cabinet doors (pices) 1
Number of compartments [pcs.] 1
Number of compartments [pcs.] 2 closed
Number of door(s) 1
Number of drawer(s) 1
Number of fixed castors [pcs] 2
Number of keys [pcs.] 2
Number of locks 1
Number of shelves [pcs.] 1
Number of swivel casters (pices) 2
Pull-out 90% partial extension
Pull-out stop no
Removable shelves yes
Schubladenführung Roller guide
Self-closing device Yes
Shape worktop rectangular
Shelf depth (mm) 580
Shelf load capacity [kg] 50
Shelf width (mm) 525
Structure No
Substructure height [mm] 880
Substructure width (mm) 670
Surface drawers Powder coating
System 8000
Thickness worktop [mm] 40
Version Swivel castors Parking brake
Weight [kg] 88
Wheel/roller material thermoplastic rubber
Width of fixed castors (mm) 32
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled
Colors
Color gentian blue RAL 5010/light grey RAL 7035
Dimensions
Width [mm] 750
