Product Safety Information

Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 750 x D 700 x H 880 mm

General information

EU authorized representative E-mail address

info@rau-gmbh.de

EU authorized representative Name

RAU GmbH

EU authorized representative Place

Balingen-Frommern

EU authorized representative Postal code

72336

EU authorized representative Street & house number

Im Rohrbach 14 + 16

EU Plenipotentiary Country

Deutschland

Product safety instructions

Always secure the mobile workbench with brakes on the castors to prevent it from rolling away unintentionally.;Ensure that the workbench is placed on a stable and level surface to prevent tipping and accidents.;Check the worktop for cracks or damage before use to minimise safety risks.;Use only for its intended purpose to avoid injury or damage.;Wear suitable personal protective equipment (PPE) such as gloves and safety goggles when working with tools.;Pay attention to children and vulnerable persons in the vicinity of the workbench to ensure their safety.;If the castors or other parts are damaged, stop using the workbench immediately to avoid accidents.;Risk of suffocation due to improper handling of the castors if the product is not properly secured.;Risk of injury from heavy lifting or improper use of the workbench, especially if the load exceeds 450 kg.;Risk of collision due to the mobility of the workbench, especially in busy work areas.;Sharp edges of metal parts can cause injuries.;Do not place excessive loads on the worktop or shelf to avoid tipping over.;To avoid injury, do not leave the workbench inaccessible to children.

Article numbers

156747 156748 156749 156750 156751

Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 750 x D 700 x H 880 mm

Item number: 156747

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

This version of the workbench series 8000 is mobile and has a sheet steel shelf. The workbench series 8000 can be ordered with a worktop made of solid beech with a width between 750 and 2000 mm.
This version of the Series 8000 workbench is mobile and also has a sheet steel shelf. The Series 8000 workbench has a 40 mm thick worktop made of solid beech. Its surface is already sanded and oiled. In addition, there is a sheet steel shelf with a shelf height of 620 mm. The legs of the Series 8000 workbench are made of Profi I tubular steel. Equipped with two fixed and two swivel castors, the mobile workbench Series 8000 can also be secured against unintentional rolling away thanks to the brakes. The scope of delivery includes a bow handle which can be attached if required. The mobile workbenches are supplied fully assembled. They can carry a maximum surface load of 450 kg. Optionally, the 800 series workbench can be ordered in widths of 750 mm, 1000 mm, 1250 mm, 1500 mm or 2000 mm.
Further details:

Mobile
Worktop: solid beech
Surface sanded and oiled
Welded construction (depth 650 mm) with frame feet made of Profi I steel tubing (45 x 45 x 2 mm)
Sheet steel shelf, shelf height 620 mm
With handle/push bar (supplied loose)
2 block and 2 swivel castors with brakes
Castor dia.: 125 mm, overall height 150 mm
Worktop thickness: 40 mm
Surface load: max. 450 kg
Material: beech wood
Material frame: powder-coated tubular steel
Delivery: completely assembled
Colour: light grey (RAL 7035)

Advantages for you

Heavy objects and machinery can be placed on the sturdy beech multiplex board without hesitation.

Space-saving and compact: With 750 mm width optimally suitable for smaller workshops

Show moreShow less

Technical data

General features
(Driver) esd No
Base shape 4-foot
Base surface powder-coated
Board material Multiplex board beech
Board width [mm] 750
Caster width (mm) 32
Color light grey RAL 7035
Color of the facade light grey RAL 7035
Color of the wheels gray
Delivery Mounted
Depth of the substructure (mm) 650
Depth [mm] 700
Diameter of fixed-wheel castors (mm) 125
Diameter swivel castors [mm] 125
Dimensions W x D x H [mm] 750 x 700 x 880
Fixed-wheel version Plain bearing
Foldable No
Frame colour light grey RAL 7035
Frame version Profile steel tube 45 x 45 x 2 mm
Ground levelling No
Height adjustment No
Height [mm] 880
Load capacity [kg] 1250
Material frame Steel
Mobile Yes
Number of fixed castors [pcs] 2
Number of swivel casters (pices) 2
Shape worktop rectangular
Structure No
Substructure height [mm] 880
Substructure width (mm) 745
System 8000
Thickness worktop [mm] 40
Version Swivel castors Parking brake
Weight [kg] 59
Wheel/roller material thermoplastic rubber
Width of fixed castors (mm) 32
Width [mm] 750
Worktop colour Beech
Worktop depth [mm] 700
Worktop surface sanded and oiled

Download

ProductSafety_10142539.pdf

Schäfer Shop Quality and Service

only Fr. 994.00

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Board width [mm]: 750 mm

750 mm 1000 mm 1250 mm 1500 mm 2000 mm

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Workbench Series 8000, mobile, sheet steel shelf, width from 750 to 2000 mm

Overview of the possible item variants. For more information, click on the respective variant.

Board width [mm]

Item			Price
Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 750 x D 700 x H 880 mm Item number: 156747			Fr. 994.00 Amount + - Added times

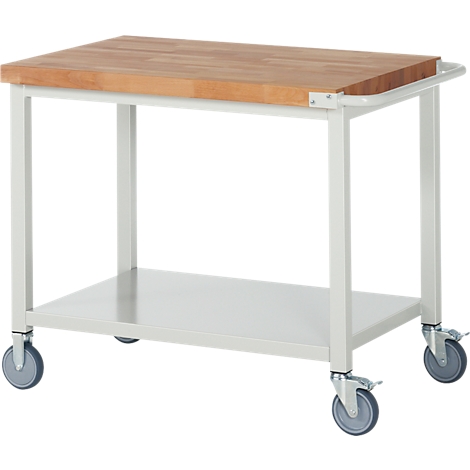

Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 1000 x D 700 x H 880 mm Item number: 156748			Fr. 1’086.00 Amount + - Added times

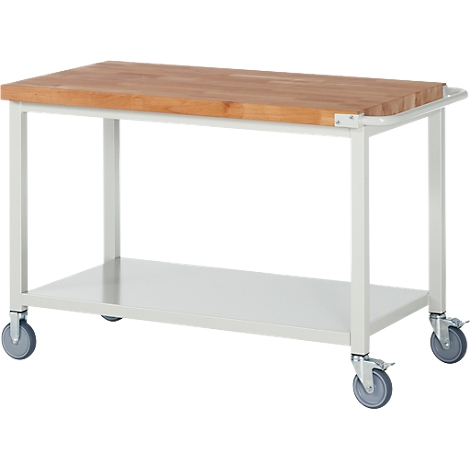

Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 1250 x D 700 x H 880 mm Item number: 156749			Fr. 1’177.00 Amount + - Added times

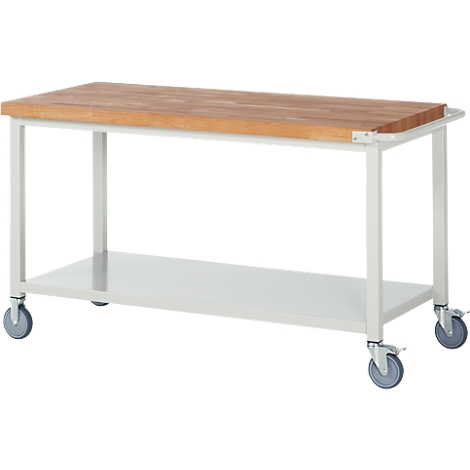

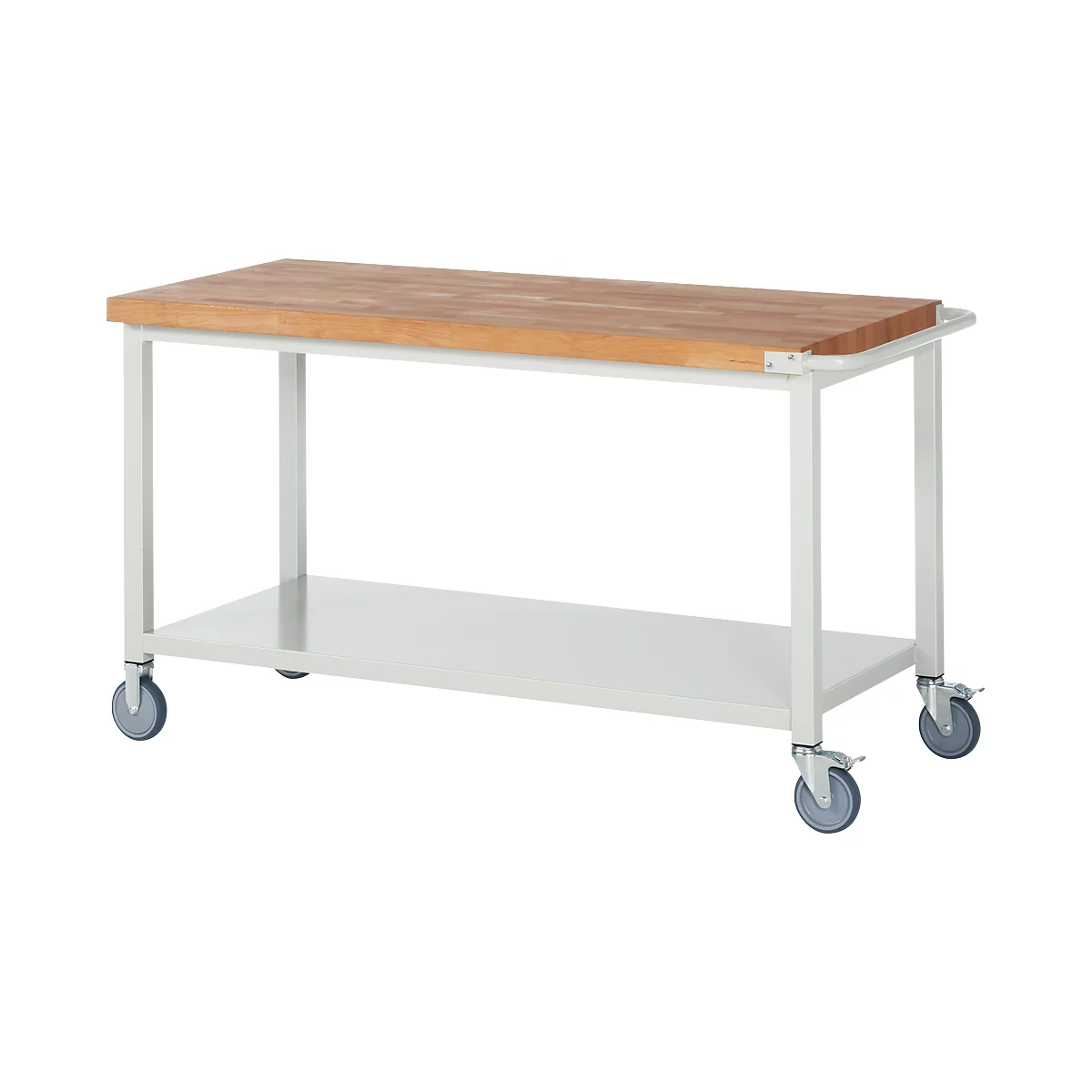

Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 1500 x D 700 x H 880 mm Item number: 156750			Fr. 1’267.00 Amount + - Added times

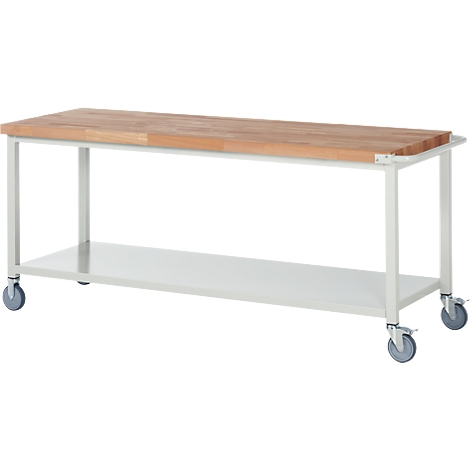

Workbench series 8000, mobile, workpiece shelf made of sheet steel, W 2000 x D 700 x H 880 mm Item number: 156751			Fr. 1’451.00 Amount + - Added times
