Product Safety Information

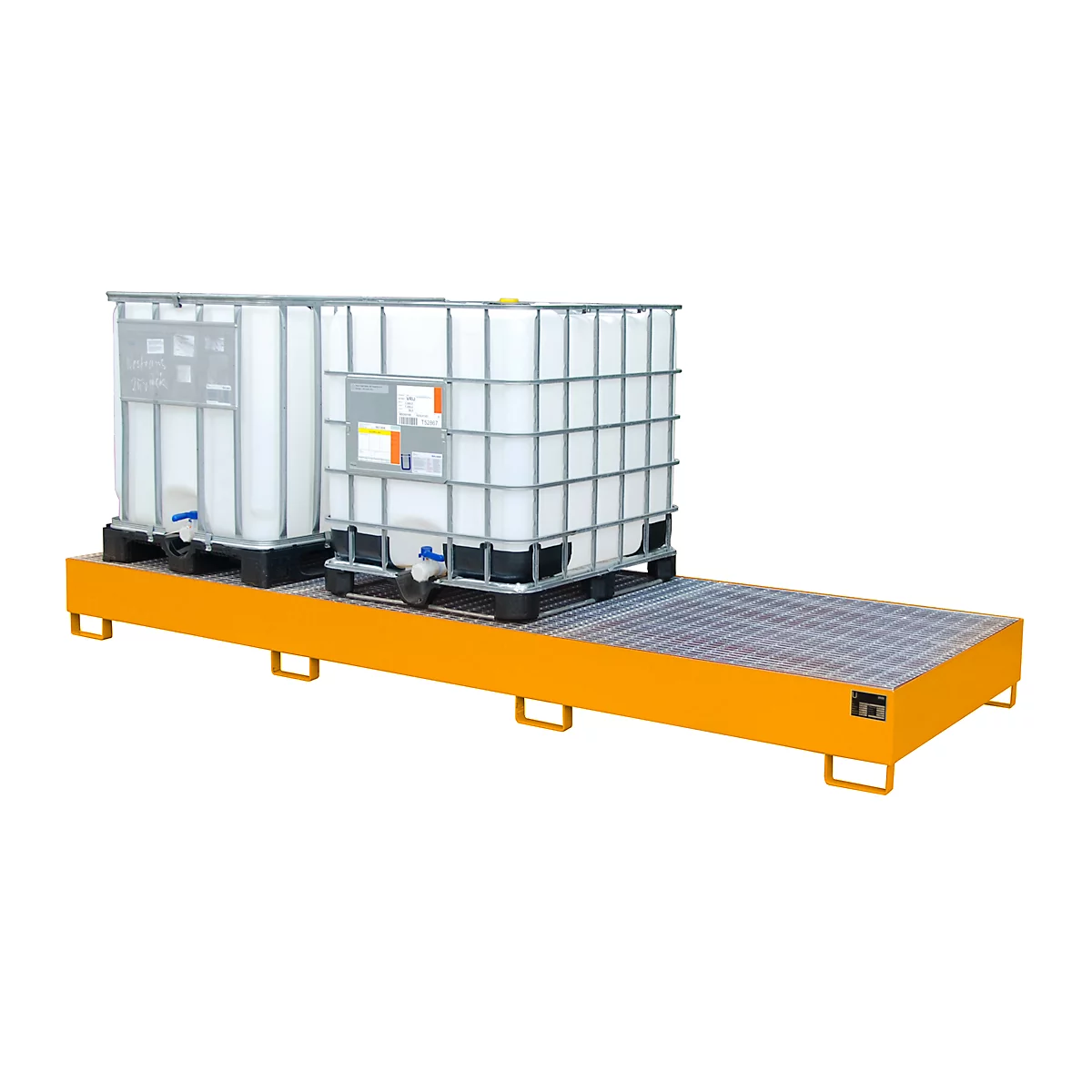

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible by wheelchair, yellow-orange

General information

Product safety instructions

Use only in well-ventilated areas to avoid hazardous vapours.;Do not exceed the maximum load capacity of 1000 kg/m².;Check the drip tray regularly for damage, material wear and corrosion to prevent leaks.;Only use for authorised flammable liquids in accordance with GHS categories 1-3 and liquids hazardous to water in GHS categories 1-4.;Do not use for the storage of unauthorised chemicals.;Product not designed for use by children.;Risk of fire or explosion if flammable liquids are handled incorrectly. Fire and environmental risk exists.;Wear suitable personal protective equipment (e.g. gloves, safety goggles) when handling hazardous liquids.;Only suitable for closed containers. Openly stored hazardous liquids are not permitted.;Not designed for the transport of hazardous substances.;Place the tray on a stable and level surface to prevent it from tipping over or overflowing.;Misuse can impair functionality and lead to dangerous situations.;Observe local regulations for disposal.;Contact the manufacturer if you have any questions about handling or safety aspects.;Do not use over animal waste or other biological materials for which the tray is not designed.

Article numbers

132844 132845 132846 132847 132848 132849

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible by wheelchair, yellow-orange

Item number: 132844

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The sump tray AW 1000-3 has a total capacity of 1000 l, which makes it ideal for storing a maximum of 3 IBC containers with a volume of 1000 l each or 10 drums with a volume of 200 l each. It can also be used in conjunction with 60-litre drums and small containers.

The AW 1000-3, which can also be driven under, is made of 3 mm thick sheet steel and has a galvanised grid. It complies with the declaration of conformity (ÜHP) according to StawaR and is approved for the storage of flammable liquids of GHS categories 1-3 as well as liquids hazardous to water of GHS categories 1-4.

You can obtain the AW 1000-3 sump tray, which comes with a 3-year guarantee, in various RAL colours. A hot-dip galvanised version in accordance with EN ISO 1461 is also available. The external dimensions are L 3850 x W 1300 x H 340 mm, the load capacity is 1000 kg/m2^. A filling attachment is not part of the scope of delivery.

Further details:

High-quality drip tray with a total capacity of 1000 l.
Suitable for the storage of 3 IBC containers with a volume of 1000 l each or 10 drums with a volume of 200 l each
Can also be combined with 60 l drums and small containers
Declaration of conformity (ÜHP) according to StawaR
Approved for flammable liquids in GHS categories 1-3 and for liquids hazardous to water in GHS categories 1-4
Can be driven under (underclearance of 100 mm)
Load capacity of 1000 kg/m2
Without filling attachment
Available in various RAL colours, also available as a hot-dip galvanised version in accordance with EN ISO 1461
Material: 3 mm thick sheet steel in each case, with galvanised grating
Outer dimensions: each L 3850 x W 1300 x H 340 mm
Weight: 314 kg each (for specimens painted in RAL colours) or 338 kg (for hot-dip galvanised version)
Warranty: 3 years

Show moreShow less

Technical data

General features
Accessible from below Yes
Capacity 1000 liters
Capacity barrels 10 x 200 l
Capacity IBC container 3 x 1000 l
Collecting volume [l] 1000
Color yellow-orange RAL 2000
Container type Drums, IBC containers
Depth [mm] 1300
Grid Yes
Grid material Steel
Grid surface galvanised
Hazardous substance type Flammable liquids GHS 1-3; Substances hazardous to water GHS 1-4
Height [mm] 340
Length [mm] 3850
Load capacity [kg] 1000
Material Steel
Mobile Forklift compatible
Number of containers [pcs.] 3
Permeable wall thickness (mm) 3
Stackable No
Standard declaration of conformity (ÜHP) according to StawaR
Substructure Feet
Surface varnished
Undercarriage height (mm) 100
Weight [kg] 314
Width [mm] 1300

Download

ProductSafety_10108165.pdf

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 2’852.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Tray AW 1000-3, for 3 IBC containers of 1000 l each or 10 drums of 200 l each, L 3850 x W 1300 x H 340 mm, various colours

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price

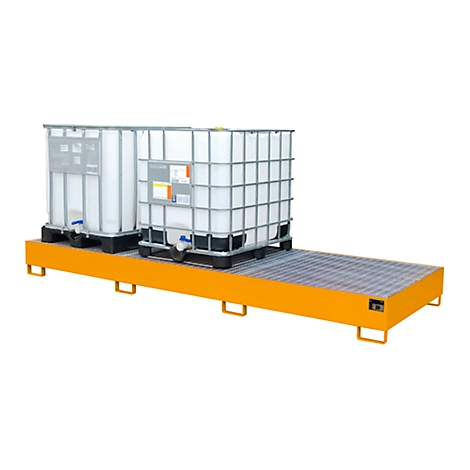

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible by wheelchair, yellow-orange Item number: 132844			Fr. 2’852.00 Amount + - Added times

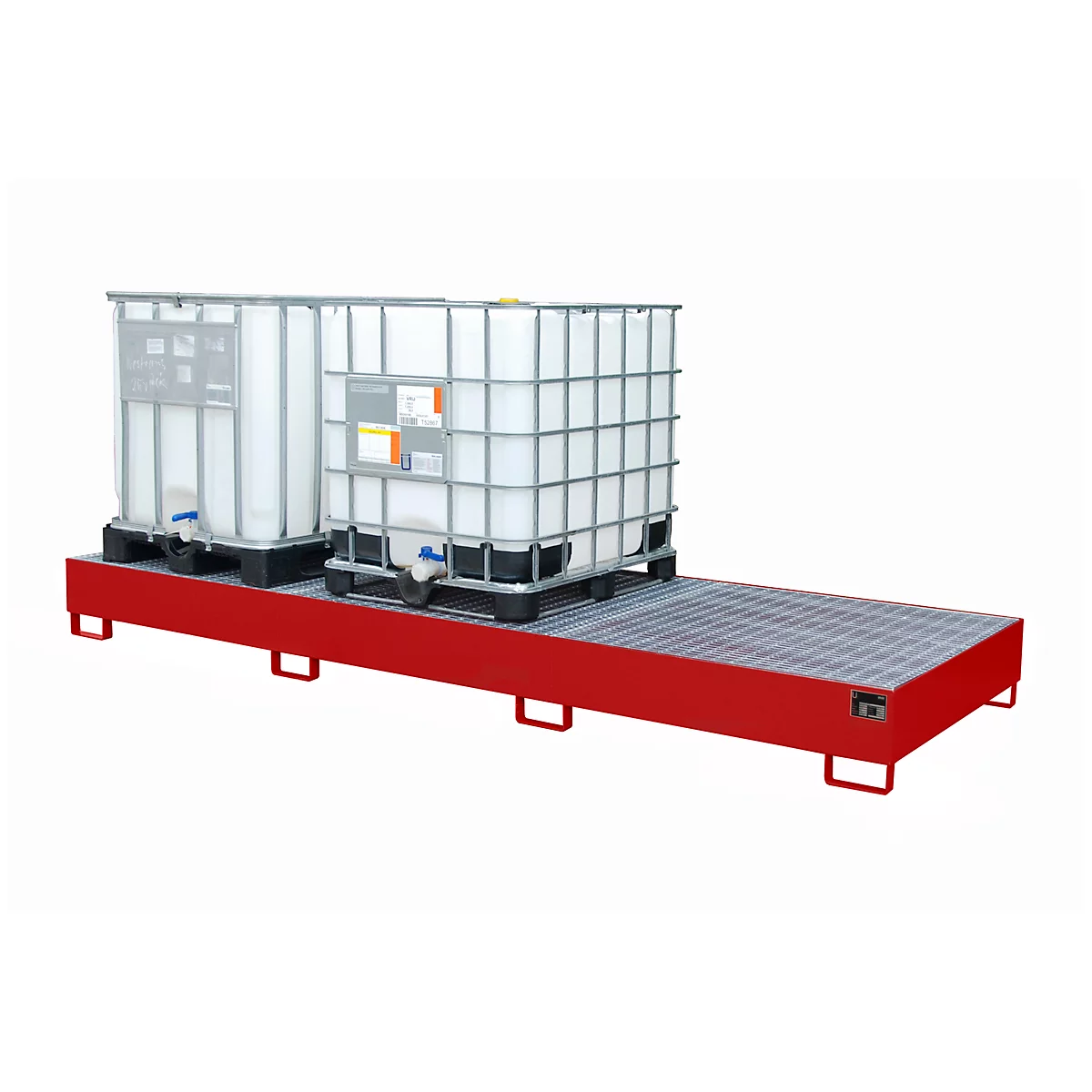

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible from underneath, fire red Item number: 132845			Fr. 2’852.00 Amount + - Added times

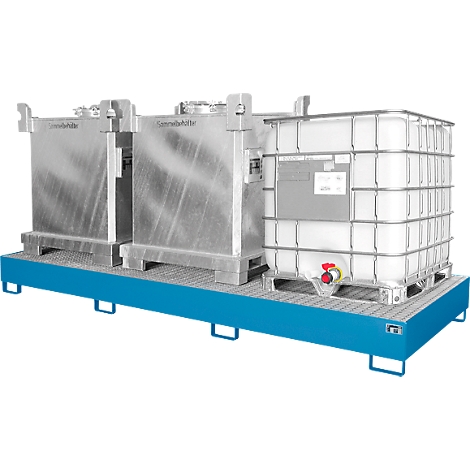

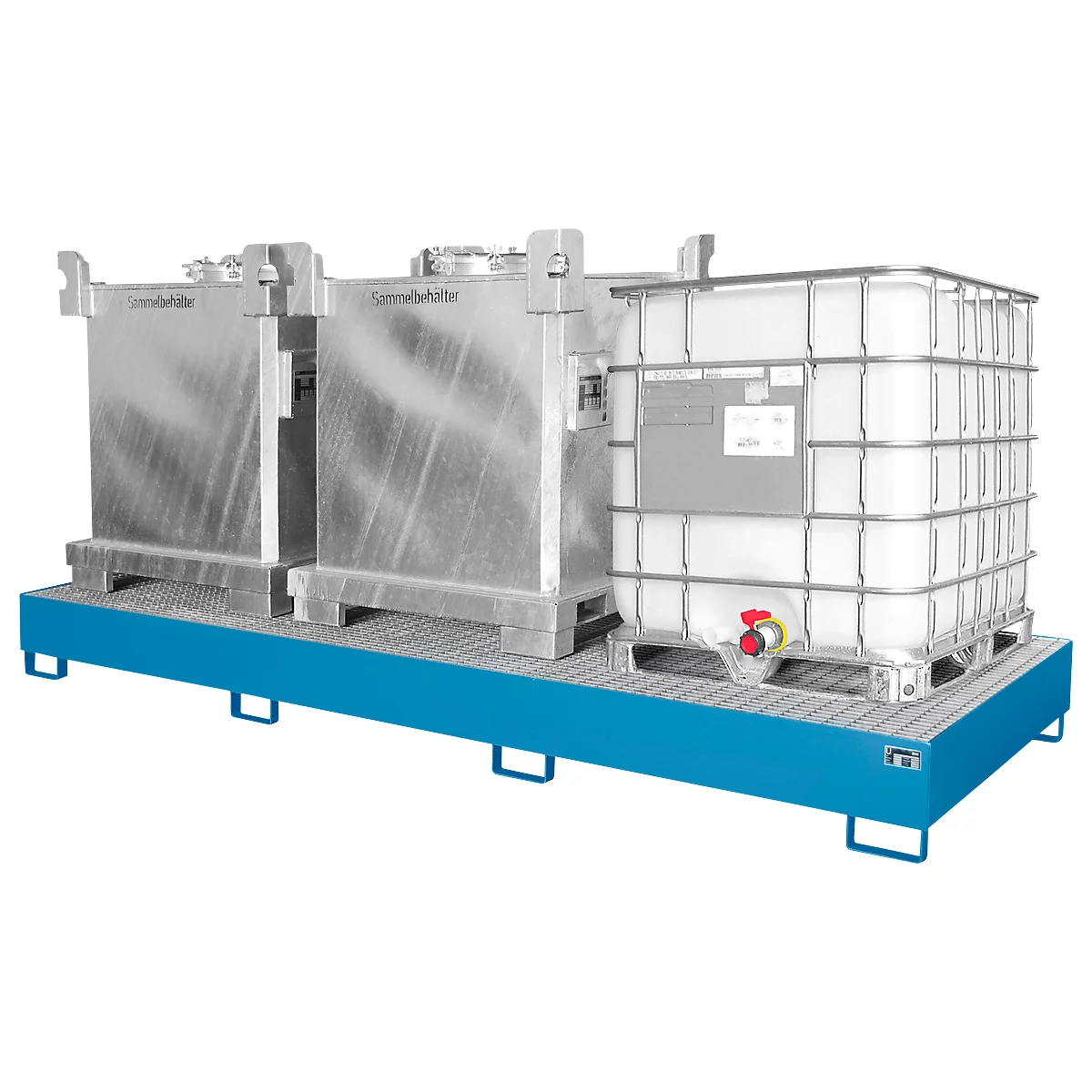

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible by wheelchair, light blue Item number: 132846			Fr. 2’852.00 Amount + - Added times

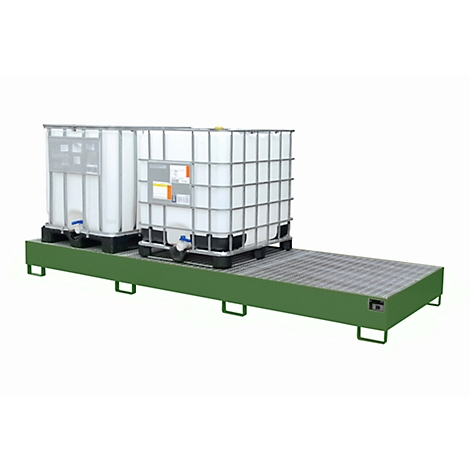

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible from underneath, reseda green Item number: 132847			Fr. 2’852.00 Amount + - Added times

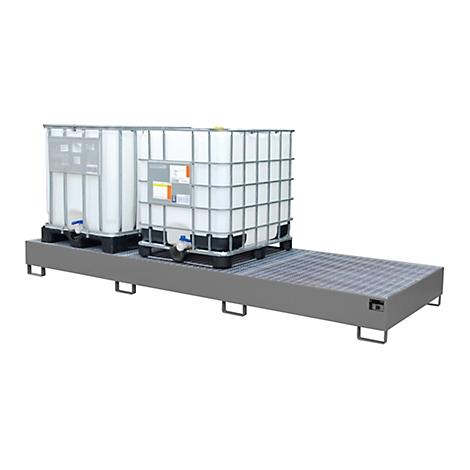

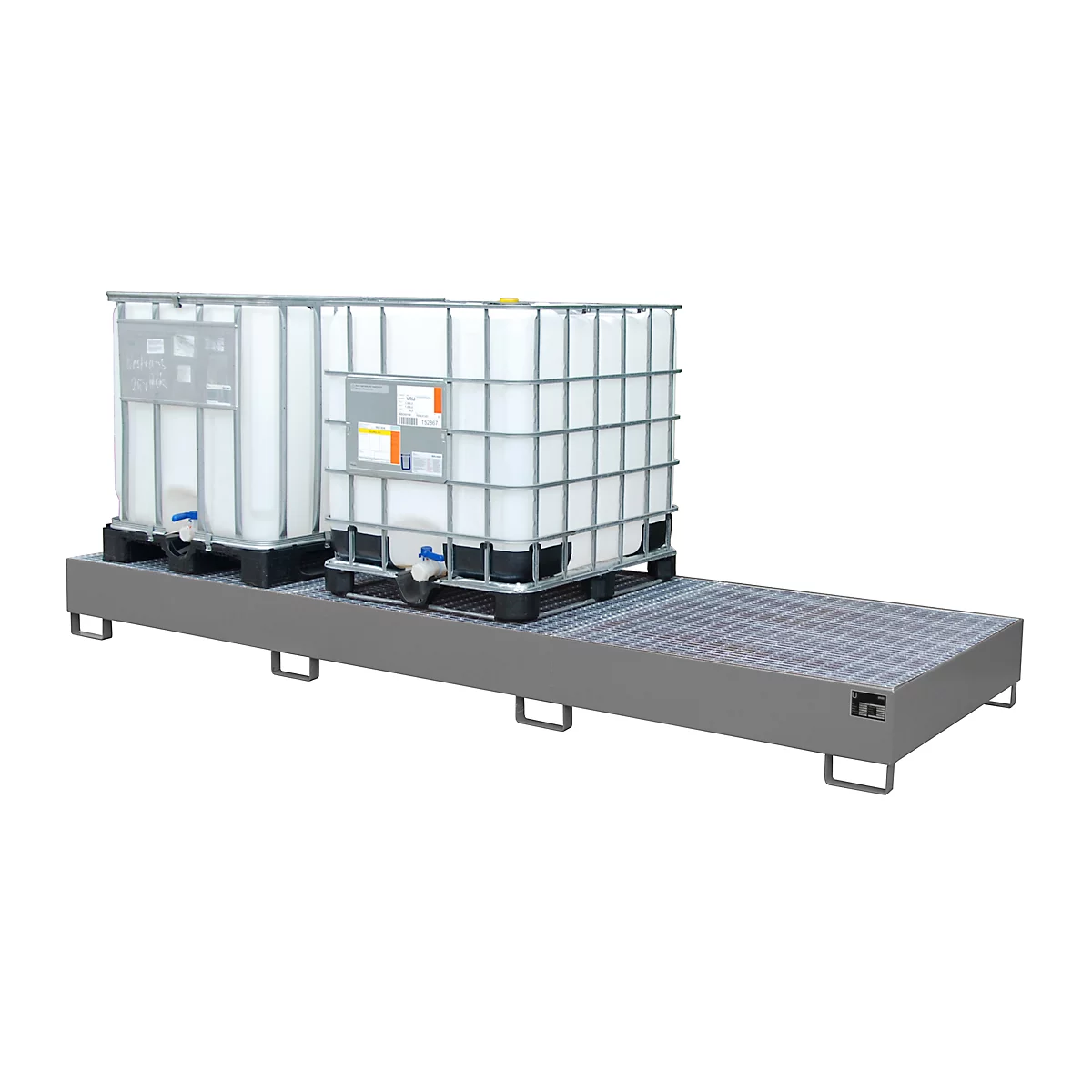

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, accessible from underneath, mouse grey Item number: 132848			Fr. 2’852.00 Amount + - Added times

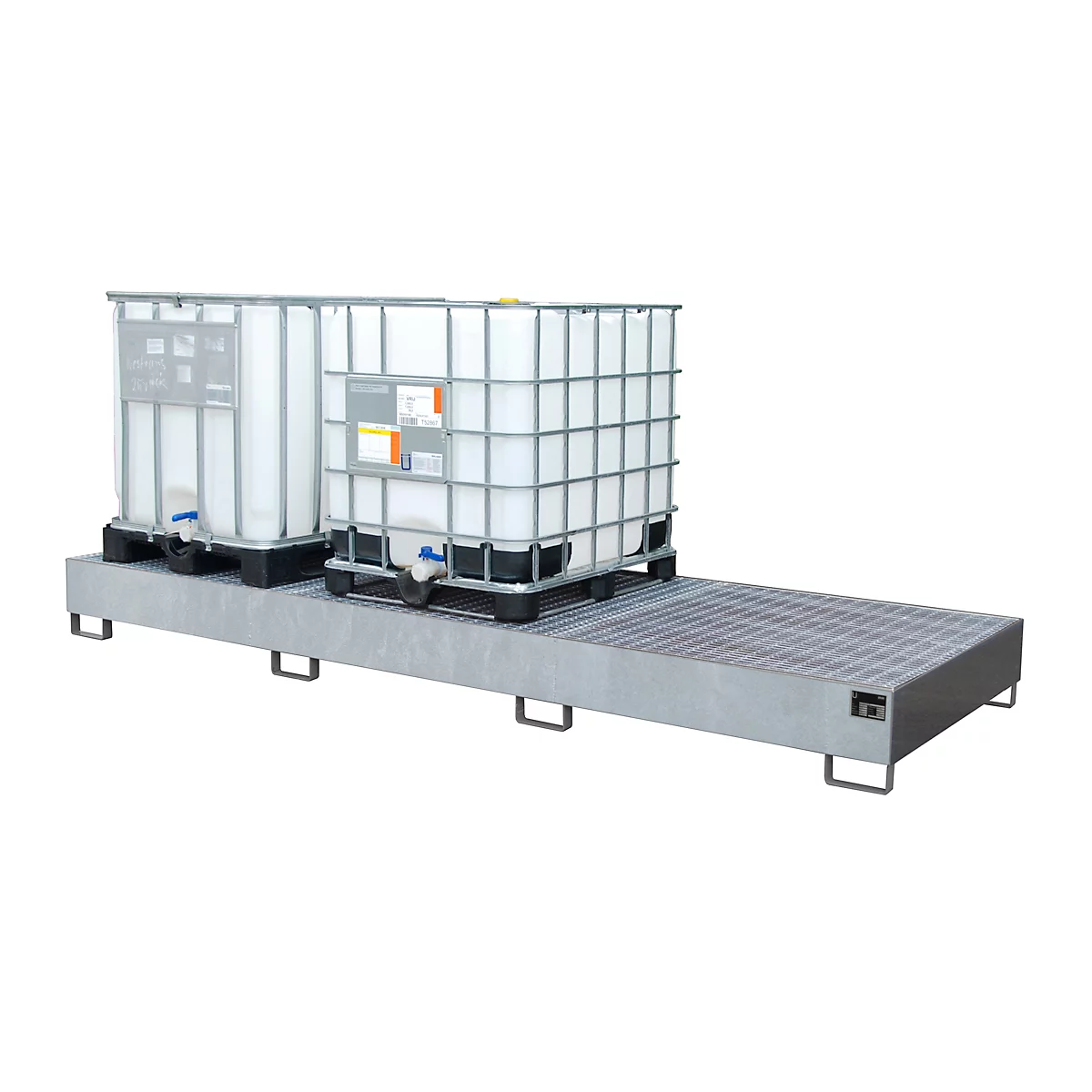

Sump tray AW 1000-3, for 3 IBC containers à 1000 l or 10 drums à 200 l, L 3850 x W 1300 x H 340 mm, can be driven under, hot-dip galvanised Item number: 132849			Fr. 3’033.00 Amount + - Added times
