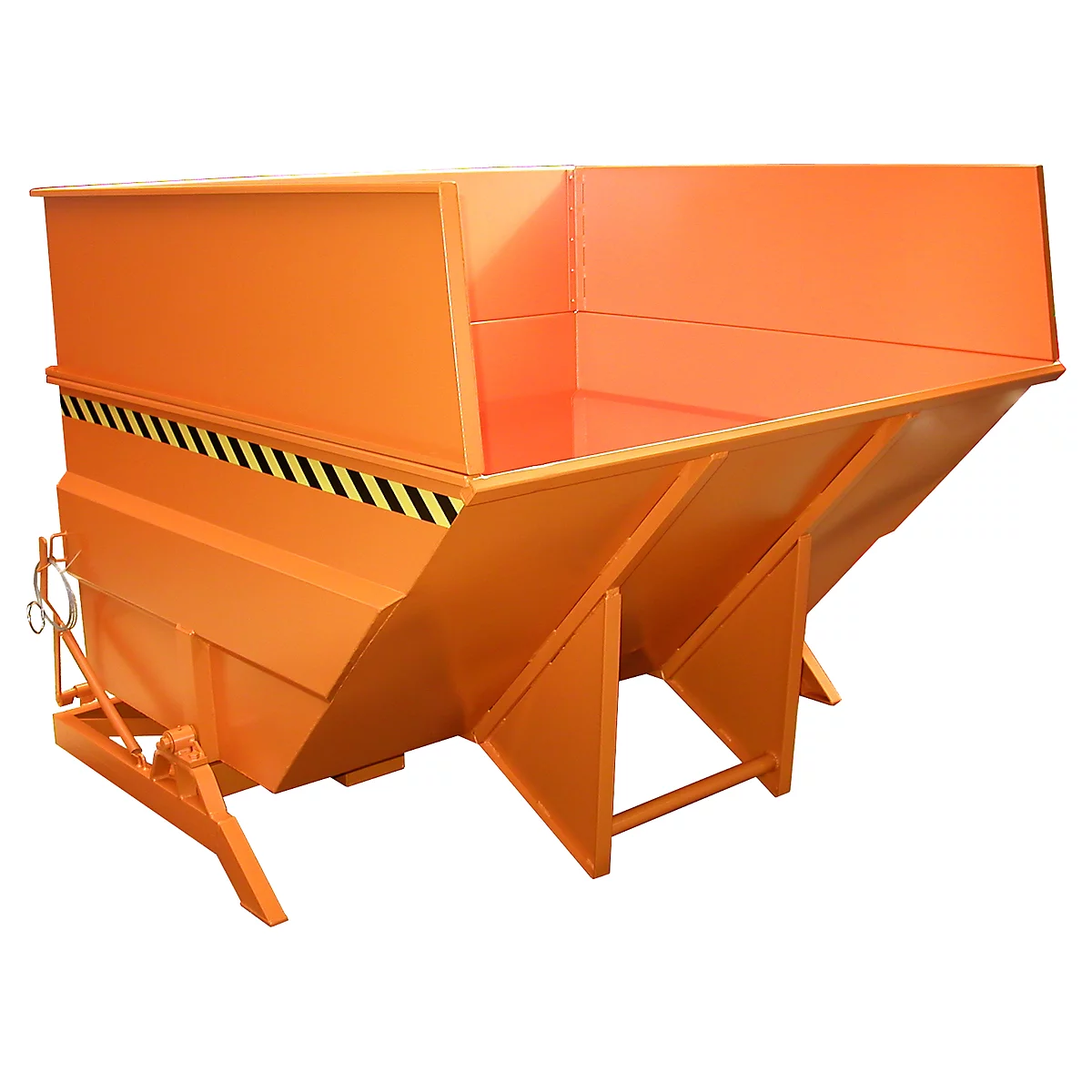

BKC 500 tipper, orange

Item number: 127511

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Large-capacity container with lateral pivot bearing

Tilting at any height via cable pull from the forklift seat
Tray plate with all-round edge profile
Sturdy base frame with drive-in lugs
Secured against unintentional slipping and tipping out
with erector
4 and 5 m³ with extension frame
Rollers can be retrofitted
capacity approx.: 5,00 m³
dimensions: L 2340 x W 2230 x H 1730
weight (varnished): 604 kg
Load capacity: 2500 kg

Advantages for you

Due to the load capacity of 2,500 kg, very heavy quantities of consumables and recyclable materials can be transported well and safely with this tipping container.

Show moreShow less

Technical data

General features
Anti-slip device Yes
Anti-tilt Yes
Bulk edge height [mm] 1220
Color yellow-orange RAL 2000
Cover optional
Depth [mm] 2340
Execution tub Tray plate with circumferential edge profile
Fork pocket spacing [mm] 600
Height [mm] 1730
Internal dimensions fork pocket W x H [mm] 200 x 80
Load capacity [kg] 2500
Material Steel
Permeable wall thickness (mm) 3
Stackable No
Substructure Skids
Surface varnished
Tilting process by wire
Volume (litres) 5000
Warranty [years] 3
Weight [kg] 604
Width [mm] 2230

Download

ProductSafety_10122255.pdf

Schäfer Shop Quality and Service

only Fr. 4’370.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000

show all variants

Add to basket

Delivery time: approx. 6 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Tipping container BKC 500

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price
BKC 500 tipper, orange Item number: 127511			Fr. 4’370.00 Amount + - Added times
BKC 500 tipper, red Item number: 127512			Fr. 4’370.00 Amount + - Added times

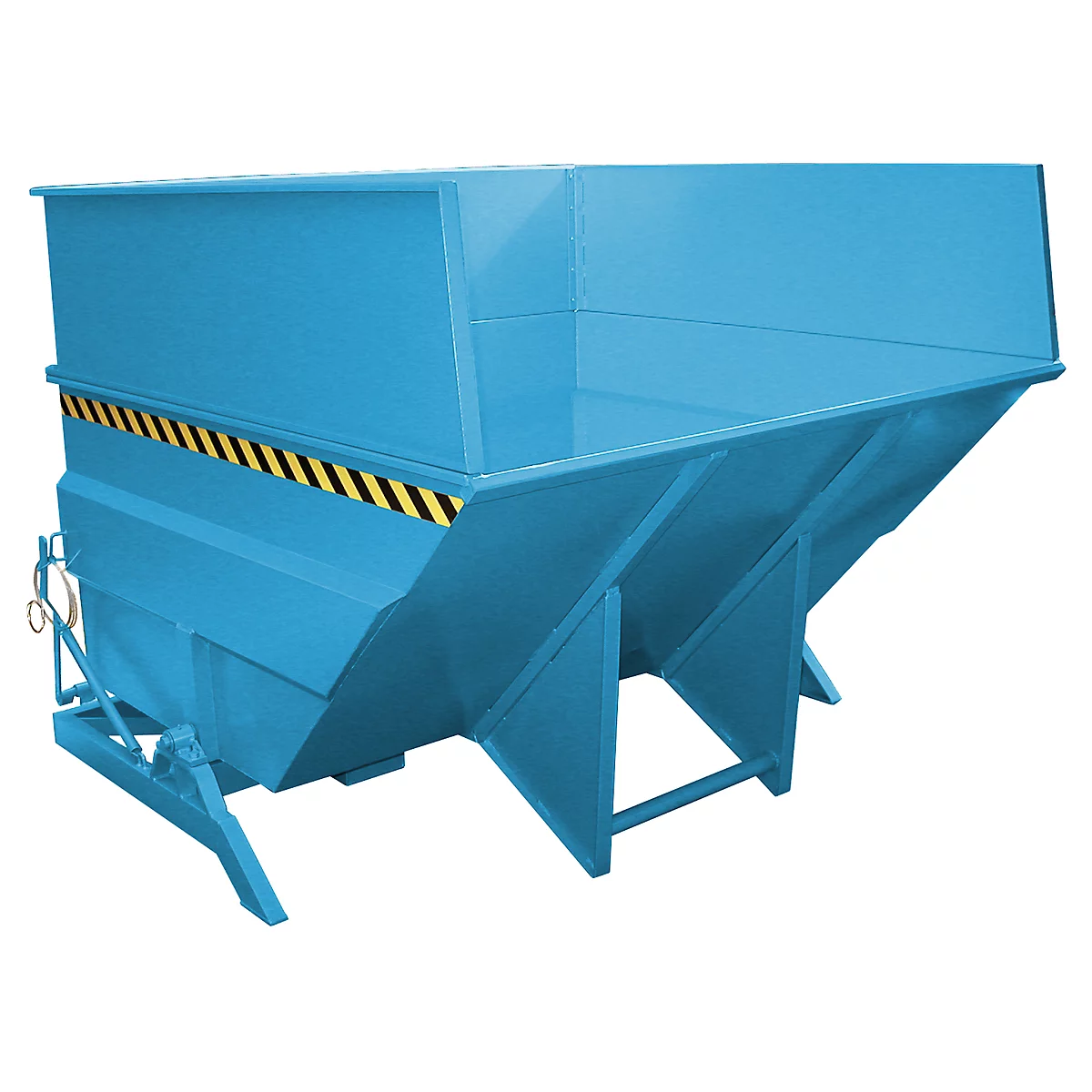

BKC 500 tipper, blue Item number: 127513			Fr. 4’370.00 Amount + - Added times
BKC 500 tipper, green Item number: 127514			Fr. 4’370.00 Amount + - Added times

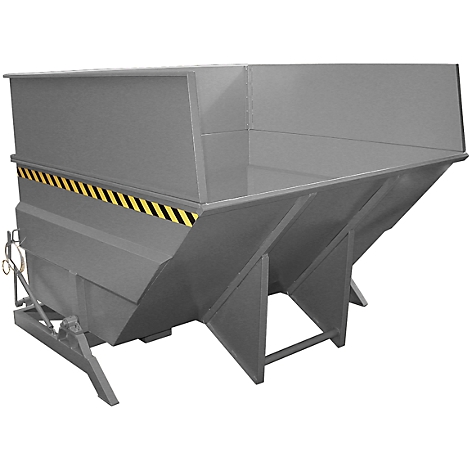

BKC 500 tipper, grey Item number: 127515			Fr. 4’370.00 Amount + - Added times

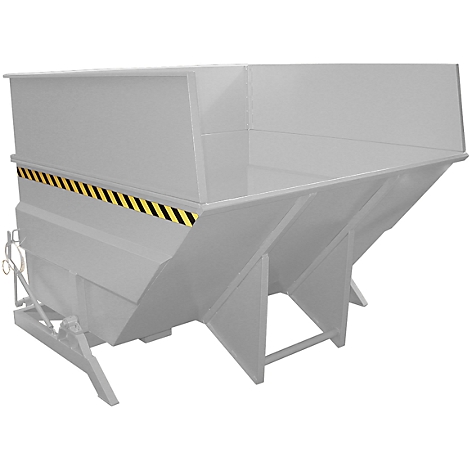

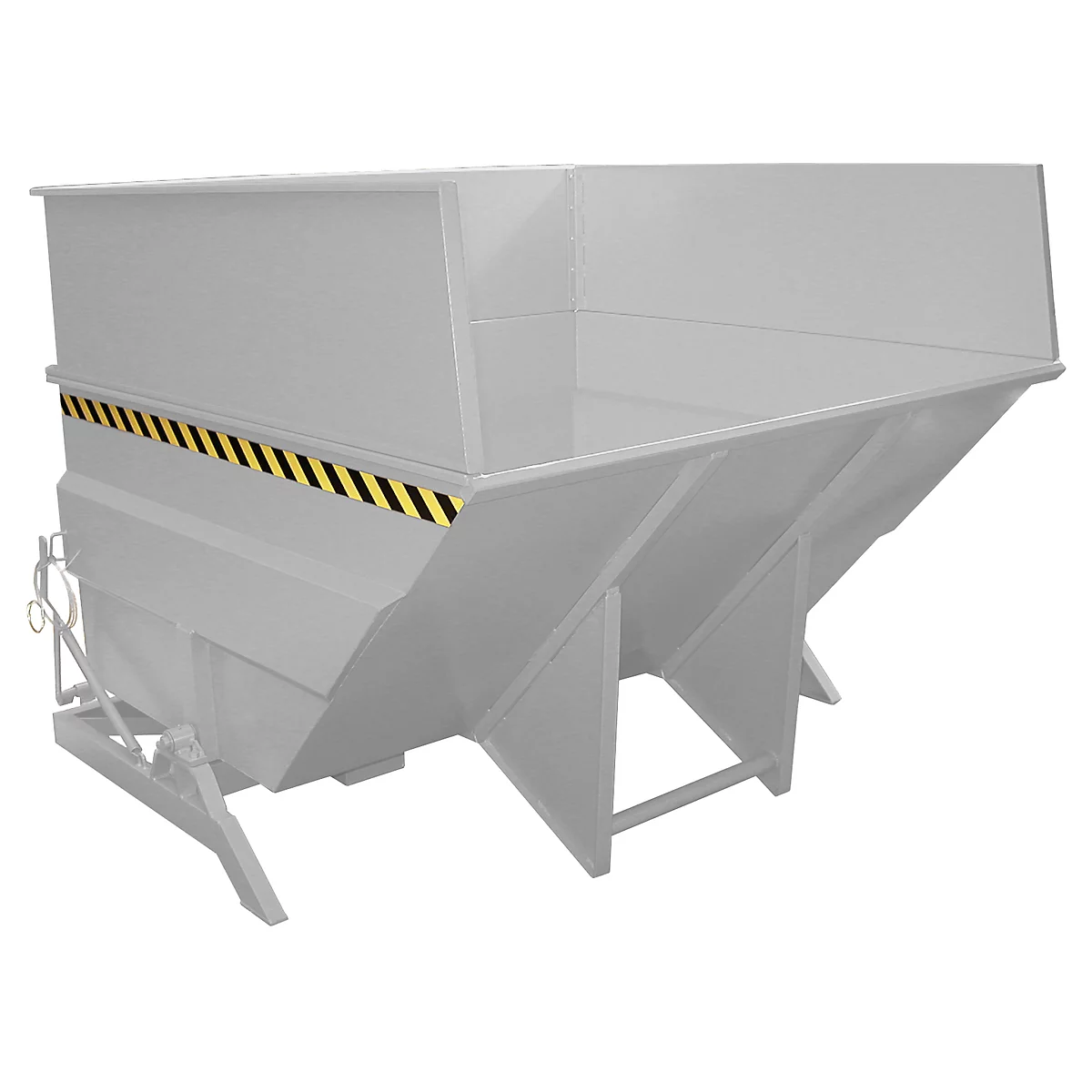

BKC 500 tipper, galvanized Item number: 127516			Fr. 5’672.00 Amount + - Added times
