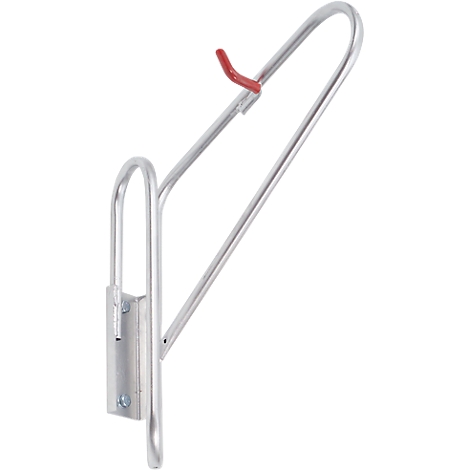

Wall bracket WSM, 90° straight, for castors up to 55 mm wide, W 900 x D 400 x H 600 mm, hot-dip galvanized steel, 1 place

This single-sided suspended parking rack from WSM is the ideal, space-optimised solution for parking bicycles in narrow parking spaces, car garages, bicycle cellars and bicycle parking garages. It is made of hot-dip galvanized and therefore corrosion and weather resistant steel round tube with a diameter of 19 mm and is equipped with a suspension point. This has an adjustment angle of 90° straight from the front and allows a bicycle with a tire width of up to 55 mm to be mounted. The corresponding suspension hook has a rim-protecting sheathing made of signal red plastic.

The suspended parking rack is ideally suited for both wall and row mounting and is supplied disassembled including a solid, approx. 190 x 72 mm mounting plate for simple dowel mounting. The recommended mounting height is approx. 2000 mm. If several units are to be mounted in a row, a wheel spacing of 650 mm each is recommended.

The WSM suspended parker, which can be used on one side and comes with a 3-year guarantee, has overall dimensions of W 900 x D 400 x H 600 mm and weighs 1.95 kg. It is also available in RAL colour coating on request.

Further details:

• Robust, one-sided usable suspended parker with one hanging space.
• Hanging space with adjustment angle of 90° straight from the front
• Suitable for holding a bicycle with a tyre width of up to 55 mm
• Space-optimized solution for narrow parking spaces, car garages as well as bicycle cellars and bicycle parking garages
• Ideal for wall and row mounting
• Solid suspension hook with rim-protecting plastic coating in signal red
• Supplied disassembled for easy transport and includes a solid, approx. 190 x 72 mm mounting plate for simple dowel mounting
• Powder coating in RAL colours available on request
• Recommended mounting height: approx. 2000 mm
• Recommended wheel spacing when mounting several units in a row: 650 mm each
• Material of frame and suspension hooks: each made of hot-dip galvanised steel round tube with Ø 19 mm, corrosion-protected and weather-resistant
• Dimensions: W 900 x D 400 x H 600 mm
• Weight: 1,95 kg
• Warranty: 3 years
