Product Safety Information

Stacking tipper BSK 55, orange

General information

Product safety instructions

Be careful when stacking; observe maximised stackability: no more than 3 units on top of each other.;For heavy contents, observe the maximum load capacity of 1000 kg; do not exceed this.;Observe correct handling and all safety measures to avoid injury.;If the product is damaged, discontinue use and inform the manufacturer.;Take care when handling heavy loads; risk of injury when lifting and transporting.;Wear protective equipment, especially during assembly and use.;Take particular care on uneven or slippery surfaces.;Only use the product for its intended purpose; do not use in the children's area.;Check load capacity of 1000 kg to avoid overloading.;Position the support legs correctly to ensure stability when stacking.;Do not use near flames or heat sources.;Carry out regular maintenance to ensure safe functionality.;Handle sharp edges with care to avoid injury.;Read the operating instructions before use.;Be aware of the risk of serious injury from improper lifting or stacking.;Do not use in water or wet environments without protection against corrosion.;For commercial use; use only by trained personnel.

Article numbers

72701 72705 73497 73498 73499 73502

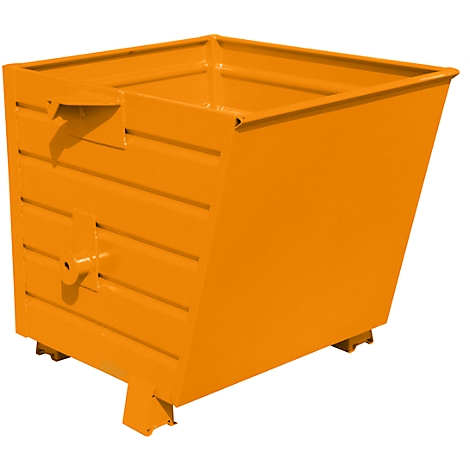

Stacking tipper BSK 55, orange

Item number: 72701

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The bulkhead is made of 3 mm, bottom, side and rear wall of 2 mm special profile. 3-fold stackable by appropriate arrangement of 3 or 4 supporting feet. TÜV/GS tested.

Orange (RAL 2000)
Red (RAL 3000)
Blue (RAL 5012)
Green (RAL 6011)
Grey (RAL 7005)

Type BSK 55

Trough capacity: 0.55 m³
Load capacity: 1000 kg
Dimensions: L 1000 x W 800 x H 900 mm
Weight: 80 kg (painted), Weight: 83 kg (galvanised)
Width dimension without mounting spigot

Available at an extra charge:

Oil- and waterproof welding of the container (see accessories)

Show moreShow less

Technical data

General features
Color yellow-orange RAL 2000
Content (litres) 550
Depth [mm] 800
Height [mm] 900
Load capacity [kg] 1000
Material Sheet steel
Quantity Stackable [pcs.] 3
Surface varnished
Tüv/GS tested Yes
Weight [kg] 80
Width [mm] 1000

Download

ProductSafety_10121148.pdf

Schäfer Shop Quality and Service

only Fr. 461.00

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Stacking tipper BSK 55, for traverse discharge

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price
Stacking tipper BSK 55, orange Item number: 72701			Fr. 461.00 Amount + - Added times
Stacking tipper BSK 55, galvanised Item number: 72705			Fr. 609.00 Amount + - Added times
Stacking tipper BSK 55, blue Item number: 73497			Fr. 461.00 Amount + - Added times
Stacking tipper BSK 55, red Item number: 73498			Fr. 461.00 Amount + - Added times
Stacking tipper BSK 55, green Item number: 73499			Fr. 461.00 Amount + - Added times
Stacking tipper BSK 55, grey Item number: 73502			Fr. 461.00 Amount + - Added times
No results

Accessories

Item			Price
Oil- and waterproof welding, for stacking tipper type BSK 30-90 Item number: 72722			only Fr. 115.00 from Fr. 115.00 per Pcs. - + Added times
