Smoking shelter WSM Jena Maxi, outdoor, for 4-5 persons, W 2960 x D 1580 x H 2360 mm, galvanized

Set up a place protected from wind and weather for smokers outdoors with the Jena Maxi smoking shelter from WSM and at the same time provide reliable protection for non-smokers in your company, authority or institution. The sophisticated and compact roofing system with overall dimensions of W 2960 x D 1580 x H 2360 mm and a total weight of 262 kg can be assembled and set up both easily and quickly.

The robust and bolted construction consists of a carrier frame and four supports made of high-quality square steel tubing with a diameter of 60 mm. The Jena Maxi is also equipped with a rear wall and a side wall made of corrugated polycarbonate with single-pane safety glass. Both the rear and the side wall are equipped with a practical leaning bracket. An additional side wall is optionally available as an accessory. The flat roof of this smoking cabin is made of trapezoidal sheet metal and provides free draining. It is designed for a maximum snow load of up to 0.85 kN/m².

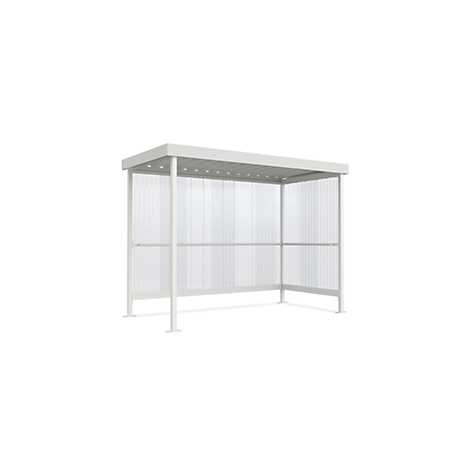

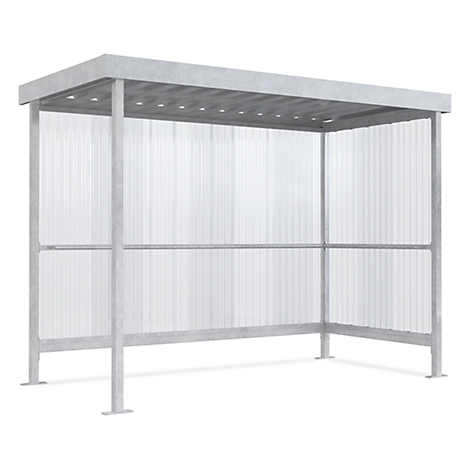

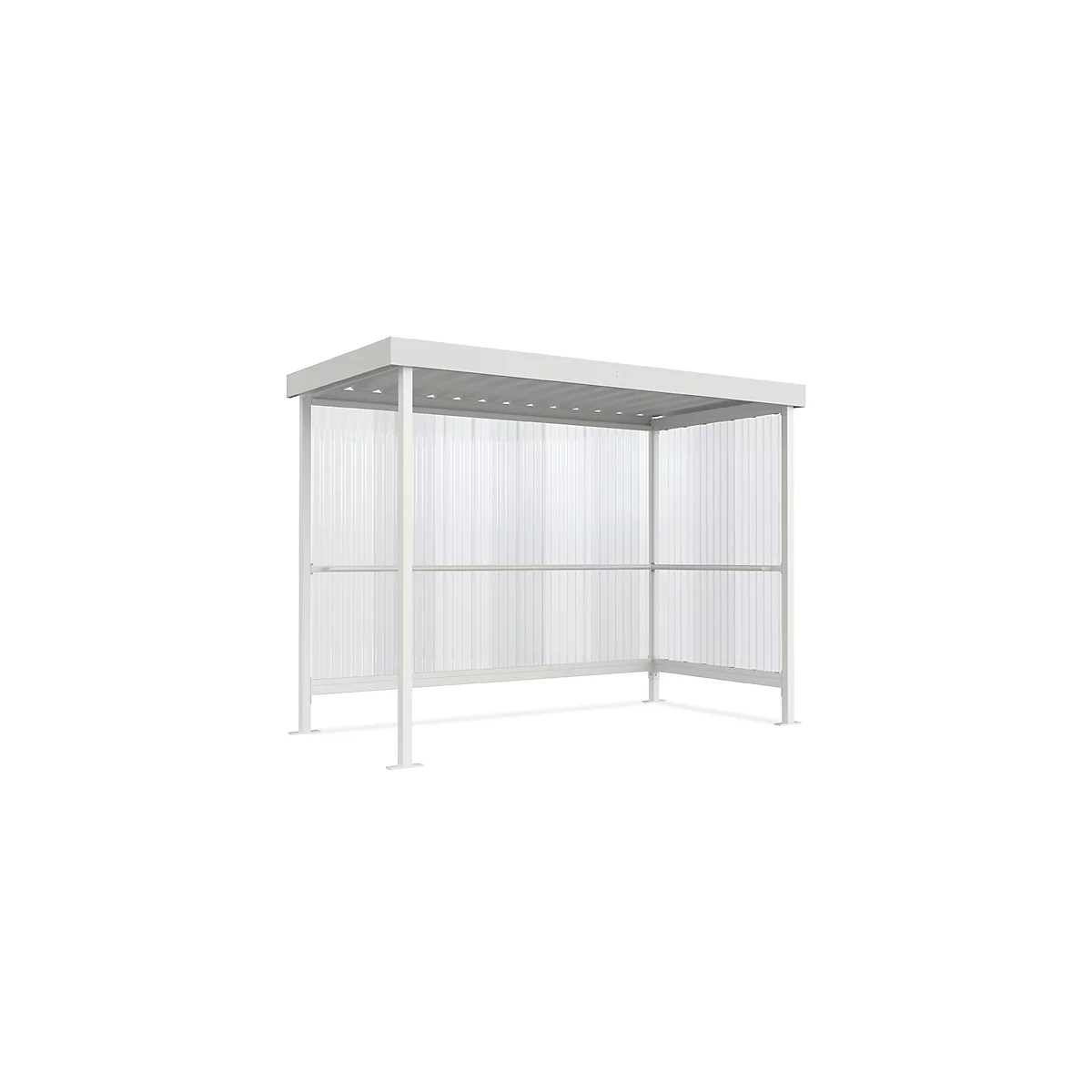

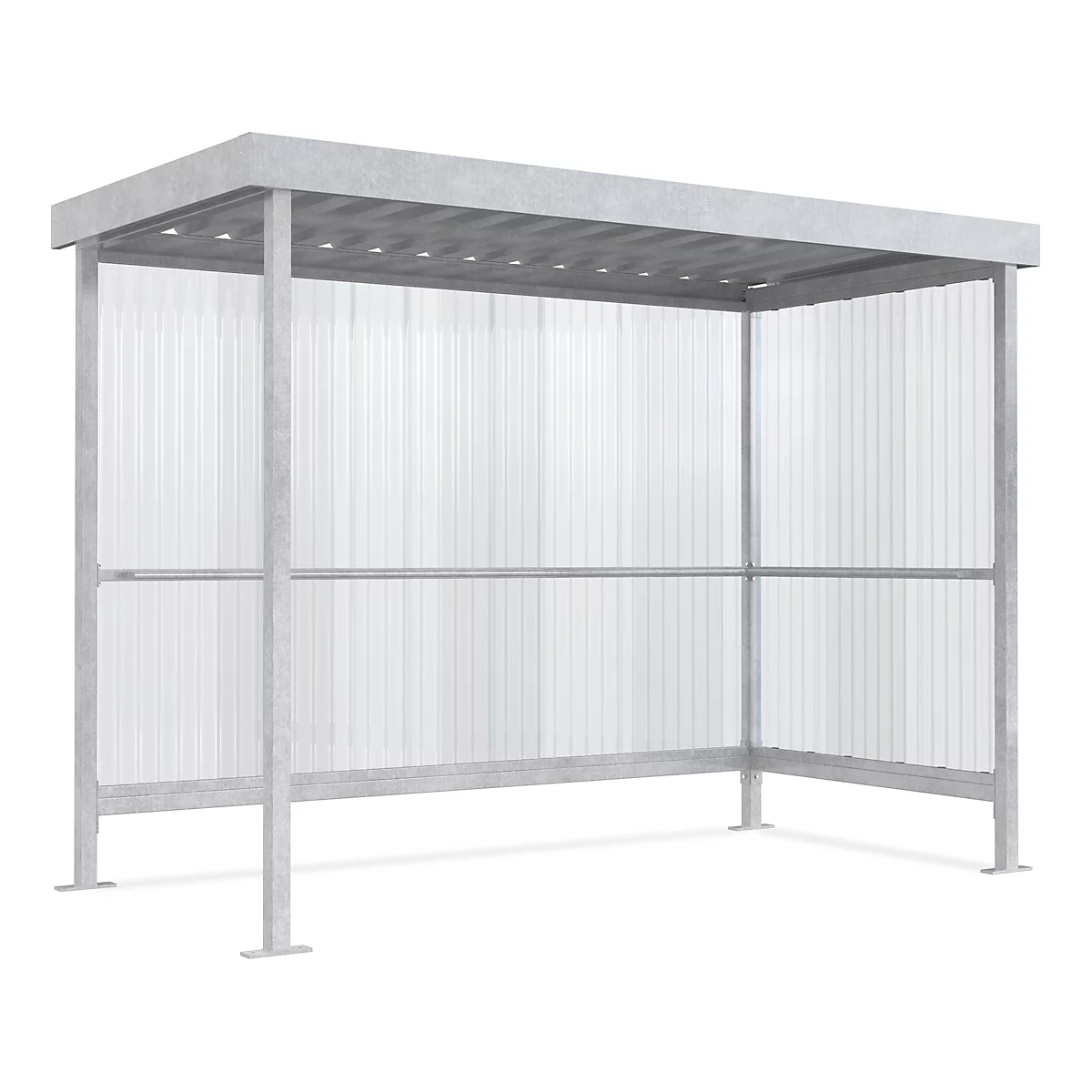

You get the smoking shelter Jena Maxi from WSM with a total of 3 years warranty either in a version with hot-dip galvanized surface or in a variant with powder-coated surface in the color scheme gray white RAL 9002.

The scope of delivery includes assembly instructions with a foundation plan for simple floor mounting and for dowelling. A pedestal ashtray is not included in the scope of delivery.

Please note that the delivery is made as a disassembled kit, for the on-site unloading of which a crane or forklift is required.

Further details:

• Robust canopy system for smokers
• Suitable for outdoor installation
• Protects smokers from wind and weather
• Ideal for non-smoker protection in companies, authorities, facilities and institutions
• With trapezoidal sheet metal flat roof for free dripping drainage
• For easy floor mounting and for dowelling on the ground
• Delivery includes 1 x rear wall with lean-to bracket, 1 x side wall with lean-to bracket, assembly instructions and foundation plan
• Additional side wall available as an optional accessory
• Supplied as a disassembled kit; a crane or forklift is required on site for unloading
• Delivery without pedestal ashtray
• Variants: optionally with hot-dip galvanised surface or powder-coated surface in grey-white RAL 9002
• Maximum snow load flat roof: up to 0.85 kN/m²
• Material of carrier frame and supports: each high-quality and robust square steel tube with Ø 60 mm
• Material rear wall and side wall: corrugated polycarbonate (PC) in each case
• Material rear and side panels: single-pane safety glass (ESG) in each case
• Dimensions: each W 2960 x D 1580 x H 2360 mm
• Clear internal dimensions: each W 2661 x D 1485 x H 2200 mm
• Weight: 262 kg each
• Warranty: 3 years each
