Shelf rack SSI Schaefer R3000, basic rack, 5 shelves, shelf load 200 kg, W 1055 x D 400 x H 2278 mm, galvanized steel

Item number: 120916
Show moreShow less

Product description

The SSI Schaefer R3000 shelving unit will serve you well in the warehouse, archive or production area for the storage of goods, production material or file folders.

The shelf rack is also characterised by its excellent material quality: It is made of galvanised sheet steel. The shelves are coated to protect them from mechanical damage. You can get this practical shelf in many different sizes. It offers you maximum flexibility, as it is constructed as a plug-in system and can therefore be extended as required. You can choose between a construction with five, six or seven shelves.

The maximum shelf load is 200 kilograms per shelf. The shelf load can be increased to up to 1,500 kilograms by installing cross bracing. The shelves of the SSI Schaefer R3000 shelving system are attached with the help of a cam grid at intervals of 53 mm each, which allows you to attach them at different heights.

Important details:

  • Versatile: Ideally suited for economical storage of files and boxes as well as parts from industrial production
  • Easy to assemble, shelves are fixed with cam louvres
  • Euro dimension modularity and GS test mark
  • Modular design, can be extended as required
  • Shelves with coating
  • Maximum load capacity of shelves: 200 kg
  • Field load capacity after assembly of cross bracing: up to 1,500 kg
  • Assembly with 5, 6 or 7 shelves
  • Material: galvanized sheet steel and the shelves are additionally painted light silver
  • Size Selection:
    • 5 shelves with the height of 2278 mm: available in the widths: 400, 500, 600 or 800 mm
    • 6 Shelves with a height of 2490 mm: available in widths of 400, 500, 600 or 800 mm

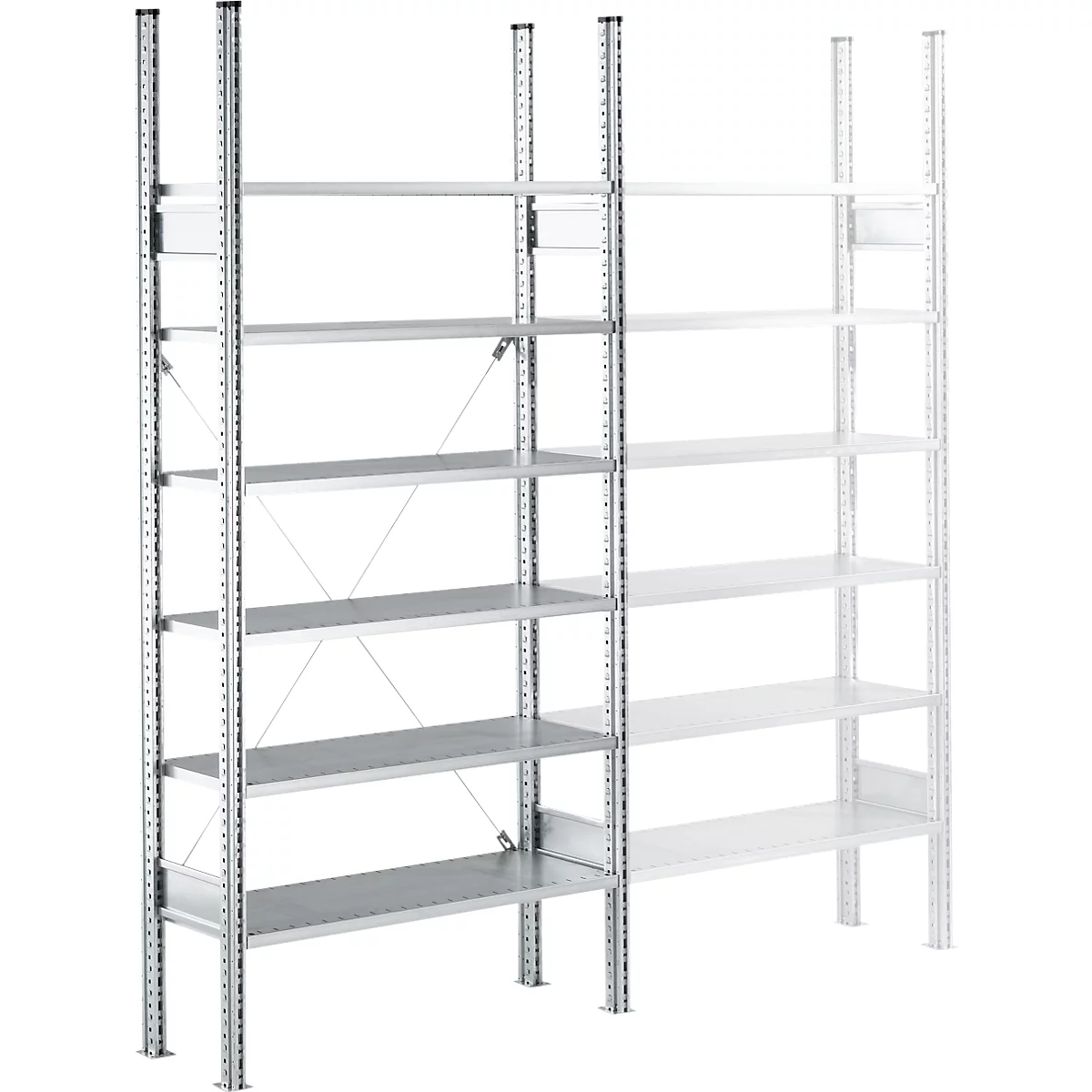

    • 7 shelves with a height of 2967 mm: available in the following widths: 400, 500, 600 or 800 mm

Plug-in system:

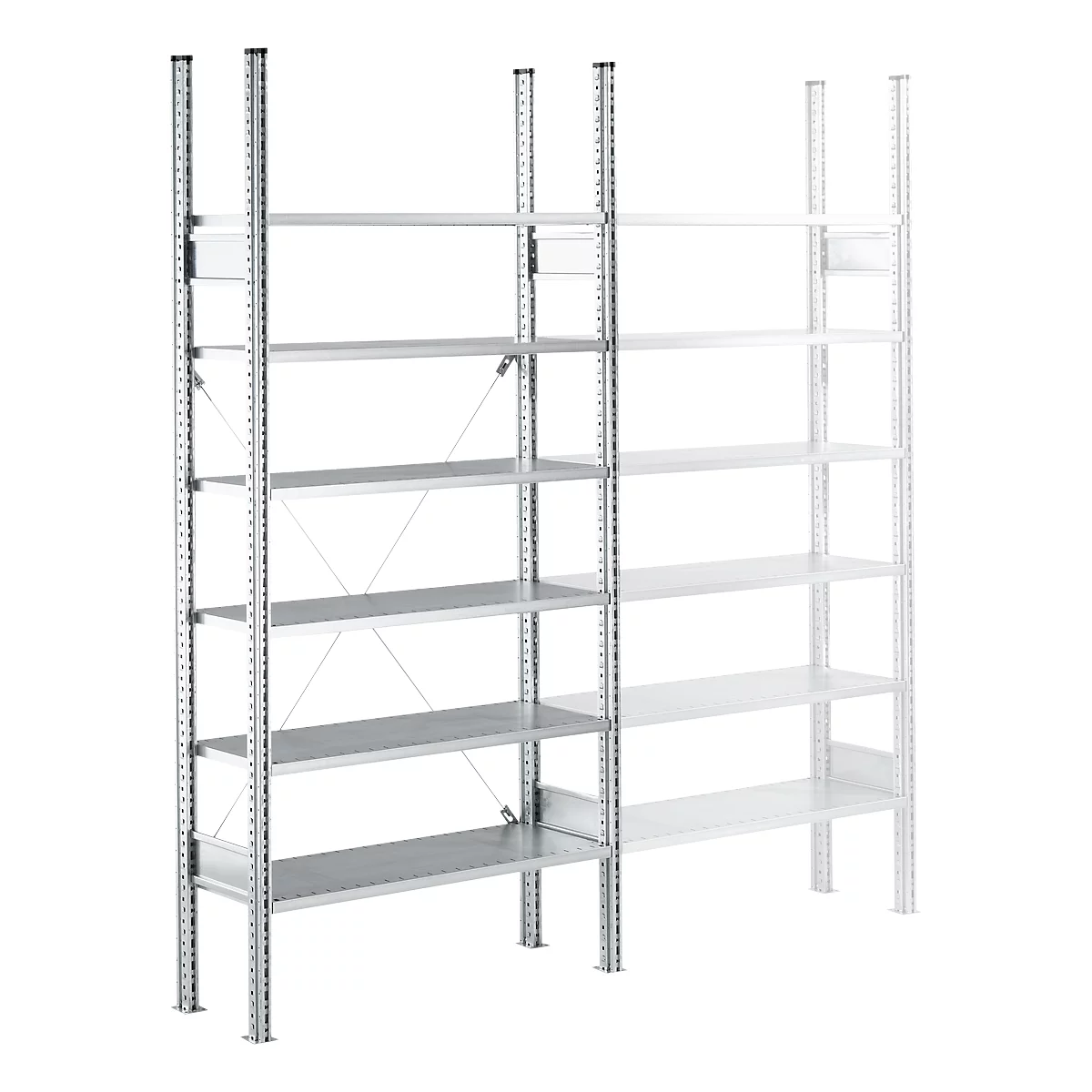

  • Each basic bay can be extended with add-on bays of the same depth
  • Boltless assembly of shelf frames and system components
  • Tapered grooves on end faces for clearance-free hooking in of carrier pockets and cross bracings
  • Cams on wide sides for hooking in shelves
  • Precisely fitting height adjustment of the levels in a grid of 53 mm
  • Incl. shims for floor levelling, end caps, floor fixing, cross bracing, shelf type plate

Advantages for you

With 5 shelves you can optimally organise the storage of your work equipment and tools

With a width of 1055 mm and a height of 2278 mm, the stretch rack offers sufficient storage volume for your work equipment

Show moreShow less

Technical data

  • General features
  • Compartment load (kg) 200
  • GS-approved Yes
  • Location Stock
  • Material Steel, galvanised
  • Max. Field load [kg] 1500
  • Number of shelves [pcs.] 5
  • Shelf load capacity [kg] 200
  • Shelf type Basic rack
  • Shelving system R 3000
  • Surface galvanised
  • Surface shelf varnished
  • Colors
  • Color galvanised
  • Colour of the shelf frame galvanised
  • Dimensions
  • Clear width [mm] 994
  • Depth [mm] 400
  • Height adjustable at a distance of (mm) 53
  • Height [mm] 2278
  • Width [mm] 1055

Schäfer Shop Quality and Service

Made in Germany
only Fr. 330.00
per Pcs.
excl. VAT free shipping from CHF 100.–
Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions
This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth [mm]: 400 mm

400 mm 500 mm 600 mm 800 mm

Height [mm]: 2278 mm

2278 mm 2490 mm 2967 mm

Shelf load capacity [kg]: 200 kg

200 kg 100 kg
-
+

Delivery time: within 4 weeks
