Product Safety Information

JF-PU Scissor Lift Trolley

General information

EU authorized representative E-mail address

post@hanselifter.de

EU authorized representative Name

HanseLifter

EU authorized representative Place

Bremen

EU authorized representative Postal code

28219

EU authorized representative Street & house number

Straubinger Straße 20

EU Plenipotentiary Country

Deutschland

Manufacturer Country

Manufacturer e-mail address

post@hanselifter.de

Manufacturer Location

Bremen

Manufacturer name

Gesutra GmbH

Manufacturer Postcode

28219

Manufacturer Street & house number

Straubinger Str. 20

Product safety instructions

Prevention of overloading, maximum load capacity: 1,000 kg.;Only use the pallet truck on firm, stable surfaces to prevent it from tipping over; the surface must not be slippery.;Observe the permissible lifting height and strokes; do not use beyond the technical specifications.;Ensure that there are no persons or obstacles in the danger zone of the pallet truck during operation and lowering.;Read and follow the safety and operating instructions carefully before using the pallet truck.;Wear appropriate protective equipment when handling the pallet truck, especially when loading and unloading loads.;Operating the pallet truck requires careful training in order to avoid accidents.;Regularly check the condition of the hydraulic pump and the rubber tyres.;Avoid improper use of the hand lever to prevent uncontrolled lowering.

Article numbers

305082 305083

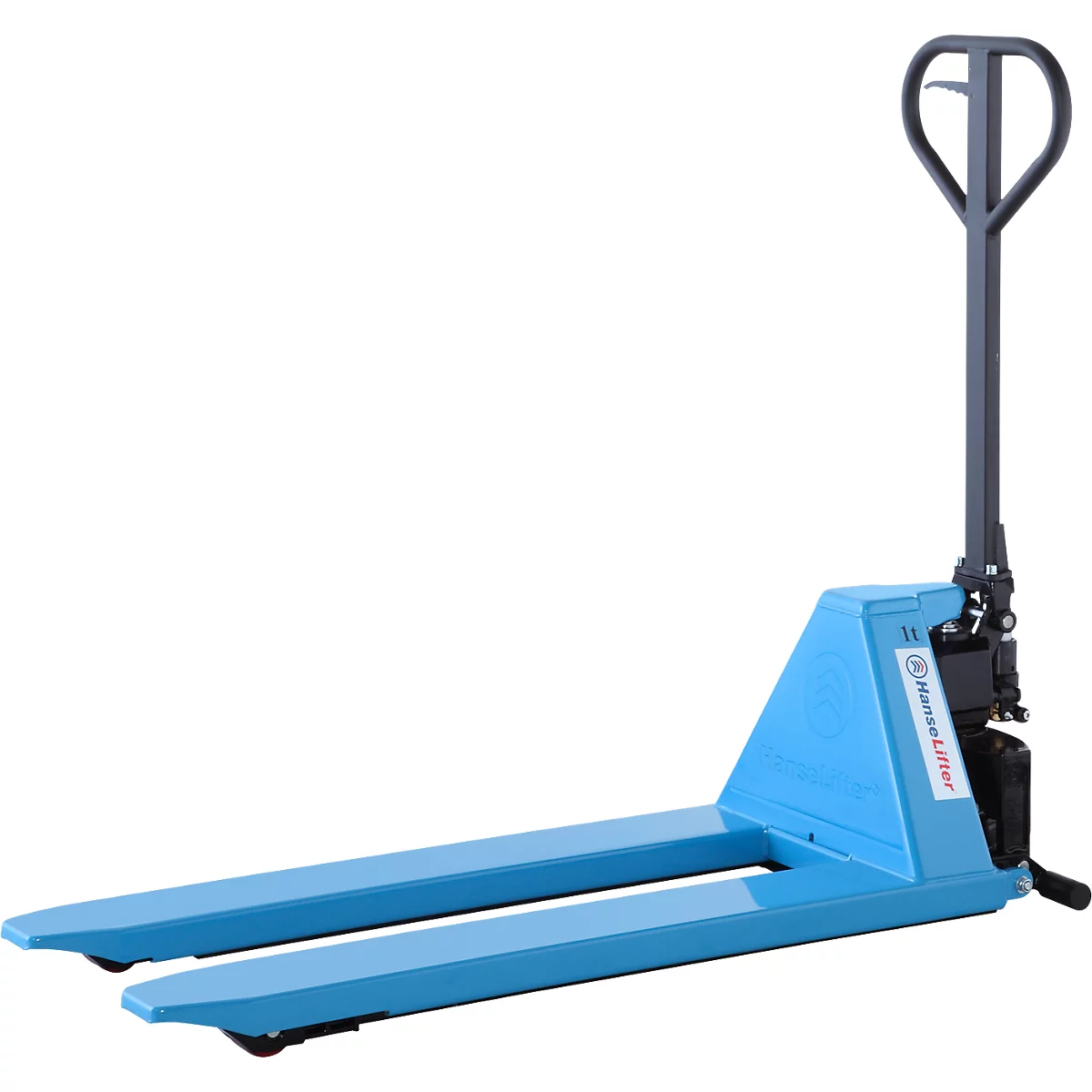

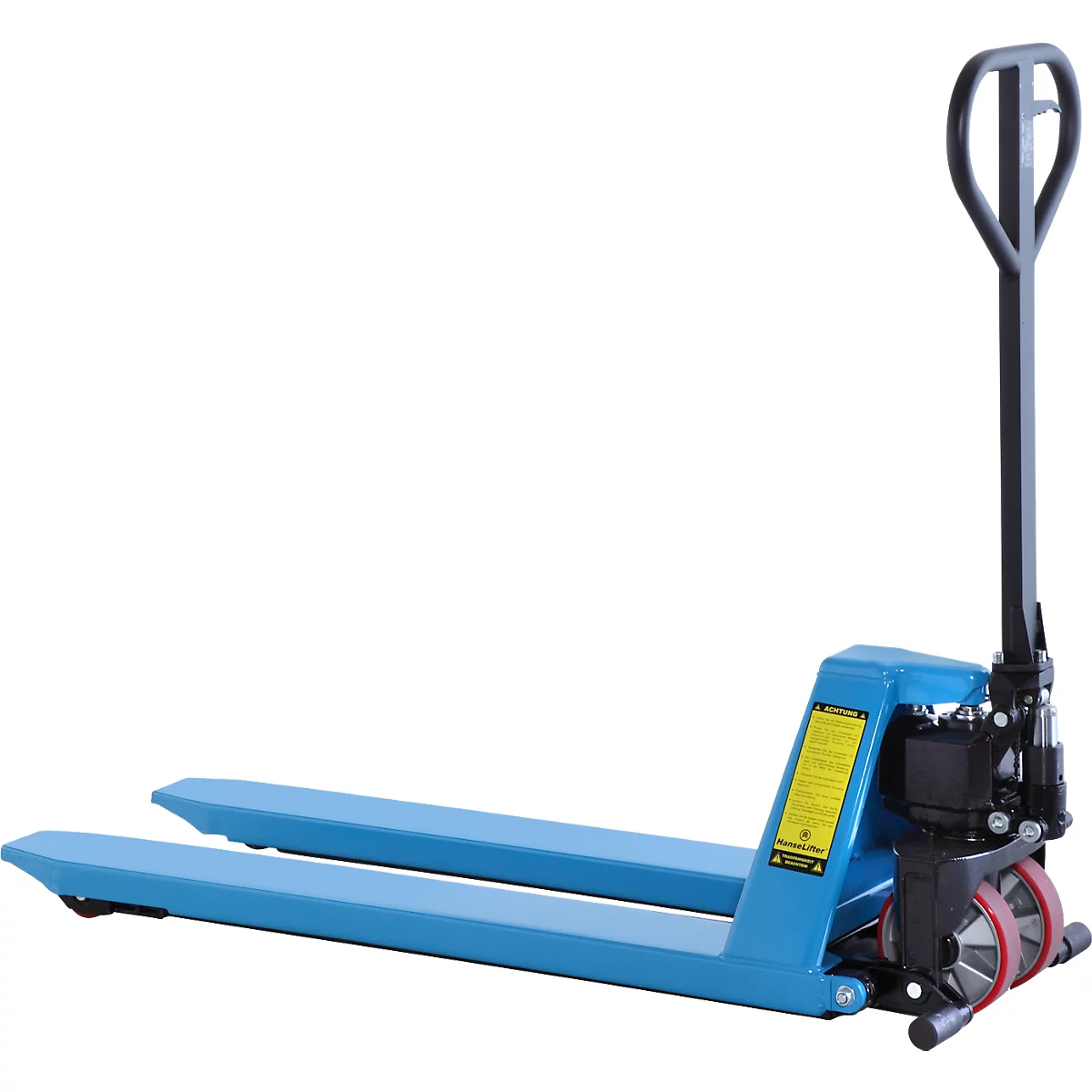

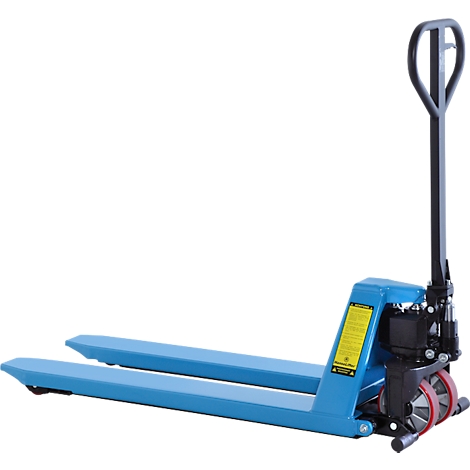

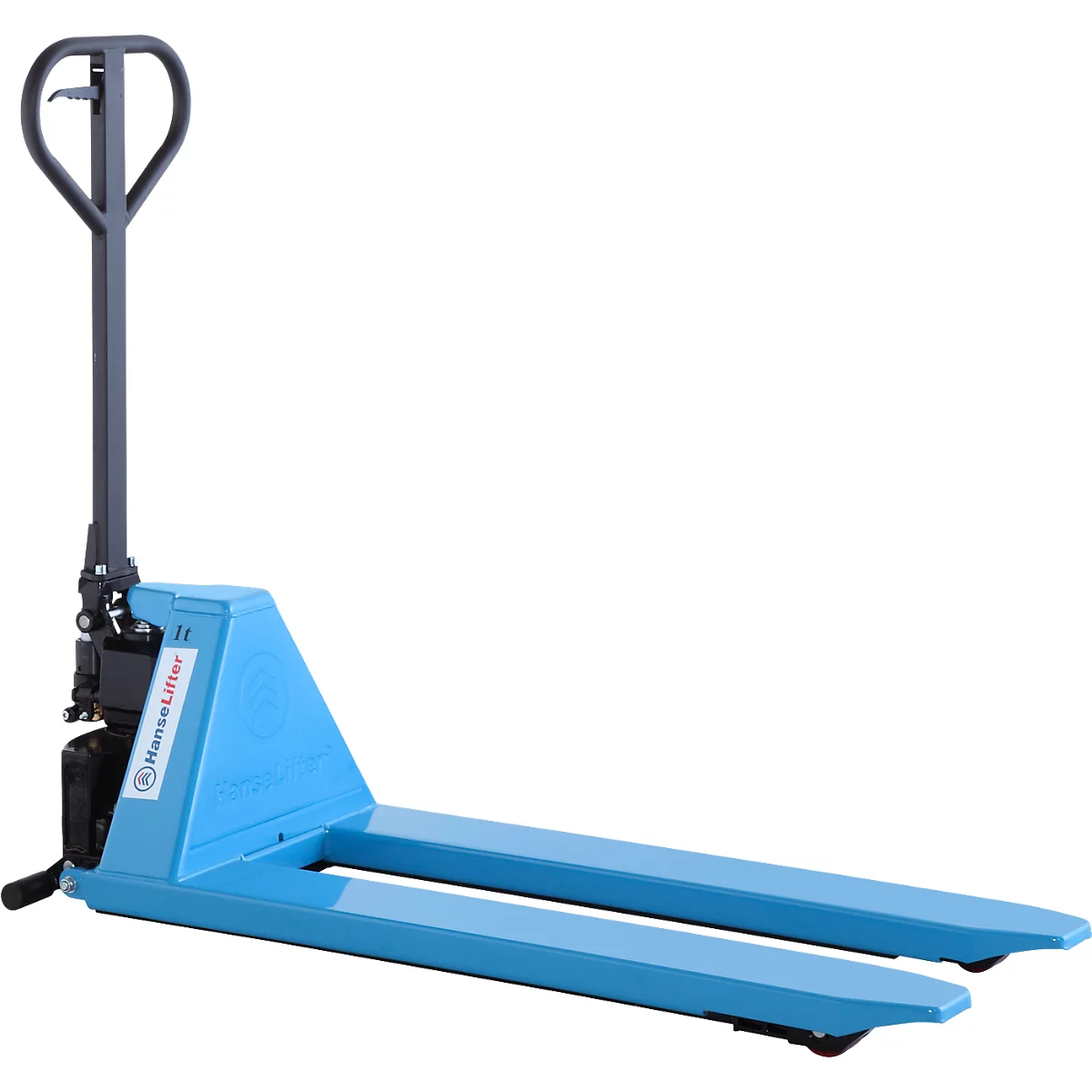

JF-PU Scissor Lift Trolley

Name: JF-PU Scissor Lift Trolley
Brand: Hanselifter
SKU: 7582153
Price: 966.0 CHF
Availability: InStock

Item number: 305082

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

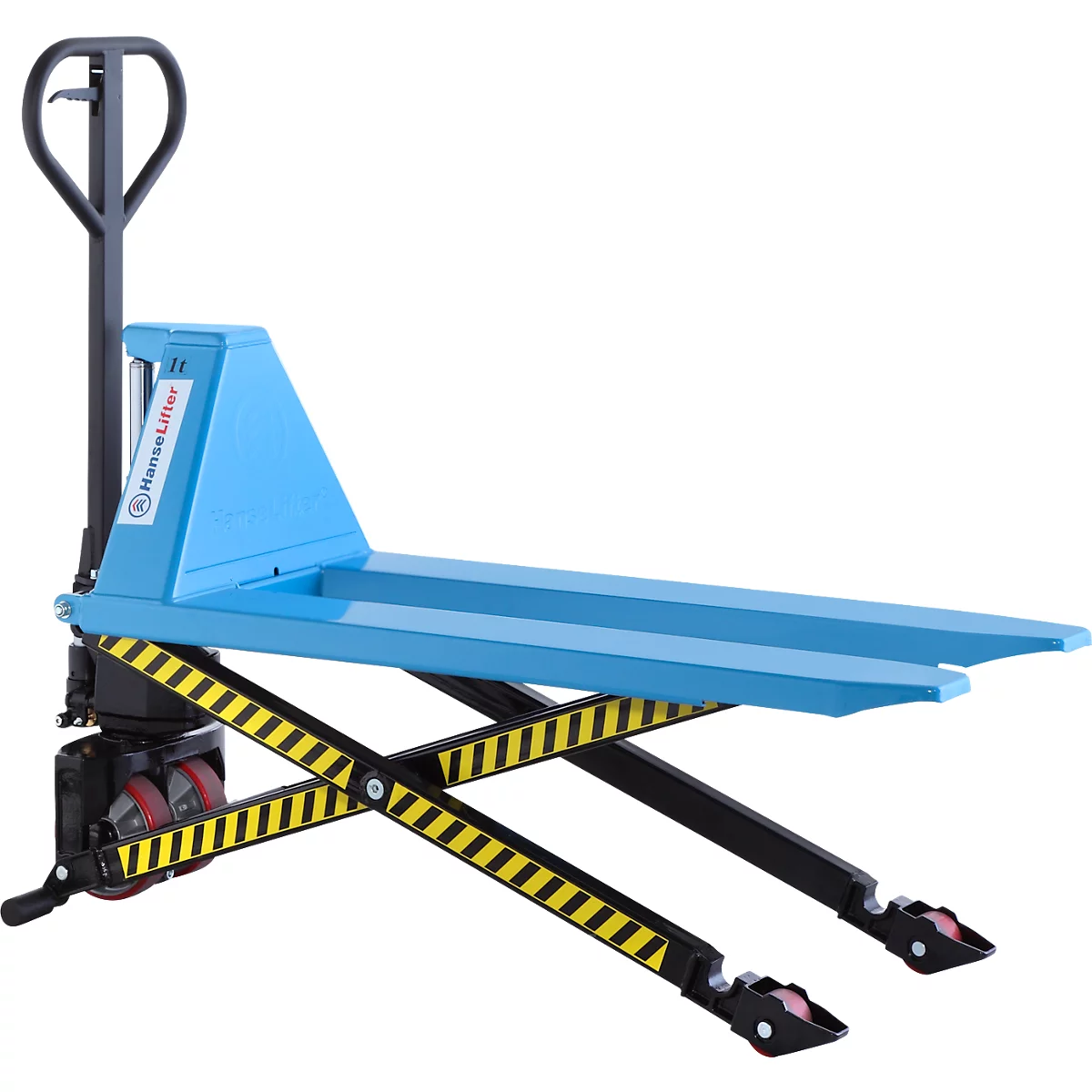

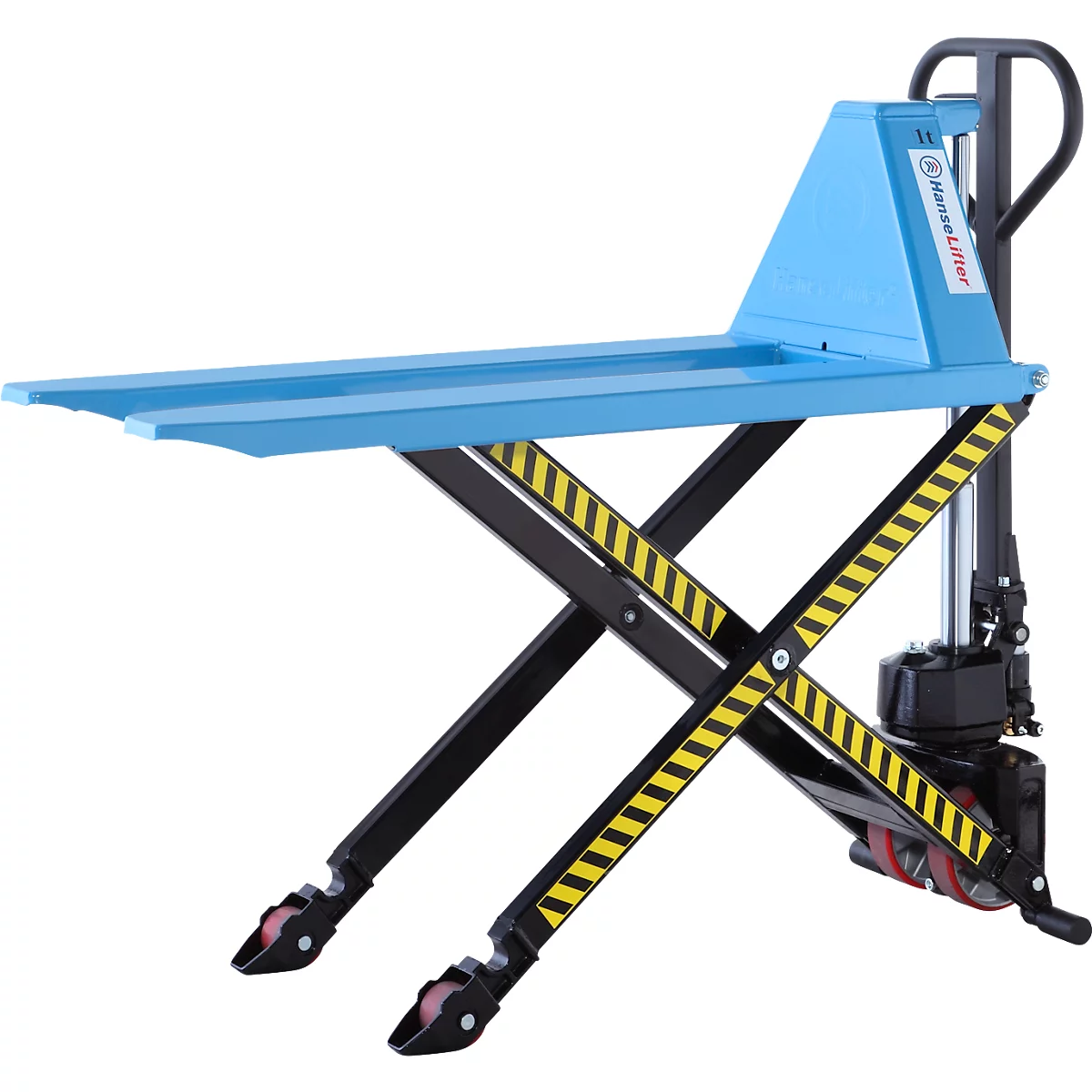

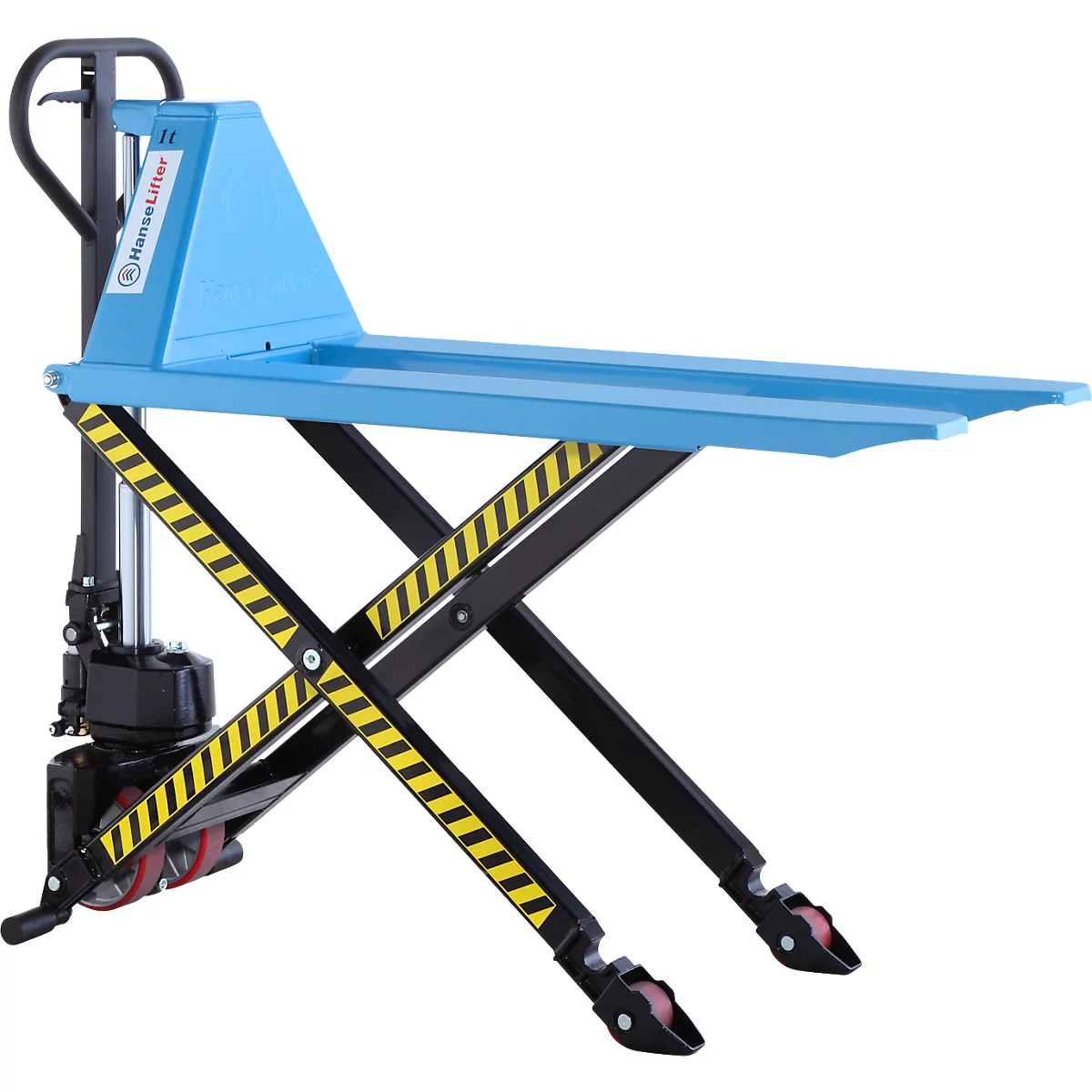

Manual, hydraulic scissor lift truck with 800 mm lifting height. As an ergonomic all-rounder for every workplace, it can move pallets and be used as a workbench from a lifting height of 200 mm, as the support pins are extended.

Important details:

With quick lift function for pallets up to 250 kg (Quicklift).

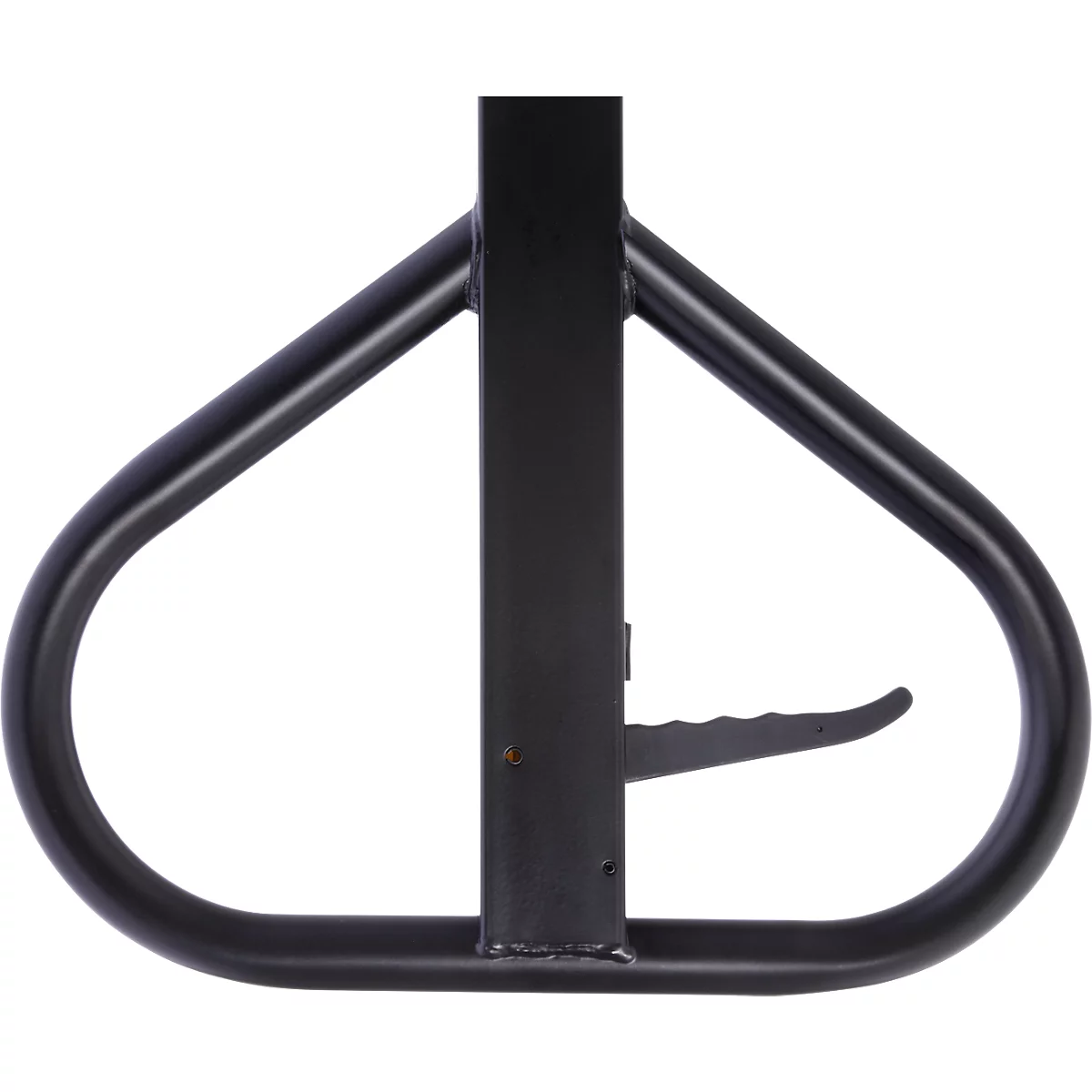

Rubberized, ergonomically shaped handle
Manual drive
Parking brake
Dosed lowering at the hand lever, infinitely variable
Up to 800 mm lifting height, manoeuvrable up to approx. 200 mm
Lifting strokes max. height of 800 mm: approx. 20
Load capacity (Q): 1,000 kg
Lifting range (h): 85 - 810 mm
Castors: Polyurethane (PU/PU Single)

Model JF-PU

Hydraulic pump with 3-step telescopic ram
Fork dimensions (l/w/h): 1150/160/50 mm
Fork outer distance (b): 520 mm
Stroke: 725 mm
Turning radius (Wa): 1360 mm
Dimensions: 1510 x 520 x 1170 mm
Own weight (kg): 108 kg

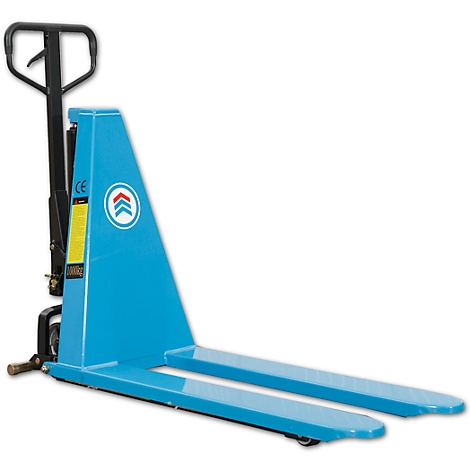

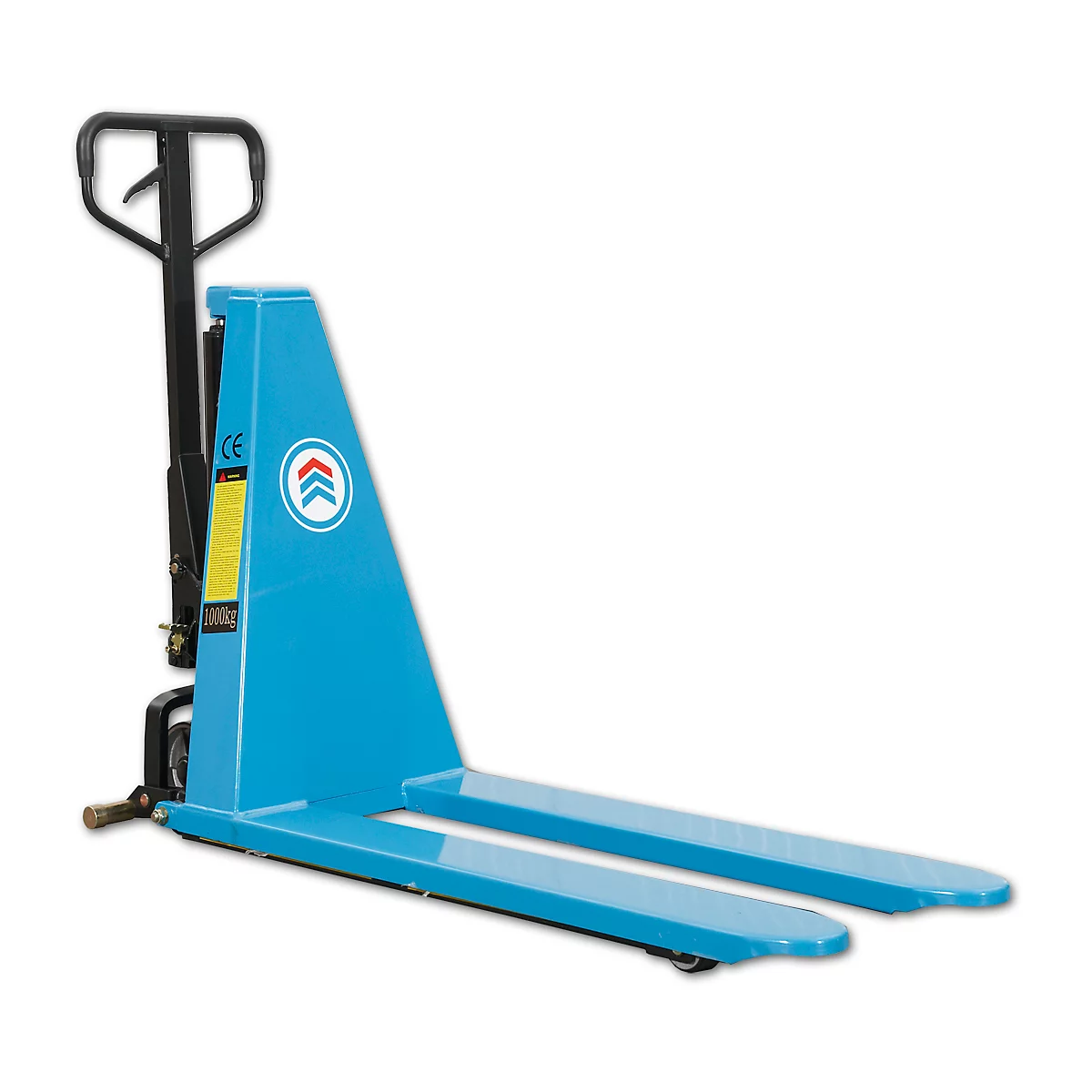

Model JF-SC

Hydraulic pump with 1-step telescopic ram
Extra high frame
Fork dimensions (l/w/h): 1170/160/50 mm
Fork outer distance (b): 540 mm
Stroke: 715 mm
Turning radius (Wa): 1400 mm
Dimensions: 1640 x 540 x 1170 mm
Own weight (kg): 118 kg

Advantages for you

With manual lift drive for easier handling

Problem-free load transport even over uneven floors with 85 - 810 mm lifting range

Show moreShow less

Technical data

General features
Color blue
Drive manual
External fork spacing [mm] 520
Fork length [mm] 1150
Fork width [mm] 160
Lift drive manually
Lifting equipment Steel, powder-coated
Lifting height per pedal/pump movement (mm) 20
Load capacity [kg] 1000
Load center distance 500
Manufacturer No. 11002687
Material rolls Polyurethane (PU)
Minimum height 15
Model JF-PU
Roller brake Yes
Safety notice Keep out of the reach of children; In case of contact with eyes: Rinse cautiously with water for several minutes. Remove any contact lenses if possible. Continue rinsing; Immediately call a poison center or doctor;
Stroke range [mm] 85 - 810
Total height [mm] 1170
Total length (mm) 1510
Total width [mm] 520
Turning radius [mm] 1360
Weight [kg] 108
Wheel diameter (mm) 75/200

Download

ProductSafety_10104779.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 966.00

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Model: JF-PU

JF-PU JF-SC

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Scissor lift truck JF

Overview of the possible item variants. For more information, click on the respective variant.

Model

Item			Price
JF-PU Scissor Lift Trolley Item number: 305082			Fr. 966.00 Amount + - Added times
JF-SC Scissor Lift Trolley Item number: 305083			Fr. 1’050.00 Amount + - Added times
