Product Safety Information

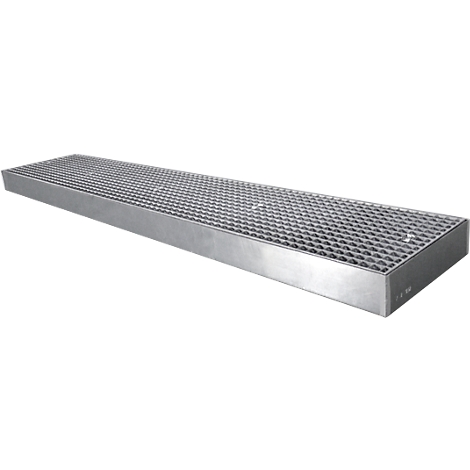

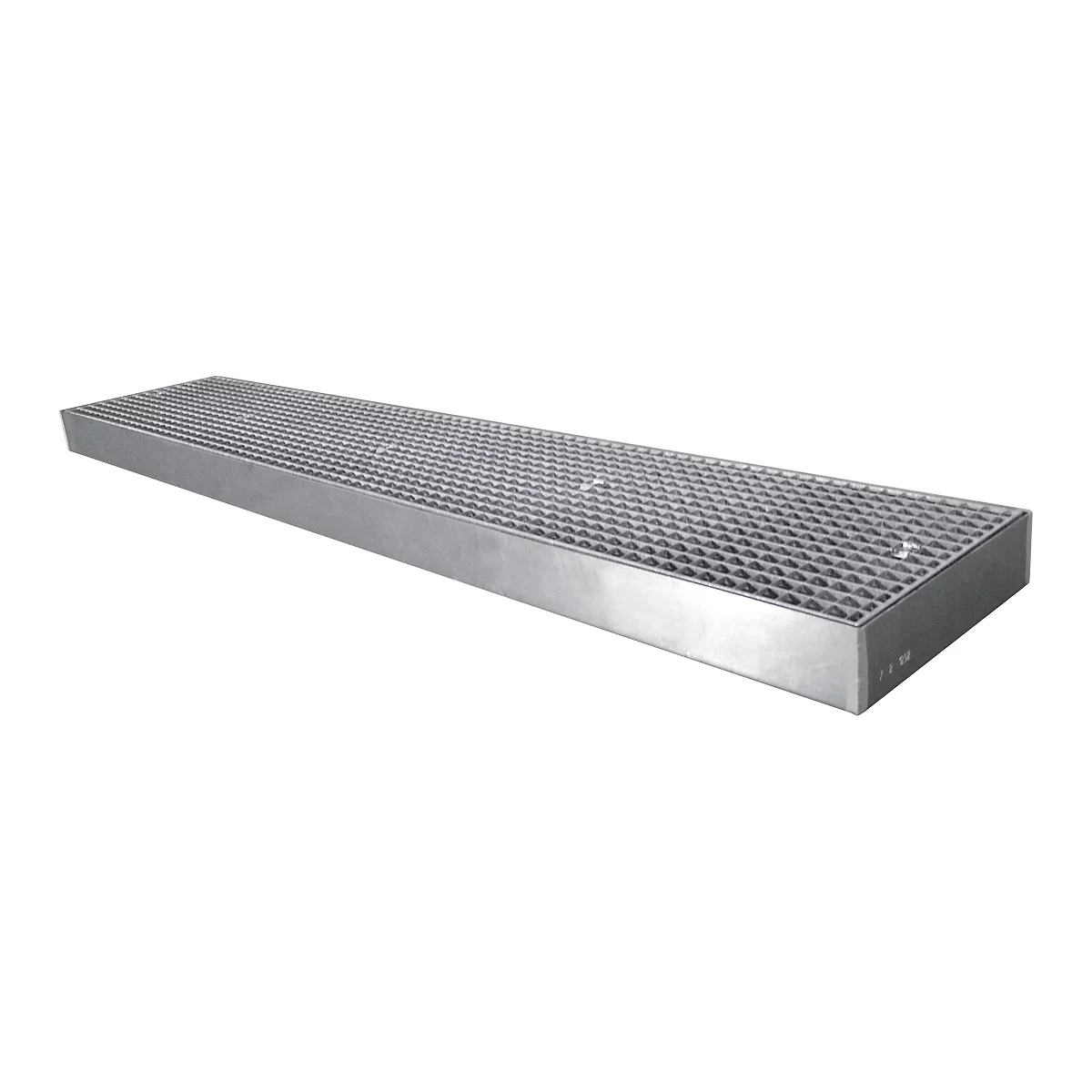

SAFE FW6 flat basin, 2000 x 500 x 118 mm

General information

Product safety instructions

Improper handling or overloading can result in serious damage or safety risks for the user.;Ensure that the product is only used on level surfaces to prevent it from tipping over or falling.;Wear protective equipment if the product comes into direct contact with hazardous substances.;Ensure that the product information and instructions are provided in a language that users can understand.

Article numbers

134478

SAFE FW6 flat basin, 2000 x 500 x 118 mm

Item number: 134478

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

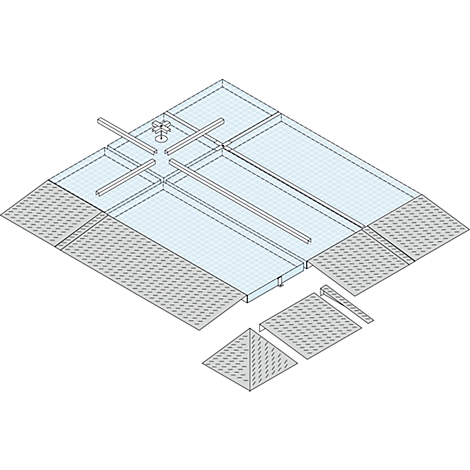

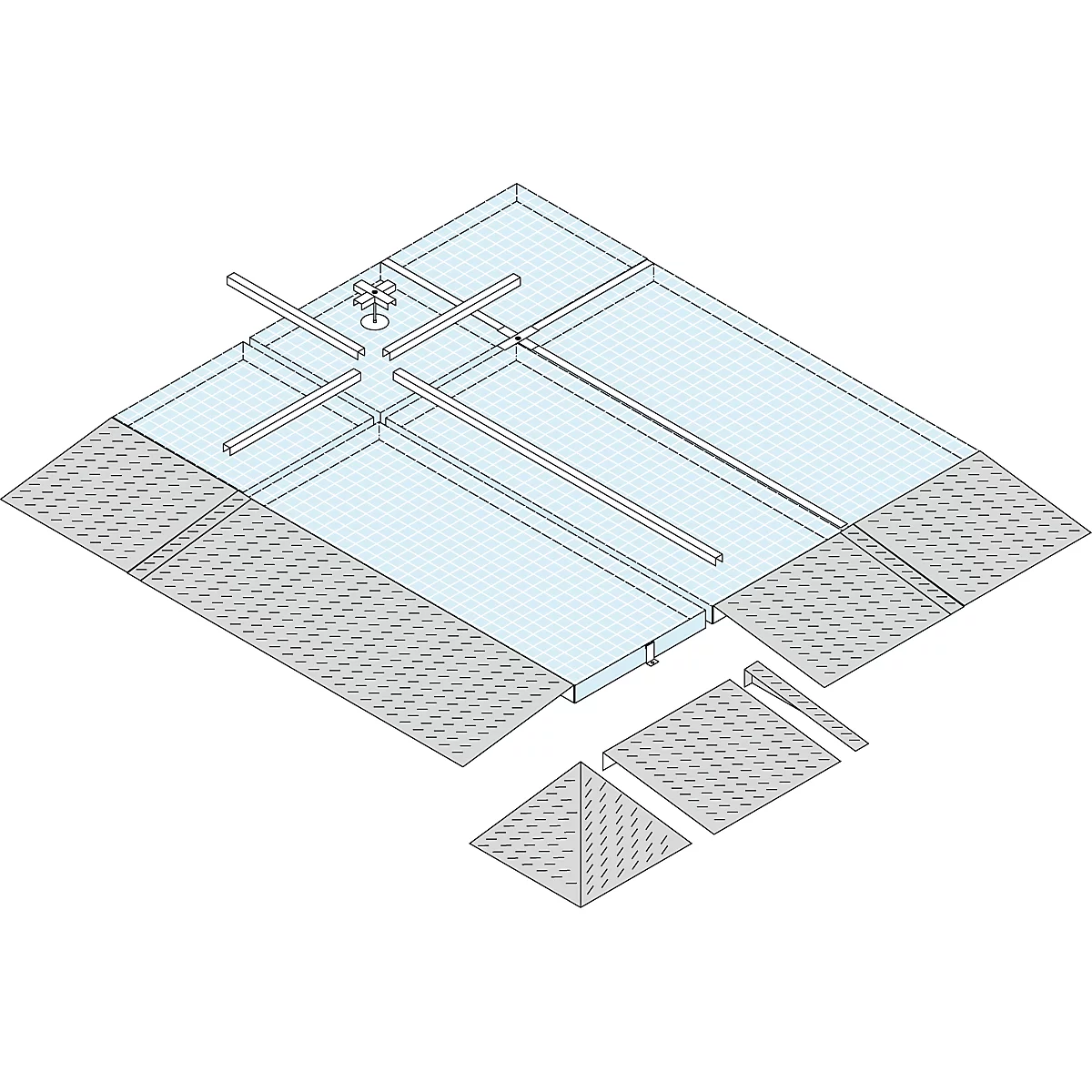

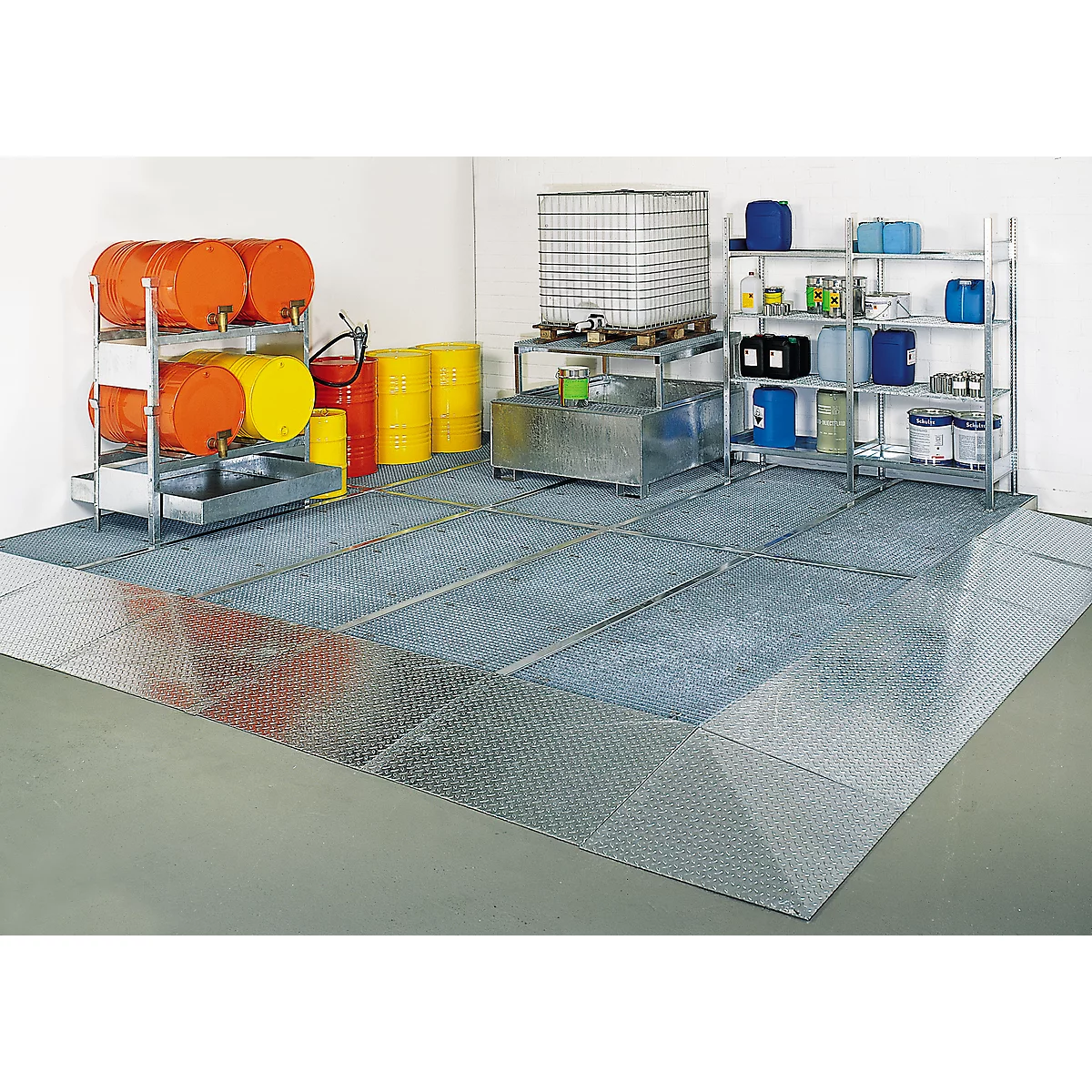

SAFE flat trays are ideal for safe and compliant indoor storage. They are used wherever large quantities of hazardous substances are stored, transferred or filled. Due to the different tray sizes, area systems can be variably adapted to the respective requirements. With the appropriate ramps, the flat trays can also be easily accessed by forklift trucks or pallet trucks. Another advantage: SAFE flat trays can be extended with additional elements at any time. If necessary, you can even dismantle the collection trays and reinstall them elsewhere as a surface protection system.

Meets the requirements of the Water Resources Act (WHG)
Approved for flammable liquids in GHS categories 1-3 and water-polluting liquids in GHS categories 1-4
Construction made of 3 mm sheet steel (S235JR), welded liquid-tight and galvanized
Removable, hot-dip galvanised gratings, can be driven over
Surface load 6,500 kg/sqm - wheel pressure 600 kg point load (calculated on a surface of 200 x 200 mm, static load)
Simple, rational construction
Can be extended at any time
Dimensions: W 2000 x D 500 x H 118 mm
Weight: 138 kg
Collecting volume: 210 l

Advantages for you

Proper storage of flammable liquids GHS 1-3 and substances hazardous to water GHS 1-4 is ensured

Show moreShow less

Technical data

General features
Collecting volume [l] 210
Color galvanised
Container type Barrels, small containers
Delivery Partially assembled
Depth [mm] 500
Grid Yes
Grid material Steel
Grid surface hot-dip galvanized
Hazardous substance type Flammable liquids GHS 1-3; Substances hazardous to water GHS 1-4
Height [mm] 118
Load capacity [kg] 600
Location Indoor
Material Sheet steel
Mobile not forklift compatible
Permeable wall thickness (mm) 3
Scope of delivery SAFE FW6 flat tray
Surface galvanised
Weight [kg] 64
Width [mm] 2000
