Product Safety Information

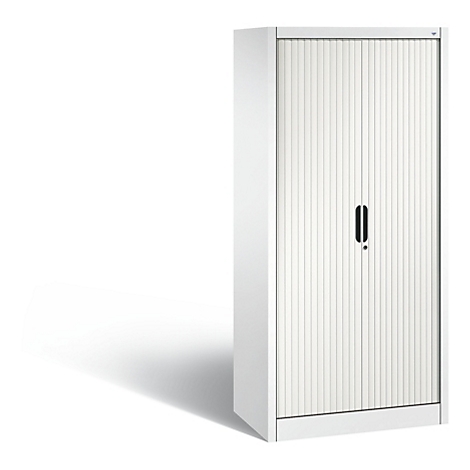

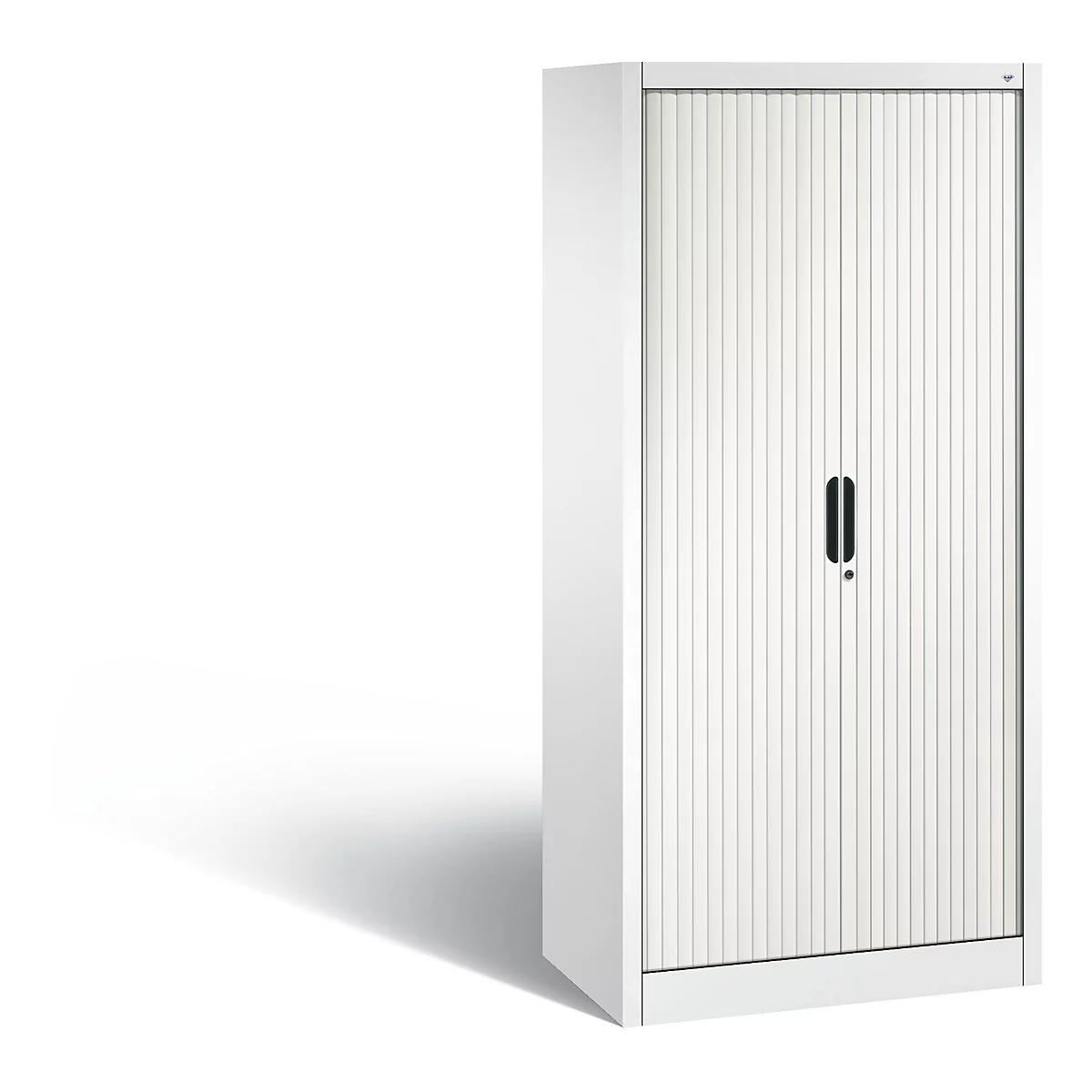

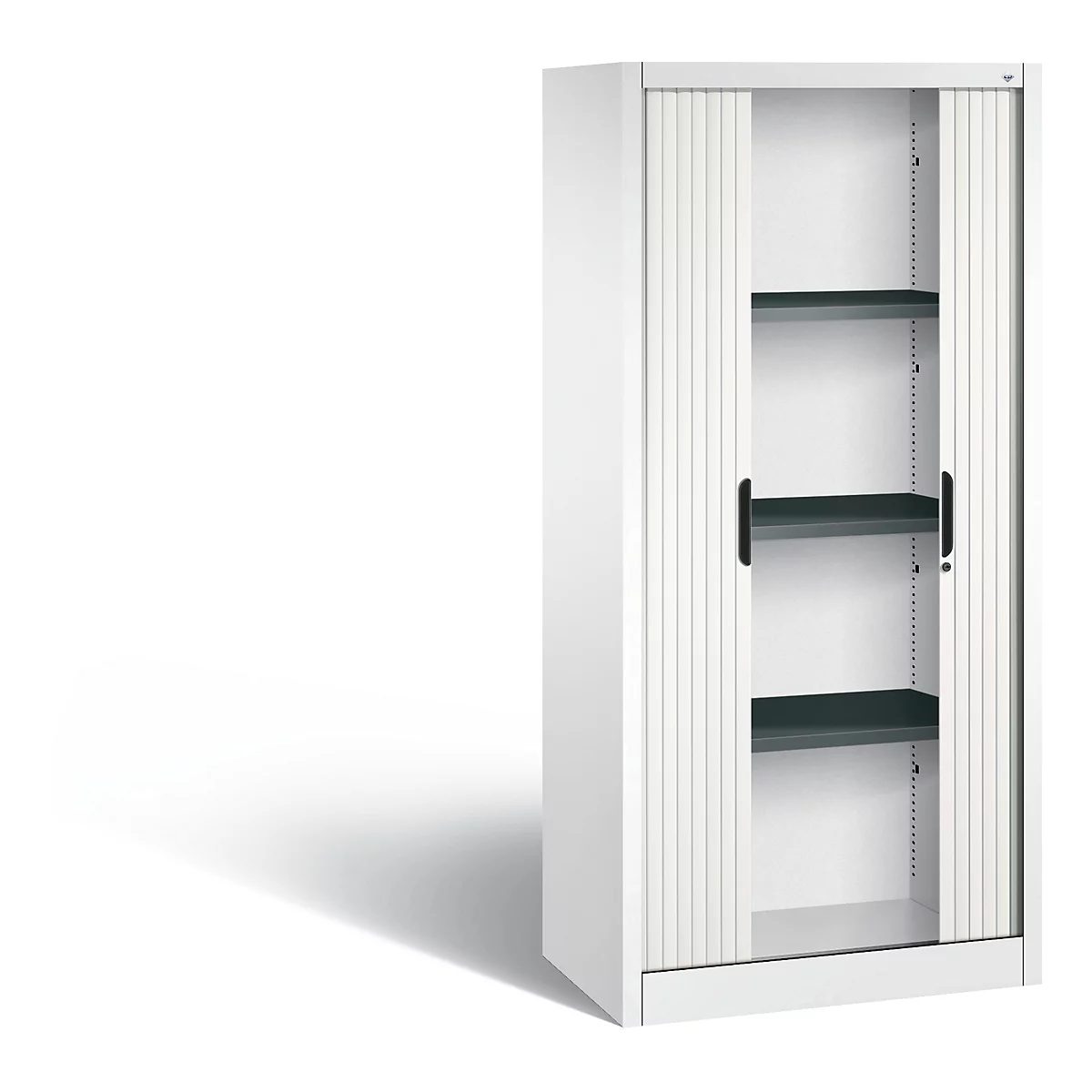

C + P Omnispace roller shutter cabinet, 4 OH, lockable, W 800 x D 420 x H 1660 mm, steel/plastic, traffic white

General information

EU authorized representative E-mail address

info@cp.de

EU authorized representative Name

C+P Möbelsysteme GmbH & Co. KG

EU authorized representative Place

Breidenbach

EU authorized representative Postal code

35236

EU authorized representative Street & house number

Boxbachstraße 1

EU Plenipotentiary Country

Deutschland

Product safety instructions

Max. Load capacity per shelf: Do not exceed 50 kg to minimise the risk of tipping.;Take particular care when using near water sources to avoid electrical risks.;Check hinges and locks regularly to ensure proper functioning.;Follow the instructions for installation and handling. Read and follow the instructions carefully before installation.;Take care when handling by children to avoid injury. It should be used under parental supervision.;The edges of the cabinet can be sharp; avoid direct contact.;Attach the cabinet securely to the wall and adjust the levelling to ensure a secure stand.;Before use, ensure that the doors close properly to avoid injury.;When adjusting the levelling control, ensure that no fingers are trapped.;Regularly check the doors, the closing mechanism and plastic glides for proper function to avoid any risk of slipping.

Article numbers

656045 656046 656047 656048

C + P Omnispace roller shutter cabinet, 4 OH, lockable, W 800 x D 420 x H 1660 mm, steel/plastic, traffic white

Name: C + P Omnispace roller shutter cabinet, 4 OH, lockable, W 800 x D 420 x H 1660 mm, steel/plastic, traffic white
Brand: C + P
SKU: 7542790
Price: 832.0 CHF
Availability: InStock

Item number: 656045

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Steel roller shutter cabinet Omnispace, body made of sturdy steel construction with high quality baked-on coating for high UV resistance, with plastic glides as practical cabinet and floor protection, high flexibility of the interior design due to height adjustability in 15 mm increments, doors made of continuous, flexible plastic slats (polypropylene) in smooth running rails, with aluminum lock strip and practical recessed grip for easy operation, 3 shelves made of steel, painted, with high load capacity of 50 kg, 1 rotary cylinder lock with 2 keys, 1 integrated level control up to 10 mm, conveniently adjustable from the inside, dimensions (H x W x D): 1660 x 800 x 420 mm, body: RAL 9016 traffic white, roller shutter: RAL 9016 traffic white, interior: RAL 7021 black-grey

Show moreShow less

Technical data

General features
Adjustment travel level control 10
Body RAL 9016 Traffic white
Body surface lacquered
Clear inside depth [mm] 380
Clear internal width other [mm] 650
Clearance total inside height [mm] 1510
Closure Hook latch
Closure Cylinder lock
Depth [mm] 420
Door height [mm] 1510
Door width [mm] 650
External height [mm] 1660
First line RAL 9016 Traffic white
Floor height adjustable Yes
For door stop right
GS-approved Yes
Handle Recessed handle black
Height adjustment grid floor 15
Height of files 4
Height [mm] 1660
height-adjustable frame(s) Yes
Interior design RAL 7021 Black gray
Level control Yes
Lockable Yes
Material Steel, lacquered
Material doors Plastic
Material roller shutter Plastic
Material shelves Steel
Number of keys [pcs.] 2
Number of shelves [pcs.] 3
Outer depth [mm] 420
Outer width [mm] 800
Shelf load capacity [kg] 50
Stop front DIN left+right
Stop front 2 collapsing
Stop type front Transverse roller shutter
Surface shelf varnished
Suspension front Running rails
Tipping dimension [MMT] 1712
Version front Roller shutter
Dimensions
Dimensions W x D x H [mm] 800 x 1660 x 420
Internal dimensions: W x D x H (mm) 650 x 380 x 1510
Width [mm] 800
