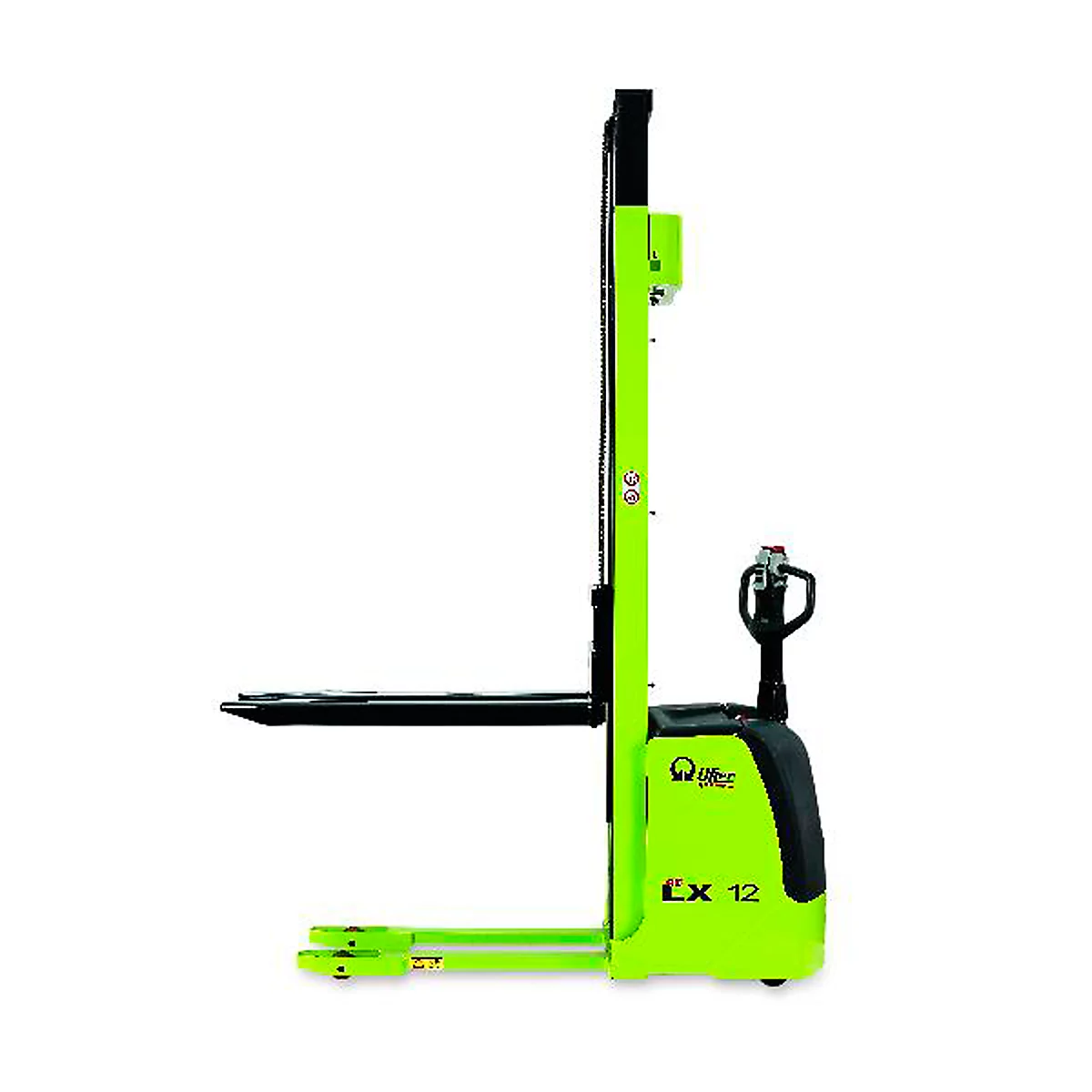

Pramac LX Duplex 12/35 electric stacker with tiller, 1200 kg load capacity

The compact electric pedestrian stacker LX Duplex 12/35 from Pramac is technically designed for particularly demanding tasks. Equipped as standard with the MOSFET control and a powerful SEM drive motor, the pedestrian stacker transports loads of up to 1200 kg.
The Pramac LX Duplex 12/35 is a powerful and compact pedestrian stacker for professional applications. With a load capacity of 1200 kg, the electric pedestrian stacker can be used wherever uneven industrial floors or ramp operations require increased ground clearance. The Pramac LX Duplex 12/35 is particularly efficient when transporting and stacking loads over medium and long distances. With its initial lift, the electric pedestrian stacker is able to pick up two pallets at the same time and distribute the load freely on the forks or wheel arms. In addition, the external lift cylinder gives a better view of the goods to be picked up, thus increasing safety for the user. The large-sized push buttons on the tiller head, the powerful 1.2 kW SEM drive motor and the MOSFET control provide additional comfort in the control of the Pramac LX Duplex 12/35 electric tiller truck. The battery cover, which can be opened from the top and side, also means that accessing and replacing the battery is always safe and easy.
Technical details:

• Travel drive: electric
• Operation: attendant
• load capacity: 1200 kg
• Axle load with lifting capacity front/rear: 709/1281 kg
• Tyres front/rear: rubber and polyurethane/ polyurethane
• Dimension tyres front: ø 250 x W 76 mm
• Dimension tyres rear: ø 82 x W 70 mm
• Side wheels: ø 125 x 50 mm
• Fork dimensions: S 70/B 150/L 1150 mm
• Driving speed with/without lifting load: 5.5/6 km/h
• Lifting speed with/without lifting load: 0.09/0.15 m/s
• Power of drive motor: 1.2 kW
• Total length: 1960 mm
• Total width: 850 mm
• Own weight: 790 kg
