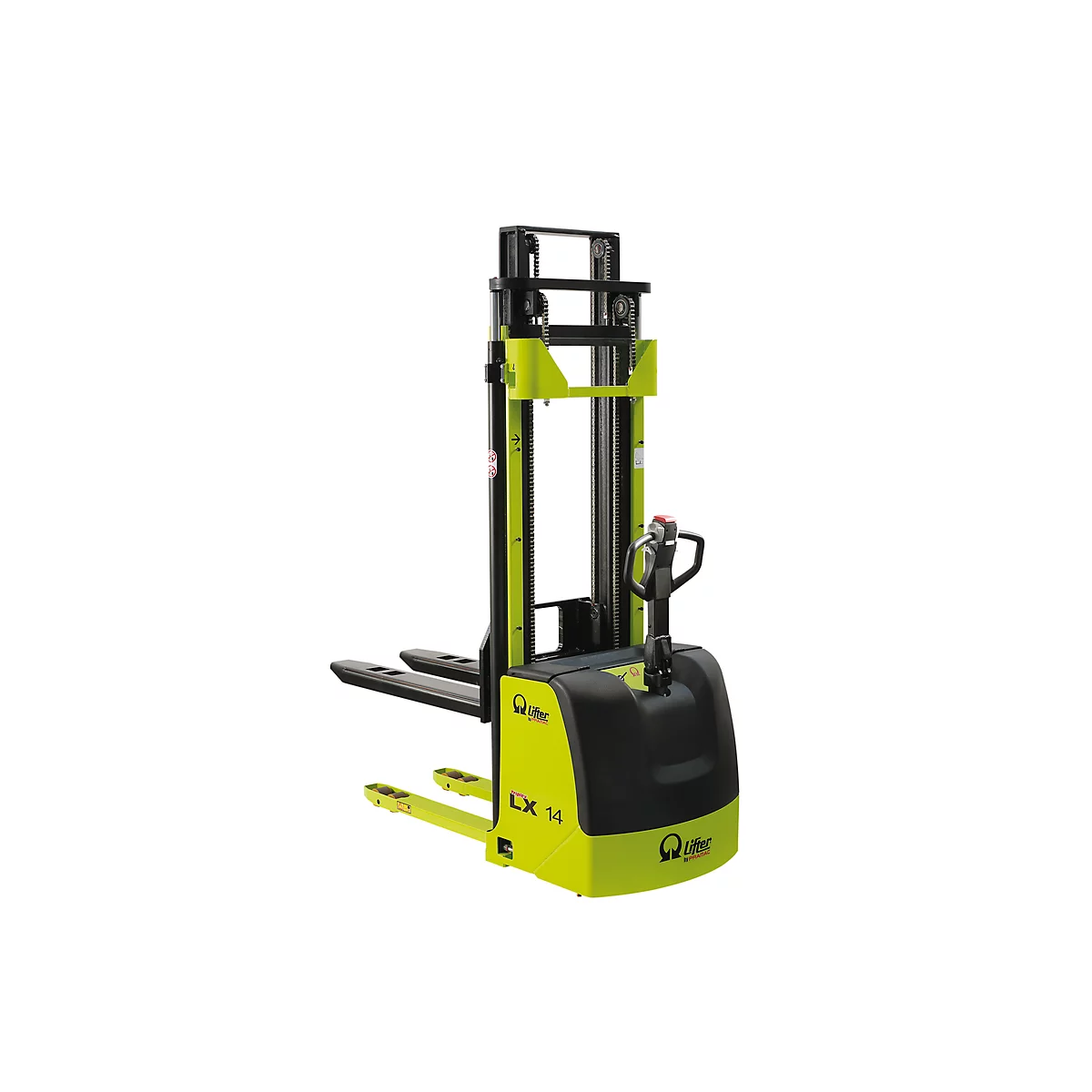

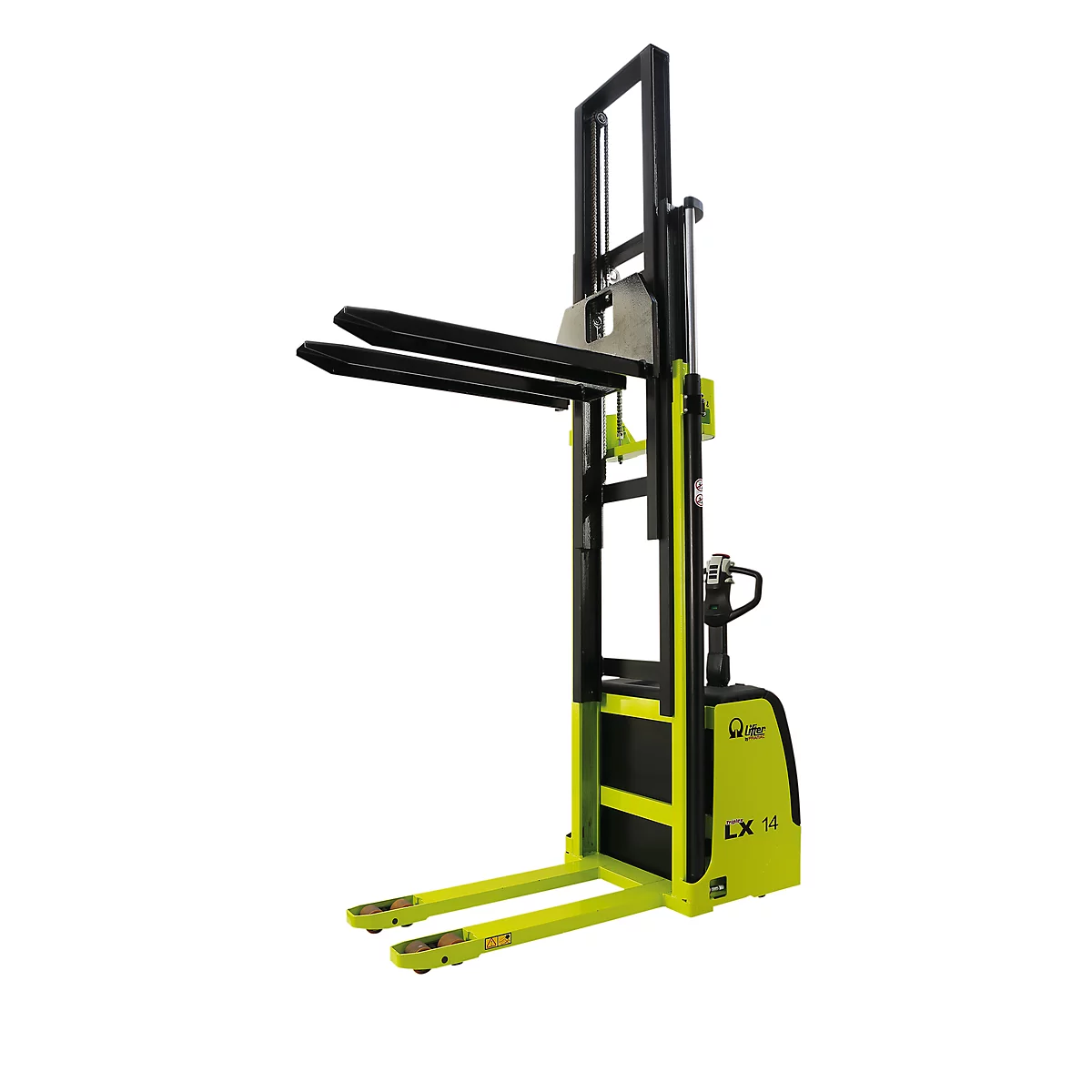

Electric stacker with tiller Pramac LX 14/15 Triplex with free lift, 1400 kg load capacity

Item number: 309047-SW81
Show moreShow less

Product description

The Pramac LX 14/15 Triplex electric pedestrian stacker with free lift carries loads of up to 1400 kg. Powerful and quiet, the Pramac LX 14/15 Triplex electric pedestrian stacker with free lift lifts loads up to 5 metres high.
The Pramac LX 14/15 Triplex electric pedestrian stacker with free lift guarantees safe handling in professional warehouses. With a load capacity of up to 1400 kg and a remarkable lift height of up to 5 metres, the Pramac LX 14/15 Triplex electric pedestrian stacker with free lift offers all the prerequisites for smooth goods handling. The MOSFET control and the SEM technology used ensure a constant speed of 0.13 km/h at full load. The Pramac LX 14/15 Triplex electric pedestrian stacker with a free lift of 1675 mm is easy to operate. Powerful and quiet, the Pramac LX 14/15 Triplex electric pedestrian stacker with free lift is particularly easy to manoeuvre.
Further details:

  • For professional use
  • Powerful and quiet
  • MOSFET control
  • SEM technology
  • Easy, comfortable operation
  • Lifting capacity: 1400 kg
  • Lifting height: 5 meters
  • Free lift: 1675 mm
  • Fork length/fork width: 1150 / 560 mm
  • Travel with/without load: 0.13 / 0.17 km/h
  • Driving motor power: 1.2 kW
  • Lifting motor power: 3.0 kW
  • Lifting speed with/without load: 0.13 / 0.17 mm/s
  • Dimensions: L 2001 x W 850 x H 2266 mm
  • Weight: 888 kg

Advantages for you

Electrohydraulic system facilitates work and efficient handling

90 - 1675 mm lifting range facilitates the filling of higher racking levels

Easy manoeuvring even in confined spaces: thanks to compact fork length of 1150 mm

Show moreShow less

Technical data

  • General features
  • Battery capacity (V/Ah) 24/300
  • Driving speed with load [km/h] 0.13
  • Driving speed without load [km/h] 0.17
  • External fork spacing [mm] 560
  • Fork length [mm] 1150
  • Fork width [mm] 170
  • Height [mm] 2266
  • Length [mm] 2001
  • Lift drive Electrohydraulics
  • Lift motor (kw) 3
  • Lifting speed unloaded (mm/s) 0.17
  • Lifting speed with load (mm/s) 130
  • Load capacity [kg] 1400
  • Load capacity [kg] 1400
  • Load center distance 600
  • Stroke range [mm] 90 - 1675
  • Total length (mm) 2001
  • Total width [mm] 850
  • Traction motor power [kW] 1,2
  • Weight [kg] 888
  • Width [mm] 850
