go to the brand shop: Rollcart Transportsysteme

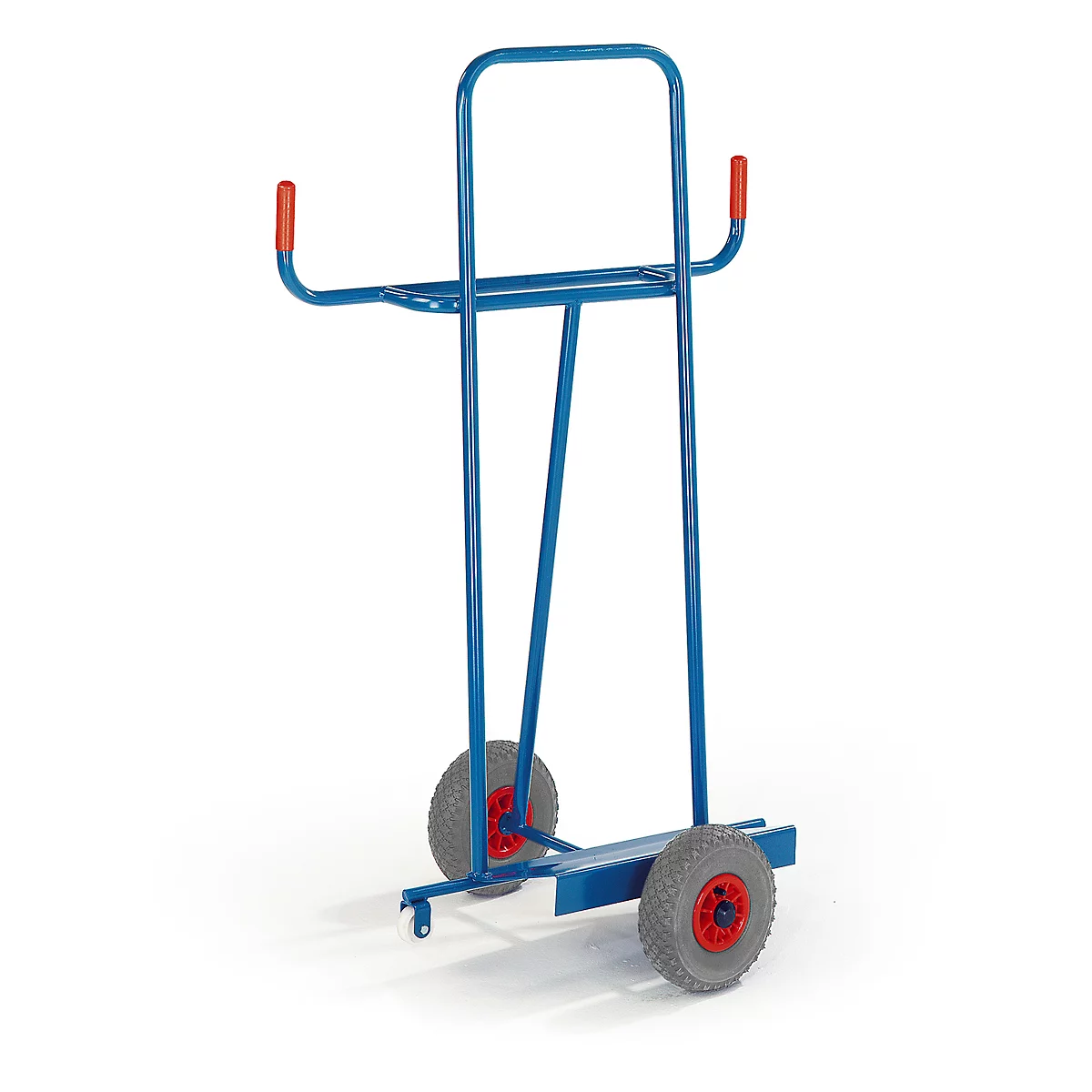

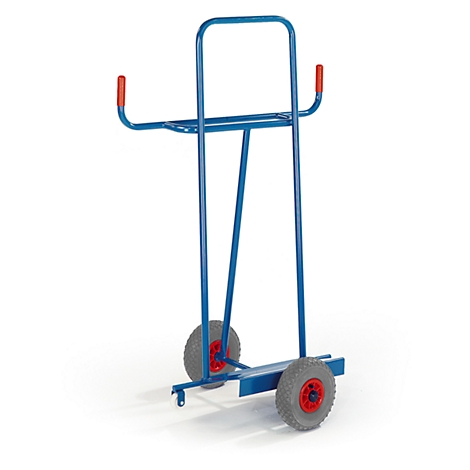

Plate trolley for longitudinal transport, solid rubber wheels

Item number: 91973
Show moreShow less

Product description

with 200 kg load capacity
To ensure that panels can be transported lengthways and do not slide down crossways, the bucket plate is welded onto the substructure so that it slopes down towards the support bracket. The handles are welded at a sufficient distance from the support frame so that there is enough space for the hands between the upright panels and the handles. Welded steel construction.

  • Solid rubber tyres
  • additional support rollers made of polyamide (ø 58 x 25 mm)
  • powder coated in gentian blue (RAL 5010)
  • Outer dimensions: W 1000 x D 620 mm
  • total height: 1460 mm
  • Push handle height: 1200 mm
  • Bucket: W 500 x D 200 mm
  • Solid rubber wheels: ø 250 x W 60 mm
  • Weight: 21 kg
Show moreShow less

Technical data

  • General features
  • For container size of (mm) 500 x 200
  • Height [mm] 1460
  • Length of loading area [mm] 500
  • Length [mm] 620
  • Load capacity of [kg] 200
  • Load capacity [kg] 200
  • Loading height (mm) 140-200
  • Material Steel
  • Surface powder-coated
  • Type Wheels/support rollers
  • Version Push handle height 1200 mm
  • Weight [kg] 21
  • Wheel diameter (mm) 250/58
  • Wheel/roller finish Solid rubber
  • Width loading area [mm] 200
  • Width [mm] 1000
  • Colors
  • Color gentian blue RAL 5010

Schäfer Shop Quality and Service

Made in Germany
10 years warranty
only Fr. 283.00
per Pcs.
excl. VAT free shipping from CHF 100.–
Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions
This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select
-
+

Delivery time: within 2 weeks
