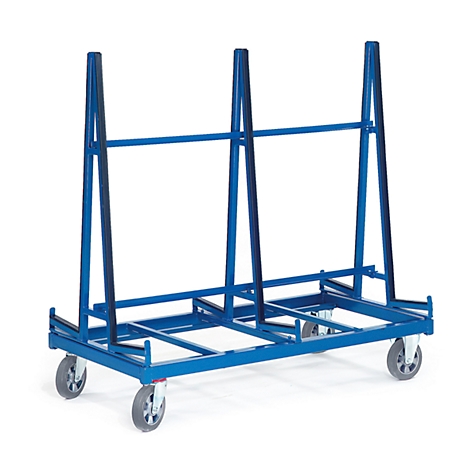

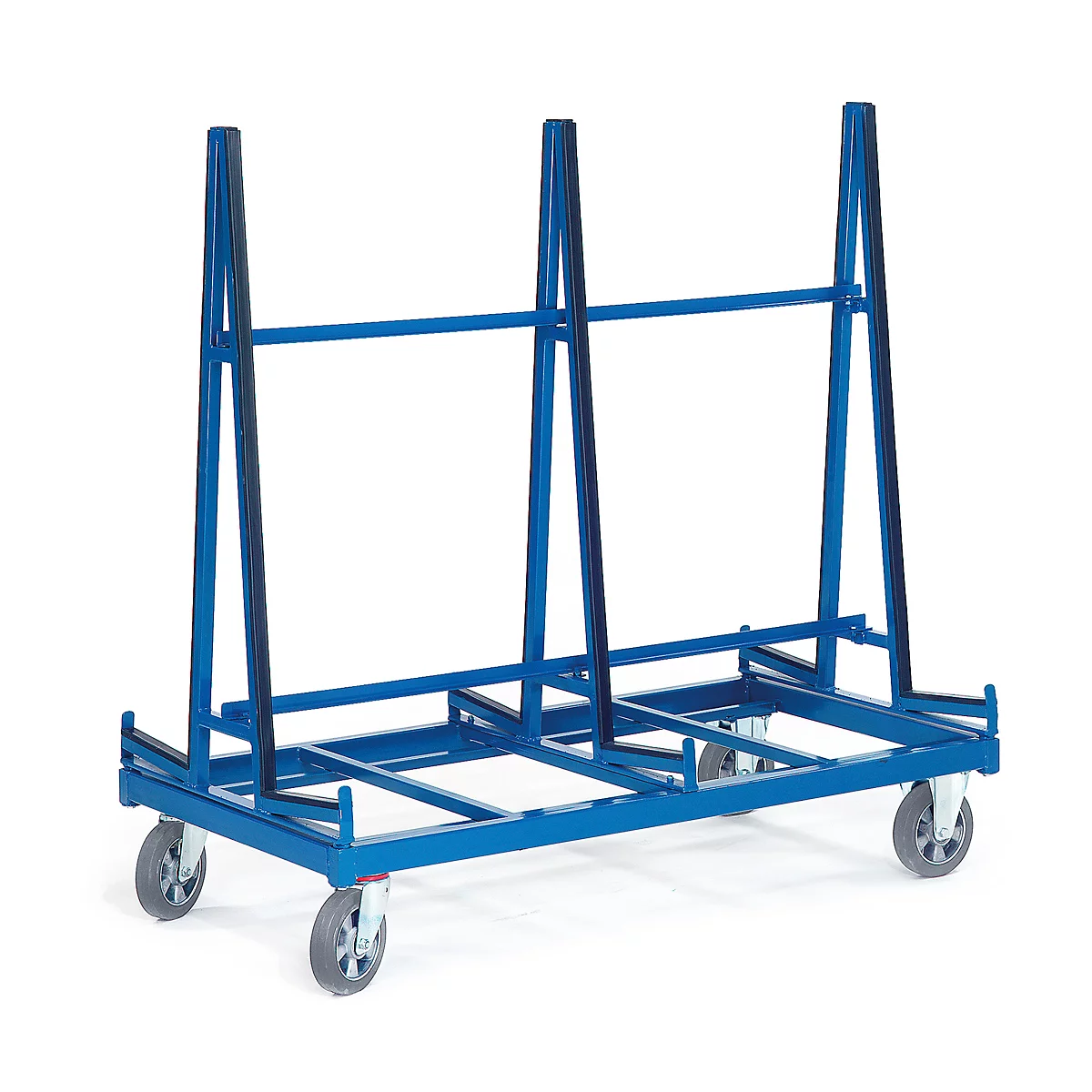

Plate trolley with double-sided support surface, 1380 x 880 mm

With the plate trolley, large, bulky and heavy plates of any kind can be moved easily or can be stored temporarily on the trolley. A slip-off edge is welded to the support ends, which prevents the placed panels from slipping off.

• Base frame made of rectangular tube and angle steel
• Swivel and fixed castors with solid rubber heavy duty elastic tyres and ball bearings, zinc plated housing
• Support and contact surfaces fitted with black hollow-chamber rubber profile
• powder coated in gentian blue (RAL 5010)
• Unit height: 1300 mm
• Wheels: ø 200 mm
• Load capacity: 1200 kg
• Outer width: 880 mm
• Loading area: W 430 x H 350 mm
• Total height: 1700 mm

Outer length 1380 mm

• Loading area 1380 mm long, 71 kg net weight
