Product description
Ideal for displays and short pallets

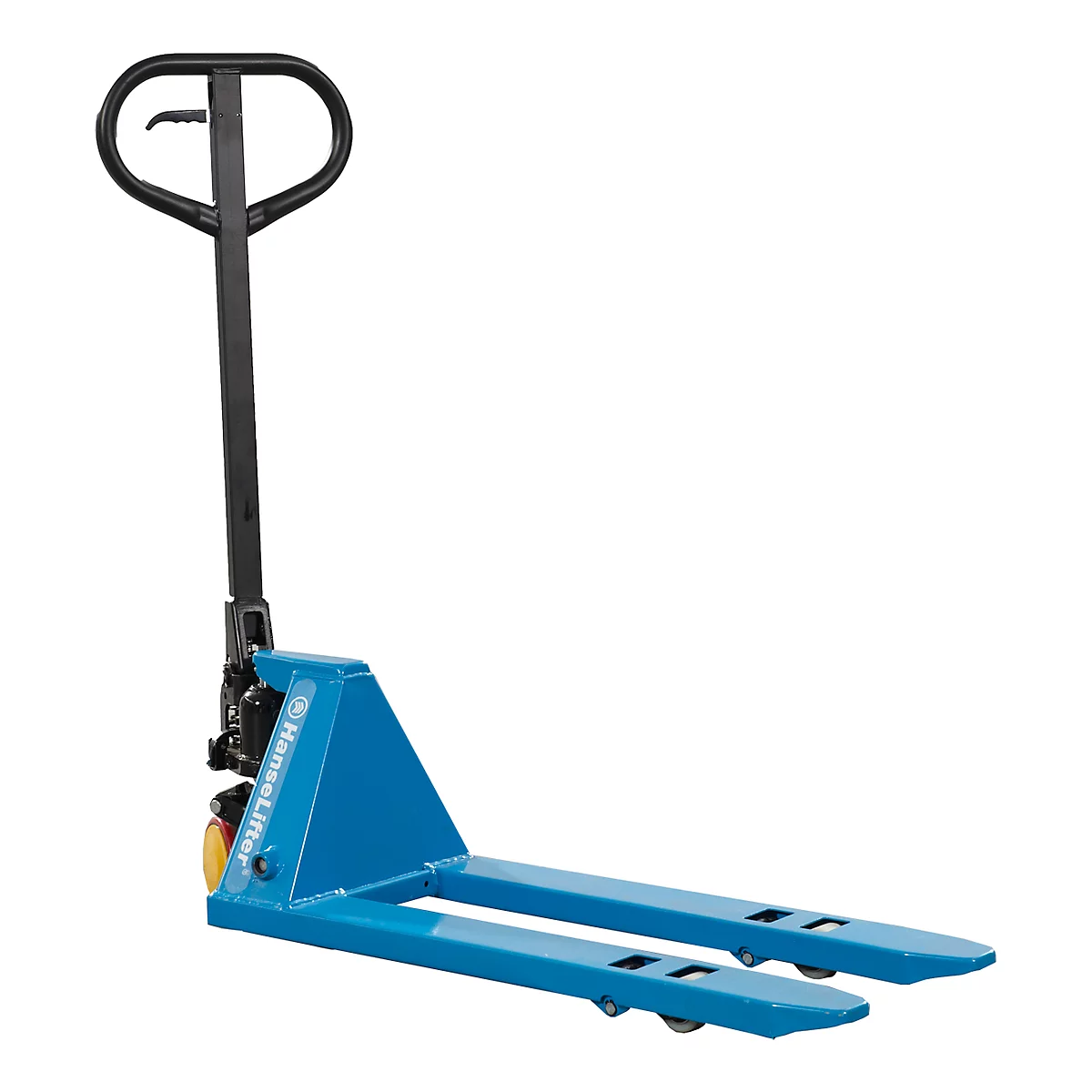

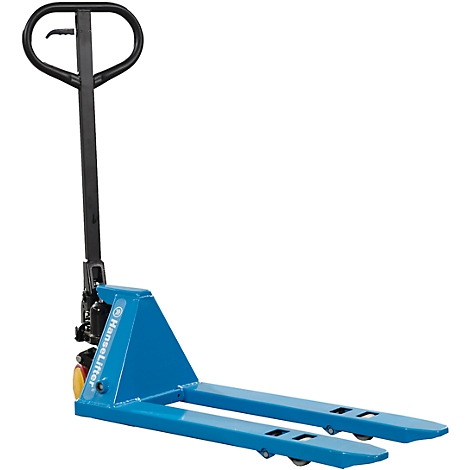

The WF pallet truck is specially designed for small spaces, confined spaces or obstructed corners. With a fork length of 800 mm and a width of 380 mm, the pallet truck can be used in the tightest of spaces and is also easy to transport - perfect for taking along on a truck.
Features
- For confined spaces or obstructed corners
- Light and easy to handle, making it ideal for transporting on trucks
- Nylon fork castors and polyurethane swivel castors
- Ideal for transporting displays, half pallets and special pallets
Technical specifications
- Load capacity: 500 kg
- Lifting range: 60 mm - 150 mm
- Fork dimensions (l/w/h): 800/100/40 mm
- Fork outer spacing: 380 mm
- Castors: PU/nylon single
- Dimensions: L 1126 x W 380 x H 1110 mm
- Total weight: 35 kg
Advantages for you
Easy handling thanks to lift drive
Thanks to a lifting range of 60 - 90 mm, the pallet truck can carry loads over uneven floors
Show moreShow less
Technical data
- General features
- Color of the pull-up bar black
- Colour fork blue
- Delivery Mounted
- Design of fork wheels Nylon
- Diameter of the load rollers (mm) 58
- Diameter swivel castors [mm] 127
- External fork spacing [mm] 380
- Fork length [mm] 800
- Fork width [mm] 100
- Lift drive manually
- Load capacity [kg] 500
- Load capacity [kg] 500
- Manufacturer No. 11002687
- Material Swivel castors Polyurethane (PU)
- Minimum height 25
- Steering angle [°] 210
- Steering wheel design Simply
- Steering wheels material Nylon
- Stroke range [mm] 60 - 150
- Swivel castor version Tandem
- Total height [mm] 1110
- Total length (mm) 1126
- Total width [mm] 380
- Turning radius [mm] 1100
- Weight [kg] 35
- Colors
- Color blue
Schäfer Shop Quality and Service
only Fr. 679.00
per Pcs.
SW81-3010
excl. VAT free shipping from CHF 100.–
Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
