Product Safety Information

Pallet truck, forklift, VG/PU, without Quick-Lift, tandem, 1150 mm

General information

EU authorized representative E-mail address

info@de.toyota-industries.eu

EU authorized representative Name

Toyota Material Handling Deutschland GmbH

EU authorized representative Place

Isernhagen

EU authorized representative Postal code

30916

EU authorized representative Street & house number

Hannoversche Straße 113

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not exceed the maximum load capacity of 2300 kg, but note that the reduced load capacity is 2000 kg to avoid accidents.;Only use on level floors to avoid tipping and castors must be undamaged.;Check the overload valve regularly for proper functioning and use it to prevent overloading.;Use only by trained personnel and wear suitable personal protective equipment such as safety shoes.;Keep hands and feet away from the fork area during use.;Risk of suffocation due to improper use, especially if the permissible load capacity is exceeded.;Risk of injury due to improper operation or incorrect handling of the pallet truck.;Instructions for use and safety information must be provided.;Regular maintenance and lubrication are necessary for safety and longevity.;Ensure that the pallet truck has been correctly maintained before use.

Article numbers

77298 77299 77323

Pallet truck, forklift, VG/PU, without Quick-Lift, tandem, 1150 mm

Name: Pallet truck, forklift, VG/PU, without Quick-Lift, tandem, 1150 mm
Brand: Toyota
SKU: 7755664
Price: 777.0 CHF
Availability: InStock

Item number: 77298

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The high quality pallet truck "Lifter" from Toyota impresses with its long service life and the environmentally friendly paint finish as well as the very good user-friendliness. It is also equipped with a marking for the transverse pick-up of a Euro pallet, with Teflon coated bearings and with an overload valve that prevents incorrect operation.
Swivel castors:
Rubber: for wet conditions, load up to 600 kgPolyurethane
: wear resistant and low noiseCastors
:
- Tandem castor: for uneven floors, for sleepers, lower wear

.

10 or 12 grease nipples for a long service life
Rated capacity: 2300 kg
Reduced rated capacity: 2000 kg
Lifting height: 200 mm
Dimension over fork: 520 mm
Fork width: 156 mm
Fork length 2000 mm
Fork height when lowered: 85 mm
Swivel castor diameter: 175 mm
Castor width: 60 mm
Weight: approx. 65 kg
Warranty: 5 years (excluding wear parts)
Colour: Red

Advantages for you

Easy operation thanks to lift drive

85 - 200 mm lifting range for easy transport over uneven surfaces

Show moreShow less

Technical data

General features
Color Toyota Orange
Color of the pull-up bar black
Delivery Mounted
Design of fork wheels Polyurethane
Diameter of the load rollers (mm) 85
Diameter swivel castors [mm] 175
External fork spacing [mm] 520
Fork length [mm] 1150
Fork width [mm] 156
Lift drive manually
Load capacity [kg] 2300
Load capacity [kg] 2000
Material Swivel castors Solid rubber
Minimum height 40
Steering angle [°] 180
Steering wheel design Tandem
Steering wheels material Polyurethane (PU)
Stroke range [mm] 85 - 200
Swivel castor version Tandem
Total height [mm] 1220
Total length (mm) 1515
Total width [mm] 520
Turning radius [mm] 1370
Version without Quick-Lift
Weight [kg] 80

Download

ProductSafety_10115366.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 777.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Fork length [mm]: 1150 mm

1150 mm 800 mm 2000 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Pallet truck, lifter, VG/PU, without Quick-Lift, tandem

Overview of the possible item variants. For more information, click on the respective variant.

Fork length [mm]

Item			Price

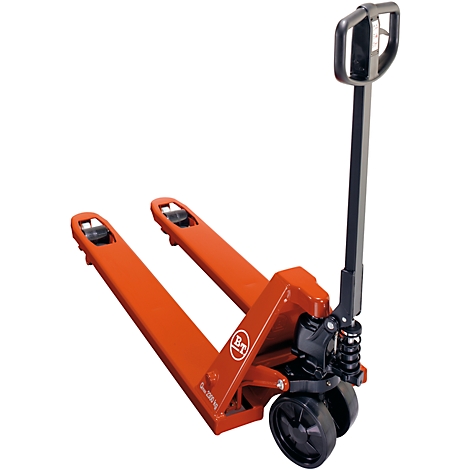

Pallet truck, forklift, VG/PU, without Quick-Lift, tandem, 1150 mm Item number: 77298			Fr. 777.00 Amount + - Added times

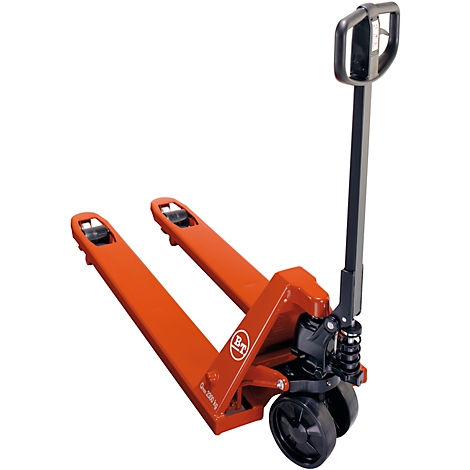

Pallet truck, forklift, VG/PU, without Quick-Lift, tandem, 800 mm Item number: 77299			Fr. 777.00 Amount + - Added times

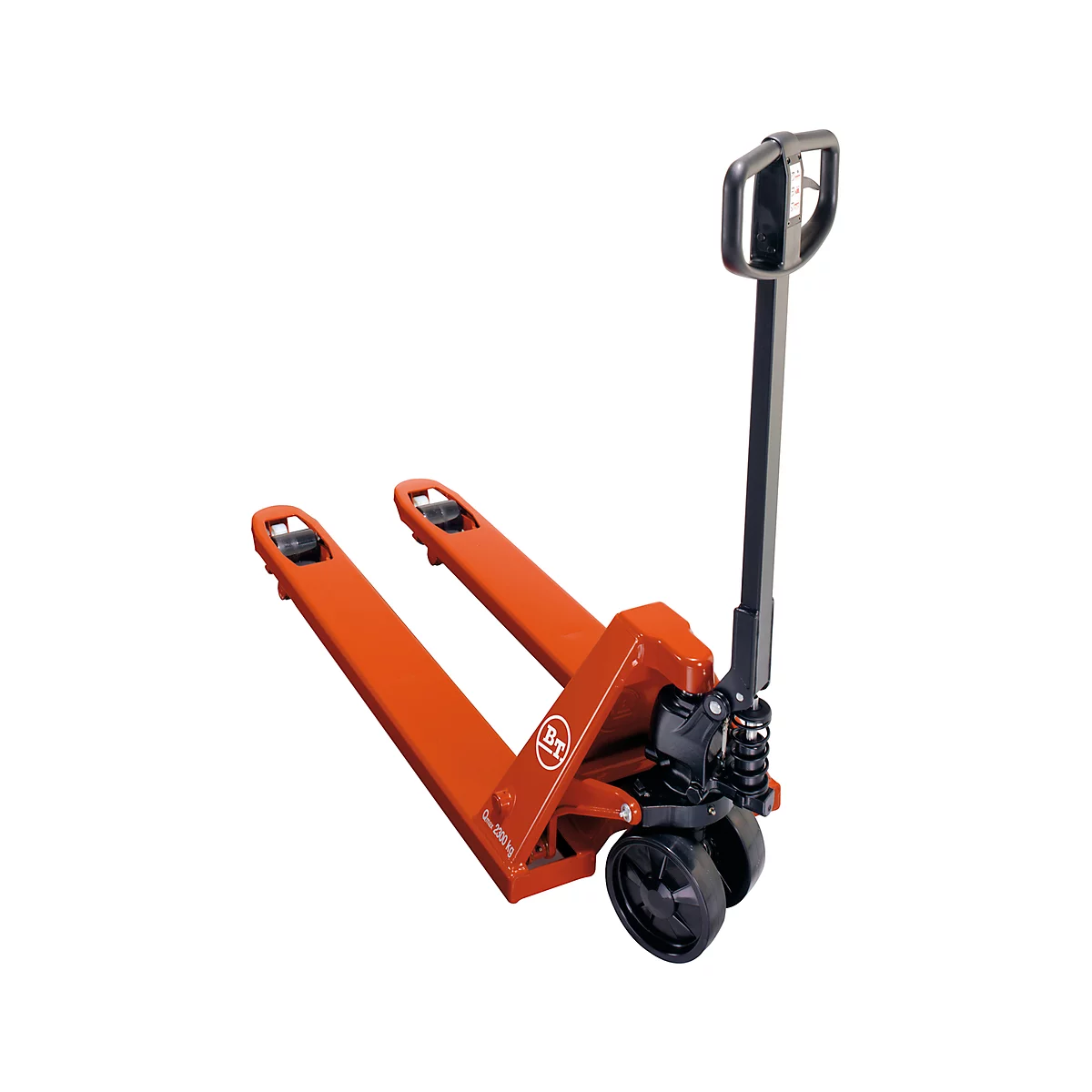

Pallet truck, lift, VG/PU, without Quick-Lift, tandem, 2000 mm Item number: 77323			Fr. 1’744.00 Amount + - Added times
