Product Safety Information

Pallet truck, forklift, VG/PU, without Quick-Lift, single, 1150 mm

General information

EU authorized representative E-mail address

info@de.toyota-industries.eu

EU authorized representative Name

Toyota Material Handling Deutschland GmbH

EU authorized representative Place

Isernhagen

EU authorized representative Postal code

30916

EU authorized representative Street & house number

Hannoversche Straße 113

EU Plenipotentiary Country

Deutschland

Product safety instructions

Provide accessible operating instructions and safety information in understandable language and read them carefully.;Do not exceed the maximum load capacity: 2000 kg or 2300 kg to avoid overload damage.;Carry out regular maintenance on the pallet truck to ensure proper function and pay attention to wearing parts. Observe safety precautions during maintenance work.;Use the appliance on a firm, dry and level surface to avoid accidents and wobbling.;Clearly communicate instructions for unsafe use (e.g. overloading, inaccurate handling) to prevent injury and damage.;Take care when handling heavy loads: People must not be in the working area to avoid injury.;Wear protective clothing and safety shoes when using the machine.;Check the appliance regularly for damage and functionality and observe the overload valve.

Article numbers

77290 77291 77319

Pallet truck, forklift, VG/PU, without Quick-Lift, single, 1150 mm

Name: Pallet truck, forklift, VG/PU, without Quick-Lift, single, 1150 mm
Brand: Toyota
SKU: 7486585
Price: 746.0 CHF
Availability: InStock

Item number: 77290

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

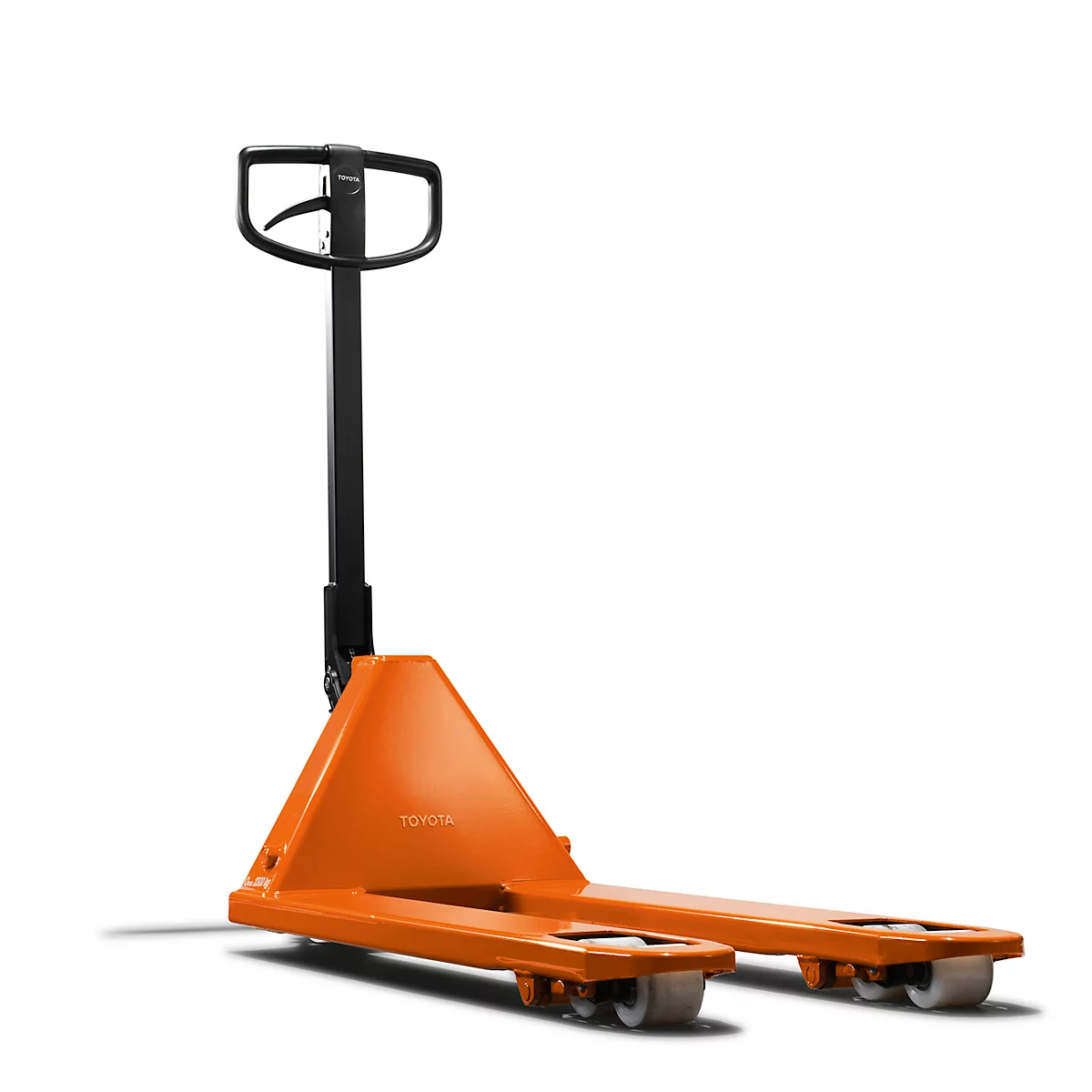

The high quality pallet truck "Lifter" from Toyota impresses with its long service life and the environmentally friendly paint finish as well as the very good user friendliness. It is also equipped with a marking for the transverse pick-up of a Euro pallet, with Teflon coated bearings and with an overload valve that prevents incorrect operation.
Swivel castors:
Rubber: for wet conditions, load up to 600 kgPolyurethane
: wear-resistant and low-noiseRollers
:
- Single castor with climbing roller: for level floors, for transverse pallet pick-up, for manoeuvring in confined spaces

.

10 or 12 grease nipples for a long service life
Rated capacity: 2300 kg
Reduced rated capacity: 2000 kg
Lifting height: 200 mm
Dimension over fork: 520 mm
Fork width: 156 mm
Fork length 2000 mm
Fork height when lowered: 85 mm
Swivel castor diameter: 175 mm
Castor width: 60 mm
Weight: approx. 65 kg
Warranty: 5 years (excluding wear parts)
Colour: red

Advantages for you

With manual lift drive for effort-saving and efficient handling

With a lifting range of 85 - 200 mm, the pallet truck can transport loads over uneven floors

Show moreShow less

Technical data

General features
Color Toyota Orange
Color of the pull-up bar black
Delivery Mounted
Design of fork wheels Polyurethane
Diameter of the load rollers (mm) 85
Diameter swivel castors [mm] 175
External fork spacing [mm] 520
Fork length [mm] 1150
Fork width [mm] 156
Lift drive manually
Load capacity [kg] 2300
Load capacity [kg] 2000
Material Swivel castors Solid rubber
Minimum height 40
Steering angle [°] 180
Steering wheel design Simply
Steering wheels material Polyurethane (PU)
Stroke range [mm] 85 - 200
Swivel castor version Tandem
Total height [mm] 1220
Total length (mm) 1515
Total width [mm] 520
Turning radius [mm] 1370
Version without Quick-Lift
Weight [kg] 65

Download

ProductSafety_10115362.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 746.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Fork length [mm]: 1150 mm

1150 mm 800 mm 2000 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Pallet truck, lifter, VG/PU, without Quick-Lift, single

Overview of the possible item variants. For more information, click on the respective variant.

Fork length [mm]

Item			Price
Pallet truck, forklift, VG/PU, without Quick-Lift, single, 1150 mm Item number: 77290			Fr. 746.00 Amount + - Added times

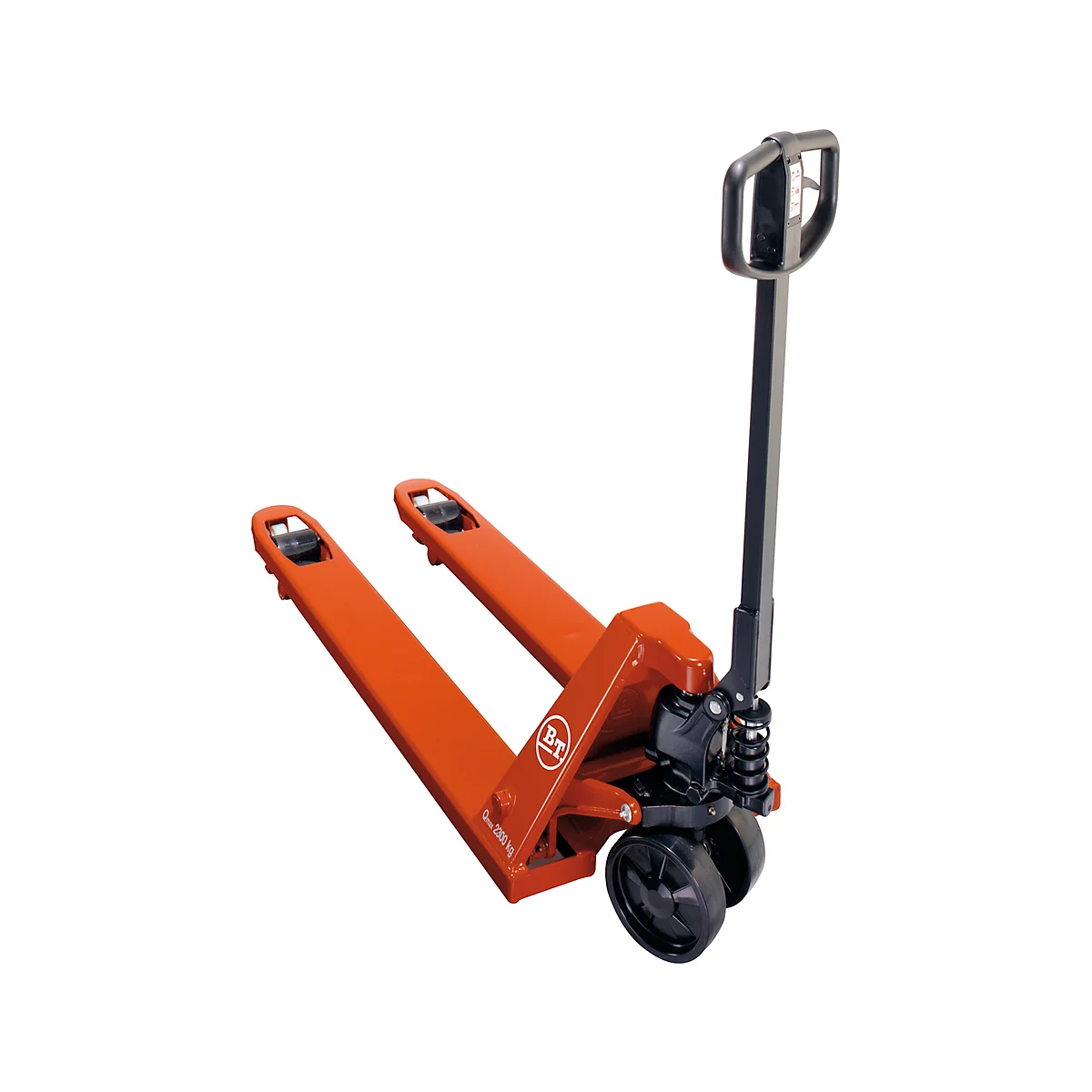

Pallet truck, lift, VG/PU, without Quick-Lift, single, 800 mm Item number: 77291			Fr. 746.00 Amount + - Added times

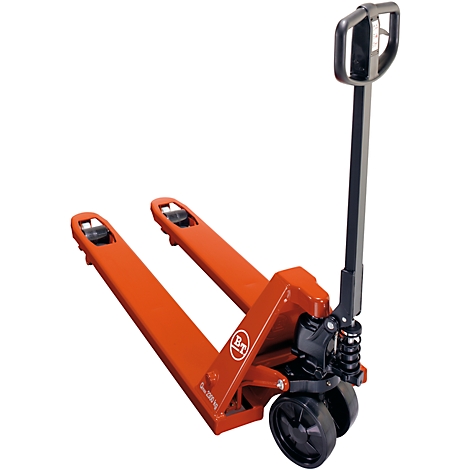

Pallet truck, lift, VG/PU, without Quick-Lift, single, 2000 mm Item number: 77319			Fr. 1’680.00 Amount + - Added times
