Product Safety Information

Pallet truck, forklift, PU/PU, with Quick-Lift, single, fork length 1150 mm

General information

EU authorized representative E-mail address

info@de.toyota-industries.eu

EU authorized representative Name

Toyota Material Handling Deutschland GmbH

EU authorized representative Place

Isernhagen

EU authorized representative Postal code

30916

EU authorized representative Street & house number

Hannoversche Straße 113

EU Plenipotentiary Country

Deutschland

Product safety instructions

Check the overload valve regularly to avoid overloading.;Wear protective clothing, including safety shoes, to prevent injuries when lifting or moving loads.;Only operate with the intended loads and do not exceed the maximum load capacity in order to minimise risks.;Only raise and lower the forks in the operating position.;Ensure suitable surfaces and make sure that the floor is level and stable before use to ensure stability and prevent accidents.;Users should be trained to operate the pallet truck safely and handle the available load correctly.;Safe use instructions and safety information should be provided in a language understandable to the user.;Avoid using the pallet truck in poor visibility or adverse weather conditions.;Ensure regular maintenance of the appliance in accordance with the manufacturer's instructions.

Article numbers

77302 77303

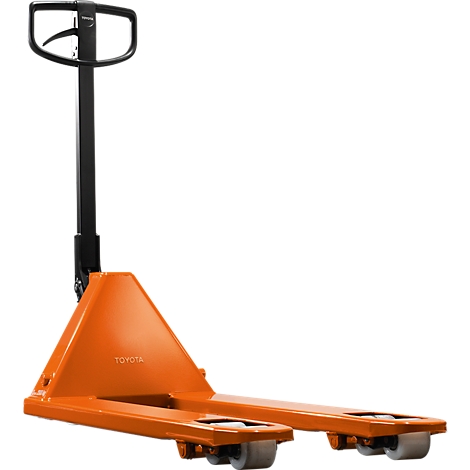

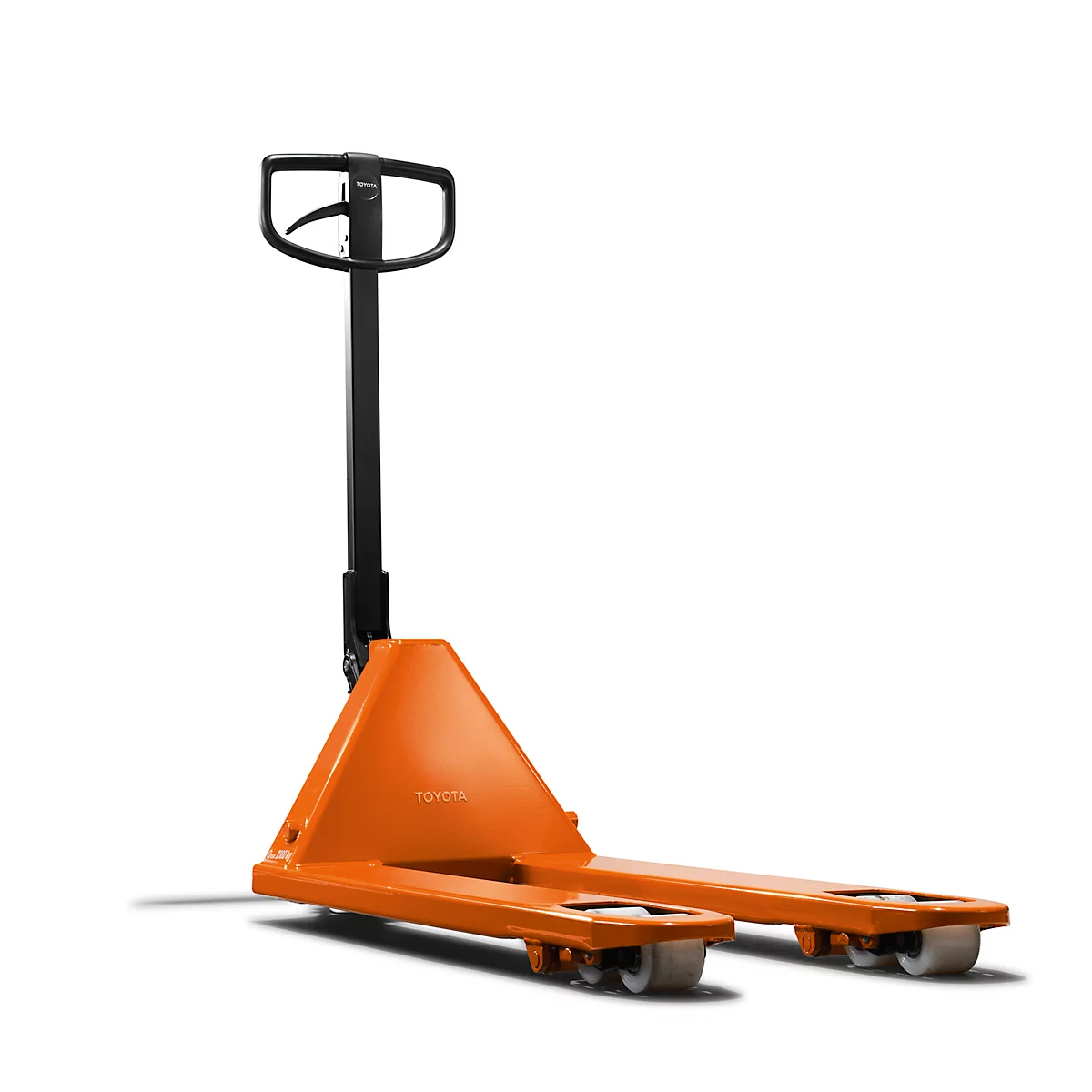

Pallet truck, forklift, PU/PU, with Quick-Lift, single, fork length 1150 mm

Name: Pallet truck, forklift, PU/PU, with Quick-Lift, single, fork length 1150 mm
Brand: Toyota
SKU: 7692025
Price: 809.0 CHF
Availability: InStock

Item number: 77302

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The high quality pallet truck "Lifter" from Toyota impresses with its long service life and environmentally friendly paint finish as well as its very good user-friendliness. It is also equipped with a marking for the transverse pick-up of a Euro pallet, with Teflon coated bearings and with an overload valve that prevents incorrect operation.
Swivel castors:
Polyurethane: wear-resistant and low-noise
Castors:

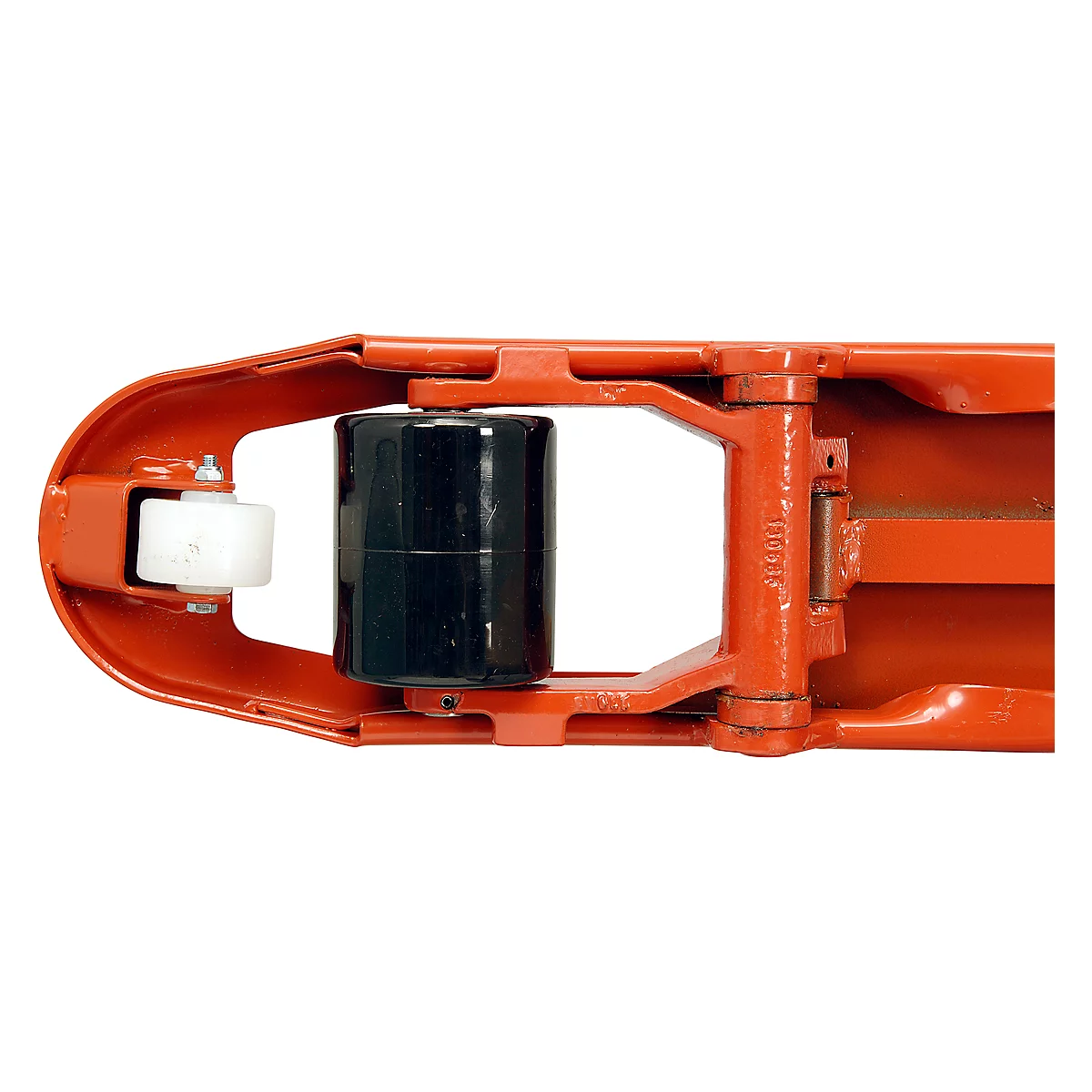

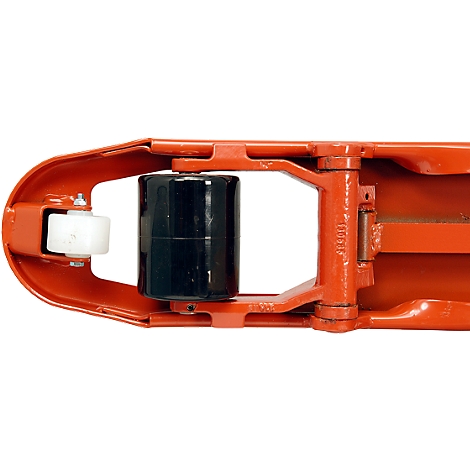

- Single castor with climbing castor: for level floor, for transverse pallet pick-up, for manoeuvring in confined spaces.

10 or 12 grease nipples for a long service life
Rated capacity: 2300 kg
Reduced rated capacity: 2000 kg
Lifting height: 200 mm
Dimension over fork: 520 mm
Fork width: 156 mm
Fork length 800 or 1150 mm
Fork height when lowered: 85 mm
Swivel castor diameter: 175 mm
Castor width: 60 mm
Weight: approx. 65 kg
Warranty: 5 years (excluding wear parts)
Colour: Red

Advantages for you

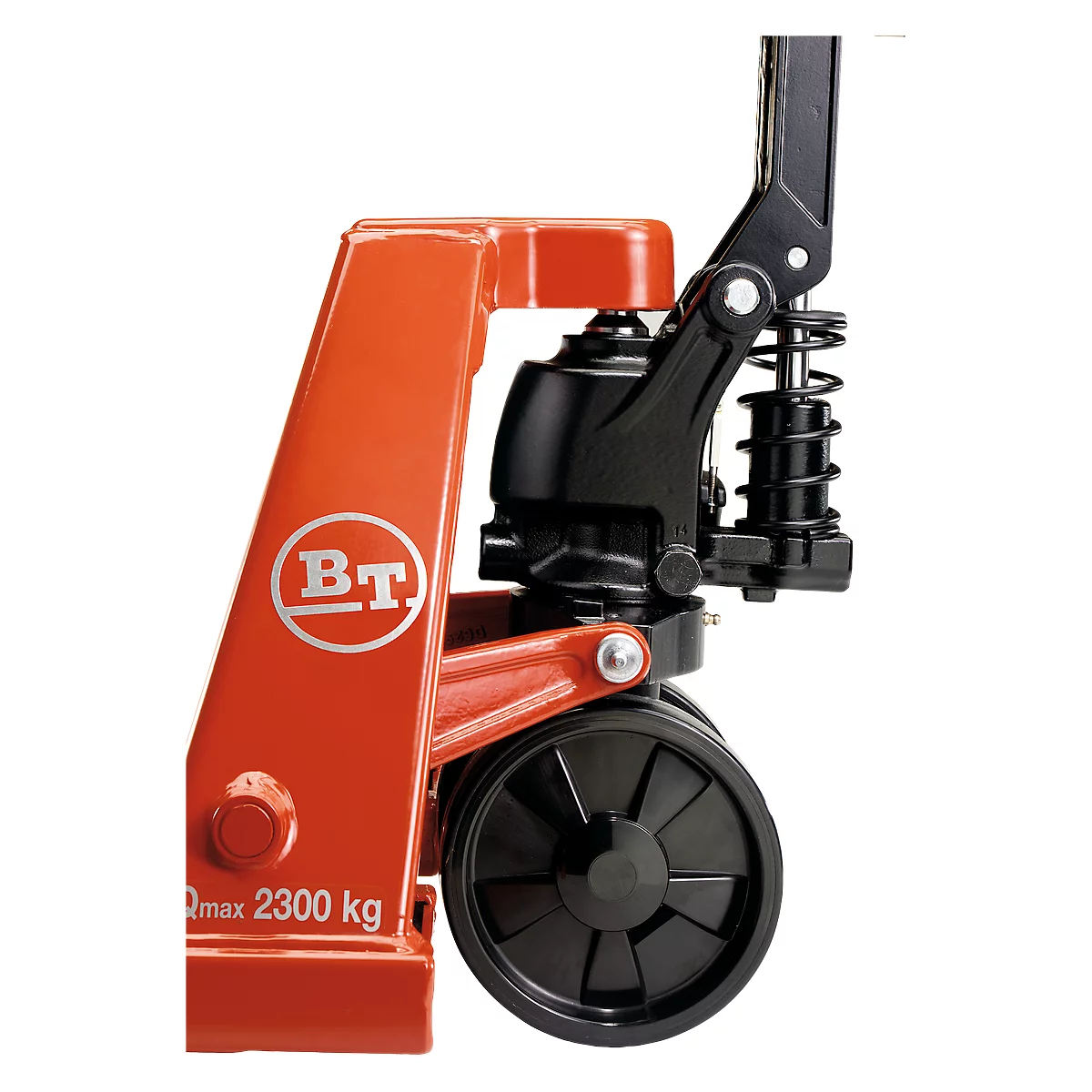

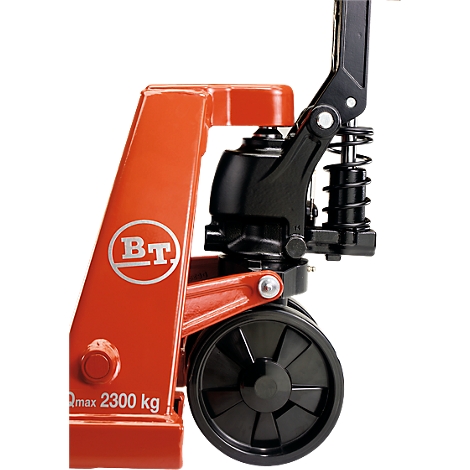

With manual lift drive for easy handling With a lifting range of 85 - 200 mm, the pallet truck can carry the product loads over floor irregularities

Show moreShow less

Technical data

General features
Color Toyota Orange
Color of the pull-up bar black
Delivery Mounted
Design of fork wheels Polyurethane
Diameter of the load rollers (mm) 85
Diameter steering wheels [mm] 175
Diameter swivel castors [mm] 175
External fork spacing [mm] 520
Fork length [mm] 1150
Fork width [mm] 156
Lift drive manually
Load capacity [kg] 2300
Load capacity [kg] 2000
Material Swivel castors Polyurethane (PU)
Minimum height 40
Steering angle [°] 180
Steering wheel design Simply
Steering wheels material Polyurethane (PU)
Stroke range [mm] 85 - 200
Swivel castor version Tandem
Total height [mm] 1370
Total length (mm) 1515
Total width [mm] 520
Turning radius [mm] 1370
Weight [kg] 65

Download

ProductSafety_10115368.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 809.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Fork length [mm]: 1150 mm

1150 mm 800 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Pallet truck, lifter, PU/PU, with Quick-Lift, single

Overview of the possible item variants. For more information, click on the respective variant.

Fork length [mm]

Item			Price
Pallet truck, forklift, PU/PU, with Quick-Lift, single, fork length 1150 mm Item number: 77302			Fr. 809.00 Amount + - Added times
Pallet truck, forklift, PU/PU, with Quick-Lift, single, fork length 800 mm Item number: 77303			Fr. 809.00 Amount + - Added times
