Product safety instructions

Risk of falling due to the high weight of the scales (55 kg).;Observe protection against dust and splash water in accordance with protection class IP67.;Read the operating instructions carefully before commissioning.;For operation with a mains connection, only use the universal mains adapter supplied and ensure that the adapter has the correct voltage and frequency.;Pay attention to battery operation; accuracy may be impaired if the battery is low.;Do not overload the scale; do not exceed max. 3000 kg. Do not use the scale above the maximum weighing range of 600 kg for smaller models to avoid damage.;The hold function should be used in unstable weighing conditions, especially when weighing animals.;Make sure to distribute heavy loads evenly to prevent the scales from tipping over.;Only use the scales on a stable, level surface to avoid incorrect measurement results.;Avoid contact with water to prevent damage; the scale is protected against splashing water but is not designed for underwater applications (IP67).;In the event of problems or technical defects, do not open the device yourself - contact technical support.;The appliance is not suitable for use by children without supervision.;Improper calibration can lead to inaccurate measurement results - use the CAL calibration programme with an external calibration weight.;Ensure that the scale is serviced regularly to ensure its accuracy and functionality.

Article numbers

157194 157195 157196

Floor pallet scale Kern UIB, with indicator, max. weighing range 600 kg

Name: Floor pallet scale Kern UIB, with indicator, max. weighing range 600 kg
Brand: Kern
SKU: 7721857
Price: 1199.0 CHF
Availability: InStock

Item number: 157194

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

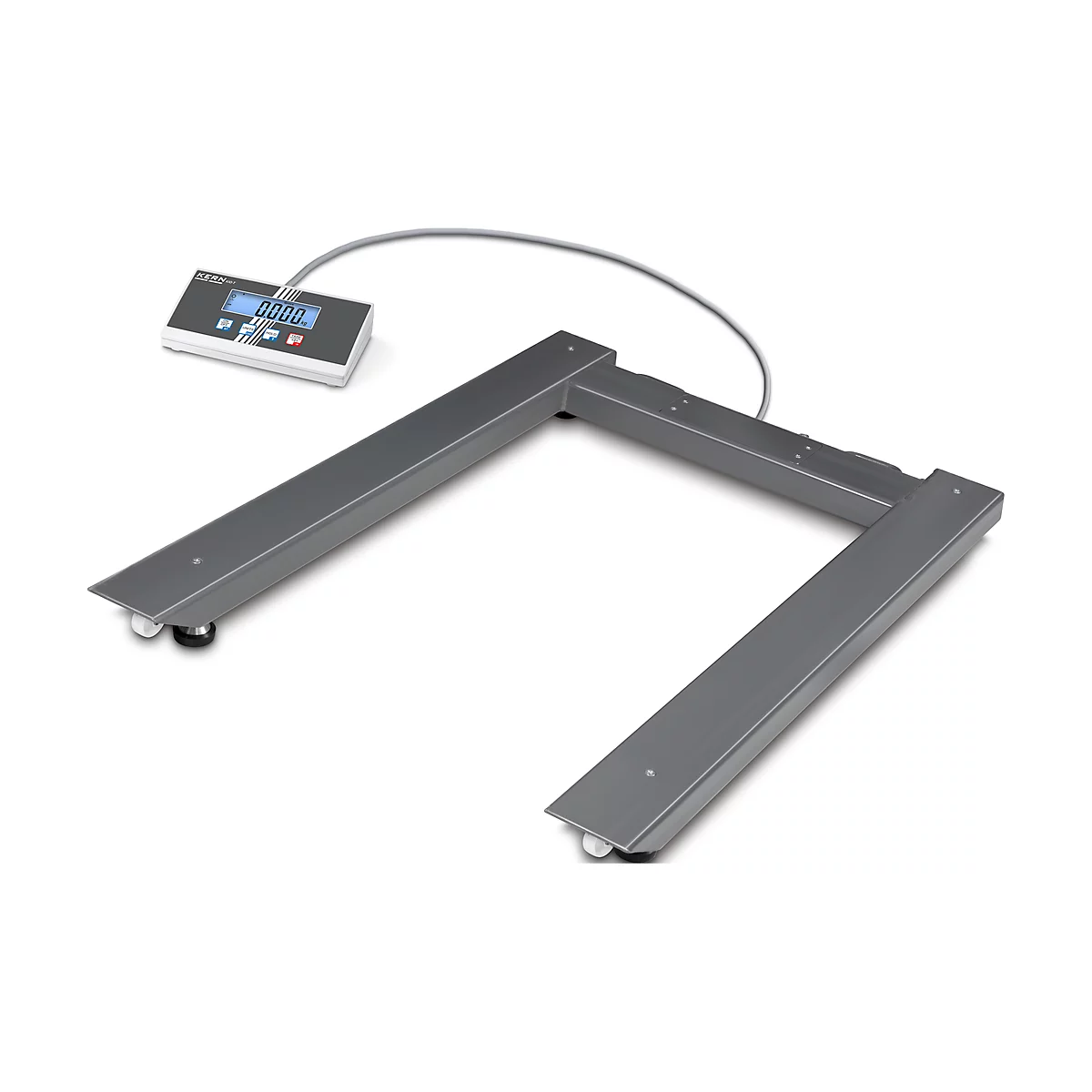

The UIB pallet scale and floor scale from Kern is equipped with a display unit including a large LCD display. The digit height of 25 mm ensures good legibility during operation. It also demonstrates high performance in terms of functionality. Its accuracy can be individually adjusted using the CAL adjustment program. The practical hold function provides support in unstable weighing conditions, such as when weighing animals. In addition, weight values and counting parts can be totalized. You can easily switch to non-metric weighing units at the touch of a key. The universal power adapter included in the scope of delivery is equipped with optional input plug adapters, so that the pallet scale can be used in the EU area as well as in Great Britain and the United States. In addition, thanks to battery operation (up to 60 hours), castors and a practical handle, it impresses with its high flexibility of location and operating time.

We offer the UIB pallet scale and floor scale from Kern in various versions for different weighing ranges and readability values.

Further details:

- With display unit incl. large LCD display with 25 mm digit height.

- Equipped with CAL calibration program for setting the accuracy (external calibration weight required for this) and practical hold function for unstable weighing conditions (e.g. animal weighing)

- Option of totalizing weights and counting parts as well as switching to non-metric weighing units at the touch of a key

- Up to 60 hours of operating time

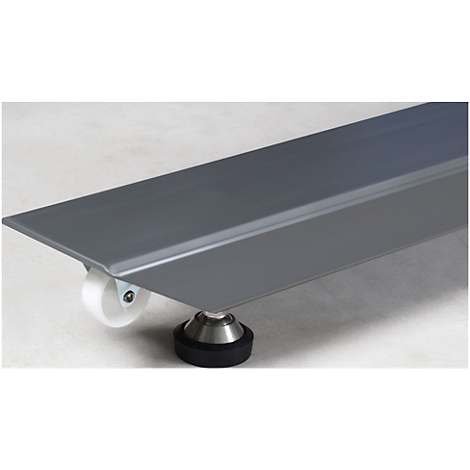

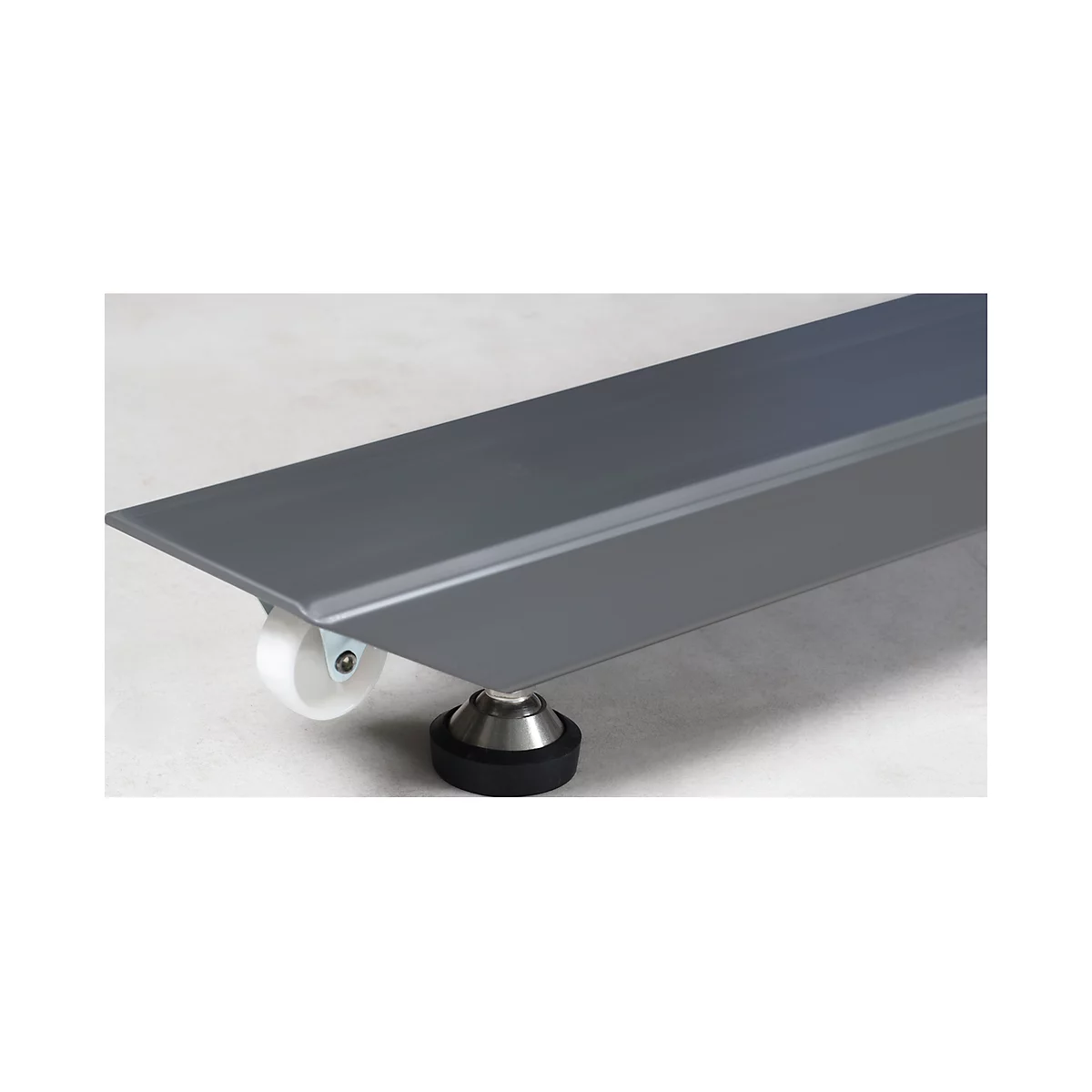

- Particularly mobile thanks to battery operation, casters and handle as well as lightweight design

- Protected against dust and splash water with IP67 protection class

- Supplied with protective work cover and universal mains adapter with optional input plug adapters for EURO, UK and US

- Various weighing ranges: Version optionally for 600 kg, 1500 kg or 3000 kg.

- Different readability values: version optionally for 0.2 kg, 0.5 kg or 1.0 kg

- Weighing platform material: powder-coated steel in each case

- Weighing platform dimensions: each W 840 x D 1195 mm

- Overall dimensions: W 840 x D 1195 x H 110 mm in each case

- Net weight: approx. 55 kg each

Show moreShow less

Technical data

General features
Balance type Pallet scale
Depth [mm] 1195
Division/reading accuracy [g] 200
Height [mm] 110
Interface no
Material weighing plate Stainless steel
Power supply Battery
Readability [g] 200
Weighing platform depth [mm] 1195
Weighing platform width [mm] 840
Weighing range (kg) 600
With calibration No
Colors
Color grey
Dimensions
Width [mm] 840
