Product Safety Information

Pallet chassis, with welded raised loading area, polyamide tires, 1230 x 830 mm

General information

EU authorized representative E-mail address

info@rollcart.de

EU authorized representative Name

Gabriel Transportsysteme GmbH

EU authorized representative Place

Eslohe

EU authorized representative Postal code

59889

EU authorized representative Street & house number

Frielinghausen 26

EU Plenipotentiary Country

Germany

Product safety instructions

Check regularly for damage to the chassis and ensure that it is being used safely.;When using heavy loads, ensure that the maximum load capacity of 1,200 kg is not exceeded.;Ensure that the castors are correctly adjusted and use the brakes to secure the chassis during loading and unloading.;Wear suitable protective clothing, especially when handling heavy loads.;Keep the area around the chassis clear of obstacles during operation to prevent falls and collisions.

Article numbers

129837 129838 129839

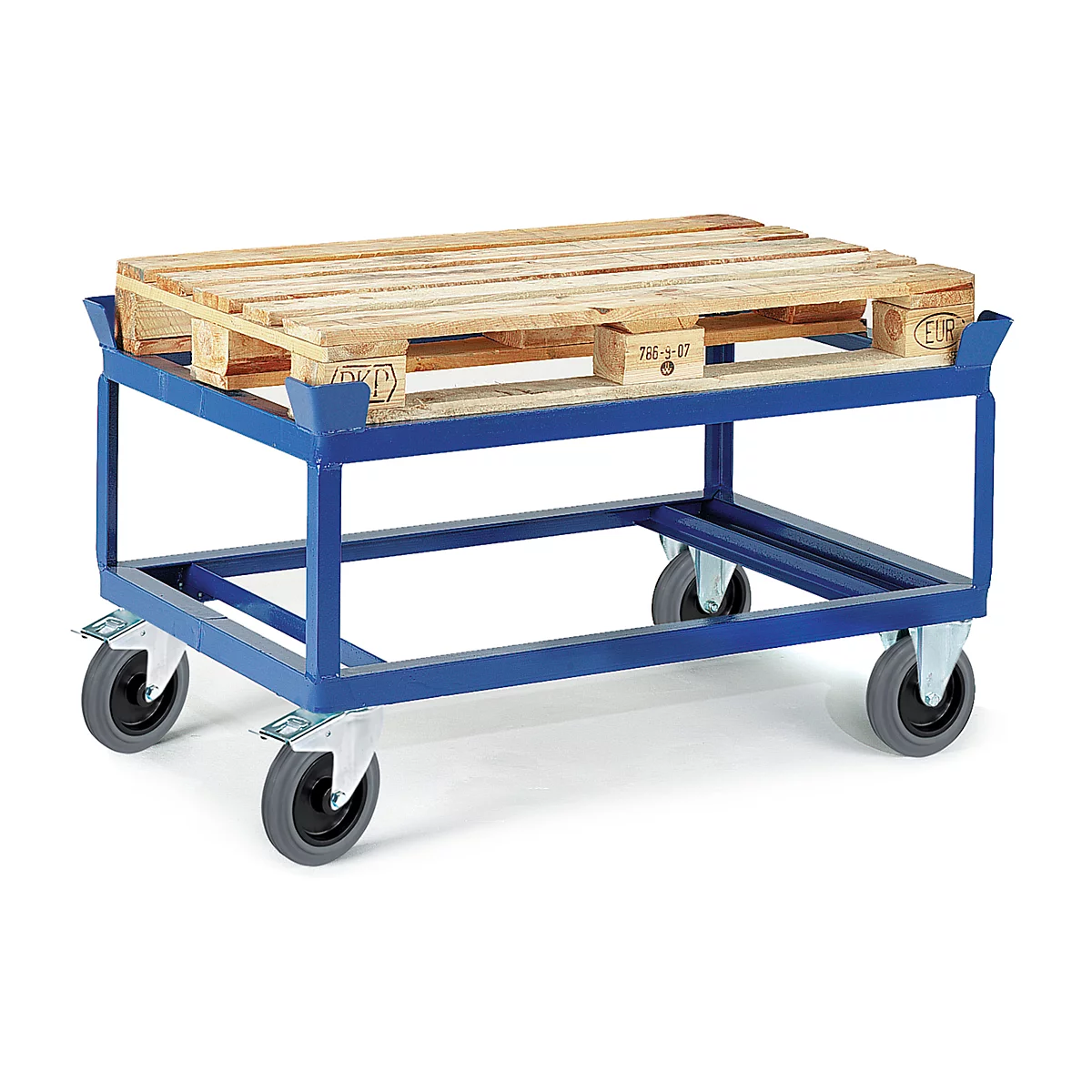

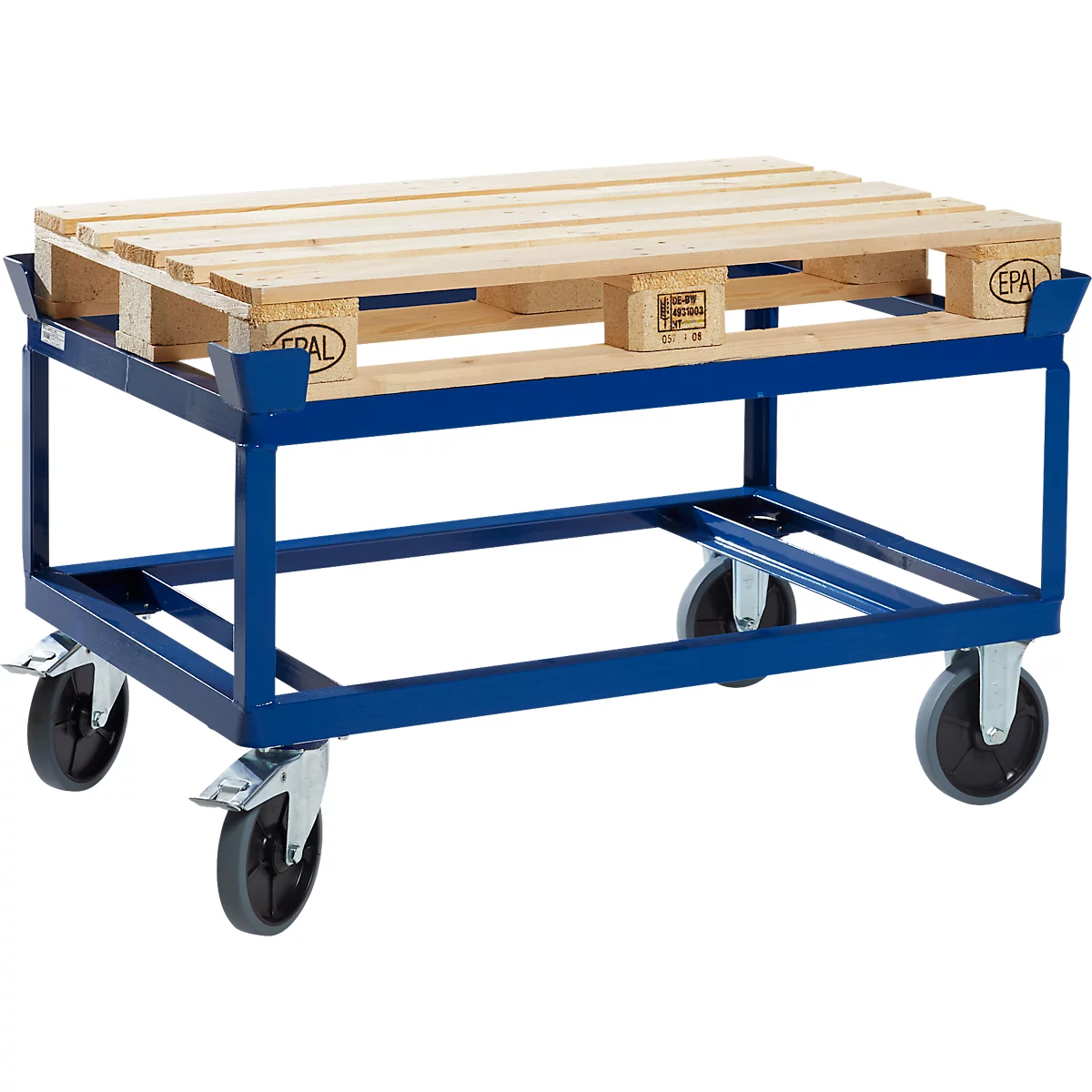

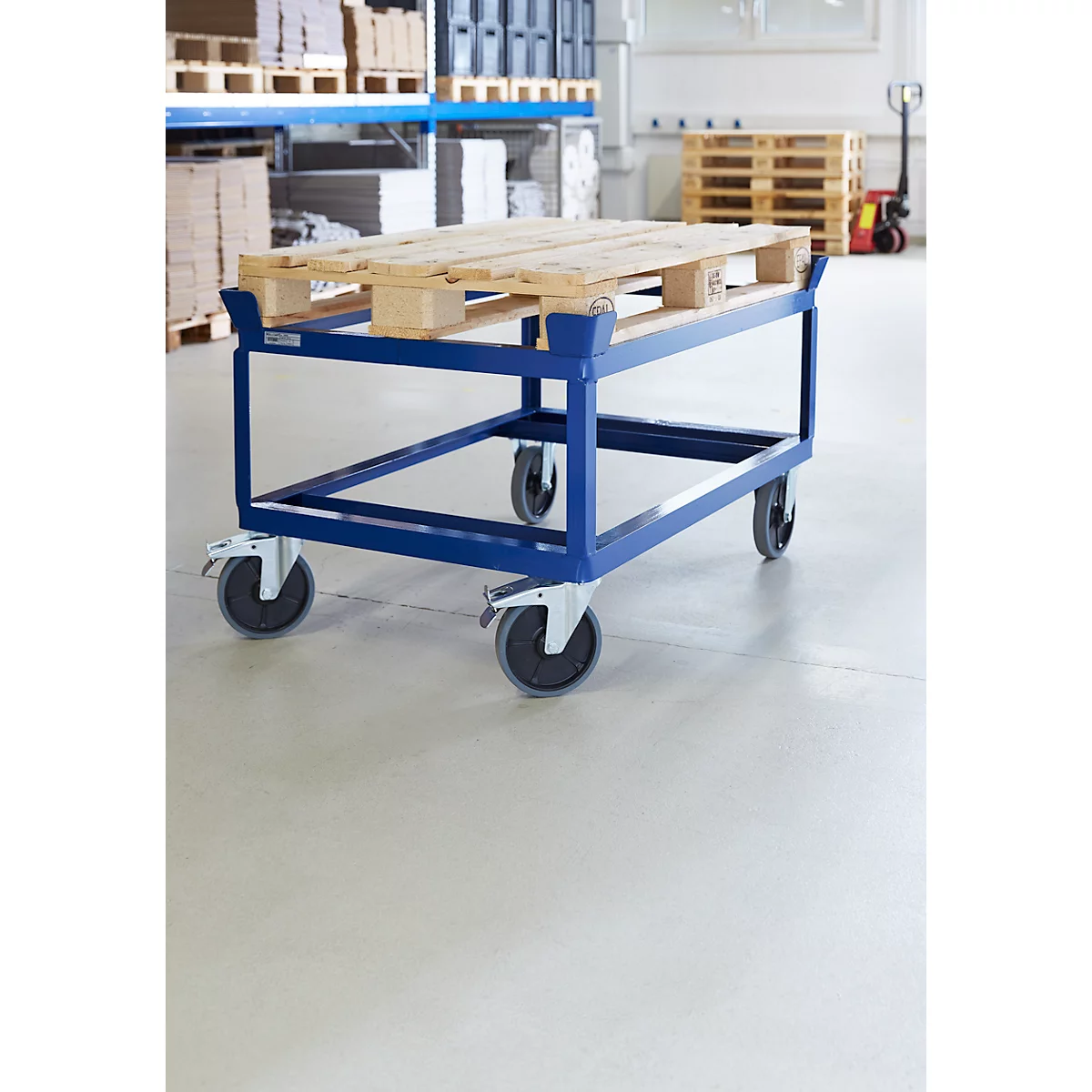

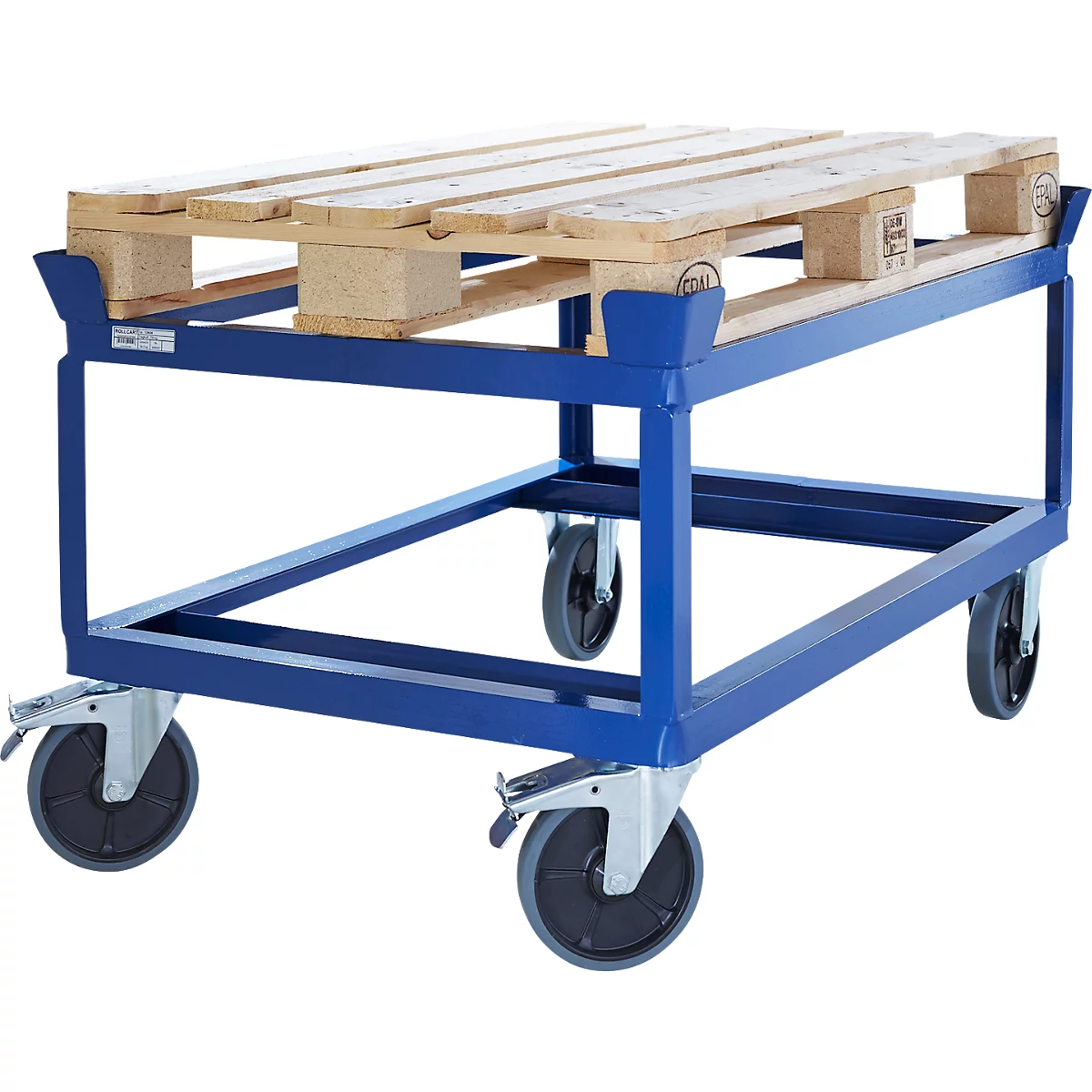

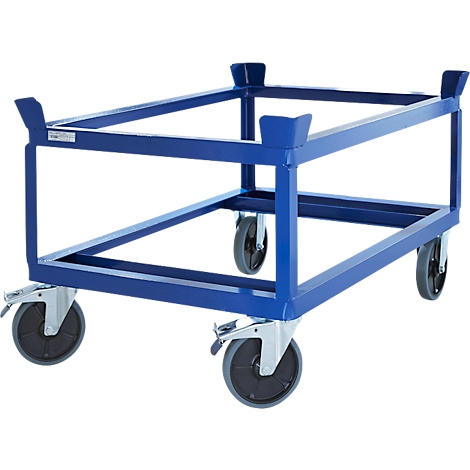

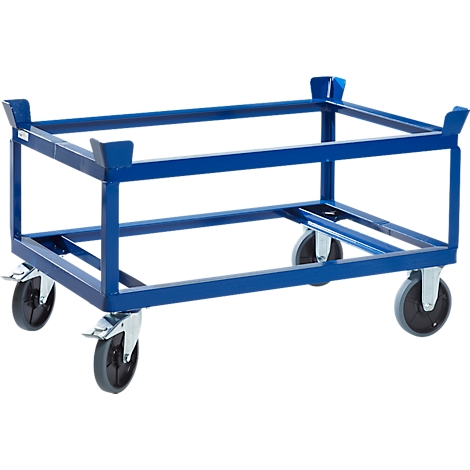

Pallet chassis, with welded raised loading area, polyamide tires, 1230 x 830 mm

Item number: 129837

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Angled steel base frame (50/50/5 mm). Swivel castors with polyamide tires, galvanized housing, brakes on the swivel castors in accordance with European standard EN 1757-3. Fixed castors (non-rotating), with polyamide tires, galvanized housing. With catch plates on all corners for safe loading of the pallet trolleys. Powder-coated in gentian blue (RAL5010).

Further details:

Loading area: 1230 x 830 mm
External dimensions: 1300 x 900 mm
Loading surface height: 650 mm
Load capacity: 1,200 kg
Wheel Ø: 200 mm
Wheel material: Polyamide
Tare weight: 55 kg

Show moreShow less

Technical data

General features
Height [mm] 650
Load capacity [kg] 1200
Material Steel
Material frame Steel
Material rolls Polyamide (PA)
Stackable No
Stacking capacity (kg) 1200
Tyres Polyamide rollers
Weight [kg] 55
Wheel/roller diameter (mm) 200
Wheel/roller finish 2 swivel castors / 2 fixed castors
Colors
Color gentian blue RAL 5010
Dimensions
Length of loading area [mm] 1210
Length [mm] 1280
Loading area L x W x H [mm] 1210 x 810 x 650
Loading height (mm) 650
Width loading area [mm] 810
Width [mm] 880

Schäfer Shop Quality and Service

Special features of this product

only Fr. 408.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Material rolls: Polyamide (PA)

Polyamide (PA) Thermoplastic elastomers (TPE) Elastic, Solid rubber

show all variants

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment

Similar Products

Schäfer Shop Pure Pallet trolley on wheels, L 1210 x W 810 mm, red

only Fr. 273.00 from Fr. 273.00
per Pcs.

Our recommendations for you

Variants

Overview of variants - Pallet chassis, with welded raised loading area, polyamide tires

Overview of the possible item variants. For more information, click on the respective variant.

Material rolls

Item			Price
Pallet chassis, with welded raised loading area, polyamide tires, 1230 x 830 mm Item number: 129837			Fr. 408.00 Amount + - Added times

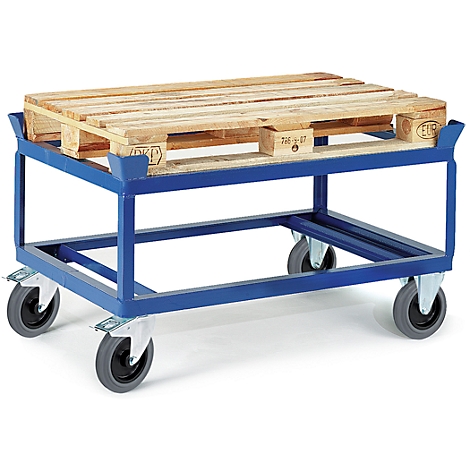

Pallet trolley, loading area L 830 x W 1230 x H 650 mm, for up to 750 kg, swivel & fixed castors, TPE tires, steel Item number: 129838			Fr. 420.00 from Our best price:Fr. 398.00per Pcs. from 5 Pcs. from 1 (Pcs.) Fr. 420.00 from 5 (Pcs.) Fr. 398.00 Amount + - Added times
Pallet chassis, with welded raised loading area, elastic solid rubber tires, 1230 x 830 mm Item number: 129839			Fr. 524.00 from Our best price:Fr. 504.00per Pcs. from 5 Pcs. from 1 (Pcs.) Fr. 524.00 from 5 (Pcs.) Fr. 504.00 Amount + - Added times
No results
