Product Safety Information

Portable trolley tank for diesel fuel, 60 l, hand pump, hose 3 m

General information

EU authorized representative E-mail address

kontakt@cemo-group.com

EU authorized representative Name

CEMO GmbH

EU authorized representative Place

Weinstadt

EU authorized representative Postal code

71384

EU authorized representative Street & house number

In den Backenländern 5

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not store or operate in closed rooms.;Do not store the mobile tank system above 20 °C to avoid overpressurisation.;Protect the container from force or impact to prevent leaks or breakage.;Do not allow smoking or naked flames near the petrol station or during the refuelling process.;Observe the maximum delivery limit of the pump to avoid overfilling.;Check the hose and pump unit for leaks after each use.;Take care when removing fuel - do not overheat or leave the pump unattended.;Only use the tank for diesel fuels, avoid other liquids.;Ensure ventilation during operation.;Only allow trained personnel to operate, especially in the case of electric pumps.;Childproof lock: Keep out of the reach of children.;Check for visible damage or leaks before use.;Do not overfill the tank to avoid leakage and environmental damage.;Danger due to the transport of fuels - use only in authorised quantities.;Risk of electric shock: For electric pumps, ensure that the connections are dry.;Mark the trolley as 'non-flammable'.;Always wear protective clothing and gloves when handling fuels.;Keep the tank away from ignition sources.;When filling, ensure that the tank is on a stable surface.;The tank is not suitable for the safe transport of highly flammable liquids.;Check the seals and hoses regularly for damage; do not use if damaged.;Keep children away from the product and staging area.

Article numbers

138545 138546 138547 138548 138549 138550

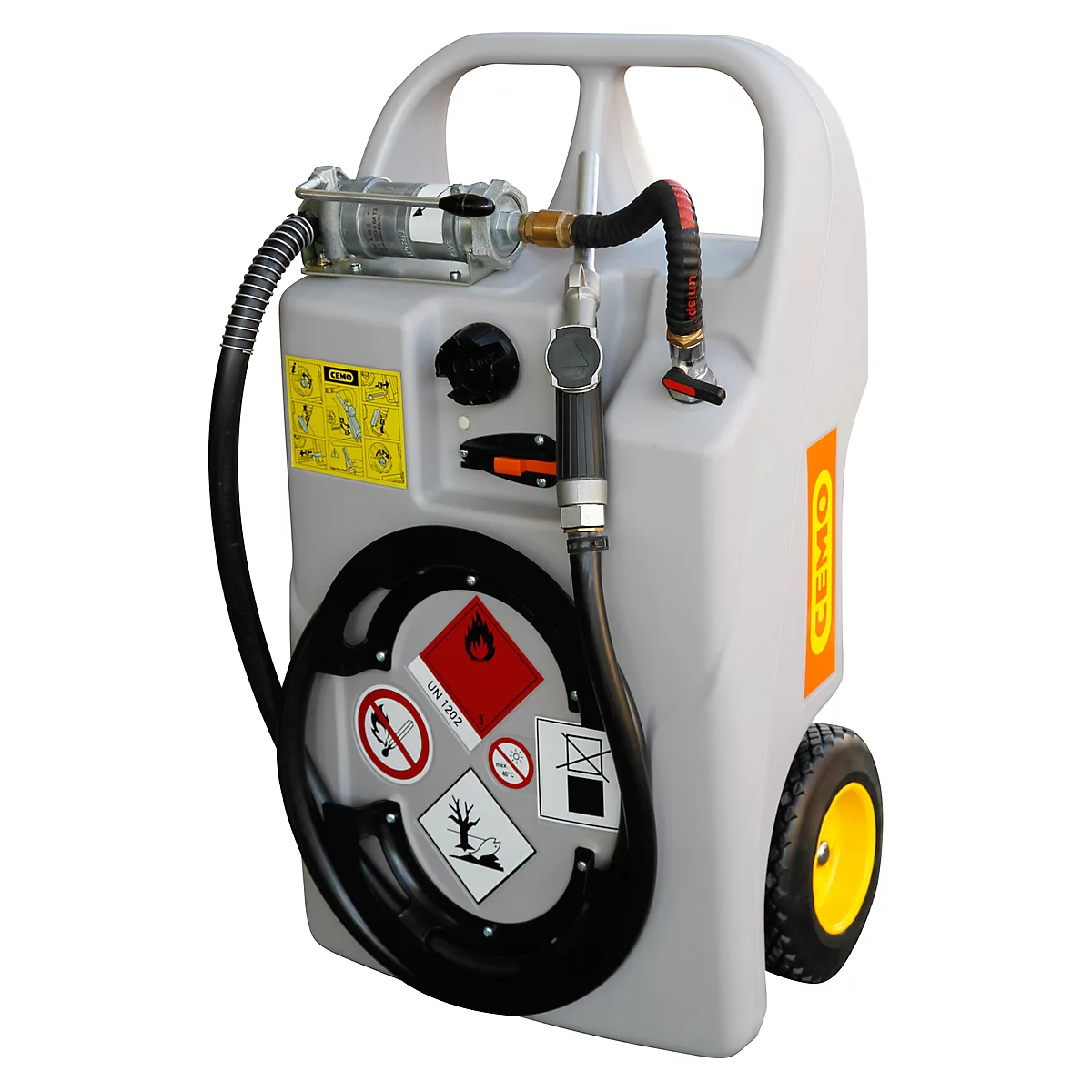

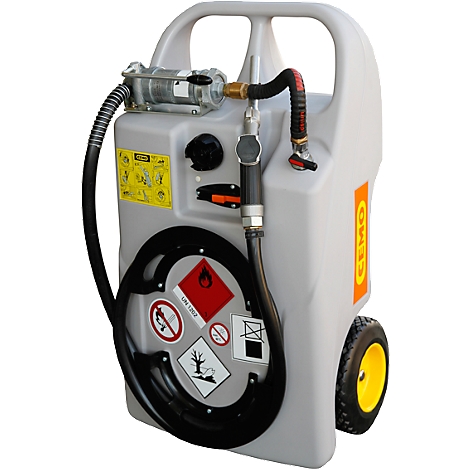

Portable trolley tank for diesel fuel, 60 l, hand pump, hose 3 m

Name: Portable trolley tank for diesel fuel, 60 l, hand pump, hose 3 m
Brand: Cemo
SKU: 7611949
Price: 868.0 CHF
Availability: InStock

Item number: 138545

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Bring fuels safely and conveniently to their destination with the mobile tank system Diesel Trolley. The system is designed for 60 l or 100 l and is available with different pump versions.

The mobile tank system is an excellent purchase to fill up your tank even when you are on the road. With the help of the diesel trolley, you can transport the fuel comfortably and safely - according to the regulations. The robust polyethylene plastic is designed for diesel. A baffle ensures that the trolley can be driven in a stable manner. Holding and carrying handles make handling as comfortable as possible. The heavy 100-litre models can also be secured with a ratchet strap; there is a recess on the tank specifically for this purpose.

A ventilation system is already integrated into the filler neck. The tank is also equipped with a nozzle holder. It can be transported comfortably on the sturdy castors. The 60-litre model is equipped with robust hard plastic castors, the 100-litre version with all-terrain pneumatic tyres. The two versions are each available with hand pump, electric pump or battery-powered pump.

Further details:

Tank Trolley for Diesel Fuels
Approved for transport and immediate consumption (ADR 1.1.3.1 c)
Integrated carrying and hand grips as well as nozzle holder
Filling nozzle has integrated aeration and ventilation
Withdrawal line with its own stopcock
Baffle for stable transport
Trolley 60 l: wheels made of hard plastic with a diameter of 240 mm
Trolley 100 l: pneumatic tyres, all-terrain, wheel diameter 300 mm; recess for fastening a ratchet lashing strap
Length of dispensing hose: 3 m
Available versions: Hand pump, electric pump, battery pump
Hand pump: 25 l/min, dispensing valve
Electric pump: CENTRI SP 30, 30 l/min, 12 V, self-priming, automatic nozzle, 4 m electric cable
Battery pump: CENTRI SP 30, 25 l/min, self-priming, battery 12.8 V 3.3 Ah, charger
Material: Polyethylene

Show moreShow less

Technical data

General features
Approval no. ADR 1.1.3.1C
Container type Trolley
Content (litres) 60
Depth [mm] 370
Dispensing nozzle/valve Tap valve
External height [mm] 530
Flow rate (l/min) 25
Handle yes
Height [mm] 900
Hose length (m) 3
Material Polyethylene (PE)
Mobile Yes
Outer width [mm] 900
Pump type Hand pump
Scope of delivery Diesel trolley, hand pump, hose
Version Hand pump
Volume (litres) 60
Weight [kg] 18
Width [mm] 530
Colors
Color grey

Download

ProductSafety_10152529.pdf

Schäfer Shop Quality and Service

only Fr. 868.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Content (litres): 60 l

60 l 100 l

Version: Hand pump

Hand pump Electric pump 12V

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Mobile tank unit diesel trolley, 60 l or 100 l, various pump versions, hose 3 m. Pump versions, hose 3 m

Overview of the possible item variants. For more information, click on the respective variant.

Content (litres)

Version

Item			Price
Portable trolley tank for diesel fuel, 60 l, hand pump, hose 3 m Item number: 138545			Fr. 868.00 Amount + - Added times

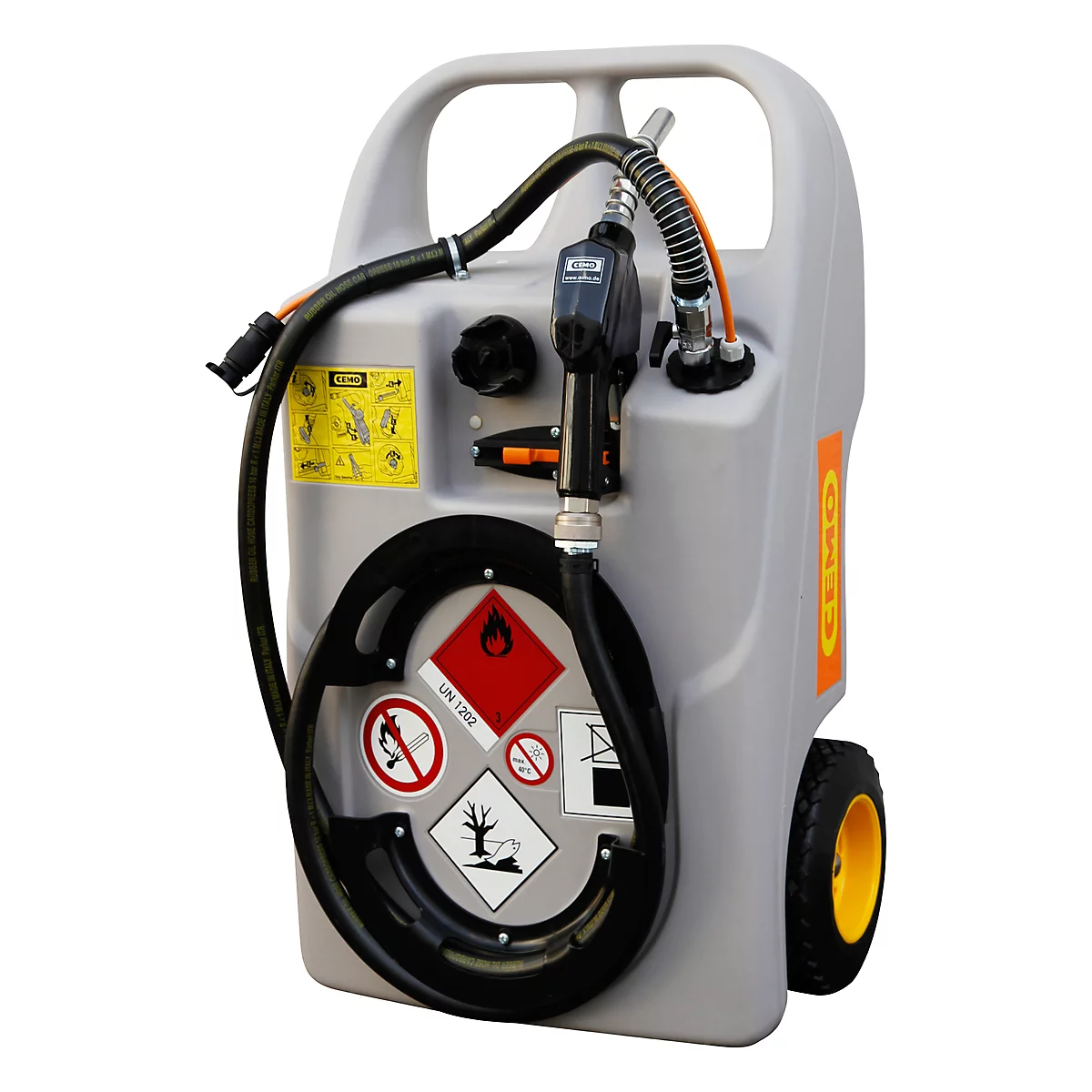

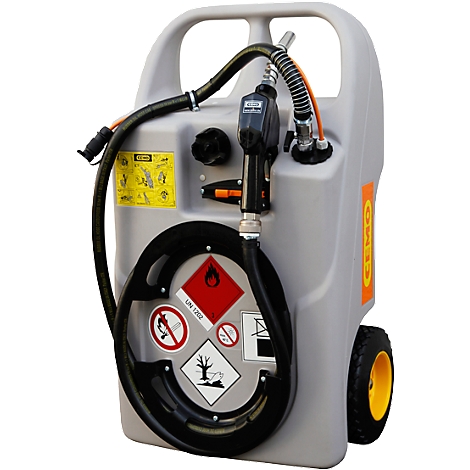

Portable trolley tank for diesel fuel, 60 l, electric pump 12 V, hose 3 m Item number: 138546			Fr. 827.00 Amount + - Added times

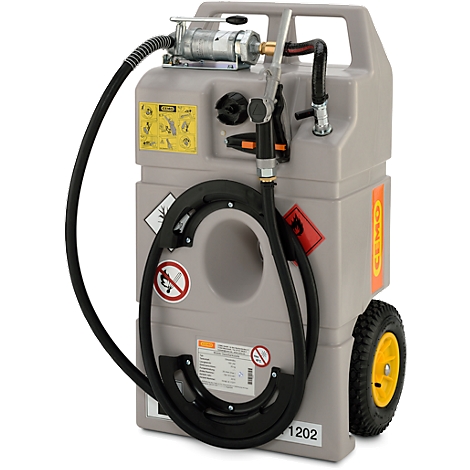

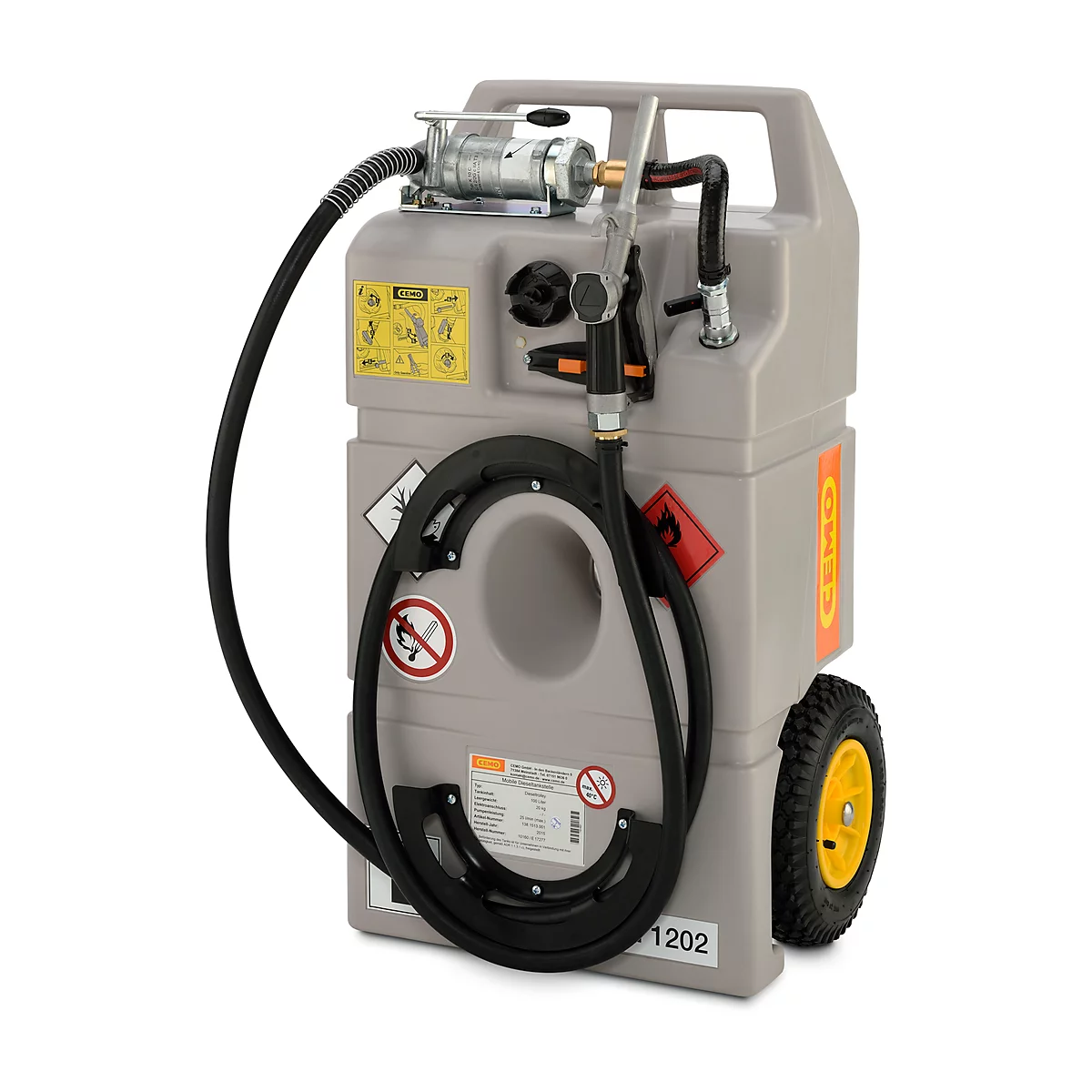

Portable trolley tank for diesel fuel, 100 l, hand pump, hose 3 m Item number: 138548			Fr. 997.00 Amount + - Added times

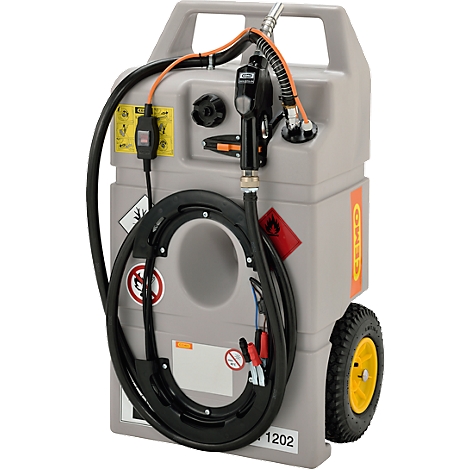

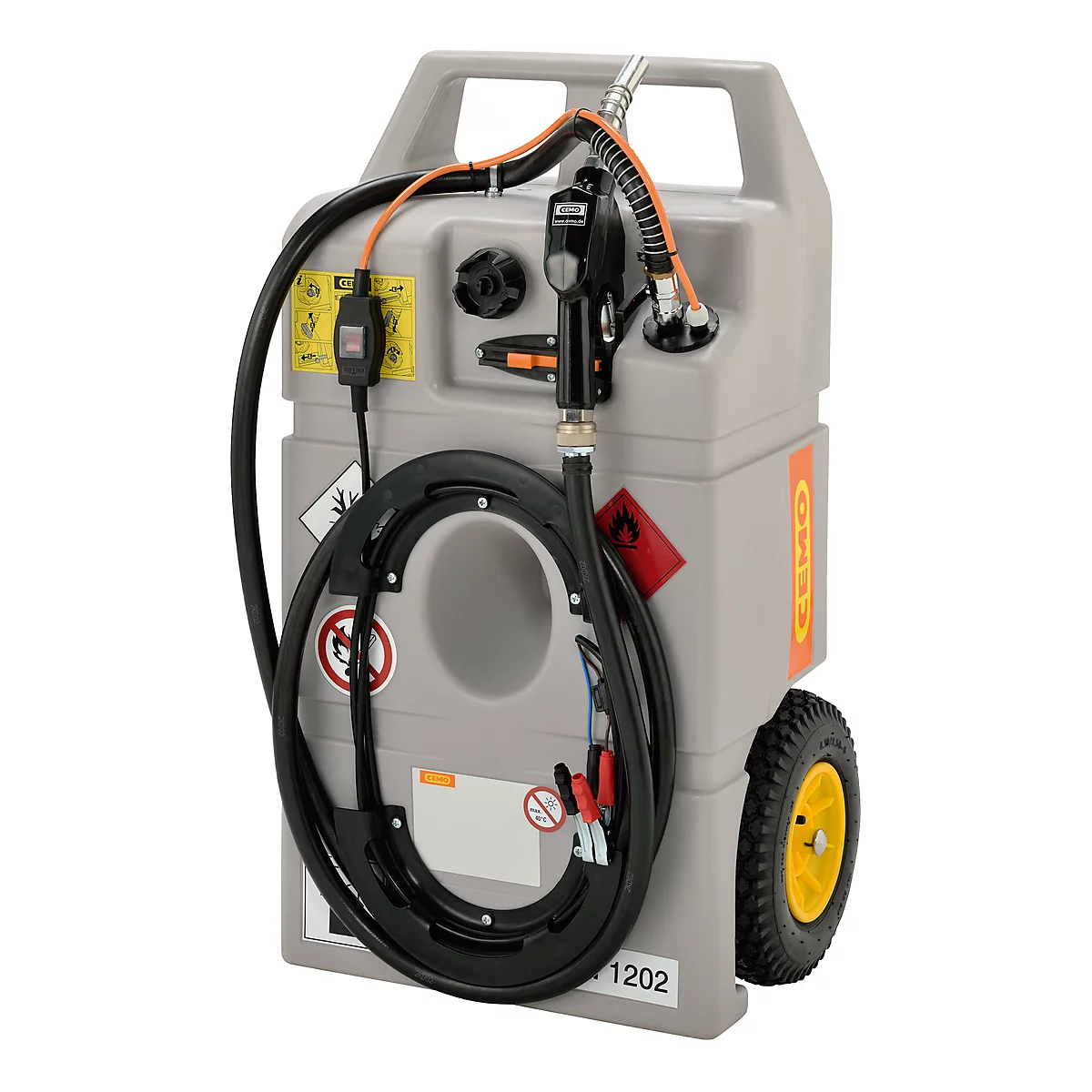

Portable trolley tank for diesel fuel, 100 l, electric pump 12 V, hose 3 m Item number: 138549			Fr. 997.00 Amount + - Added times
