Mobile collecting pan with perforated plate wall, made of steel, capacity 2 x 200 l barrels, galvanized

General information

Product safety instructions

The drip tray is suitable for the storage of hazardous substances in GHS categories 1-4. Flammable liquids in GHS categories 1-3 can be stored.;Only use the drip tray for the specified hazardous substances. Improper use can lead to hazardous reactions.;Maximum load: 1000 kg/m². Do not exceed a collection volume of 215 litres and a maximum of 200 litres per drum.;Children should not have access to the drip tray to avoid the risk of suffocation.;The tray is not suitable for storing food.;Carry out regular inspections for corrosion, damage and the functionality of the parking brakes.;Wear personal protective equipment such as protective gloves and safety goggles when handling hazardous substances.;Avoid direct contact with hazardous liquids. Wear suitable PPE.;Take safety precautions to prevent fires and environmental damage. Keep sources of fire away and do not store flammable materials in the vicinity.;If the drip tray is damaged, contact the manufacturer.;Danger due to improper handling: Leaks and environmental pollution can occur.;The ventilation of the work area must be sufficient to reduce vapours and hazardous gases.;Dispose of oil and other hazardous substances properly and in accordance with local regulations.;Only trained personnel should use the drip tray.;Only use mobility functions on level surfaces or in accordance with the manufacturer's instructions.

Article numbers

137577 137578 137579 137580 137581 137582

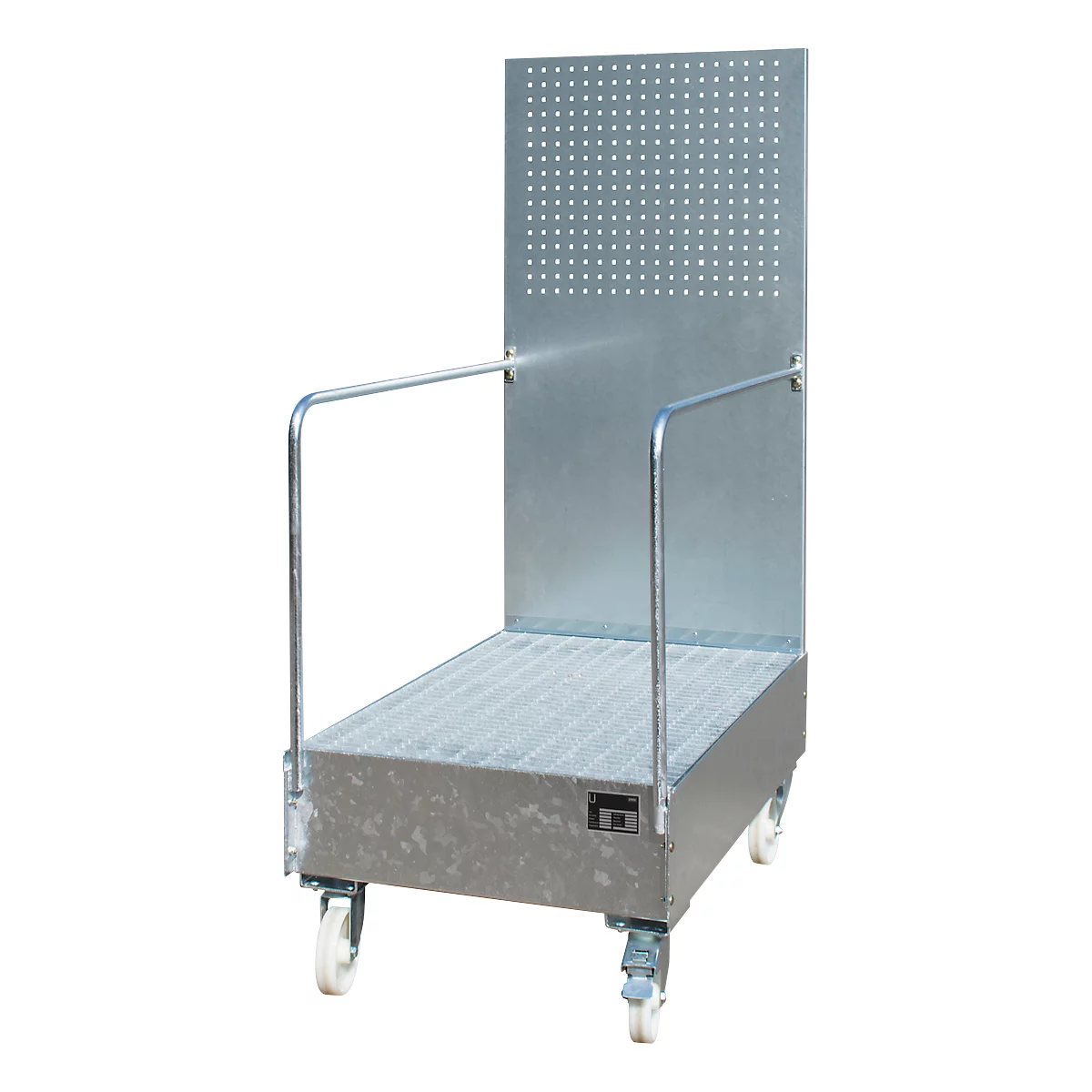

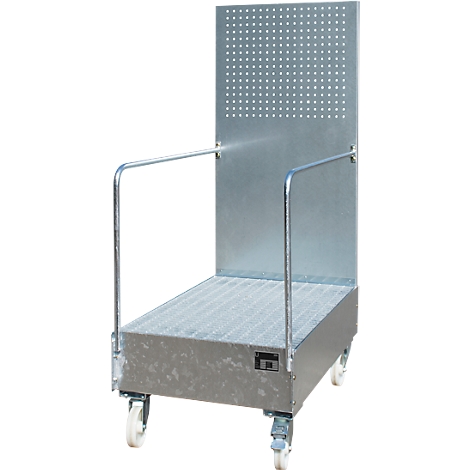

Mobile collecting pan with perforated plate wall, made of steel, capacity 2 x 200 l barrels, galvanized

Item number: 137577

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

You can use the mobile drip tray from Bauer for the mobile, safe and simple filling of oils and other flammable and water-endangering hazardous substances, from 60 l and 200 l drums, at various points of consumption. The tub itself is made of 3 mm sheet steel and has a galvanized grid with 1000 kg/m² load capacity. It is additionally equipped with a stable, galvanised sheet steel plate with square perforation and continuous grid for the positioning of tool holders. Mobility is guaranteed thanks to 2 swivel castors and 2 fixed castors, 1 of which is a swivel castor with brakes. We supply this mobile filling station with hot-dip galvanised push handles either galvanised or in various colour finishes. It measures L 1280 x W 800 x H 2015 mm (tub dimensions: L 1200 x W 800 x H 515 mm) and offers a capacity for the location-independent storage of 2 x 200 l drums.

Further details:

- For mobile, safe filling of hazardous substances from 200 l- drums equipped with 2 swivel and 2 fixed castors made of polyamide Ø 180 mm each.

- 1 swivel castor with brake, overall height 225 mm

- Galvanised sheet steel plate with 10 mm square perforation and grid, continuously spaced at 38 mm intervals for flexible positioning of tool holders

- Hot dip galvanised push handles

- Suitable for flammable liquids of GHS categories 1-3 and liquids hazardous to water of GHS categories 1-4

- Declaration of conformity (ÜHP) according to Stawa-R (steel sump directive) for sumps up to 1000 l

- Material: Collecting tray made of 3 mm sheet steel

- Galvanized grid, 1000 kg/m² load capacity

- Storage capacity: 2 x 200 litre drum upright

- Collecting volume: 215 litres

- Drum dimensions: L 1200 x W 800 x H 515 mm

- available in different colours

- Dimensions: L 1280 x W 800 x H 2015 mm

Show moreShow less

Technical data

General features
Accessible from below Yes
Approval no. general building approval
Capacity barrels 2 x 200 l
Collecting volume [l] 215
Color galvanised
Container type Barrels
Depth [mm] 800
Equipment 2 swivel and fixed castors, push handle, filling surface
Grid Yes
Grid material Steel
Grid surface galvanised
Hazardous substance type Flammable liquids GHS 1-3; Substances hazardous to water GHS 1-4
Height [mm] 2015
Length [mm] 1280
Load capacity (kg/m²) 1000
Load capacity [kg] 1000/sqm
Material Steel
Mobile Yes
Number of containers [pcs.] 2
Permeable wall thickness (mm) 3
Stackable No
Standard EN ISO 1461
Substructure Rollers
Surface galvanised
Undercarriage height (mm) 150
Weight [kg] 114
Width [mm] 1280

Download

ProductSafety_10147889.pdf

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 1’207.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: galvanised

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Mobile sump tray with perforated plate wall, made of steel, capacity 2 x 200-litre drums

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price
Mobile collecting pan with perforated plate wall, made of steel, capacity 2 x 200 l barrels, galvanized Item number: 137577			Fr. 1’207.00 Amount + - Added times

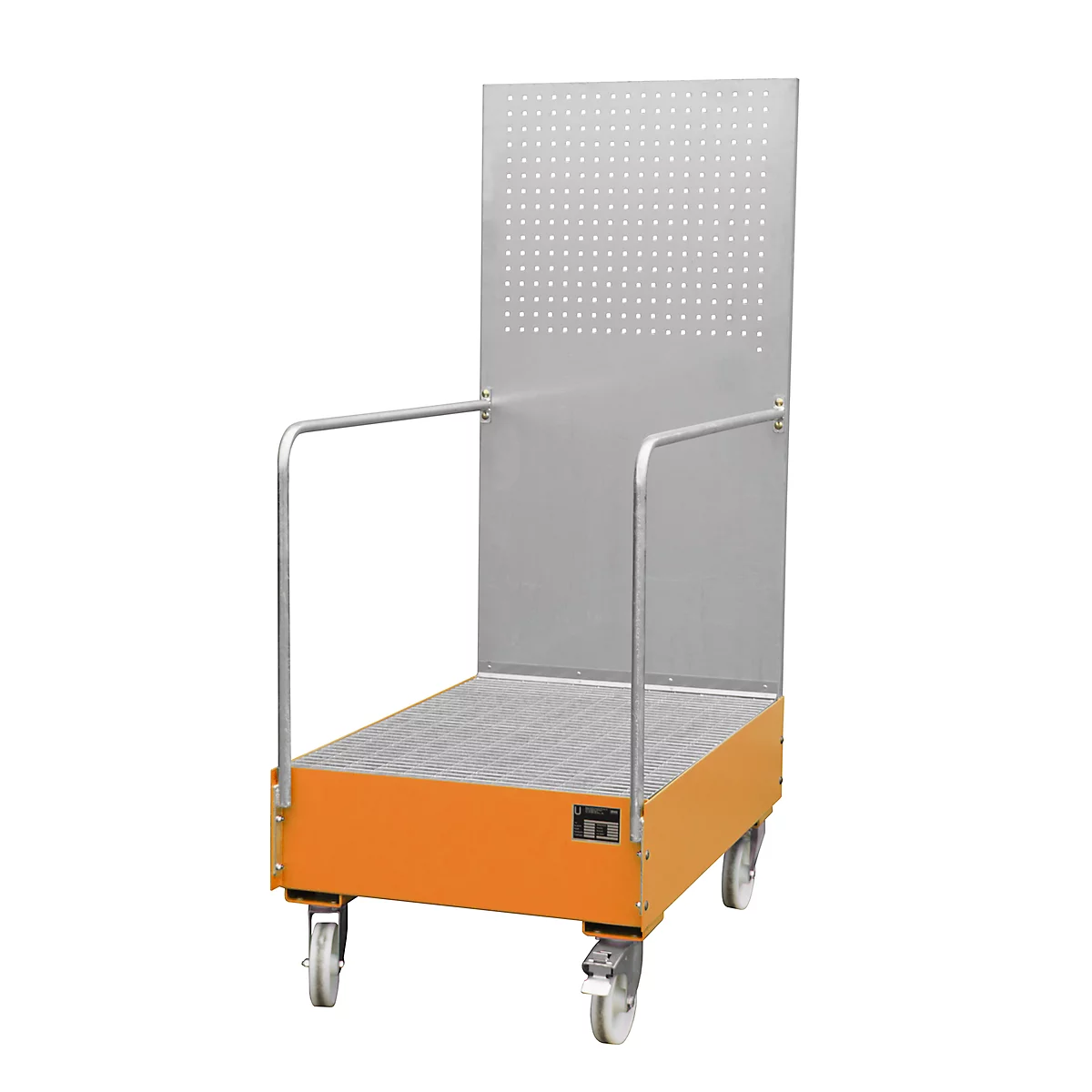

Mobile collecting pan with perforated plate wall, made of steel, capacity 2 x 200 l barrels, orange lacquered Item number: 137578			Fr. 1’155.00 Amount + - Added times

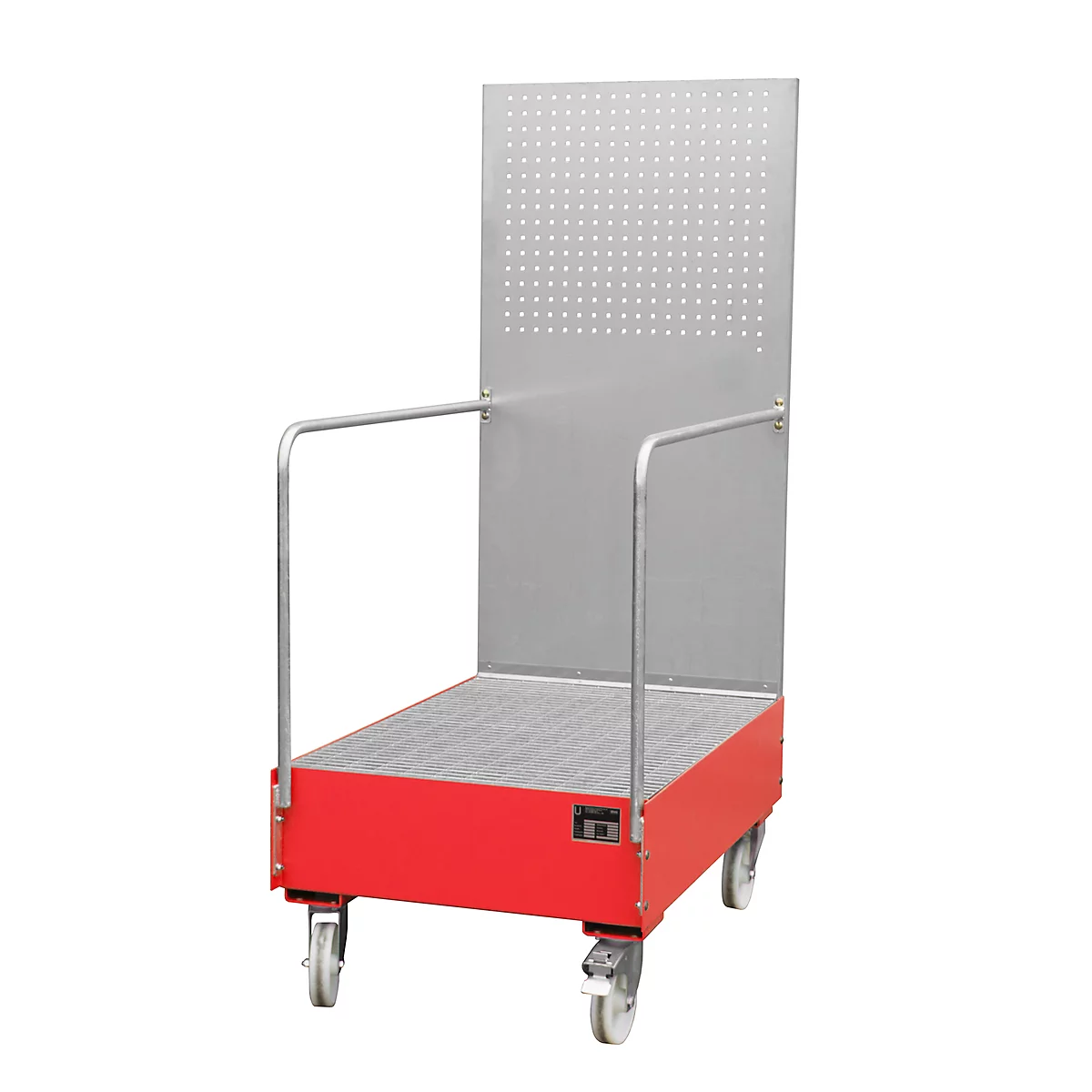

Mobile collecting pan with perforated plate wall, steel, capacity 2 x 200 l barrels, red lacquered Item number: 137579			Fr. 1’155.00 Amount + - Added times

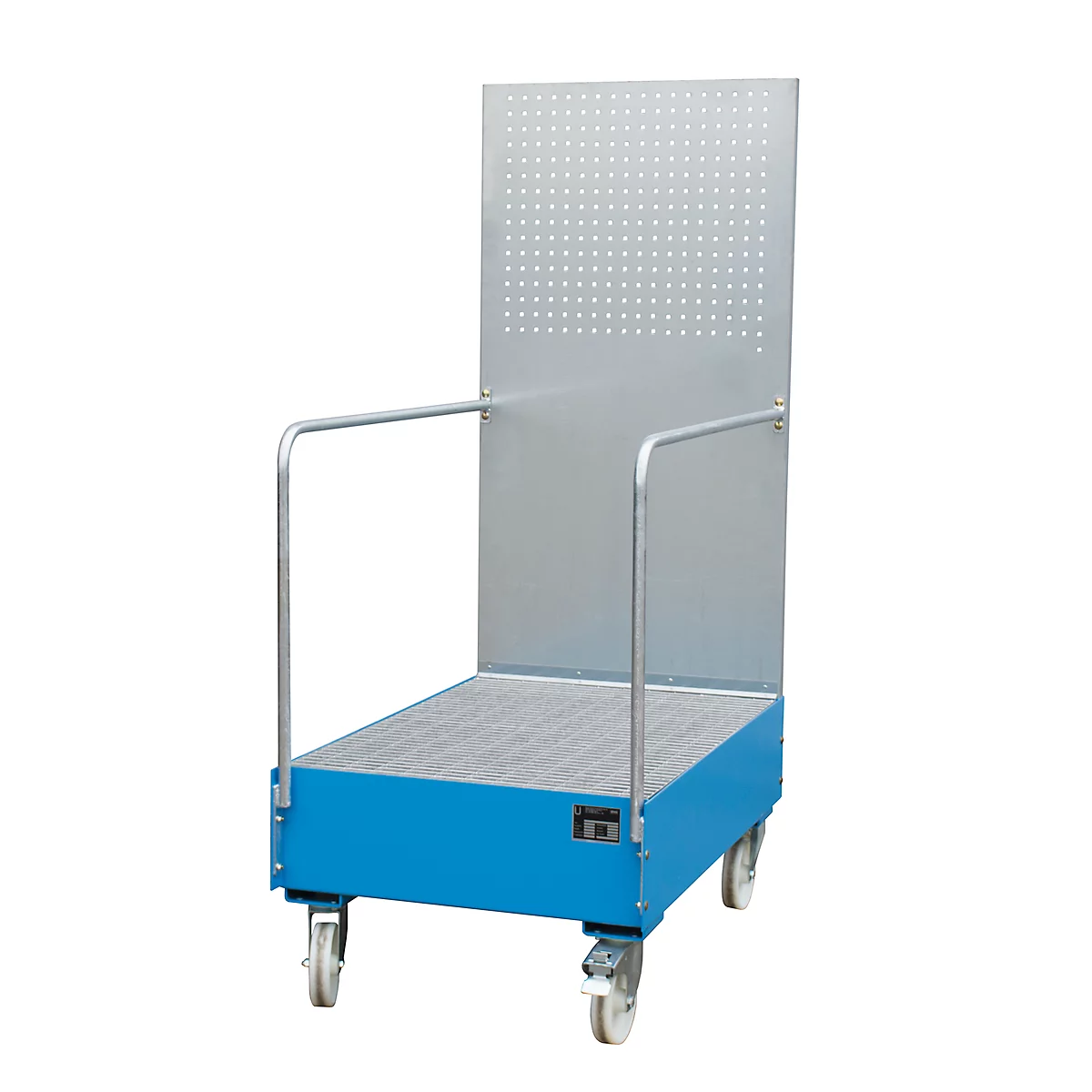

Mobile collecting pan with perforated plate wall, made of steel, capacity 2 x 200 l barrels, blue lacquered Item number: 137580			Fr. 1’155.00 Amount + - Added times
Mobile collecting pan with perforated plate wall, steel, capacity 2 x 200 l barrels, grey lacquered Item number: 137581			Fr. 1’155.00 Amount + - Added times
Mobile collecting pan with perforated plate wall, made of steel, capacity 2 x 200 l barrels, green lacquered Item number: 137582			Fr. 1’155.00 Amount + - Added times
No results

Accessories

Item			Price
Drip tray with nozzle gun holder, for mobile drip tray, galvanized Item number: 137586			only Fr. 78.80 from Fr. 78.80 per Pcs. - + Added times
